Dahua DH-SDT4E425-8P-GB-APV1 | 8MP AI 25x Zoom PTZ Camera

Name: Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Brand: Dahua
Price: 950.0 AUD
Availability: InStock

Build your setup Build a complete CCTV system Complete setup from $1,449.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count

None

Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder ~~$282.00~~$230.00

Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder ~~$356.00~~$286.00

Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder ~~$695.00~~$576.00

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7

None

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB $269.45

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB ~~$418.00~~$405.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB ~~$616.00~~$545.15

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB ~~$792.00~~$699.00

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.

Cable · 10m $13.00

1

Cable · 20m $28.00

1

Cable · 30m $40.00

1

Cable · 50m $65.00

1

§ 01Overview

What the DH-SDT4E425-8P-GB-APV1 is

Lens: 2.8mm.

Color options: White or Black.

Note: Please indicate your choice in your order message.

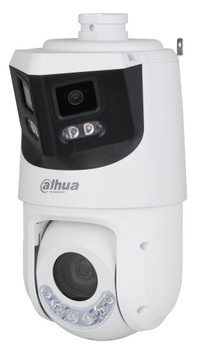

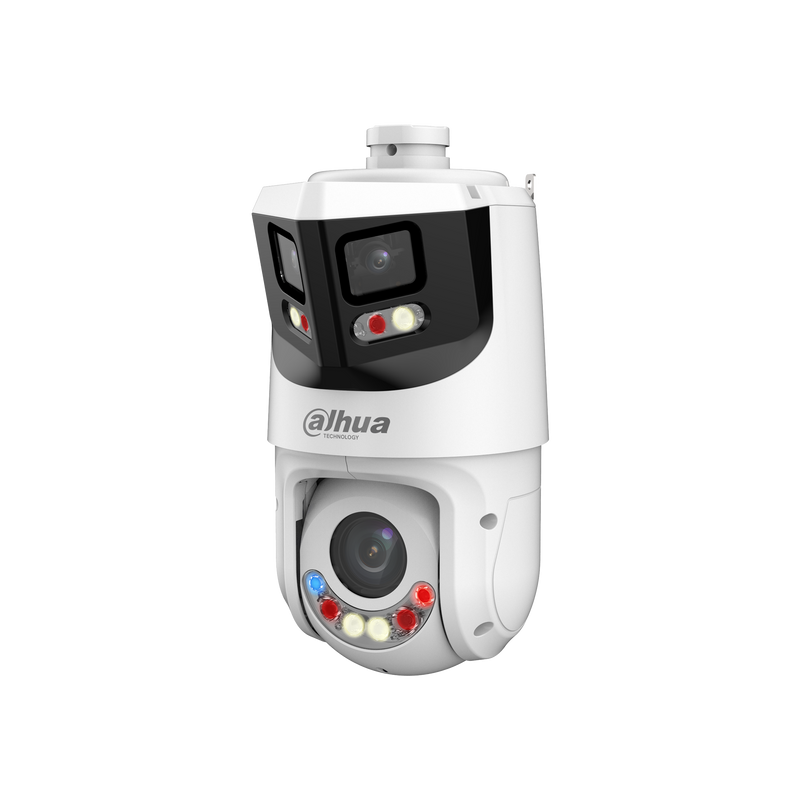

The Dahua DH-SDT4E425-8P-GB-APV1 is a panoramic and PTZ camera for combined wide-angle and zoomed-in surveillance.

Equipped with dual sensor design, 25x optical zoom, Auto Tracking 3.0, smart dual light, and active deterrence.

See it in action

What the DH-SDT4E425-8P-GB-APV1 features actually look like

Representative illustrations of how each key feature performs in a real scene.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (1/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

8MP Ultra HD — 8MP (4K) resolution captures four times the detail of 1080p. Even when a person or car is fa... (2/2) — 8MP Ultra HD
8MP (4K) resolution captures four times the detail of 1080p.
Even when a person or car is far down the driveway, you can zoom in and still recognise a face or read a number plate — detail that lower-resolution cameras lose.

Full Color Night Vision — Unlike plain black-and-white night vision, this camera can capture colour after d... — Full Color Night Vision
Unlike plain black-and-white night vision, this camera can capture colour after dark — so you can pick out the actual colour of a car, a jacket or a bag, detail that grey infrared footage loses.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s... — Two-Way Audio
Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Blue/Red Strobe — When activity is detected after dark, the camera can flash a bright red-and-blue strobe t... — Blue/Red Strobe
When activity is detected after dark, the camera can flash a bright red-and-blue strobe to warn intruders they've been seen — active deterrence, not just a recording for later.

Illustrative — simulated for demonstration

§ 02Engineering

DH-SDT4E425-8P-GB-APV1 specifications

- Dual Sensor Resolution: Combines 8MP panoramic and 8MP PTZ lenses for wide coverage and detailed zoom.
- 25x Optical Zoom: Provides powerful magnification for distant object tracking.
- 180° Panoramic View: Delivers seamless ultra-wide-angle coverage to eliminate blind spots.
- Auto Tracking 3.0: AI-powered motion tracking that continuously follows moving objects.
- Smart Dual Light: Automatically switches between IR and white light for better visibility based on target detection.
- Active Deterrence: Features flashing lights and alarms for real-time intrusion deterrence.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
Image Sensor	Panorama: 1/2.7" CMOS; Detail: 1/2.8" CMOS
Pixel	Panorama: 8 MP; Detail: 4 MP
Max. Resolution	Overview channel: 4096(H) × 1860(V); Overview channel: 2560(H) × 1440(V)
ROM	Panorama: 4 GB; Detail: 4 GB
RAM	Panorama: 2 GB; Detail: 1 GB
Electronic Shutter Speed	1 s–1/30,000 s
Scanning System	Progressive
Min. Illumination	Panorama: 0.005 lux@F1.4 (Color, 30 IRE); 0.0005 lux@F1.4 (B/W, 30 IRE); 0 lux (illuminator on) \| Detail: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on)
Day/Night	Panorama: Auto; Color; B/W; Electronic \| Detail: Auto; Color; B/W; Electronic
BLC	Yes
WDR	Panorama: DWDR; Detail: 120 dB
HLC	Yes
White Balance	Panorama: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp \| Detail: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp
Gain Control	Panorama: Auto; manual; gain prio \| Detail: Auto; manual; gain prio
Noise Reduction	Panorama: 2D NR; 3D NR \| Detail: Auto: 2D NR; 3D NR
Motion Detection	Yes
Region of Interest (RoI)	Yes
Image Stabilization	Panorama: NA \| Detail: Electronic Image Stabilization (EIS)
Defog	Panorama: Electronic \| Detail: Electronic
Digital Zoom	Panorama: NA; Detail: 16×
Image Rotation	Panorama: NA \| Detail: 180°
S/N Ratio	Panorama: ≥55 dB \| Detail: ≥55 dB

Lens & Distance

Lens & Distance — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
Focal Length	Panorama: 2.8 mm; Detail: 5 mm–125 mm
Max. Aperture	Panorama: F1.4; Detail: F1.6-F3.6
Field of View	Panorama: H: 180°; V: 86° \| Detail: H: 51.9°–3.0°; V: 39.7°–2.2°; D: 63.1°–3.7°
Optical Zoom	Panorama: NA; Detail: 25×
Focus Control	Auto; manual; semi-auto
Close Focus Distance	Panorama: 0.6 m (1.97 ft); Detail: 0.1 m–0.5 m (0.33"–1.64")
Iris Control	Panorama: NA; Detail: Auto; manual; iris prio
DORI Distance	Panorama: 2.8 mm; Detail: 5 mm–125 mm — Detect 2,500 m (8202.10 ft); Observe 987.5 m (3239.83 ft); Recognize 500 m (1640.42 ft); Identify 250 m (820.21 ft)
Pan Range	0° to 360° endless
Tilt Range	–15° to +90°, auto flip 180°
Manual Control Speed	Pan: 0.1°/s–180°/s; Tilt: 0.1°/s–90°/s
Preset Speed	Pan: 0.1°/s–180°/s; Tilt: 0.1°/s–90°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Idle Motion	Preset;Pattern;Tour;Scan

Night Vision

Night Vision — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
Illumination Distance	Panorama: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) \| Detail: 100 m (328.08 ft) (IR); 50 m (131.23 ft) (white light)
Illuminator On/Off Control	Panorama: Manual; Auto; Off \| Detail: Zoom Prio; Manual; Auto; Off
Illuminator Number	Panorama: 2 (IR light); 2 (White light) \| Detail: 2 (IR light); 2 (Warm light)

Video

Video — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
Video Compression	Smart H.265+;H.265;Smart H.264+;H.264B;H.264M;H.264H;MJPEG(Sub Stream 1)
Streaming Capability	3 streams
Resolution	Panorama: 8M (4096 × 1860); 2M (2048 × 928); 1080p (1920 × 1080); 720p (1280 × 720); 1024 × 448; D1 (704 × 576/704 × 480);VGA (640 × 480);CIF (352 × 288/352 × 240) \| Detail: 4M (2560 × 1440); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480);VGA (640 × 480); CIF (352 × 288/352 × 240)
Video Frame Rate	Overview channel: Main stream: 4096 × 1860 @(1–25/30 fps); Sub stream 1: 1024 × 448/D1/VGA/CIF @(1–25/30 fps); Sub stream 2: 2048 × 928/1080p/1.3M/720p @(1–25/30 fps) \| Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps); Sub stream 1: D1/VGA/CIF @(1–25/30 fps); Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps)
Bit Rate Control	CBR/VBR
Video Bit Rate	Panorama: H264: 128 kbps–16,384 kbps; H265: 51 kbps–13,312 kbps \| Detail: H264: 96 kbps–16,384 kbps; H265: 38 kbps–10,240 kbps

Audio

Audio — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
Audio Compression	PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729

AI & Deep Learning

AI & Deep Learning — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
IVS (Perimeter Protection)	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human alarm classification; linkage tracking
SMD	SMD 4.0
Light Warning	Red-Blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low
Sound Warning	Offers 11 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10.

Network & Storage

Network & Storage — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
Network Protocol	HTTP;HTTPS;TCP/IP;IPv4;RTSP;UDP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL;QoS;FTP;UPnP;ICMP;SNMP;IGMP;ARP;RTCP;RTP;PPPoE;RTMP;Bonjour;NFS
Interoperability	ONVIF (Profile S & Profile G & Profile T);CGI;SDK;P2P
Streaming Method	Unicast/Multicast
User/Host	20 (total bandwidth: 64 M)
Storage	Micro SD card (512 GB); FTP/SFTP; NAS
Browser	web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 52 and later versions; Safari 10 and later versions
Management Software	DMSS;DSS Pro
Mobile Client	iOS;Android

Event & Alarm

Event & Alarm — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
Alarm Linkage	Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light
Alarm Event	Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection

Interface

Interface — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
Network Port	RJ-45 (100/1,000 Base-T)
Audio Input	1 channel (LINE IN, bare wire)
Audio Output	1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive))
Alarm Input	2 (on-off value input: 0–5 VDC)
Alarm Output	1 channel

General & Environment

General & Environment — Dahua DH-SDT4E425-8P-GB-APV1 X-Spans 8MP+4MP 25x TiOC WizSense Network PTZ Camera
Feature	Detail
Power Supply	12 VDC, 3 A ± 10%;PoE (802.3at)
Power Consumption	Basic: 14 W; Max: 25 W (illuminator + heating glass + Siren and Light Active Deterrence + ICR + PTZ)
Operating Temperature	–40 °C to +65 °C (–40 °F to +149 °F)
Operating Humidity	≤95%
Protection	IP66;TVS 6000 V lightning proof; surge protection; voltage transient protection
Product Dimensions	194.2 mm × 160 mm × 311 mm (7.65" × 6.30" × 12.24") (L × W × H)
Net Weight	3.1 kg (6.83 lb)
Gross Weight	3.1 kg (6.83 lb)
Certifications	CE: EN55032/EN55024/EN50130-4

§ 04Why choose this

Built for the way you actually use the DH-SDT4E425-8P-GB-APV1

8MP Panoramic + 4MP 25× PTZ

Fixed 8 MP sensor provides a wide overview while a 4 MP PTZ with 25× zoom tracks and zooms into targets. Two cameras in one unit.

TiOC Active Deterrence

Red and blue strobe plus siren on both panoramic and PTZ channels. Triggers on human or vehicle detection.

Auto-Linking Panoramic to PTZ

When the panoramic sensor detects a target, the PTZ automatically pans and zooms to follow it.

25× Zoom with 150 m IR

Much longer zoom and IR range than the 10× SDT3E410 model. Covers large car parks and compounds.

IP66 Weatherproof

Sealed dome handles rain, dust, and heat.

§ 05Where it fits

Right at home in these scenarios

Large Car Park or Depot

Panoramic view monitors the entire area. PTZ auto-zooms to track suspicious movement. 150 m IR covers the full lot at night.

Commercial Perimeter or Industrial Site

25× zoom reads plates at the gate. Siren and strobe deter trespassers. One unit replaces multiple cameras.

Sports Ground or Campus

Panoramic overview of the full grounds. PTZ zooms into specific incidents in real time.

Retail Centre or Mall Entrance

Wide view captures all foot traffic. PTZ zoom provides facial detail when needed.

§ 06Setup

Installation & setup

01

What's in the Box

1. Dahua DH-SDT4E425-8P-GB-APV1 Camera × 1 2. Mounting bracket × 1 3. Quick Start Guide × 1

02

Installation Requirements

1. Power: PoE++ (Hi-PoE) or 12V DC. High power draw due to dual sensors and PTZ motor. 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Pole or wall mount. Camera weighs about 4 kg. Use a heavy-duty bracket. 4. Height: 5–10 m for best panoramic coverage and PTZ range.

03

App Setup

1. Download DMSS app (iOS or Android). Create an account. 2. Power the camera. Wait about 2 minutes for full boot. 3. Add by QR code or serial number. 4. Configure auto-linking rules, TiOC deterrence, and patrol routes.

§ 07Questions

Frequently asked about the DH-SDT4E425-8P-GB-APV1

Q.01

Does this take up two NVR channels?

Yes. The panoramic and PTZ streams are separate. Budget two channels on your NVR.

Q.02

How does the 25× model compare to the 10× SDT3E410?

The 25× version has much longer zoom and 150 m IR vs the 10×'s shorter range. Better for large open areas. The 10× is more compact and cheaper.

Q.03

Can I use just the panoramic without the PTZ?

Yes. Each sensor operates independently. You can disable auto-linking if preferred.

Q.04

Does it have a microphone and speaker?

Yes. Built-in mic and speaker for two-way talk and voice warnings.

Q.05

What NVR is recommended?

A Dahua NVR with at least 2 spare 8 MP channels and enough bandwidth. NVR5216-AI-ANZ or higher.
