Name: Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Brand: Dahua
Price: 294.65 AUD
Availability: InStock

Build your setup Build a complete CCTV system Complete setup from $794.10

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count

None

Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder ~~$282.00~~$230.00

Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder ~~$356.00~~$286.00

Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder ~~$695.00~~$576.00

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7

None

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB $269.45

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB ~~$418.00~~$405.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB ~~$616.00~~$545.15

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB ~~$792.00~~$699.00

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.

Cable · 10m $13.00

1

Cable · 20m $28.00

1

Cable · 30m $40.00

1

Cable · 50m $65.00

1

§ 01Overview

What the DH-IPC-HDBW3666RP-ZAS-AUS is

Lens: 2.8mm.

Color options: White or Black.

Note: Please indicate your choice in your order message.

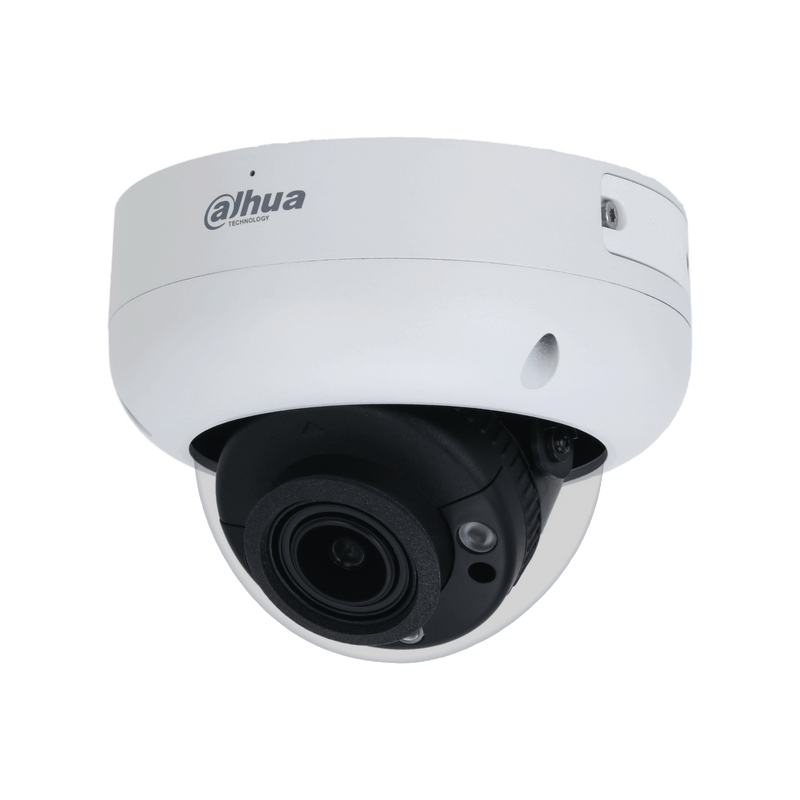

The Dahua DH-IPC-HDBW3666RP-ZAS-AUS is a 6MP WizSense motorised Starlight dome camera for perimeter monitoring.

Equipped with SMD4.0 intelligent detection, IR 40m night vision, built-in microphone, WDR, and PoE.

See it in action

What the DH-IPC-HDBW3666RP-ZAS-AUS features actually look like

Representative illustrations of how each key feature performs in a real scene.

6MP Ultra HD — 6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a fac... — 6MP Ultra HD
6MP captures around three times the detail of 1080p. Plenty of resolution to zoom into a face or number plate part-way down the driveway and still read it clearly.

50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (1/2) — 50m IR Night Vision
Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.

50m IR Night Vision — Built-in infrared sees in total darkness up to around 50m — good for longer driveways... (2/2) — 50m IR Night Vision
Built-in infrared sees in total darkness up to around 50m — good for longer driveways, car parks and wider properties. People and vehicles stay visible well beyond the reach of a porch light.

Human/Vehicle Detection — Smart detection focuses on people and vehicles and can ignore things like swaying... — Human/Vehicle Detection
Smart detection focuses on people and vehicles and can ignore things like swaying branches, rain or small animals — helping cut down false alerts and making the right moments easier to find.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h... — IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDBW3666RP-ZAS-AUS specifications

- 6MP Resolution: Delivers high-definition imaging at 3072x2048 resolution.
- H.265/H.265+ Compression: Enables ultra-low bitrate transmission and efficient storage.
- 25/30 fps Output: Provides smooth video streaming at maximum resolution.
- Built-in IR LED: Offers up to 40m night vision capability.
- Built-in Mic: Features integrated audio capture functionality.
- Two-way Audio: Supports 1 audio input and 1 audio output channel.
- IP67 & IK10 Rating: Ensures dust/water resistance and vandal-proof protection.
- SMD 4.0: Advanced AI detection reduces false alerts by distinguishing humans and vehicles.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
Image Sensor	1/2.7" CMOS
Max. Resolution	3072 (H) × 2048 (V)
ROM	128 MB
RAM	1 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.005 lux@F1.5 (Color, 30 IRE); 0.0005 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
S/N Ratio	>56 dB
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Image Stabilization	Electronic Image Stabilization (EIS)
Region of Interest (RoI)	Yes (4 areas)
Defog	Yes
AFSA	Yes
Image Rotation	0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas

Lens & Distance

Lens & Distance — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
Lens Type	Motorized vari-focal
Lens Mount	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	Horizontal: 109°–30°; Vertical: 56°–17°; Diagonal: 131°–35°
Iris Control	Fixed
Close Focus Distance	0.8 m (2.62 ft)
DORI Distance	W: Detect 88.3 m (289.70 ft); Observe 35.3 m (115.81 ft); Recognize 17.7 m (58.07 ft); Identify 8.8 m (28.87 ft) \| T: Detect 289.7 m (950.46 ft); Observe 115.7 m (379.60 ft); Recognize 57.9 m (189.96 ft); Identify 29.0 m (95.14 ft)
Pan Range	0°–355°
Tilt Range	0°–80°
Rotation Range	0°–355°

Night Vision

Night Vision — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
Illumination Distance	40 m (131.23 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	3 (IR LED)

Video

Video — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
AI Coding	AI H.265; AI H.264
Video Frame Rate	Main stream: 3072 × 2048 @ (1–25/30) fps \| Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) \| Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
Stream Capability	3 streams
Resolution	6M (3072 × 2048); 5M (2592 × 1944); 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 kbps–8192 kbps; H.265: 3 kbps–8192 kbps

Audio

Audio — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723

AI & Deep Learning

AI & Deep Learning — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
IVS (Perimeter Protection)	Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA	Yes
Quick Pick	With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Network & Storage

Network & Storage — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security	Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20 (Total bandwidth: 64 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE: IE11; Chrome; Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	IOS; Android

Event & Alarm

Event & Alarm — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
Alarm Event	No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; external alarm; SMD; safety exception

Interface

Interface — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
Network Port	RJ-45 (10/100 Base-T)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	1 channel in: 5 mA 3–5 VDC
Alarm Output	1 channel out: 300 mA 12 VDC

General & Environment

General & Environment — Dahua DH-IPC-HDBW3666RP-ZAS-AUS 6MP Motorised Dome Network Camera 40m IR with SMD 4.0
Feature	Detail
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Basic: 4 W (12 VDC); 4.9 W (PoE) \| Max. (WDR + IR intensity + Intelligence): 9.2 W (12 VDC); 10.5 W (PoE)
Operating Temperature	–30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH
Storage Temperature	–40 °C to +60 °C (–40 °F to 140 °F)
Protection	IP67; IK10
Casing	Metal
Product Dimensions	94 mm × Φ122 mm (3.7" × Φ4.8")
Net Weight	713 g (1.57 lb)
Gross Weight	986 g (2.17lb)
Certifications	CE-LVD: EN62368-1 \| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU \| FCC: 47 CFR FCC Part 15, Subpart B \| UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

§ 04Why choose this

Built for the way you actually use the DH-IPC-HDBW3666RP-ZAS-AUS

Motorised 2.7–13.5mm Varifocal Lens

Adjust the zoom remotely — no need to climb a ladder. Go wide for a lobby, or zoom in on a car park entrance. 5× optical zoom.

40m IR Night Vision

Longer IR range than most turrets in this price range. Covers a full car park row or long driveway in complete darkness.

IK10 Vandal-Resistant Dome

Impact-rated housing resists deliberate tampering. Good for public-facing installs like hallways, stairwells, and building entries.

Alarm & Audio I/O Terminals

Supports external alarm sensors and audio devices (1 in / 1 out each). Can trigger recording or alerts from door contacts or PIR sensors.

SMD 4.0 Human & Vehicle Detection

Filters out false alerts from animals, weather, and background movement. Only notifies you for real security events.

§ 05Where it fits

Right at home in these scenarios

Office Building Lobby and Reception

Dome blends into ceiling tiles. Motorised zoom lets you adjust between front desk close-up and wide entry view — all from the app.

Underground Car Park

40m IR covers long ramp approaches. Vandal-proof dome handles the occasional bump from vehicles or trolleys.

Apartment Complex Hallway

IK10 dome resists tampering in shared spaces. 6MP captures enough detail to identify people at the far end of a corridor.

Retail Stockroom or Back-of-House

Alarm I/O connects to a door sensor — triggers a recording clip when the stockroom door opens after hours.

§ 06Setup

Installation & setup

01

What's in the Box

1. Dahua DH-IPC-HDBW3666RP-ZAS-AUS Camera × 1 2. Mounting Screws & Anchors × 1 set 3. Quick Start Guide × 1

02

Installation Requirements

1. Power: PoE (IEEE 802.3af, max 10.5W) via Ethernet, or 12V DC. 2. Cable: Cat5e or Cat6, max 100m. 3. Mounting: Ceiling or wall. Weighs approx. 1kg. Junction box recommended for neat cable management. 4. For alarm I/O: Wiring to external sensor (e.g. door reed switch) via terminal block on the camera tail.

03

App Setup

1. Download DMSS app. Create account and select Australia. 2. Connect camera to PoE switch or NVR. Wait for boot. 3. Scan QR code on camera label to add to DMSS. 4. Use web interface to set motorised lens zoom level and focus. Configure intrusion zones.

§ 07Questions

Frequently asked about the DH-IPC-HDBW3666RP-ZAS-AUS

Q.01

What's the advantage of a motorised lens over a fixed 2.8mm?

You can adjust the zoom remotely via the web interface or app. Zoom in for number plate detail, zoom out for wide coverage — without physically touching the camera.

Q.02

Does it have IK10 vandal protection?

Yes. The dome housing is IK10 rated — tested to resist impacts equivalent to a 5kg weight dropped from 40cm. Combined with IP67, it's built for exposed outdoor or semi-public locations.

Q.03

Can I connect external alarm sensors?

Yes. It has 1 alarm input and 1 alarm output terminal. You can wire a door contact, PIR sensor, or panic button, and configure it to trigger recording or push alerts.

Q.04

How does it compare to the HDBW3866EP dome?

The 3666RP has a motorised varifocal lens (2.7–13.5mm) and 40m IR. The 3866EP has a fixed 2.8mm lens and 30m IR. Choose the 3666RP if you need zoom flexibility or longer range; the 3866EP if you want a simpler, lower-cost fixed-lens option.

Q.05

Does it support local SD card recording?

Yes, up to 256GB microSD. Supports ANR (Auto Network Replenishment) — records to SD card if the network drops, and syncs back to the NVR when reconnected.
