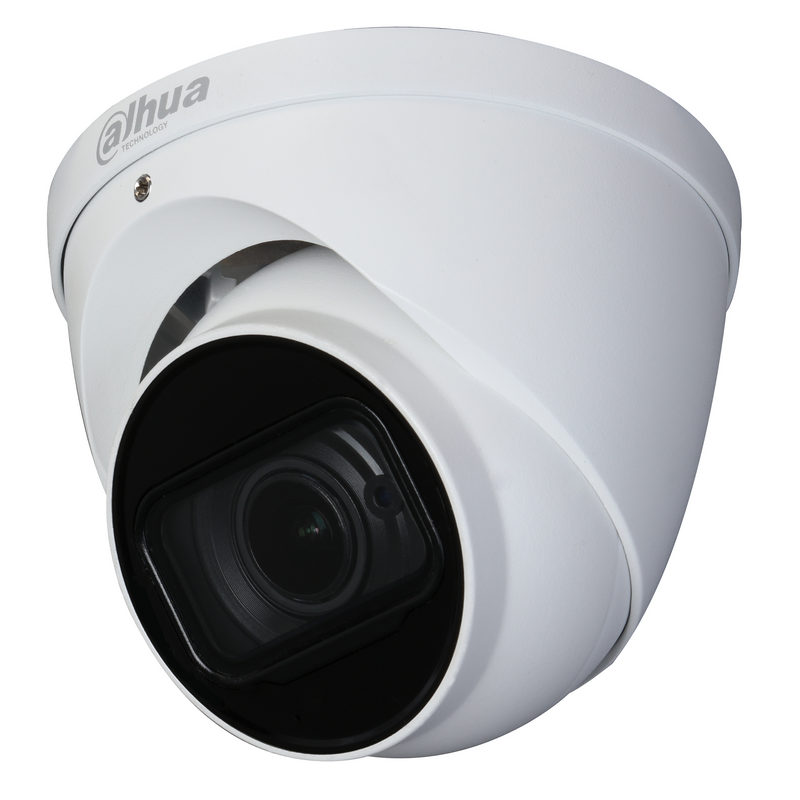

Dahua DH-HAC-HDW2501TP-Z-A-DP-27135-S2 5MP Starlight Pro VF HDCVI IR Eyeball 2.7-13.5mm
Dahua DH-HAC-HDW2501TP-Z-A-DP-27135-S2 5MP Starlight Pro VF HDCVI IR Eyeball 2.7-13.5mm
1 1
Dahua

Dahua DH-HAC-HDW2501TP-Z-A-DP-27135-S2 5MP Starlight Pro VF HDCVI IR Eyeball 2.7-13.5mm

SKU: DH-HAC-HDW2501TP-Z-A-DP-27135-S2
Description

5MP Starlight Pro HDCVI motorised varifocal eyeball camera with multi-format output and 60m IR for coaxial systems.

  • 1/2.7" 5MP CMOS over coax (HDCVI)
  • Motorised 2.7-13.5mm varifocal lens, F1.6
  • Starlight low light and 120dB true WDR
  • Smart IR up to 60m
  • CVI / TVI / AHD / CVBS switchable output
  • Built-in microphone
  • IP67 weatherproof metal housing
  • AC 24V or 12V DC power
5MP Ultra HD 60m IR Night Vision IP67 Weatherproof Built-in Microphone
$175.00 AUD $175.00 AUD $191.00 AUD
Sale 8.38% $16.00 AUD (8.38%)
Member Sign in to save $3.50 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $674.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $175.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DH-HAC-HDW2501TP-Z-A-DP-27135-S2 is

The Dahua DH-HAC-HDW2501TP-Z-A-DP-S2 is a 5MP Starlight Pro HDCVI motorised varifocal eyeball camera for coaxial systems.

A 1/2.7-inch sensor with Starlight imaging and 120dB true WDR delivers clear colour detail in low light, while a motorised 2.7-13.5mm lens allows remote framing and Smart IR reaches up to 60m.

Its output is switchable between CVI, TVI, AHD and CVBS, so it integrates with most existing analogue and HDCVI recorders, and a built-in microphone captures audio over the same coax.

The IP67 metal housing suits outdoor positions, and the camera powers from AC 24V or 12V DC, recording to an HDCVI or penta-brid DVR rather than a network NVR.

See it in action

What the DH-HAC-HDW2501TP-Z-A-DP-27135-S2 features actually look like

Representative illustrations of how each key feature performs in a real scene.

60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (1/2)
60m IR Night Vision — Built-in infrared sees in total darkness up to around 60m, covering long driveways an... (2/2)

60m IR Night Vision

Built-in infrared sees in total darkness up to around 60m, covering long driveways and large properties. Even well away from the house, people and vehicles remain clear in black-and-white.
IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-HAC-HDW2501TP-Z-A-DP-27135-S2 specifications

- Sensor and resolution: 1/2.7" 5MP CMOS, 2880 x 1620, over HDCVI coaxial cabling

- Lens: motorised 2.7-13.5mm varifocal, F1.6, for remote framing from wide coverage to long range

- Low light: Starlight imaging with 120dB true WDR and 3D NR for clear colour detail in near-darkness

- Night vision: Smart IR up to 60m for long-range footage in complete darkness

- Multi-format output: CVI, TVI, AHD or CVBS, switchable to suit most existing recorders

- Audio: built-in microphone to capture on-site audio over the coaxial link

- Durability: IP67 weatherproof metal housing for outdoor positions

- Power: AC 24V or 12V DC with wide voltage tolerance

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-HAC-HDW2501TP-Z-A-DP-27135-S2 5MP Starlight Pro VF HDCVI IR Eyeball 2.7-13.5mm
FeatureDetail
Image Sensor 1/2.7 inch CMOS
Max. Resolution 2880 (H) × 1620 (V)
Pixel 5MP
Scanning System Progressive
Electronic Shutter Speed PAL: 1/3 s–1/100,000 s; NTSC: 1/4 s–1/100,000 s
S/N Ratio > 65 dB
Min. Illumination 0.001 Lux/F1.6; 30IRE; 0 Lux IR on
Day/Night Auto switch by ICR
BLC BLC/HLC/WDR/HLC-Pro
WDR 120 dB
White Balance Auto; manual
Gain Control Auto; manual
Noise Reduction 3D NR
Digital Zoom 4x
Defog Electronic defog
Mirror Off/On
Privacy Masking Off/On (8 areas, rectangle)

§ 04Why choose this

Built for the way you actually use the DH-HAC-HDW2501TP-Z-A-DP-27135-S2

5MP detail over coax

A 5MP Starlight sensor lifts image quality on an existing coaxial system without moving to a network platform.

Fits most recorders

Switchable CVI, TVI, AHD and CVBS output integrates with most HDCVI and analogue DVRs, easing upgrades and replacements.

Long-range night coverage

Smart IR to 60m with Starlight low-light imaging keeps driveways, yards and perimeters legible in complete darkness.

Flexible framing with audio

A motorised varifocal lens sets the view remotely, and a built-in microphone captures audio over the same coax.

§ 05Where it fits

Right at home in these scenarios

Coaxial system upgrades

Sites with existing coax can lift detail to 5MP by swapping cameras, keeping the cabling and a compatible DVR.

Driveways and perimeters

60m Smart IR and the motorised lens cover long approaches and boundaries, framing gates and entries precisely at night.

Retail and small business

Starlight imaging and WDR suit shopfronts and yards where lighting is mixed, with audio for added context.

Mixed analogue sites

Switchable output integrates the camera into existing AHD, TVI or CVBS systems during staged upgrades.

§ 06Setup

Installation & setup

01

Pair with an HDCVI or penta-brid DVR

Record to a DVR that supports HDCVI or the matching analogue format. For 5MP 16:9, confirm the recorder firmware supports it before installing.

02

Set the output format

Select CVI, TVI, AHD or CVBS to match your recorder during commissioning, then confirm the image at the DVR.

03

Power with AC 24V or 12V DC

Provide an AC 24V or 12V DC supply within the camera's tolerance; HDCVI does not use PoE, so plan power separately from the coax.

04

Mount and seal the cabling

Mount on wall or ceiling and use a Dahua junction box such as the PFA130-E and a PFB203W wall bracket to seal cabling on outdoor positions.

§ 07Questions

Frequently asked about the DH-HAC-HDW2501TP-Z-A-DP-27135-S2

Q.01

Is the DH-HAC-HDW2501TP-Z-A-DP-S2 an IP camera?
No. It is an HDCVI (coaxial) camera, so it transmits over coax and records to an HDCVI or penta-brid DVR rather than an IP NVR. It suits sites with existing coaxial cabling that want 5MP detail without moving to a network system.
Q.02

Which recorders is it compatible with?
Its output is switchable between CVI, TVI, AHD and CVBS, so it works with most HDCVI and analogue penta-brid DVRs. For 5MP 16:9 output the recorder firmware may need updating, so confirm your DVR supports 5MP HDCVI before installing.
Q.03

How far does the IR reach?
Smart IR reaches up to 60m, with intelligent adjustment to prevent overexposing objects near the camera. Combined with the Starlight sensor, it gives long-range night coverage along driveways, yards and perimeters.
Q.04

Can I adjust the lens remotely?
Yes. The motorised 2.7-13.5mm varifocal lens sets zoom and focus remotely from the DVR or controller, so you can reframe from a wide entry to a tighter, longer-range scene without returning to the camera.
Q.05

Does it record audio?
Yes. It has a built-in microphone, and HDCVI carries the audio back over the same coaxial cable to the recorder, so you can capture on-site sound without a separate audio cable, where local laws allow.
Q.06

Does it have AI human and vehicle detection?
No. This is a Starlight Pro analogue camera focused on image quality and IR range rather than AI. For human and vehicle classification, choose a WizSense IP camera that lists those analytics.
Q.07

Is it suitable for outdoor use?
Yes. The metal housing is IP67 rated against dust and water, suiting eaves, walls and exposed outdoor positions. Use a junction box such as the PFA130-E to seal the cabling on outdoor installs.
Q.08

How is it powered?
It runs on AC 24V or 12V DC with a wide voltage tolerance. HDCVI does not use PoE, so provide power separately from the coaxial video cable with a compatible supply.

§ 09Bundles

Recommended packages

01

Compatible recorder

Record to an HDCVI or penta-brid DVR. In our range the 8-channel penta-brid DVR supports CVI, AHD, TVI, CVBS and IP; confirm it supports 5MP HDCVI before ordering.

02

Storage

Fit a surveillance hard drive such as a 2TB or 6TB drive in the DVR for continuous recording.
