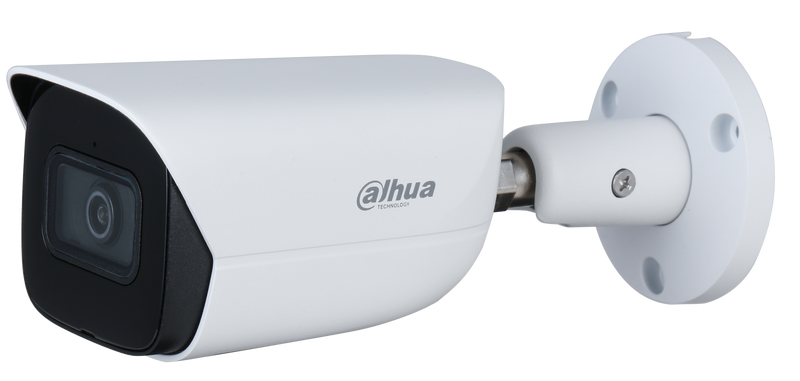

Dahua DH-IPC-HFW3541EP-SA-0280B 5MP Lite AI Fixed Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR50m, Mic, IP67, POE
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua DH-IPC-HFW3541EP-SA-0280B 5MP Lite AI Fixed Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR50m, Mic, IP67, POE
SKU: DH-IPC-HFW3541EP-SA-0280B
Description
5MP AI-driven bullet camera designed to provide high-definition monitoring with advanced human and vehicle classification and long-range night vision for reliable perimeter security.
Regular price
$240.00 AUD
Sale price
$240.00 AUD
Regular price
$240.00 AUD
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua DH-IPC-HFW3541EP-SA-0280B 5MP Lite AI Fixed Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR50m, Mic, IP67, POE
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $746.33
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
The Dahua DH-IPC-HFW3541EP-SA-0280B 5MP AI Fixed-focal Bullet Camera delivers high-resolution surveillance with integrated deep learning algorithms for precise perimeter monitoring. It provides reliable security for Australian homes and small businesses by focusing on human and vehicle movement. It combines superior Starlight Features with an IP67-rated metal casing to ensure durability.
§ 02Engineering
Technical specifications
- High-Definition Imaging: Captures detailed 5MP video at up to 20 frames per second to ensure clear evidence collection in high-traffic areas.
- Advanced AI Detection: Employs deep learning algorithms to distinguish between humans and vehicles, significantly reducing false triggers from animals or wind.
- Night Visibility: Integrates Starlight technology and infrared LEDs to provide clear monochrome images up to 50 metres in near-total darkness.
- Audio Capability: Features a built-in microphone to record high-quality audio alongside video for enhanced situational awareness and evidence gathering.
- Rugged Construction: Encased in a metal housing with an IP67 weather-resistance rating to withstand harsh Australian outdoor conditions, from intense heat to heavy rain.
- Advanced AI Detection: Employs deep learning algorithms to distinguish between humans and vehicles, significantly reducing false triggers from animals or wind.
- Night Visibility: Integrates Starlight technology and infrared LEDs to provide clear monochrome images up to 50 metres in near-total darkness.
- Audio Capability: Features a built-in microphone to record high-quality audio alongside video for enhanced situational awareness and evidence gathering.
- Rugged Construction: Encased in a metal housing with an IP67 weather-resistance rating to withstand harsh Australian outdoor conditions, from intense heat to heavy rain.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7"5Megapixel progressive CMOS |
| Max. Resolution | 2592 (H) ×1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux@F1.6 (Color, 30IRE); 0.0005 Lux@F1.6 (B/W, 30IRE); 0 Lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Scene Self-adaptation (SSA) | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.6 |
| Field of View | 2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130° | 3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106° | 6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64° |
| Iris Type | Fixed |
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft); 3.6 mm: 1.6 m (5.3 ft); 6 mm: 3.2 m (10.5 ft) |
| DORI Distance | 2.8mm: Detect 56.0 m (183.7 ft); Observe 22.4 m (73.5 ft); Recognize 11.2 m (36.8 ft); Identify 5.6 m (18.4 ft) | 3.6mm: Detect 80.0 m (262.5 ft); Observe 32.0 m (105.0 ft); Recognize 16.0 m (52.5 ft); Identify 8.0 m (26.3 ft) | 6mm: Detect 120.0 m (393.7 ft); Observe 48.0 m (157.5 ft); Recognize 24.0 m (78.7 ft); Identify 12.0 m (39.4ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–90° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 50 m (164.0 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 1 (IR LED) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream (2592 × 1944@1–20 fps) (2688 × 1520@1–25/30 fps) | sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps) | third stream(1280 × 720@1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; G726 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability | ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); NAS |
| Browser | IE: IE8, IE9, IE11 | Chrome | Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | IOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD |
Interface
| Feature | Detail |
|---|---|
| Network | RJ-45 (10/100 Base-T) |
| Audio Input | 1-channel (RCA port) |
| Audio Output | 1-channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 5.4W |
| Operating Conditions | -40°C to +60°C (-40°F to +140°F)/less than 95% |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Casing | Metal |
| Dimensions | 192.7 mm × 70.5 mm × 66.4 mm (7.6''×2.8''×2.6'') (L × W × H) |
| Net Weight | 590 g (1.3lb) |
| Gross Weight | 780 g (1.7lb) |
| Certifications | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
§ 04Why choose this
Built for the way you actually use it
50 m IR Night Vision
Longer range than most 5 MP bullets. Covers driveways and fence runs.
Starlight Low-Light Sensor
Clear colour footage before IR activates. Good for areas with some ambient light.
Built-in Mic + Alarm I/O
Audio recording and external sensor integration. The SA suffix indicates full alarm and audio ports.
IP67 Weatherproof
Sealed for outdoor use.
§ 05Where it fits
Right at home in these scenarios
Driveway or Fence Line
50 m IR covers a long run. SMD alerts only on people and vehicles — not cats.
Warehouse Perimeter
Alarm I/O connects to a gate contact or external siren. 5 MP captures detail.
Small Commercial Entry
Mic records conversations. SMD sends smart alerts to your phone.
Budget Multi-Camera System
5 MP with basic AI at a price that works for 8+ camera setups.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-IPC-HFW3541EP-SA Camera × 1 2. Mounting Screws & Anchors × 1 set 3. Quick Start Guide × 1
Installation Requirements
1. Power: PoE (IEEE 802.3af) or 12V DC. 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Wall or soffit. Standard bullet bracket. 4. Height: 2.5–3.5 m.
App Setup
1. Download DMSS app (iOS or Android). Create an account. 2. Power via PoE. Wait about 60 seconds. 3. Add by QR code or serial number. 4. Set detection zones and alarm linkage.
§ 07Questions
Frequently asked
Q.01
What is the SA suffix?
SA means full alarm and audio I/O: alarm 1 in / 1 out, audio 1 in / 1 out, plus built-in mic.
Q.02
Does it have colour night vision?
No. IR only. For colour night vision, step up to a dual-light or TiOC model.
Q.03
Is 5 MP at 2.8 mm enough for plates?
2.8 mm gives a wide ~100° view. For plate detail at distance, a 4 mm lens or motorised zoom is better.
Q.04
Does it support AcuPick?
No. The 3541EP is an older WizSense model with SMD but without AcuPick. For AcuPick, look at the 3667EM or 3866EP series.
Q.05
What SD card does it support?
Up to 256 GB microSD.
