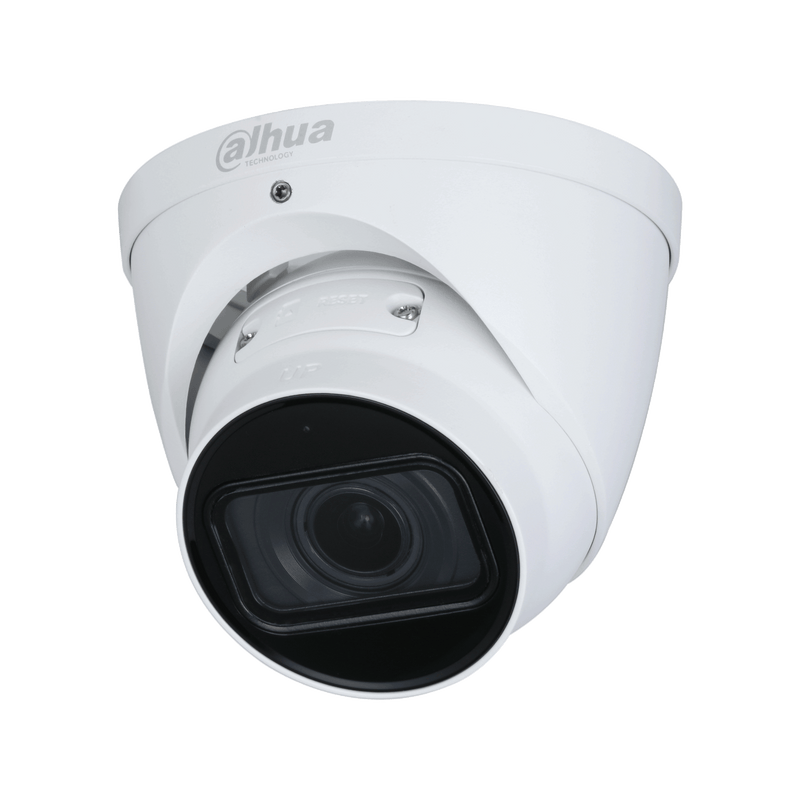

Name: Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Brand: Dahua
Price: 280.0 AUD
Availability: InStock

Build your setup Build a complete CCTV system Complete setup from $779.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count

None

Dahua DHI-NVR4104HS-P-AI/ANZ 4 Channel 4PoE Wizsense Network Video Recorder ~~$282.00~~$230.00

Dahua DHI-NVR4108HS-8P-AI/ANZ 8 Channel 8PoE Up to 16MP Wizsense Network Video Recorder ~~$356.00~~$286.00

Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder ~~$695.00~~$576.00

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7

None

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB $269.45

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB ~~$418.00~~$405.00

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB ~~$616.00~~$545.15

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB ~~$792.00~~$699.00

Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.

Cable · 10m $13.00

1

Cable · 20m $28.00

1

Cable · 30m $40.00

1

Cable · 50m $65.00

1

§ 01Overview

What the DH-IPC-HDW3466TP-ZS-AUS is

Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP WizSense Turret Camera delivers superior 4MP clarity with the flexibility of a motorised lens for easy remote focal adjustments.It is designed for reliable outdoor surveillance, incorporating intelligent perimeter protection and robust IP67 weatherproofing to suit diverse Australian environments.

See it in action

What the DH-IPC-HDW3466TP-ZS-AUS features actually look like

Representative illustrations of how each key feature performs in a real scene.

4MP Ultra HD — 4MP captures roughly twice the detail of standard 1080p. — 4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h... — IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.

Illustrative — simulated for demonstration

§ 02Engineering

DH-IPC-HDW3466TP-ZS-AUS specifications

- Image Sensor: The 1/3-inch CMOS sensor provides high-definition 4MP resolution with excellent performance in low-light conditions.

- Motorised Lens: It includes a motorised vari-focal lens, allowing users to remotely adjust the zoom and focus for the perfect viewing angle.

- AI Analytics: The Model features SMD 4.0 and AI SSA (Scene Self-Adaption) to accurately classify humans and vehicles while reducing false alarms from environmental factors.

- Night Vision: Integrated IR LEDs provide powerful night-time monitoring with a maximum range of up to 40 metres in complete darkness.

- Audio Capability: A built-in microphone allows for high-quality audio recording, providing essential sound context for security events.

- Weather Resistance: The camera is rated IP67, ensuring it is fully protected against dust and heavy rain for durable outdoor installation.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
Image Sensor	1/3" CMOS
Max. Resolution	2688 (H) × 1520 (V)
ROM	128 MB
RAM	512 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3 s–1/100,000 s
Min. Illumination	0.005 lux@F1.5 (Color, 30 IRE) \| 0.0005 lux@F1.5 (B/W, 30 IRE) \| 0 lux (Illuminator on)
S/N Ratio	>56 dB
Day/Night	Auto (ICR)/Color/B/W
BLC	Yes
HLC	Yes
WDR	120 dB
Scene Self-adaptation (SSA)	Yes
White Balance	Auto; natural; street lamp; outdoor; manual; regional custom
Gain Control	Auto
Noise Reduction	3D NR
Motion Detection	OFF/ON (4 areas, rectangular)
Image Stabilization	Electronic Image Stabilization (EIS)
Region of Interest (RoI)	Yes (4 areas)
Defog	Yes
AFSA	Yes
Image Rotation	0°/90°/180°/270° (support 90°/270° with 2688 × 1520 resolution and lower)
Mirror	Yes
Privacy Masking	4 areas

Lens & Distance

Lens & Distance — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
Lens Type	Motorized vari-focal
Lens Mount	φ14
Focal Length	2.7 mm–13.5 mm
Max. Aperture	F1.5
Field of View	Horizontal: 104°–29°; Vertical: 54° –16°; Diagonal: 125° –33°
Iris Control	Fixed
Close Focus Distance	0.8 m (2.62 ft)
DORI Distance	W: Detect 64.0 m (209.97 ft); Observe 25.6 m (83.99 ft); Recognize 12.8 m (41.99 ft); Identify 6.4 m (21.00 ft) \| T: Detect 210.0 m (688.98 ft); Observe 84.0 m (275.59 ft); Recognize 42.0 m (137.80 ft); Identify 21.0 m (68.90 ft)
Pan Range	0°–360°
Tilt Range	0°–78°
Rotation Range	0°–360°

Night Vision

Night Vision — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
Illumination Distance	40 m (131.23 ft)
Illuminator On/Off Control	Auto/Manual
Illuminator Number	2 (IR LED)

Video

Video — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+; Smart H.264+
AI Coding	AI H.265; AI H.264
Video Frame Rate	Main stream: 2688 × 1520 @ (1–25/30) fps \| Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) \| Sub stream 2: 1920 × 1080 @ (1–25/30 fps)
Stream Capability	3 streams
Resolution	4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480)
Bit Rate Control	CBR/VBR
Video Bit Rate	H.264: 3 kbps–8192 kbps \| H.265: 3 kbps–8192 kbps

Audio

Audio — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
Built-in MIC	Yes
Audio Compression	G.711a; G.711Mu; PCM; G.726; G.723

AI & Deep Learning

AI & Deep Learning — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
IVS (Perimeter Protection)	Tripwire, intrusion (support the classification and accurate detection of vehicle and human)
AI SSA	Yes
Quick Pick	With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events
Smart Search	Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Network & Storage

Network & Storage — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
SDK and API	Yes
Network Protocol	IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP
Cyber Security	Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20 (Total bandwidth: 64 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE: IE11; Chrome; Firefox
Management Software	Smart PSS; DSS; DMSS
Mobile Client	IOS; Android

Event & Alarm

Event & Alarm — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
Alarm Event	No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; defocus detection; SMD; safety exception

Interface

Interface — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
Network Port	RJ-45 (10/100 Base-T)

General & Environment

General & Environment — Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
Feature	Detail
Power Supply	12 VDC/PoE (802.3af)
Power Consumption	Basic: 4.0 W (12 VDC); 5.2 W (PoE) \| Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 8.5 W (PoE)
Operating Temperature	–30 °C to +60 °C (–22 °F to 140 °F) /Less than 95% RH
Storage Temperature	–40 °C to +60 °C (–40 °F to 140 °F)
Protection	IP67
Casing	Metal
Product Dimensions	108.3 mm × Φ122 mm (4.26" × Φ4.8")
Net Weight	715 g (1.58 lb)
Gross Weight	915 g (2.02 lb)
Certifications	CE-LVD: EN62368-1 \| CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU \| FCC: 47 CFR FCC Part 15, Subpart B \| UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14

§ 08In motion

Dahua 3466 Camera - High-Quality Surveillance for Your Home or Business

Dahua DH-IPC-HDW3466TP-ZS-AUS 4MP Starlight IP Turret Motorised 2.7~13.5mm with Wizsense
