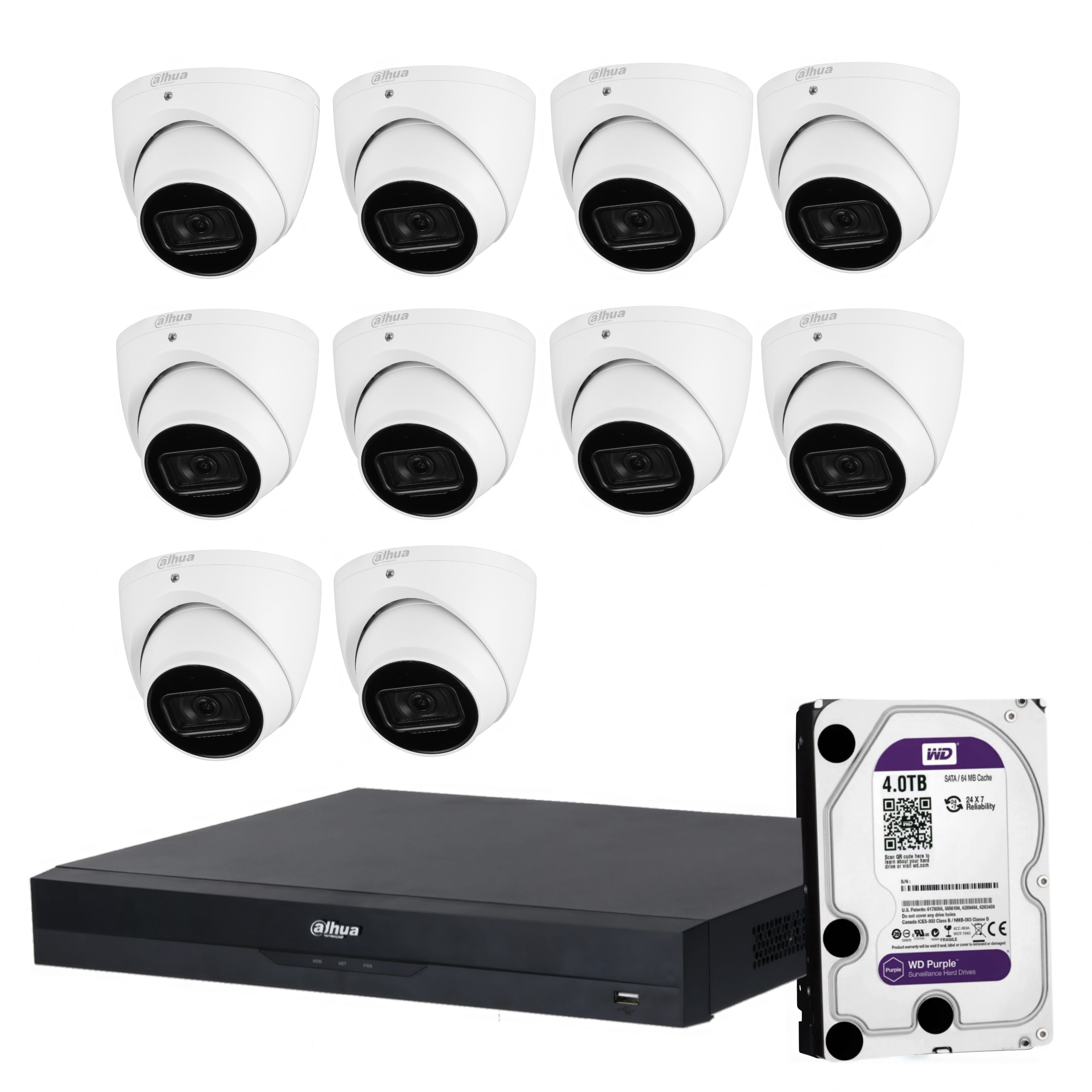

Dahua 10 x 4MP + 16 Channels Kit:10 x DH-IPC-HDW3466EMP-S-AUS SMD Wizsense Camera+ 16CH AI NVR+ 4TB HDD
Skip to product information
1
/
of
1
Vendor:
Dahua
Dahua 10 x 4MP + 16 Channels Kit:10 x DH-IPC-HDW3466EMP-S-AUS SMD Wizsense Camera+ 16CH AI NVR+ 4TB HDD
SKU: DH-IPC-HDW3466EMP-S-AUS
Description
Complete 16-channel Dahua WizSense IP CCTV kit with ten 4MP SMD 4.0 Starlight eyeball cameras, a 16-channel AI NVR and a 4TB surveillance hard drive included, ready to record and view remotely.
- 10 x Dahua 4MP HDW3466EMP-S WizSense Starlight eyeball cameras
- 16-channel Dahua AI NVR (NVR4216-16P) with built-in PoE
- 4TB surveillance hard drive included
- SMD 4.0 human and vehicle detection on every camera
- Starlight low-light imaging and infrared night vision
- Built-in microphone on each camera; IP67 weatherproof
- Free DMSS app for live view, playback and push alerts
Regular price
$2,124.10 AUD
Sale price
$2,124.10 AUD
Regular price
$1,988.10 AUD
Member
Sign in to save $42.48 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua 10 x 4MP + 16 Channels Kit:10 x DH-IPC-HDW3466EMP-S-AUS SMD Wizsense Camera+ 16CH AI NVR+ 4TB HDD
1
/
of
1
Customize this kit Kit price $2,124.10
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 10 × Dahua DH-IPC-HDW3466EMP-S-AUS, SMD 4.0 Full Metal 4MP WizSense Starlight Eyeball Network Camera Fixed 2.8mm
- 1 × Dahua DHI-NVR4216-16P-AI/ANZ 16 Channel up to 16MP Wizsense Network Video Recorder (16ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DH-IPC-HDW3466EMP-S-AUS is
This Dahua 10-camera, 16-channel kit is a complete IP surveillance system for a larger home or business, supplied with everything needed to record out of the box.
It pairs ten 4MP HDW3466EMP-S WizSense eyeball cameras with a 16-channel Dahua AI NVR (NVR4216-16P) and a 4TB surveillance hard drive, so there is room to record all ten cameras continuously and still leave channels free to expand later.
Each camera uses SMD 4.0 to classify movement as a person or vehicle, which keeps notifications and searches focused on real targets rather than animals, foliage or weather.
Starlight low-light imaging and infrared night vision keep the scene usable after dark, a built-in microphone records on-site audio alongside the video, and the IP67 metal housing suits exposed eaves and walls.
The NVR has built-in PoE, so each camera runs on a single network cable for power and data, and the free DMSS app gives live view, playback and push notifications on your phone.
The 4TB drive is included per the kit specification and can be upgraded to a larger surveillance drive for longer retention; the 16-channel recorder leaves headroom to add up to six more cameras within the channel count.
See it in action
What the DH-IPC-HDW3466EMP-S-AUS features actually look like
Representative illustrations of how each key feature performs in a real scene.
4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.
IP67 Weatherproof
Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Illustrative — simulated for demonstration
§ 02Engineering
DH-IPC-HDW3466EMP-S-AUS specifications
- Cameras: 10 x Dahua 4MP HDW3466EMP-S WizSense Starlight eyeball cameras, fixed 2.8mm wide view
- Recorder: 16-channel Dahua AI NVR (NVR4216-16P) with built-in PoE, room to expand
- Storage: 4TB surveillance hard drive included; upgrade to a larger drive for longer retention
- Smart detection: SMD 4.0 human and vehicle classification to cut nuisance alerts
- Night vision: Starlight low-light imaging and infrared for after-dark coverage
- Audio: built-in microphone on each camera records on-site sound with the video
- Durability and power: IP67 metal cameras; single-cable PoE from the recorder
- Remote access: free DMSS app for live view, playback and push notifications
- Recorder: 16-channel Dahua AI NVR (NVR4216-16P) with built-in PoE, room to expand
- Storage: 4TB surveillance hard drive included; upgrade to a larger drive for longer retention
- Smart detection: SMD 4.0 human and vehicle classification to cut nuisance alerts
- Night vision: Starlight low-light imaging and infrared for after-dark coverage
- Audio: built-in microphone on each camera records on-site sound with the video
- Durability and power: IP67 metal cameras; single-cable PoE from the recorder
- Remote access: free DMSS app for live view, playback and push notifications
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/3" CMOS |
| Max. Resolution | 2688 (H) × 1520 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.005 lux@F1.4 (Color, 30 IRE) | 0.0005 lux@F1.4 (B/W, 30 IRE) | 0 lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Day/Night | Auto (ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto; natural; street lamp; outdoor; manual; regional custom |
| Gain Control | Auto |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Defog | Yes |
| AFSA | Yes |
| Image Rotation | 0°/90°/180°/270° (support 90°/270° with 2688×1520 resolution and lower) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed-focal |
| Lens Mount | M12 |
| Focal Length | 2.8 mm; 3.6 mm; 6 mm |
| Max. Aperture | F1.4 |
| Field of View | 2.8 mm: Horizontal:102°; vertical: 54°; diagonal: 121° | 3.6 mm: Horizontal:84°; vertical: 42°; diagonal: 101° | 6 mm: Horizontal:52°; vertical: 28° ; diagonal: 61° |
| Iris Control | Fixed |
| Close Focus Distance | 2.8 mm: 0.7 m (2.30 ft) | 3.6 mm: 1.3 m (4.27 ft) | 6 mm: 2.6 m (8.53 ft) |
| DORI Distance | 2.8 mm: Detect 63.6 m (208.66 ft); Observe 25.4 m (83.33 ft); Recognize 12.7 m (41.67 ft); Identify 6.4 m (21.00 ft) | 3.6 mm: Detect 85.4 m (280.18 ft); Observe 34.2 m (112.20 ft); Recognize 17.1 m (56.10 ft); Identify 8.5 m (27.89 ft) | 6 mm: Detect 124 m (406.82 ft); Observe 49.6 m (162.73 ft); Recognize 24.8 m (81.36 ft); Identify 12.4 m (40.68 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–78° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 50 m (164.04 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 2 (IR LED) |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+; Smart H.264+ |
| AI Coding | AI H.265; AI H.264 |
| Video Frame Rate | Main stream: 2688 × 1520 @ (1–25/30) fps | Sub stream 1: 704 × 576 @ (1–25 fps)/704 × 480 @ (1–30 fps) | Sub stream 2: 1920 × 1080 @ (1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 4M (2688 × 1520); 3.6M (2560 × 1440); 3M (2048 × 1536); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240); VGA (640 × 480) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 kbps–8192 kbps | H.265: 3 kbps–8192 kbps |
Audio
| Feature | Detail |
|---|---|
| Built-in MIC | Yes |
| Audio Compression | G.711a; G.711Mu; PCM; G.726; G.723 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire, intrusion (support the classification and accurate detection of vehicle and human) |
| AI SSA | Yes |
| Quick Pick | With AI NVR, quickly pick up the human/vehicle targets that users are interested in from SMD events |
| Smart Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Network Protocol | IPv4; IPv6; HTTP;TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; SNMP |
| Cyber Security | Video encryption; Firmware encryption; Configuration encryption; Digest; WSSE; Account lockout; Security logs; IP/MAC filtering; Generation and importing of X.509 certification; syslog; HTTPS; 802.1x; Trusted boot; Trusted execution; Trusted upgrade |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE:IE11; Chrome; Firefox |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Client | IOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; service life warning (only supported by Dahua card); network disconnection; IP conflict; illegal access; motion detection; video tampering; intrusion; tripwire; scene changing; audio detection; voltage detection; SMD; safety exception |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (10/100 Base-T) |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC/PoE (802.3af) |
| Power Consumption | Basic: 3.3 W (12 VDC); 4.2 W (PoE) | Max. (WDR + IR intensity + Intelligence): 7.1 W (12 VDC); 7.9 W (PoE) |
| Operating Temperature | –40 °C to +60 °C (–40 °F to 140 °F) /Less than 95% RH |
| Storage Temperature | –40 °C to +60 °C (–40 °F to 140 °F) |
| Protection | IP67 |
| Casing | Metal |
| Product Dimensions | 93.6 mm × Φ106.0 mm (3.69" × Φ4.17") |
| Net Weight | 500 g (1.10 lb) |
| Gross Weight | 770 g (1.70 lb) |
| Certifications | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL62368-1 & CAN/CSA C22.2 No. 62368-1-14 |
§ 04Why choose this
Built for the way you actually use the DH-IPC-HDW3466EMP-S-AUS
Fewer nuisance alerts
SMD 4.0 human and vehicle classification on every camera keeps notifications and searches focused on real targets.
Room to grow
The 16-channel recorder records ten cameras now and leaves up to six channels free to expand later.
Simple single-cable install
Built-in PoE means each camera runs on one network cable for power and data, with remote view via the DMSS app.
§ 05Where it fits
Right at home in these scenarios
Larger homes and acreage
Covers multiple entries, the perimeter and outbuildings of a big property, with classification to focus after-hours alerts.
Retail and hospitality
Watches entries, tills, floor and storerooms across a shop or venue, with on-site audio and people and vehicle filtering.
Warehouses and yards
Monitors loading areas, gates and yard space, using infrared night vision and SMD to track activity overnight.
Multi-building sites
Ties cameras across several buildings into one 16-channel recorder with phone access for managers and owners.
§ 06Setup
Installation & setup
Plan camera positions first
Set mounting points to cover entries, the perimeter and high-value areas, keeping each cable run within roughly 100m of the recorder.
Run single PoE cables
Run one Cat6 cable from each camera back to the NVR's built-in PoE ports for power and data; no separate camera power supply is needed.
Set up recording and the app
Power on the recorder, confirm all ten cameras appear, set recording schedules, then add the NVR to the DMSS app for remote viewing.
Plan storage and expansion
The 4TB drive is fitted; for longer retention fit a larger surveillance drive, and add up to six more cameras within the channel count if needed.
§ 07Questions
Frequently asked about the DH-IPC-HDW3466EMP-S-AUS
Q.01
Is a hard drive included in this kit?
Yes. This kit includes a 4TB surveillance-grade hard drive, supplied per the Smarket kit specification, so it is ready to record on arrival. Surveillance drives are built for continuous 24/7 writing, and you can fit a larger drive later if you want longer recording retention across all ten cameras.
Q.02
How many extra cameras can I add?
The 16-channel NVR records the ten included cameras and leaves up to six more channels free, so you can add up to six extra cameras within the channel count. Add compatible Dahua IP cameras and confirm the recorder PoE budget covers the extra load, or use a separate PoE switch for additional cameras.
Q.03
Do the cameras tell people and vehicles apart?
Yes. Each camera uses SMD 4.0 to classify movement as a person or vehicle, so tripwire, intrusion and motion alerts focus on real targets and filter out animals, foliage and weather. This makes notifications and recorded-footage searches faster and reduces nuisance alerts.
Q.04
Can I view the cameras on my phone?
Yes. Add the NVR to the free Dahua DMSS app on iOS or Android for live view, playback and push notifications from anywhere with an internet connection. Connect the recorder to your router so it can reach the internet for remote access and alerts.
Q.05
How is the system powered and cabled?
The NVR has built-in PoE ports, so each camera runs on a single Cat network cable for both power and data, up to roughly 100m per run. This keeps installation tidy with no separate power supply at each camera, and you only need mains power at the recorder.
Q.06
What night vision do the cameras have?
The 4MP cameras use Starlight low-light technology to hold detail in dim conditions and switch to infrared night vision in darkness for monochrome coverage. For a typical home or business eave-mount they give clear after-dark images across entries, driveways and yards.
Q.07
Do the cameras record audio?
Each camera has a built-in microphone that records on-site audio alongside the video. There is no speaker, so they capture sound one way rather than supporting two-way talk. Check that audio recording is permitted and disclosed for your site before enabling it.
Q.08
Is this kit suitable for outdoor use?
Yes. The cameras have IP67-rated metal housings that seal against dust and water, suiting eaves, walls and soffits outdoors. Mount them under an eave where practical to limit direct weather on the lens and keep the view clear over time.
§ 08In motion
Dahua 3466 Camera - High-Quality Surveillance for Your Home or Business
§ 09Bundles
Recommended packages
Add more cameras
The 16-channel recorder leaves room for up to six more cameras. Add matching 4MP HDW3466EMP-S eyeball cameras to extend coverage on the same system.
Power and cabling for extras
For cameras beyond the recorder's PoE budget, add a Dahua PoE switch and run quality Cat6 cable, one run per camera.
Storage and recorder
The kit includes a 4TB surveillance drive; for longer retention fit a larger drive. The system is built on the 16-channel NVR4216-16P; contact us to plan an upgrade or expansion.
