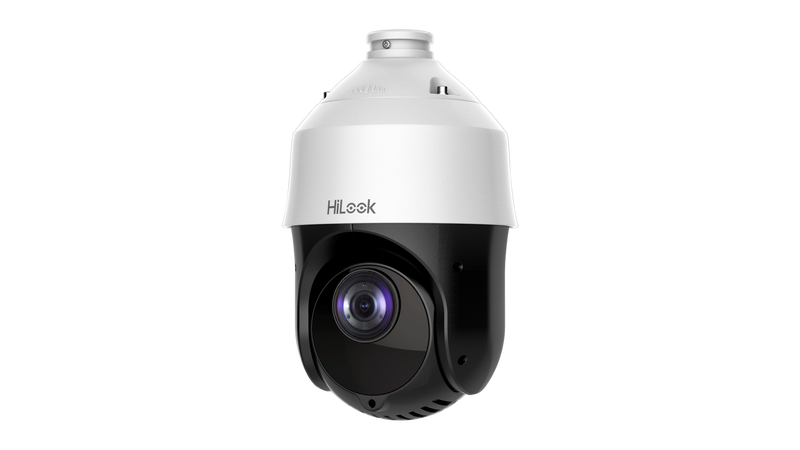

HiLook 2MP PTZ-N4225I-DE PTZ Camera 25x Optical Zoom 120dB WDR 100m IR Network Speed Dome

SKU: PTZ-N4225I-DE
Description

The HiLook PTZ-N4225I-DE is a 2MP outdoor PTZ speed dome with 25x optical zoom and 100m infrared, so one camera can pan, tilt and zoom across a large yard, car park or perimeter and still read detail at distance. DarkFighter low-light imaging and 120dB WDR keep the picture usable in poor light and strong backlight.

Key points
- 2MP (1080p) with a 4.8-120mm motorised lens, 25x optical plus 16x digital zoom
- 360 degree endless pan and -15 to 90 degree auto-flip tilt with presets and patrols
- 100m enhanced IR night vision with Smart IR; 120dB true WDR
- Smart events: intrusion, line crossing, object removal and unattended baggage
- IP66 weatherproof metal housing with 4000V lightning and surge protection
- PoE+ (802.3at) or 12V DC power; H.265+ compression; microSD up to 256GB
2MP Ultra HD IP66 Rated Built-in Microphone
$452.00 AUD $452.00 AUD $746.90 AUD
Sale 39.48% $294.90 AUD (39.48%)
Member Sign in to save $9.04 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $871.45

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
1
Bundle total: $452.00
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the PTZ-N4225I-DE is

The HiLook PTZ-N4225I-DE is a 2MP outdoor PTZ speed dome that replaces several fixed cameras with one steerable lens.

It pans a full 360 degrees, tilts from -15 to 90 degrees with auto-flip, and zooms 25x optically (plus 16x digital), so an operator or a scheduled patrol can follow activity across a car park, farmyard, school ground or industrial perimeter and zoom in to read a face or number plate far down the lot.

DarkFighter low-light technology and 120dB true WDR keep the image clear in dusk, deep shadow and strong backlight, and an enhanced infrared illuminator reaches up to 100 metres at night with Smart IR to avoid over-exposing nearer subjects.

Smart detection covers intrusion, line crossing, object removal and unattended-baggage events, and the camera holds 300 presets with patrol and pattern scans so it can run set tours automatically.

H.265+ compression keeps the higher-motion PTZ stream economical on storage.

The housing is IP66-rated with 4000V lightning, surge and voltage-transient protection for exposed pole and rooftop mounts.

It is powered by PoE+ (802.3at) or 12V DC and integrates plug-and-play with HiLook and Hikvision NVRs, including telemetry control without extra cabling.

A mounting bracket is purchased separately.

It is normally installed by a security technician.

§ 02Engineering

PTZ-N4225I-DE specifications

- 25x optical zoom (4.8-120mm) plus 16x digital, so one camera covers wide and reads detail far down a lot.

- 360 degree endless pan and -15 to 90 degree auto-flip tilt, with 300 presets, patrols and pattern scans.

- 100m enhanced IR night vision with Smart IR, plus DarkFighter low-light imaging and 120dB true WDR.

- Smart events: intrusion, line crossing, region entrance/exit, object removal and unattended baggage.

- IP66 weatherproof housing with 4000V lightning, surge and voltage-transient protection for exposed mounts.

- PoE+ (802.3at) or 12V DC power, H.265+ compression and microSD storage up to 256GB.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — HiLook 2MP PTZ-N4225I-DE PTZ Camera 25x Optical Zoom 120dB WDR 100m IR Network Speed Dome
FeatureDetail
Image Sensor 1/2.8" progressive scan CMOS
Max. Resolution 1920 × 1080
Min. Illumination Color: 0.005 Lux @(F1.6, AGC ON), B/W: 0.001 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed 1/1 s to 1/30,000 s
Day & Night IR Cut Filter
Zoom 25 × optical, 16 × digital
Image Settings Saturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Wide Dynamic Range (WDR) 120 dB
Defog Digital defog
Image Stabilization No
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 24 programmable privacy masks
Regional Focus Yes
Regional Exposure Yes

§ 04Why choose this

Built for the way you actually use the PTZ-N4225I-DE

One camera, whole site

A 25x PTZ covers ground that would take many fixed cameras, panning and zooming to follow activity live or on a set patrol.

Sees in the dark, far out

100m IR with DarkFighter and 120dB WDR keeps distant detail usable at night and against harsh backlight.

Built for exposed mounts

IP66 sealing plus 4000V lightning and surge protection suit pole, gable and rooftop positions in the open.

Backed locally

Supplied by an authorised dealer with a 3-year warranty and Australia-wide support.

§ 05Where it fits

Right at home in these scenarios

Car parks and forecourts

Sweep a whole car park or dealership forecourt and zoom in to read a plate or follow a person between aisles.

Farms and acreage

Cover sheds, gates and laneways across a rural property from one high mast, panning to wherever movement is detected.

Schools and sports grounds

Watch ovals, courts and entries from a single steerable camera, with patrols that tour key areas automatically.

Industrial and storage yards

Patrol a large yard or depot perimeter, using line-crossing and intrusion events to cue the operator to zoom in.

§ 06Setup

Installation & setup

01

What it is

A 2MP 25x PTZ outdoor speed dome with 100m IR. A wall, pole or pendant bracket is required and purchased separately.

02

Power

It needs PoE+ (IEEE 802.3at) or a 12V DC supply. A standard 802.3af PoE port (about 15.4W) will not power it reliably, so confirm your switch or NVR delivers PoE+ on that port.

03

Mounting

Fit it high on a pole, gable or wall corner for the widest sweep, using the matching HiLook bracket; allow for the 2.5kg weight.

04

Setup

In Australia a network camera is usually fitted by a licensed security installer or a competent IT/cabling technician, who runs the Cat5e/6 cable, terminates the RJ45, mounts the camera and adds it to the NVR or app. Add it to a HiLook or Hikvision NVR for plug-and-play telemetry, then set presets, patrols and detection zones.

§ 07Questions

Frequently asked about the PTZ-N4225I-DE

Q.01

Does this PTZ work with a HiLook or Hikvision NVR?
Yes, it integrates plug-and-play with HiLook and Hikvision NVRs over the network, including telemetry control. If it shows offline with a parameter error, update the NVR firmware first, which is the most common fix.
Q.02

Will my PoE switch or NVR have enough power for it?
It needs IEEE 802.3at (PoE+) and draws up to 18W. Standard 802.3af ports deliver only about 15.4W and will not run it reliably, so check the per-port PoE budget or use the 12V DC supply.
Q.03

Does it include a mounting bracket?
No, the bracket is sold separately. HiLook offers wall, pendant, corner and pole mounts in the HIA-B range, so budget for the matching bracket with the camera.
Q.04

Can I control and view it on my phone?
Yes, it works with the free HiLookVision app for live view, PTZ control and playback, and with Hik-Connect when paired to a Hikvision NVR. Remote access needs DDNS or port forwarding on your router.
Q.05

Is it suitable for outdoor use in Australian conditions?
Yes, it is IP66-rated and operates from -30 to 65 degrees Celsius with 4000V lightning and surge protection. It has no built-in heater, so plan carefully for sites prone to heavy condensation.
Q.06

How far can it zoom and see at night?
It has 25x optical zoom (4.8-120mm) plus 16x digital, and enhanced IR night vision up to 100 metres with Smart IR to control over-exposure on nearer subjects.
Q.07

Can it run set patrols automatically?
Yes. It stores 300 presets and supports patrol and pattern scans plus scheduled tasks, so it can tour key areas on a timetable without an operator.
Q.08

Does it have Wi-Fi?
No, it is a wired camera and needs a Cat5e or Cat6 cable. For remote sites without cabling, a 4G router or a wireless Ethernet bridge is a common workaround.

§ 09Bundles

Recommended packages

02

Add storage

Fit a surveillance-grade hard drive such as the 6TB or 2TB in the NVR for continuous recording.

03

Check your PoE budget

This camera needs a PoE+ (802.3at) port. If your existing NVR only supplies standard PoE, plan a PoE+ switch or the 12V DC supply for this channel.

04

Fixed cameras to fill in

Cover doorways and approaches a PTZ is not watching with fixed cameras such as the DS-2CD2T66G2-2I bullet or DS-2CD2386G2-I turret.
