HiLook T363H 5-Camera 6MP CCTV Kit + 8CH PoE NVR, No HDD
Skip to product information
1
/
of
1
Vendor:
HiLook
HiLook T363H 5-Camera 6MP CCTV Kit + 8CH PoE NVR, No HDD
SKU: KIT-T363H-5CAM-NVR108C-NOHDD
Description
5 × T363H 6MP Smart Hybrid Light, supplied in white with 2.8 mm fixed lenses, plus one NVR-108MH-C-8P 8-channel PoE recorder.
Smart Hybrid Light cameras provide coordinated views across 5 positions. T363H: IR and white supplemental light up to 30 m.
No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.
Regular price
$791.84 AUD
Sale price
$791.84 AUD
Regular price
$1,148.00 AUD
Sale
31.02%
$356.16 AUD
(31.02%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
HiLook T363H 5-Camera 6MP CCTV Kit + 8CH PoE NVR, No HDD
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Customize this kit
—
$791.84

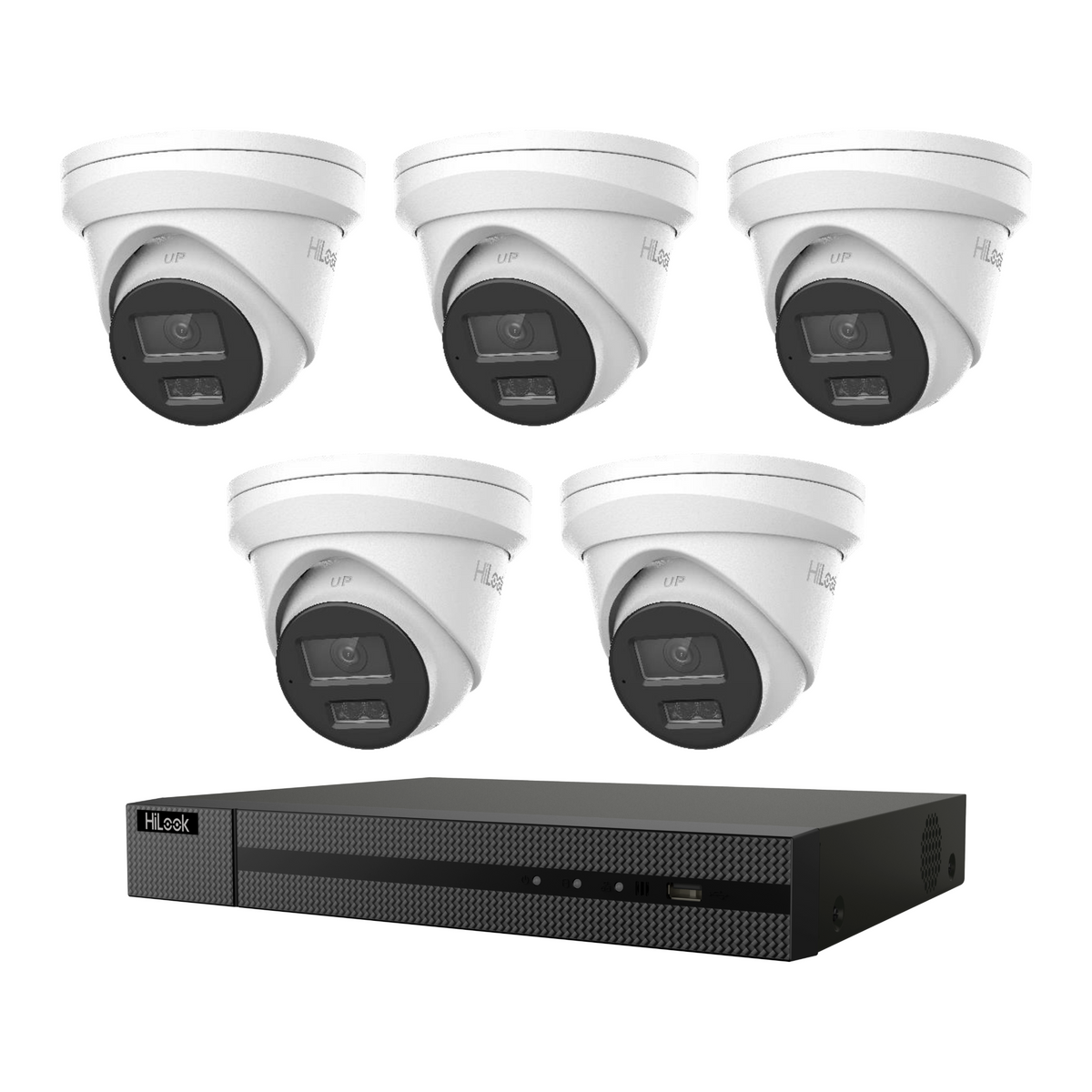

This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 5 × HiLook Hikvision 6MP Pro Turret IP Camera with Mic Colour Night Vision IPC-T363H-MU
- 1 × HiLook NVR-108MH-C-8P 8x PoE 8 Channel 4K HDMI, 1x SATA Network Video Recorder
- No HDD included (add one below)
No hard drive selected
Without a hard drive the system cannot record footage.
01Overview
What the KIT-T363H-5CAM-NVR108C-NOHDD is
Give each access route or activity area its own camera view. This 5-camera kit combines 5 white IPC-T363H-MU 6MP turret cameras and one NVR-108MH-C-8P 8-channel PoE recorder. All supplied camera lenses are 2.8 mm.
T363H (5 included): 6MP 3200 × 1800 at up to 20 fps; 2.8 mm F1.2 lens with 119.6° horizontal field of view; IR and white supplemental light up to 30 m; Smart Hybrid Light; Human/vehicle classification for supported motion, line-crossing and intrusion detection; Built-in microphone; 120 dB WDR; IP67 metal housing; no specific anti-corrosion protection. Routine infrared night viewing is black and white. Smart Hybrid Light can provide white illumination for colour during configured events. Colour needs sufficient visible light; test the light settings and subject detail at the installed distance.
The recorder provides 8 camera inputs, 8 built-in PoE ports, HDMI and VGA outputs, and one SATA drive bay. 3 recording inputs and PoE ports remain. The supplied camera maxima total 32.5 W before cable losses, within the recorder's 75 W PoE allowance. Any additional cameras must fit the remaining PoE budget and 80 Mbps incoming bandwidth; display decoding is a separate limit. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.
Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 32.5 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 5 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.
The supplied camera maxima total 32.5 W before cable losses, within the recorder's 75 W PoE allowance. Any additional cameras must fit the remaining PoE budget and 80 Mbps incoming bandwidth; display decoding is a separate limit.
02Engineering
KIT-T363H-5CAM-NVR108C-NOHDD specifications
- 5 × IPC-T363H-MU — 6MP Smart Hybrid Light turret, white, 2.8 mm lens; IR and white supplemental light up to 30 m.
- T363H — 3200 × 1800 at up to 20 fps in both 50 Hz and 60 Hz modes; human and vehicle; built-in microphone; IP67.
- 8CH PoE recorder — NVR-108MH-C-8P, 8 integrated PoE ports, HDMI and VGA.
- 3 spare camera inputs — 3 recording inputs and PoE ports remain. The supplied camera maxima total 32.5 W before cable losses, within the recorder's 75 W PoE allowance. Any additional cameras must fit the remaining PoE budget and 80 Mbps incoming bandwidth; display decoding is a separate limit.
- Camera-set maximum PoE: 32.5 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
- T363H — 3200 × 1800 at up to 20 fps in both 50 Hz and 60 Hz modes; human and vehicle; built-in microphone; IP67.
- 8CH PoE recorder — NVR-108MH-C-8P, 8 integrated PoE ports, HDMI and VGA.
- 3 spare camera inputs — 3 recording inputs and PoE ports remain. The supplied camera maxima total 32.5 W before cable losses, within the recorder's 75 W PoE allowance. Any additional cameras must fit the remaining PoE budget and 80 Mbps incoming bandwidth; display decoding is a separate limit.
- Camera-set maximum PoE: 32.5 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
03Full datasheet
Detailed specifications
Kit Configuration
| Feature | Detail |
|---|---|
| Camera composition | 5 × T363H 6MP Smart Hybrid Light |
| Recorder | 1 × NVR-108MH-C-8P |
| Hard drive included | No |
| Network cabling included | No |
| Supplied colour / lens | White / 2.8 mm fixed |
| Unused NVR channels / PoE ports | 3 / 3 |
T363H Camera
| Feature | Detail |
|---|---|
| Included quantity | 5 |
| Model | IPC-T363H-MU |
| Resolution | 6MP |
| Image sensor | 1/2.4-inch progressive scan CMOS |
| Video frame rates | 3200 × 1800 at up to 20 fps in both 50 Hz and 60 Hz modes |
| Supplied lens | 2.8 mm, F1.2 |
| Horizontal field of view | 119.6° |
| Illumination | IR and white supplemental light up to 30 m |
| Smart motion detection | human and vehicle |
| Audio | Built-in microphone |
| Protection | IP67 |
| Maximum PoE per camera | 6.5 W |
Recorder & Installation
| Feature | Detail |
|---|---|
| Channels | 8 |
| Integrated PoE ports | 8 |
| Video outputs | HDMI; VGA |
| Drive bays | 1 SATA; drives not included |
| Camera-set maximum PoE | 32.5 W before cable losses |
| Installation | NVR indoors; weatherproof exposed camera connections |
| Incoming bandwidth | 80 Mbps |
| Recorder PoE budget | 75 W |
| Kit Configuration — Camera composition | 5 × T363H 6MP Smart Hybrid Light |
|---|---|
| Kit Configuration — Recorder | 1 × NVR-108MH-C-8P |
| Kit Configuration — Hard drive included | No |
| Kit Configuration — Network cabling included | No |
| Kit Configuration — Supplied colour / lens | White / 2.8 mm fixed |
| Kit Configuration — Unused NVR channels / PoE ports | 3 / 3 |
| T363H Camera — Included quantity | 5 |
| T363H Camera — Model | IPC-T363H-MU |
| T363H Camera — Resolution | 6MP |
| T363H Camera — Image sensor | 1/2.4-inch progressive scan CMOS |
| T363H Camera — Video frame rates | 3200 × 1800 at up to 20 fps in both 50 Hz and 60 Hz modes |
| T363H Camera — Supplied lens | 2.8 mm, F1.2 |
| T363H Camera — Horizontal field of view | 119.6° |
| T363H Camera — Illumination | IR and white supplemental light up to 30 m |
| T363H Camera — Smart motion detection | human and vehicle |
| T363H Camera — Audio | Built-in microphone |
| T363H Camera — Protection | IP67 |
| T363H Camera — Maximum PoE per camera | 6.5 W |
| Recorder & Installation — Channels | 8 |
| Recorder & Installation — Integrated PoE ports | 8 |
| Recorder & Installation — Video outputs | HDMI; VGA |
| Recorder & Installation — Drive bays | 1 SATA; drives not included |
| Recorder & Installation — Camera-set maximum PoE | 32.5 W before cable losses |
| Recorder & Installation — Installation | NVR indoors; weatherproof exposed camera connections |
| Recorder & Installation — Incoming bandwidth | 80 Mbps |
| Recorder & Installation — Recorder PoE budget | 75 W |
04Why choose this
Built for the way you actually use the KIT-T363H-5CAM-NVR108C-NOHDD
One recorder for the supplied views
Connect the 5 cameras to the recorder's built-in PoE ports. 3 recording inputs and PoE ports remain. The supplied camera maxima total 32.5 W before cable losses, within the recorder's 75 W PoE allowance. Any additional cameras must fit the remaining PoE budget and 80 Mbps incoming bandwidth; display decoding is a separate limit.
Choose lighting deliberately
T363H: Routine infrared night viewing is black and white. Smart Hybrid Light can provide white illumination for colour during configured events. Colour needs sufficient visible light; test the light settings and subject detail at the installed distance.
Plan recording and playback
No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 5 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.
05Where it fits
Right at home in these scenarios
Entrances and points of activity
Use the 5 cameras to give each entrance, driveway or activity area a separate view. Test detail at the target distance and check the image after dark.
Shops, offices and warehouses
Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.
Outdoor approaches
The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.
06Setup
Installation & setup
-
01
Included in the base configuration
- 5 × IPC-T363H-MU, white, 2.8 mm turret camera
- 1 × NVR-108MH-C-8P 8CH PoE recorder
- No HDD, microSD cards or network cabling. Optional mounting accessories are separate.
-
02
Prepare the site and cabling
- Allocate all 5 camera positions and label their intended views.
- Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
- Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.
-
03
Commission and test recording
- Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
- Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
- Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.
08Questions
Frequently asked about the KIT-T363H-5CAM-NVR108C-NOHDD
Q.01
Is a hard drive included?
No. This base contains 5 × IPC-T363H-MU in white with 2.8 mm lenses, plus one NVR-108MH-C-8P recorder. It has 1 SATA bay. Choose compatible surveillance disks for all camera bitrates, the schedule and retention. Network cables and microSD cards are separate.
Q.02
Will the cameras show colour in darkness?
T363H: Routine infrared night viewing is black and white. Smart Hybrid Light can provide white illumination for colour during configured events. Colour needs sufficient visible light; test the light settings and subject detail at the installed distance.
Q.03
Can I add more cameras?
3 recording inputs and PoE ports remain. The supplied camera maxima total 32.5 W before cable losses, within the recorder's 75 W PoE allowance. Any additional cameras must fit the remaining PoE budget and 80 Mbps incoming bandwidth; display decoding is a separate limit.
Q.04
What recording limits should I check?
T363H: 3200 × 1800 at up to 20 fps in both 50 Hz and 60 Hz modes. Keep combined camera bitrates within the recorder’s 80 Mbps incoming limit. Recording capacity and simultaneous live-view decoding are separate; use suitable substreams for a multi-camera grid.
Q.05
Which audio and warning features are supplied?
5 × T363H: Built-in microphone. Configure only the supported responses and test audio, events and playback during commissioning.
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
10Bundles
Recommended packages
Choose the mix and recorder capacity
This base kit contains 5 × T363H 6MP Smart Hybrid Light and an 8-channel recorder. 3 recording inputs and PoE ports remain. The supplied camera maxima total 32.5 W before cable losses, within the recorder's 75 W PoE allowance. Any additional cameras must fit the remaining PoE budget and 80 Mbps incoming bandwidth; display decoding is a separate limit. Select a different camera count or mix if the site's required views differ.
