Dahua KTP01L-AUS-S2 7inch Touch Screen IP Video Intercom Kit
SKU: DHI-KTP01L(S)-AUS-S2
Description

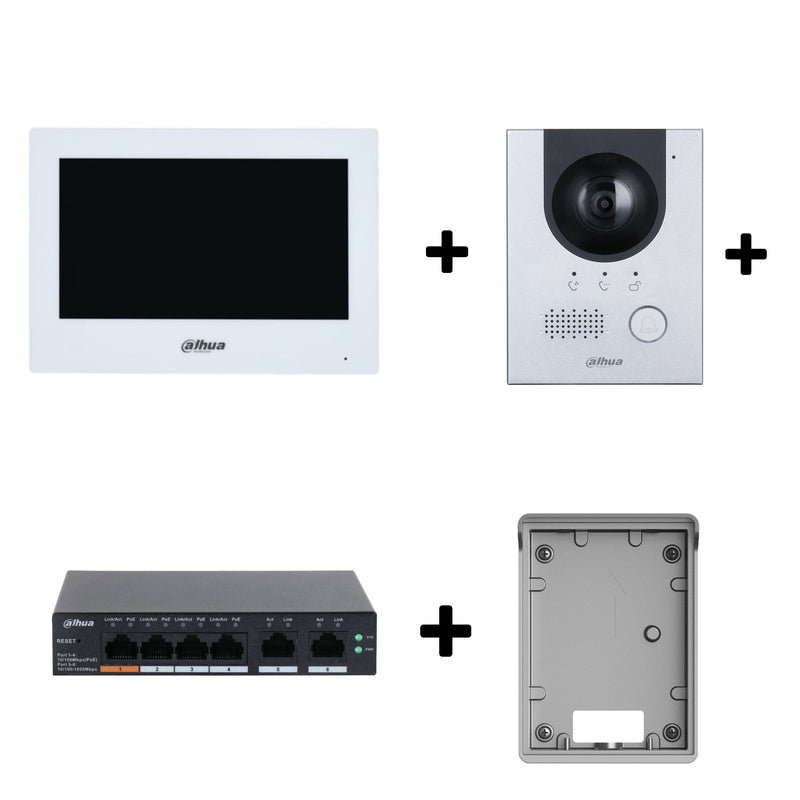

Dahua KTP01L IP video intercom kit with a 2MP villa door station, a 7-inch touch-screen indoor monitor and a PoE switch included, for see-and-talk visitor calls and remote door unlocking over your network.
- 2MP VTO2202F villa door station with night vision, IK07 and IP65
- 7-inch VTH2621GW capacitive touch-screen indoor monitor
- Dahua PoE switch and door-station mounting bracket included
- Two-way voice with echo suppression and noise reduction
- Controls 1-2 electric door or gate strikes
- Answer, view and unlock remotely with the DMSS app
- microSD storage in the monitor (up to 32GB); standard PoE
Regular price
$380.00 AUD
Sale price
$380.00 AUD
Regular price
$480.00 AUD
Sale
20.83%
$100.00 AUD
(20.83%)
Member
Sign in to save $7.60 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
Dahua KTP01L-AUS-S2 7inch Touch Screen IP Video Intercom Kit
1
/
of
1
Build your setup Build a complete CCTV system
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DHI-KTP01L(S)-AUS-S2 is
The Dahua KTP01L is a complete 7-inch IP video intercom kit for a house or villa, supplied with everything needed to see and speak to visitors and let them in.
It pairs a 2MP VTO2202F villa door station with a 7-inch VTH2621GW capacitive touch-screen indoor monitor, and includes a Dahua PoE switch and a surface-mount bracket for the door station, so the kit runs over standard network cabling with power over Ethernet.
The door station has a 2MP camera with a wide 140-degree view, night vision and a metal-and-aluminium face rated IK07 for impact and IP65 against weather, suiting an exposed front gate or entry.
Visitors press the mechanical call button, and you answer on the touch-screen monitor or on your phone through the free DMSS app, with two-way voice using echo suppression and noise reduction.
From the monitor or the app you can view the entry and release the door, and the door station controls one or two electric strikes or gate locks; the locks must be powered separately, as the station's 12V DC output suits only a small single-lock load and a second lock needs an extension relay.
The indoor monitor records snapshots and messages to a microSD card (up to 32GB), and a villa setup can run multiple indoor extensions.
It is an IP, network-based kit with no monthly fee.
§ 02Engineering
DHI-KTP01L(S)-AUS-S2 specifications
- Door station: 2MP VTO2202F villa station, 140-degree view, night vision, mechanical call button, IK07 and IP65
- Indoor monitor: 7-inch VTH2621GW capacitive touch screen, 1024 x 600, microSD up to 32GB
- Included: Dahua PoE switch and a surface-mount bracket for the door station
- Audio: two-way voice with echo suppression and digital noise reduction
- Access control: releases 1-2 electric door or gate strikes; locks powered separately
- Remote answer: view, talk and unlock from the free DMSS app on your phone
- Network and power: IP-based over standard PoE (802.3af); no monthly fee
- Expansion: villa mode supports multiple indoor monitor extensions
- Indoor monitor: 7-inch VTH2621GW capacitive touch screen, 1024 x 600, microSD up to 32GB
- Included: Dahua PoE switch and a surface-mount bracket for the door station
- Audio: two-way voice with echo suppression and digital noise reduction
- Access control: releases 1-2 electric door or gate strikes; locks powered separately
- Remote answer: view, talk and unlock from the free DMSS app on your phone
- Network and power: IP-based over standard PoE (802.3af); no monthly fee
- Expansion: villa mode supports multiple indoor monitor extensions
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Camera | 1/2.9" 2MP CMOS Low Illumination HD Colorful Camera |
| WDR | 120 dB |
| Noise Reduction | 3D DNR |
| Day/Night | Auto (ICR) |
| Display Screen (Indoor Monitor) | 7-inch TFT |
| Display Resolution (Indoor Monitor) | 1024 × 600 |
| Screen Type (Indoor Monitor) | Capacitive touchscreen |
Lens & Distance
| Feature | Detail |
|---|---|
| Field of View | Horizontal: 140°; vertical: 79.6; diagonal:159° |
| Focal Length | 2.0 mm |
Night Vision
| Feature | Detail |
|---|---|
| Light Compensation | Auto IR |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265 |
| Video Resolution | 50Hz: Main Stream (720P@25 fps), sub stream (1080P@25 fps) | 60Hz: Main Stream (720P@30 fps), sub stream (1080P@30 fps) |
| Video Frame Rate | 25 fps |
| Video Bit Rate | 256 Kbps to 8 Mbps |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711a; G.711u; PCM |
| Audio Mode | 2-way voice communication |
| Audio Enhancement (Door Station) | Echo suppression/digital noise reduction |
| Audio Enhancement (Indoor Monitor) | Echo suppression |
| Audio Bit Rate | 16 KHz, 16 Bit |
AI & Deep Learning
| Feature | Detail |
|---|
Network & Storage
| Feature | Detail |
|---|---|
| Main Processor | Embedded processor |
| Operating System | Embedded Linux Operation System |
| Interoperability (Door Station) | ONVIF; CGI |
| Network Protocol (Door Station) | RTSP;RTMP;HTTP/HTTPS;DNS; UPnP;RTP;SIP;SSH; ONVIF ;P2P |
| Network Protocol (Indoor Monitor) | RTSP; RTP; SIP; DNS; SSH |
| ROM (Indoor Monitor) | 128 MB |
| RAM (Indoor Monitor) | 128 MB |
| CPU (Indoor Monitor) | Dual core 1.2 GHz |
Event & Alarm
| Feature | Detail |
|---|---|
| SOS (Indoor Monitor) | Yes |
| DND Mode (Indoor Monitor) | Do not disturb period can be set; Do not disturb mode |
Interface
| Feature | Detail |
|---|---|
| Audio Input (Door Station) | 1 channel |
| Audio Output (Door Station) | Built-in speaker |
| Status Indicator Light (Door Station) | 3 |
| Button Type (Door Station) | Mechanical |
| RS485 (Door Station) | 1 |
| Alarm Output (Door Station) | 1 |
| Power Output (Door Station) | 1-ch 12 VDC 100mA |
| Exit Button (Door Station) | 1 |
| Door Status Detection (Door Station) | 1 |
| Lock Control (Door Station) | 1 |
| Network Port (Door Station) | One RJ45 10M/100M network port |
| Audio Input (Indoor Monitor) | 1 |
| Audio Output (Indoor Monitor) | Built-in speaker |
| Alarm Input (Indoor Monitor) | 6 |
| Alarm Output (Indoor Monitor) | 1 |
| Power Output (Indoor Monitor) | 1 (12 V/200 mA) |
| Door Bell (Indoor Monitor) | Yes (use any alarm input port) |
| Network (Indoor Monitor) | One 10/100 Mbps Ethernet |
| Network Port (Switch) | Port1-4: 4 × RJ-45 10/100 M (PoE); Port 5: 1 × RJ-45 10/100 M (uplink) |
General & Environment
| Feature | Detail |
|---|---|
| Communication Mode (Indoor Monitor) | Full digital |
| Information Release (Indoor Monitor) | Receive and view text information released by the management center |
| Number of Extensions (Indoor Monitor) | Villa: 9; Apartment: 4 |
| Casing (Indoor Monitor) | PC + ABS |
| Appearance Color (Door Station) | Silver |
| Power Supply (Door Station) | DC 24V 1A; Standard PoE |
| Power Adapter (Door Station) | Optional |
| Installation (Door Station) | Flush/surface mount |
| Certifications (Door Station) | CE; FCC; UL |
| Product Dimensions (Door Station) | 130 mm × 96 mm × 28.5 mm (5.12" × 3.78" × 1.12") |
| Protection (Door Station) | IK07; IP65 |
| Operating Temperature (Door Station) | –30°C to +60°C (–22°F to 140°F) |
| Operating Humidity (Door Station) | 10%–90% (RH, non-condensing) |
| Operating Altitude (Door Station) | 0 m–3000 m |
| Power Consumption (Door Station) | ≤ 8W |
| Net Weight (Door Station) | 0.35 kg (0.77 lb) |
| Gross Weight (Door Station) | 0.4 kg (0.88 lb) |
| Appearance Color (Indoor Monitor) | White |
| Power Supply (Indoor Monitor) | 12 VDC 1A; Standard PoE (36–57 V, 0.35 A) |
| Power Adapter (Indoor Monitor) | Optional |
| Installation (Indoor Monitor) | Surface mount |
| Certifications (Indoor Monitor) | CE; FCC |
| Accessory (Indoor Monitor) | Bracket and alarm ribbon cable (included) |
| Product Dimensions (Indoor Monitor) | 189.0 mm × 130.0 mm × 26.9 mm (7.44" × 5.12" × 1.06") |
| Operating Temperature (Indoor Monitor) | –10°C to +55°C (14°F to 131°F) |
| Operating Humidity (Indoor Monitor) | 10%–95% (RH, non-condensing) |
| Operating Altitude (Indoor Monitor) | Beneath 3,000 m (9,842.52 ft) |
| Power Consumption (Indoor Monitor) | Standby ≤ 2W, working ≤ 6W |
| Net Weight (Indoor Monitor) | 0.34 kg (0.74 lb) |
| Gross Weight (Indoor Monitor) | 0.58 kg (1.27 lb) |
| Appearance Color (Switch) | Black |
| Power Supply (Switch) | 100–240 VAC |
| Power Adapter (Switch) | Standard |
| Certifications (Switch) | CE; FCC; UL |
| Product Dimensions (Switch) | 170 mm × 100 mm × 35 mm (6.69" × 3.94" × 1.38") |
| Operating Temperature (Switch) | –10 °C to +55 °C (+14 °F to +131 °F) |
| Operating Humidity (Switch) | 10%–95% (RH), non-condensing |
| Operating Altitude (Switch) | 0–3000 m (0–9842.52 ft) |
| Net Weight (Switch) | 0.45 kg (0.99 lb) |
§ 04Why choose this
Built for the way you actually use the DHI-KTP01L(S)-AUS-S2
Answer from anywhere
The free DMSS app forwards calls to your phone so you can view, talk and unlock whether you are home or away, with no monthly fee.
Complete and network-ready
The kit includes the door station, indoor monitor, PoE switch and bracket, running over standard network cabling.
Built for an outdoor entry
An IK07 and IP65 door station with night vision suits an exposed front gate or entry in Australian conditions.
§ 05Where it fits
Right at home in these scenarios
Homes and villas
Answer the front gate or door from a 7-inch monitor inside, or from your phone when you are out, and let visitors in remotely.
Home offices and studios
Screen and admit clients or deliveries at a separate entrance without leaving your desk, using the monitor or app.
Granny flats and dual entries
Add indoor extensions so a call can be answered from more than one dwelling or room on the property.
Gated driveways
Release an electric gate strike for expected visitors and deliveries after seeing and speaking to them at the entry.
§ 06Setup
Installation & setup
Cable the units to the PoE switch
Run a network cable from the door station to the included PoE switch and another from the indoor monitor, then a cable from the switch to your modem for remote access.
Mount the door station at the entry
Fix the door station at the gate or entry using the included surface bracket, or an optional flush box, at a height that frames a visitor's face; aim for some weather cover where possible.
Wire any electric lock separately
To release a strike or gate lock, run cabling from the door station and power the lock from its own supply. For a second lock add an extension relay; for motorised gates use the dry-contact connection, not 12V.
Set up the monitor and app
Configure the indoor monitor, set the unlock period and response interval, then add the door station to the DMSS app for remote answering and unlocking.
§ 07Questions
Frequently asked about the DHI-KTP01L(S)-AUS-S2
Q.01
What is included in the KTP01L kit?
The kit includes a 2MP VTO2202F villa door station, a 7-inch VTH2621GW capacitive touch-screen indoor monitor, a Dahua PoE switch and a surface-mount bracket for the door station. That covers the core of a single-entry intercom; you supply the network cabling, and any electric lock or strike and its power supply separately.
Q.02
Can I answer the door and unlock from my phone?
Yes. Through the free Dahua DMSS app you can receive the call, see and talk to the visitor and release the door from your phone, whether you are home or away. The 7-inch indoor monitor does the same on-site, so you can answer and unlock from either.
Q.03
How many door locks can it control?
The door station can control one or two electric strikes or gate locks. The locks must be powered separately, as the station's 12V DC output suits only a small single-lock load; a second lock needs an extension relay. For motorised gates, use the dry-contact connection rather than feeding 12V into the gate motor.
Q.04
Is there a monthly fee or subscription?
No. This is an IP intercom that runs on your own network with no monthly fee. Calls and unlocking work locally on the monitor, and remote answering over the DMSS app uses Dahua's P2P service at no subscription cost. You only need an internet connection at the site for remote access.
Q.05
How is the kit wired and powered?
Run a network cable from the door station to the included PoE switch, and another from the indoor monitor to the switch; a third cable to your modem enables remote access. The PoE switch powers both units over Ethernet, so you do not need a separate power supply at the door station or monitor.
Q.06
Is the door station suitable for an exposed entry?
Yes. The door station has a metal-and-aluminium face rated IK07 for impact and IP65 against dust and water, suiting an exposed front gate or entry. For the most weather protection, mount it under some cover where practical and use the included surface bracket or an optional flush-mount box.
Q.07
Does it work at night?
Yes. The door station has night vision and a low-illumination 2MP camera, so you can still see a visitor at the entry after dark. The wide 140-degree view captures a caller and the area around the door, which helps you identify who is there.
Q.08
Can I add more indoor monitors?
Yes. In a villa configuration the system supports multiple indoor monitor extensions, so you can add a monitor on another floor or in another room and answer from whichever is nearest. Add compatible Dahua indoor monitors and confirm the PoE switch has enough ports and power for the extra units.
§ 09Bundles
Recommended packages
Network and cabling
Connect the door station and monitor with quality Cat6 cable. For larger installs or more PoE ports, add a Dahua PoE switch alongside the one included.
Plan the door release
To unlock a door or gate, add an electric strike or maglock and its own power supply; the lock is not powered by the door station. Contact us to confirm the right lock and wiring for your entry.
Add indoor extensions
For a multi-room or multi-dwelling setup, add compatible Dahua indoor monitors as extensions, confirming the switch has enough ports and power.
