Dahua DH-SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Panoramic & PTZ Security Camera
SKU: DH-SDT3E410-8P-MB-A-PV1
Description
- Dual-Lens Resolution: Combines 8MP panoramic and 8MP PTZ with 30x optical zoom for detailed coverage.
- Active Deterrence: Features red/blue warning lights and built-in siren to prevent intrusions.
- AI Perimeter Protection: Uses AI for smart detection and auto-tracking of humans and vehicles.
- Starlight Night Vision: Delivers color imaging in low light with 150m IR range.
- Robust Build & Connectivity: IP67 weatherproof and IK10 vandal-resistant with PoE support and two-way audio.
Regular price
$520.00 AUD
Sale price
$520.00 AUD
Regular price
$640.00 AUD
Sale
18.75%
$120.00 AUD
(18.75%)
EOFY sale: extra 5% off orders over $800
Applied automatically in cart — ends 30 June.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
Dahua DH-SDT3E410-8P-MB-A-PV1 8MP+4MP 10x Starlight TiOC Panoramic & PTZ Security Camera
1
/
of
1
Build your setup Configure your bundle Bundle this camera with NVR, hard drive & accessories Complete setup from $1,026.33
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What this product is
Lens: 2.8mm.
Color options: White or Black.
Note: Please indicate your choice in your order message.

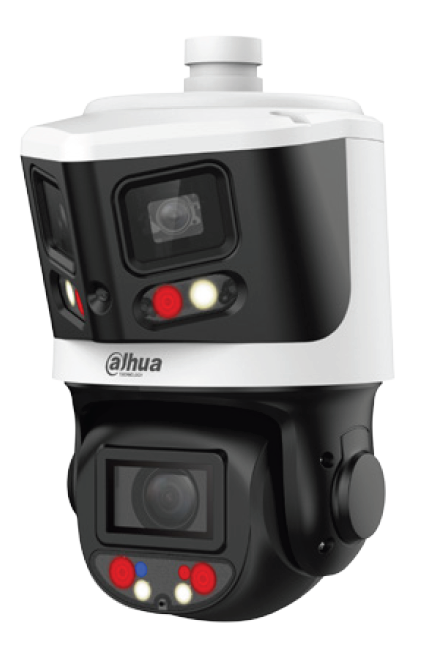

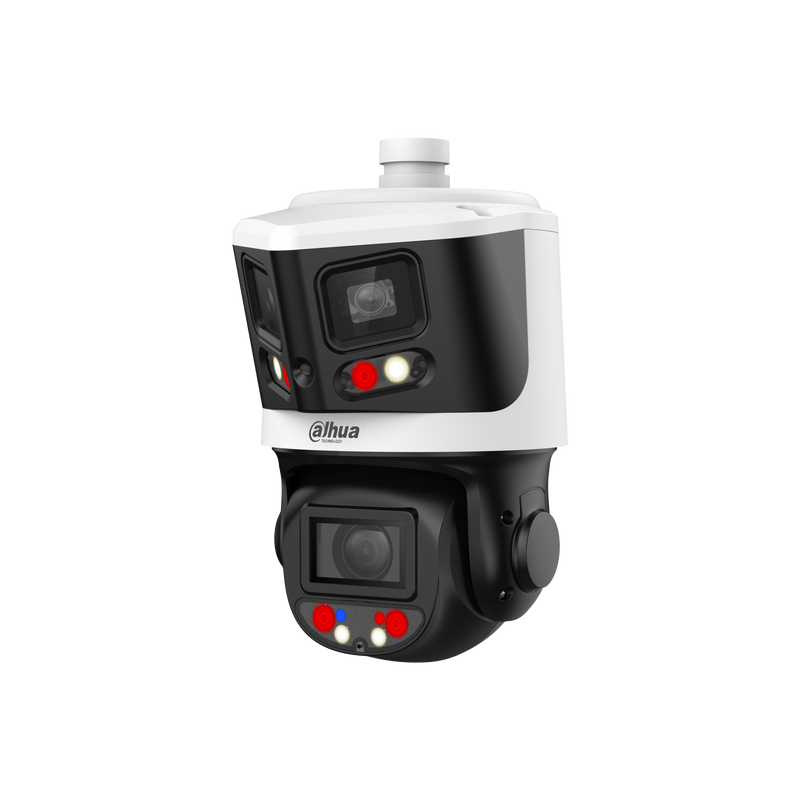

The Dahua DH-SDT3E410-8P-MB-A-PV1 is a high-performance dual-lens PTZ network camera for intelligent outdoor surveillance in diverse environments like industrial zones, public venues, and gated estates.
Equipped with AI-based perimeter protection and auto-tracking, active deterrence including red/blue warning lights and a built-in siren, Starlight night vision with IR up to 150m, and PoE integration.
§ 02Engineering
Technical specifications
- Dual-Lens Resolution: 8MP panoramic overview and 8MP PTZ detail camera for wide and zoomed coverage.
- Active Deterrence: Built-in red/blue flashing lights and siren to deter intruders upon detection.
- H.265 Video Compression: Efficient storage and transmission with modern encoding.
- Two-Way Audio: Built-in microphone and loudspeaker enable bidirectional communication.
- Built-in LED & IR: Combines warm light and Starlight low-light technology with IR illumination up to 150m.
- IP67 Weatherproof & IK10 Vandal-Resistant: Endures harsh environments and physical impact.
- AI Perimeter Protection: Detects and classifies humans/vehicles while reducing false alarms.
- 30× Optical Zoom: Motorized lens for detailed long-distance observation (4.5–135mm).
- Auto-Tracking: Follows moving subjects intelligently across the monitored area.
- PoE Integration: Powered via Ethernet cable for simplified installation.
- Active Deterrence: Built-in red/blue flashing lights and siren to deter intruders upon detection.
- H.265 Video Compression: Efficient storage and transmission with modern encoding.
- Two-Way Audio: Built-in microphone and loudspeaker enable bidirectional communication.
- Built-in LED & IR: Combines warm light and Starlight low-light technology with IR illumination up to 150m.
- IP67 Weatherproof & IK10 Vandal-Resistant: Endures harsh environments and physical impact.
- AI Perimeter Protection: Detects and classifies humans/vehicles while reducing false alarms.
- 30× Optical Zoom: Motorized lens for detailed long-distance observation (4.5–135mm).
- Auto-Tracking: Follows moving subjects intelligently across the monitored area.
- PoE Integration: Powered via Ethernet cable for simplified installation.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | Overview channel: 1/2.8" CMOS; Detail channel: 1/2.8" CMOS |
| Pixel | Overview channel: 8 MP; Detail channel: 4 MP |
| Max. Resolution | Overview channel: 5376 (H) × 1520 (V); Detail channel: 2560 (H) × 1440 (V) |
| ROM | Overview channel: 4 GB; Detail channel: 4 GB |
| RAM | Overview channel: 2 GB; Detail channel: 1GB |
| Electronic Shutter Speed | Overview channel: 1 s–1/100,000 s; Detail channel: 1 s–1/30,000 s |
| Scanning System | Progressive |
| Min. Illumination | Overview channel: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) | Detail channel: 0.005 lux@F1.6 (Color, 30 IRE); 0.0005 lux@F1.6 (B/W, 30 IRE); 0 lux (illuminator on) |
| Day/Night | Overview channel: Auto; Color; B/W; Detail channel: Auto; Color; B/W; Electronic |
| BLC | Yes |
| WDR | Overview channel: DWDR; Detail channel: 120 dB |
| HLC | Yes |
| White Balance | Overview channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp | Detail channel: Auto; indoor; outdoor; tracking; manual; sodium lamp; natural light; street lamp |
| Gain Control | Overview channel: Auto; manual; gain prio | Detail channel: Auto; manual; gain prio |
| Noise Reduction | Overview channel: 2D NR; 3D NR | Detail channel: 2D NR; 3D NR |
| Motion Detection | Yes |
| Region of Interest (RoI) | Yes |
| Image Stabilization | Overview channel: NA | Detail channel: Electronic Image Stabilization (EIS) |
| Defog | Overview channel: Electronic | Detail channel: Electronic |
| Digital Zoom | Overview channel: NA | Detail channel: 16× |
| Image Rotation | Overview channel: NA | Detail channel: 180° |
| S/N Ratio | Overview channel: ≥55dB | Detail channel: ≥55dB |
| Privacy Masking | Up to 24 areas can be set, with up to 8 areas in the same view; Multiple colors and mosaic available |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | Overview channel: 2.8 mm; Detail channel: 4 mm–40 mm |
| Max. Aperture | Overview channel: F1.6; Detail channel: F1.6-F3.6 |
| Field of View | Overview channel: H: 180°; V: 47° | Detail channel: H: 58°–11.3°; V: 33.1°–6.4°; D: 66.4°–12.8° |
| Optical Zoom | Overview channel: NA; Detail channel: 10× |
| Focus Control | Auto; manual; semi-auto |
| Close Focus Distance | Overview channel: 0.6 m (1.97 ft); Detail channel: 0.1 m–0.5 m (0.33 ft–1.64 ft) |
| Iris Control | Overview channel: NA; Detail channel: NA |
| DORI Distance | Detect 500 m (1640.42 ft); Observe 197.5 m (647.97 ft); Recognize 100 m (328.08 ft); Identify 50 m (164.04 ft) |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to +90° |
| Manual Control Speed | Overview channel: NA; Detail channel: H: 0.1°–80°/s; V: 0.1°–50°/s |
| Preset Speed | H: 80°/s; V: 50°/s |
| Preset | 300 |
| Tour | 8 (up to 32 presets per tour) |
| Power-off Memory | Yes |
| Idle Motion | Preset; Tour |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | Overview channel: 30 m (98.43 ft) (IR); 30 m (98.43 ft) (white light) | Detail channel: 70 m (229.66 ft); 30 m (98.43 ft) (white light) |
| Illuminator On/Off Control | Overview channel: Manual; Auto; Off | Detail channel: Zoom Prio; Manual; Auto; Off |
| Illuminator Number | Overview channel: 2 (IR light); 2 (white light) | Detail channel: 2 (Dual light fusion); 2 (IR light) |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.264H; H.264B; Smart H.265+; H.265; Smart H.264+; H.264M; MJPEG (Sub Stream 1) |
| Streaming Capability | 3 streams |
| Resolution | Overview channel: 5376 × 1520; 26886 × 752; 1080p (1920 × 1080); 720p (1280 × 720); 1344 × 368; D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) | Detail channel: 2560 × 1440; 3M (2304 × 1296); 1080p (1920 × 1080); 1280 × 960 (1.3M); 720p (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240) |
| Video Frame Rate | Overview channel: Main stream: 5376 × 1520 @(1–25/30 fps); Sub stream 1: 1344 × 368/D1/VGA/CIF@ (1–25/30 fps); Sub stream 2: 2688 × 752/1080p/1.3M/720p @(1–25/30 fps) | Detail channel: Main stream: 4M/3M/1080p/1.3M/720p @(1–25/30 fps); Sub stream 1: D1/VGA/CIF@ (1–25/30 fps); Sub stream 2: 1080p/1.3M/720p/ @(1–25/30 fps) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | Overview channel: H264: 128 kbps–16,384 kbps; H265: 51 kbps–13,312 kbps | Detail channel: H264: 96 kbps–16,384 kbps; H265: 38 kbps–10,240 kbps |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | Overview channel: PCM, G.711A, G.711Mu, G.726, MPEG2-Layer2, G.722.1, G.729; Detail channel: NA |
AI & Deep Learning
| Feature | Detail |
|---|---|
| IVS (Perimeter Protection) | Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; human/vehicle alarm classification; linkage tracking (only for people) |
| Face Detection | Detail channel: Supports face detection, optimization, capturing pictures, uploading high-quality face snapshots and enhancing face images. Attribute Extraction is also supported, where 6 attributes and 8 expressions can be detected. Face cutout is also offered, where you can cutout one face at a time and customize the size to be a one-inch photo. The supported methods for capturing snapshots are real-time capturing, quality first, and selecting a preferred image among a group of snapshots. |
| Auto Tracking | Auto Tracking Lite |
| Smart Tracking | WizTracking: Xinghan large-scale AI models-driven human tracking | Relay tracking: X-SPANS series only. Tracking continues after target exits overview channel until target leaves scene. | Linkage tracking: X-SPANS series only. Tracks only targets visible in overview channel. |
| Auto Patrol | After an IVS alarm is triggered, it can link with up to 5 presets or scan to patrol the key areas. IVS can be enabled with SMD at the same time. |
| SMD | Yes |
| Acupick | Uses deep learning algorithms and works with backend devices to accurately match targets, such as people and motor vehicles, and search through live and recorded videos to quickly locate targets (Overview channel support) |
| Light Warning | Red and blue light warning; Flash duration: 5 s–30 s; Flash frequency: high, medium, low |
| Sound Warning | Offers 11 sound alarm and 10 custom sound alarms can be imported. Sound can be set from 0%–100%. Play times can be set from 1-10. |
Network & Storage
| Feature | Detail |
|---|---|
| Network Protocol | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; QoS; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; RTSP; ARP |
| Interoperability | ONVIF (Profile S & Profile G & Profile T); CGI; SDK; P2P |
| Streaming Method | Unicast/Multicast |
| User/Host | 20 (total bandwidth: 64 M) |
| Storage | Micro SD card (512 GB); FTP/SFTP; NAS |
| Browser | web5.0: IE 9 and later versions; Chrome 41 and later versions; Firefox 50 and later versions; Safari 10 and later versions |
| Management Software | DMSS; DSS Pro |
| Mobile Client | iOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Linkage | Capture; recording; send email; preset; alarm digital output; audio; warning light |
| Alarm Event | Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection |
Interface
| Feature | Detail |
|---|---|
| Network Port | RJ-45 (100 Base-T) |
| Audio Input | 1 channel (LINE IN, bare wire,built-in mic (mutually exclusive)) |
| Audio Output | 1 channel (LINE OUT,bare wire;built-in speaker (mutually exclusive)) |
| Alarm Input | 1 (on-off value input: 0–5 VDC) |
| Alarm Output | 1 channel |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12 VDC, 3 A ± 10%; PoE+(802.3at) |
| Power Consumption | Basic: 12 W; Max: 25 W (illuminator + heating glass + siren and light active deterrence + PTZ) |
| Operating Temperature | –30 °C to +60 °C (–22 °F to +140 °F) |
| Operating Humidity | ≤95% |
| Protection | TVS 6000 V lightning proof; IP66; surge protection; voltage transient protection |
| Product Dimensions | 140.3 mm × 181.7 mm × 238.8 mm (5.52" × 7.15" × 9.40") (L × W × H) |
| Net Weight | 2.17 kg (4.78 lb) |
| Gross Weight | 3.1 kg (6.83 lb) |
| Certifications | CE: EN55032/EN55035/IEC61000-3-2/IEC61000-3-3/EN62368-1/IEC62471 |
§ 04Why choose this
Built for the way you actually use it
TiOC Active Deterrence
Red and blue strobe plus siren. Triggers on human or vehicle detection from either the panoramic or PTZ lens.
Auto-Linking Between Panoramic and PTZ
When the panoramic lens detects a target, the PTZ automatically pans and zooms to follow it. No manual intervention needed.
Starlight Low-Light Performance
Good colour footage in dim conditions. Smart dual light provides warm LED when targets are detected.
IP66 Weatherproof
Sealed dome handles rain, dust, and heat. Suitable for outdoor pole or wall mounting.
§ 05Where it fits
Right at home in these scenarios
Large Car Park
Panoramic lens monitors the entire lot. PTZ auto-zooms to track a person walking between cars. One unit replaces multiple fixed cameras plus a separate PTZ.
Warehouse Yard or Depot
Wide view covers the full yard. PTZ zooms into specific loading bays or gate entries on detection.
School Campus or Sports Ground
Panoramic overview of the grounds. PTZ follows activity in real time.
Commercial Building Forecourt
One camera covers the full width and can zoom in on individual people or vehicles.
§ 06Setup
Installation & setup
What's in the Box
1. Dahua DH-SDT3E410-8P-MB-A-PV1 Camera × 1 2. Mounting Bracket × 1 3. Quick Start Guide × 1
Installation Requirements
1. Power: PoE+ (IEEE 802.3at) or 12V DC. Higher power draw due to dual sensors and PTZ motor. 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Pole or wall mount. Camera is heavier than single-lens units — about 2.5–3 kg. Use a sturdy bracket. 4. Height: 4–6 m for best panoramic coverage and PTZ range.
App Setup
1. Download DMSS app (iOS or Android). Create an account. 2. Power the camera via PoE+. Wait about 120 seconds for full boot. 3. Scan the QR code or add by serial number. 4. Configure panoramic-to-PTZ auto-linking rules, deterrence settings, and patrol routes.
§ 07Questions
Frequently asked
Q.01
Does this take up two NVR channels?
Yes. The panoramic and PTZ streams are separate. You need two available channels on your NVR.
Q.02
What zoom range does the PTZ have?
10× optical. Good for medium-range tracking — not as long as a dedicated 25× PTZ, but combined with the panoramic view it covers most scenarios.
Q.03
Can I use just the panoramic view without the PTZ?
Yes. You can disable auto-linking and use them independently.
Q.04
Is it bigger than a standard PTZ?
Yes. The dual-lens housing is larger and heavier. Plan your mounting bracket accordingly.
Q.05
What NVR is recommended?
A Dahua NVR with at least 2 spare channels and enough bandwidth for both 8 MP + 4 MP streams. NVR5216-AI-ANZ or similar.
