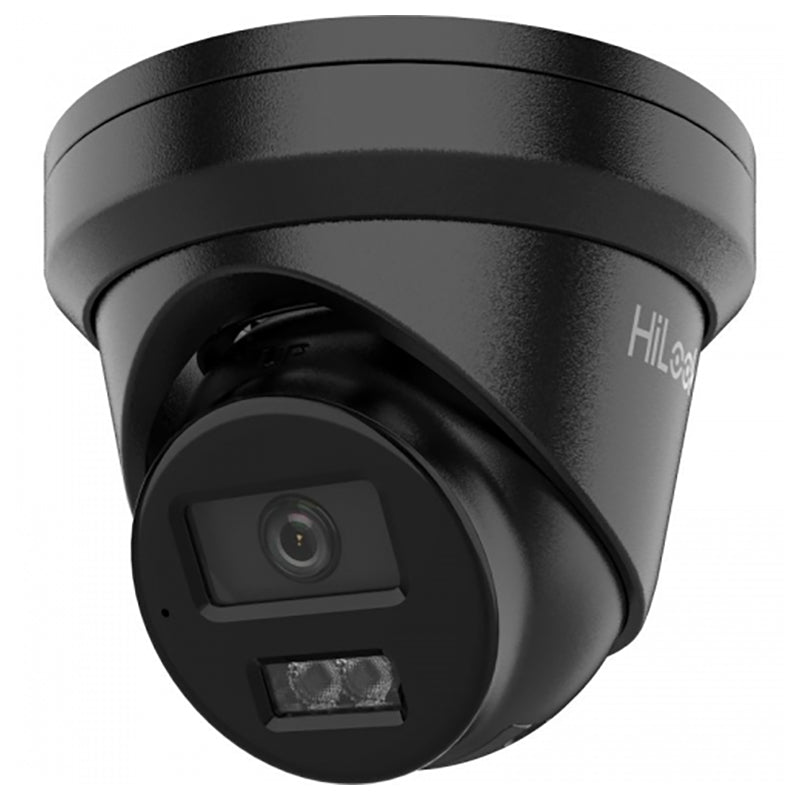

HiLook by Hikvision 6MP IPC-T363H-MU Acusense Turret IP Camera with Mic Colour Night BLACK
- 6MP High Resolution: Sharp 3200 × 1800 video with 149° viewing angle for detailed monitoring.
- Hybrid Color Night Vision: Motion-activated IR + white light delivers color images up to 30m in darkness.
- Smart Detection with Acusense: Reduces false alerts via human/vehicle classification technology.
- Built-in Microphone & Robust Design: Clear audio capture with noise filtering and IP67 weatherproof metal housing.
- H.265+ Compression: Efficient bandwidth and storage optimization while maintaining video quality.
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
§ 01Overview
What the IPC-T363H-MU is
The IPC-T363H-MU is a fixed turret network camera for reliable and intelligent day/night security.
Equipped with 6MP resolution, colour night vision, smart detection, built-in microphone, and IP67 rating.
See it in action
What the IPC-T363H-MU features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
30m IR Night Vision
Dual-Light Night Vision
Full Color Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Illustrative — simulated for demonstration
§ 02Engineering
IPC-T363H-MU specifications
- Built-in Mic: Captures clear audio with noise filtering.
- Hybrid IR + White Light: Provides full-color night vision up to 30m when motion is detected.
- Smart Detection: AI-powered human and vehicle classification to reduce false alarms.
- H.265+ Compression: Saves bandwidth and storage while maintaining video quality.
- IP67 Rating: Weather-resistant for reliable indoor/outdoor use in any conditions.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Privacy Mask | 4 programmable polygon privacy masks |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 119.6°, vertical FOV 60°, diagonal FOV 149° | 4 mm, horizontal FOV 96.8°, vertical FOV 50°, diagonal FOV 115° |
| Lens Mount | M12 |
| Iris Type | Fixed |
| Aperture | F1.2 |
| DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 75° |
| Rotation Range | 0° to 360° |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR, White Light |
| Supplement Light Range | Up to 30 m |
| Smart Supplement Light | Yes |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video Compression | Main stream: H.265+/H.265/H.264+/H.264 | Sub-stream: H.265/H.264/MJPEG |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile, Main Profile, High Profile |
| H.265 Type | Main Profile |
| Bit Rate Control | CBR, VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream |
Audio
| Feature | Detail |
|---|---|
| Audio Type | Mono sound |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 8 kHz/16 kHz |
| Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
Network & Storage
| Feature | Detail |
|---|---|
| Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Client | iVMS-4200, HiLookVision |
| Web Browser | Plug-in required live view: IE 10, IE 11 | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Smart Event | Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
| Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
Interface
| Feature | Detail |
|---|---|
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Built-in Microphone | Yes |
| Reset Key | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection | PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| Material | Metal |
| Dimension | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8") |
| Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| Weight | Approx. 600 g (1.3 lb.) |
| With Package Weight | Approx. 909 g (2.0 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Language | English, Ukrainian |
| General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 | RCM: AS/NZS CISPR 32: 2015 | IC: ICES-003: Issue 7 |
| Safety | CB: IEC 62368-1: 2014+A11 | CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment | CE-RoHS: 2011/65/EU | WEEE: 2012/19/EU | Reach: Regulation (EC) No 1907/2006 |
| Protection | IP67: IEC 60529-2013 |
| Camera & Image — Image Sensor | 1/2.4" Progressive Scan CMOS |
|---|---|
| Camera & Image — Max. Resolution | 3200 × 1800 |
| Camera & Image — Min. Illumination | Color: 0.001 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR |
| Camera & Image — Shutter Time | 1/3 s to 1/100,000 s |
| Camera & Image — Day & Night | IR cut filter |
| Camera & Image — Wide Dynamic Range (WDR) | 120 dB |
| Camera & Image — SNR | ≥ 52 dB |
| Camera & Image — Day/Night Switch | Day, Night, Auto, Schedule |
| Camera & Image — Image Enhancement | BLC, HLC, 3D DNR |
| Camera & Image — Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| Camera & Image — Privacy Mask | 4 programmable polygon privacy masks |
| Lens & Distance — Lens Type | Fixed focal lens, 2.8 and 4 mm optional |
| Lens & Distance — Focal Length & FOV | 2.8 mm, horizontal FOV 119.6°, vertical FOV 60°, diagonal FOV 149° | 4 mm, horizontal FOV 96.8°, vertical FOV 50°, diagonal FOV 115° |
| Lens & Distance — Lens Mount | M12 |
| Lens & Distance — Iris Type | Fixed |
| Lens & Distance — Aperture | F1.2 |
| Lens & Distance — DORI | 2.8 mm, D: 76 m, O: 30 m, R: 15 m, I: 7 m | 4 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m |
| Lens & Distance — Pan Range | 0° to 360° |
| Lens & Distance — Tilt Range | 0° to 75° |
| Lens & Distance — Rotation Range | 0° to 360° |
| Night Vision — Supplement Light Type | IR, White Light |
| Night Vision — Supplement Light Range | Up to 30 m |
| Night Vision — Smart Supplement Light | Yes |
| Night Vision — IR Wavelength | 850 nm |
| Video — Main Stream | 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Video — Sub-Stream | 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) |
| Video — Video Compression | Main stream: H.265+/H.265/H.264+/H.264 | Sub-stream: H.265/H.264/MJPEG |
| Video — Video Bit Rate | 32 Kbps to 16 Mbps |
| Video — H.264 Type | Baseline Profile, Main Profile, High Profile |
| Video — H.265 Type | Main Profile |
| Video — Bit Rate Control | CBR, VBR |
| Video — Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Video — Region of Interest (ROI) | 1 fixed region for main stream |
| Audio — Audio Type | Mono sound |
| Audio — Environment Noise Filtering | Yes |
| Audio — Audio Sampling Rate | 8 kHz/16 kHz |
| Audio — Audio Compression | G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC |
| Audio — Audio Bit Rate | 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC) |
| Network & Storage — Security | Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address) |
| Network & Storage — Simultaneous Live View | Up to 6 channels |
| Network & Storage — API | Open Network Video Interface (Profile S, Profile T, Profile G), ISAPI, SDK |
| Network & Storage — Protocols | TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP |
| Network & Storage — User/Host | Up to 32 users; 3 user levels: administrator, operator, and user |
| Network & Storage — Client | iVMS-4200, HiLookVision |
| Network & Storage — Web Browser | Plug-in required live view: IE 10, IE 11 | Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Event & Alarm — Basic Event | Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception |
| Event & Alarm — Smart Event | Line crossing detection and intrusion detection (support alarm triggering by specified target types (human and vehicle)) |
| Event & Alarm — Linkage | Upload to FTP, send email, notify surveillance center, trigger capture |
| Interface — Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
| Interface — Built-in Microphone | Yes |
| Interface — Reset Key | Yes |
| General & Environment — Power | 12 VDC ± 25%, 0.41 A, max. 5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection | PoE: IEEE 802.3af, Class 3, max. 6.5 W |
| General & Environment — Material | Metal |
| General & Environment — Dimension | Ø 127.3 mm × 95.9 mm (Ø 5.0" × 3.8") |
| General & Environment — Package Dimension | 150 mm × 150 mm × 141 mm (5.9" × 5.9" × 5.6") |
| General & Environment — Weight | Approx. 600 g (1.3 lb.) |
| General & Environment — With Package Weight | Approx. 909 g (2.0 lb.) |
| General & Environment — Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General & Environment — Language | English, Ukrainian |
| General & Environment — General Function | Heartbeat, anti-banding, mirror, password protection, password reset via email |
| General & Environment — EMC | CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021 | RCM: AS/NZS CISPR 32: 2015 | IC: ICES-003: Issue 7 |
| General & Environment — Safety | CB: IEC 62368-1: 2014+A11 | CE-LVD: EN 62368-1: 2014/A11: 2017 |
| General & Environment — Environment | CE-RoHS: 2011/65/EU | WEEE: 2012/19/EU | Reach: Regulation (EC) No 1907/2006 |
| General & Environment — Protection | IP67: IEC 60529-2013 |
§ 04Why choose this
Built for the way you actually use the IPC-T363H-MU
AcuSense Human & Vehicle Detection
Deep learning filters out false alarms from animals and leaves.
Built-in Microphone
Records ambient audio alongside video.
HiLook Budget-Friendly Pricing
Same core Hikvision technology at a lower price point. 3-year warranty in Australia.
IP67 Weatherproof
Sealed against dust and rain.
§ 05Where it fits
Right at home in these scenarios
Dark Eave or Fascia Board
Black housing is less visible against dark surfaces. Colour night vision shows visitors clearly.
Driveway or Carport
Warm LED keeps footage in colour all night. AcuSense only alerts on people and cars.
Modern Home Exterior
Black cameras suit contemporary architecture. Discreet turret shape.
Small Office with Dark Trim
Blends with dark ceiling tiles or brackets.
§ 06Setup
Installation & setup
What's in the Box
1. HiLook IPC-T363H-MU (BLK) Camera × 1 2. Mounting Screws & Anchors × 1 set 3. Quick Start Guide × 1
Installation Requirements
1. Power: PoE (IEEE 802.3af) or 12V DC. 2. Cable: Cat5e or Cat6, max 100 m. 3. Mounting: Wall or soffit. Lightweight turret under 600 g. 4. Height: 2.5–3 m.
App Setup
1. Download Hik-Connect or HiLookVision app (iOS or Android). Create an account. 2. Power the camera via PoE. Wait about 60 seconds. 3. Add by QR code or serial number. 4. Set detection zones and notification preferences.
§ 08Questions
Frequently asked about the IPC-T363H-MU
Q.01
Is this the same as the white IPC-T363H-MU?
Q.02
Does it have IR or warm LED?
Q.03
Does it work with Hikvision NVRs?
Q.04
What is the frame rate?
Q.05
Does it support microSD?
Buying from Smarket
Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?
Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.
How long does delivery take?
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
How much is shipping?
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
What warranty do you offer?
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
What is your return policy?
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Do you offer installation?
We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.
