Hikvision DS-PDMCS-EG2-WB(B) Slim Wireless Door Contact
1 1
Hikvision

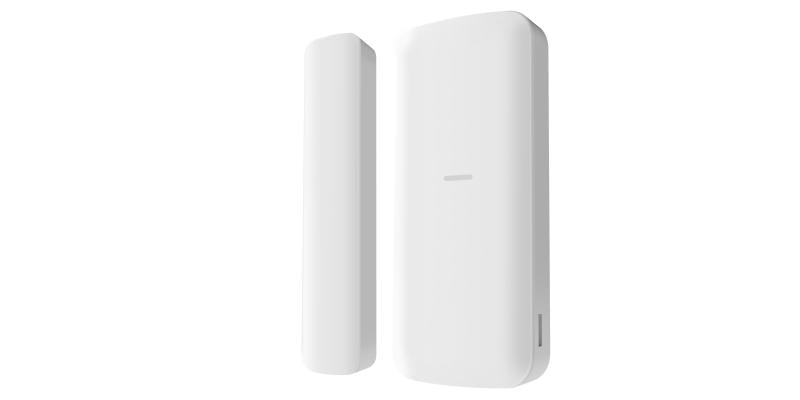

Hikvision DS-PDMCS-EG2-WB(B) Slim Wireless Door Contact

SKU: DS-PDMCS-EG2-WB-B
Description

The Hikvision DS-PDMCS-EG2-WB(B) is a slim wireless opening contact in the AX PRO range, with white detector and magnet housings for discreet indoor door or window installations. It uses 433 MHz Tri-X two-way radio and one CR2450 battery. Check the mounting surface before ordering: Hikvision specifies wooden structures only and prohibits installation on metal surfaces.
$45.14 AUD $45.14 AUD $50.16 AUD
Sale 10.01% $5.02 AUD (10.01%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the DS-PDMCS-EG2-WB-B is

The 10 mm-deep housings fit neatly around indoor openings.

Front and rear tamper protection and signal-strength indication support installation checks.

Hikvision specifies a maximum detection gap of 52 mm and a wireless range of up to 1 km in free space; that range is not an indoor coverage guarantee.

This is the base white-cover model, supplied under the SKU DS-PDMCS-EG2-WB-B.

02Engineering

DS-PDMCS-EG2-WB-B specifications

Radio: 433 MHz Tri-X, two-way
Housing depth: 10 mm
Battery: 1 × CR2450, 3 V
Installation: Indoor wooden structures only

03Full datasheet

Detailed specifications

Specifications

Specifications — Hikvision DS-PDMCS-EG2-WB(B) Slim Wireless Door Contact
FeatureDetail
Manufacturer model DS-PDMCS-EG2-WB(B); supplier SKU DS-PDMCS-EG2-WB-B
Cover colour White
Detection Opening contact; 52 mm maximum detection gap
Wireless communication 433 MHz Tri-X; two-way RF; AES-128 encryption; frequency hopping
Transmission range Up to 1 km in free space
Tamper protection Front and rear
Indicators Signal strength, environmental temperature and blue alarm LED
Battery & standby life 1 × CR2450, 3 V; up to 3 years standby
Housing dimensions (W × H × D) 29 × 69 × 10 mm and 14 × 69 × 10 mm
Weight 38 g
Operating environment Indoor; −10 °C to +55 °C; 10–90% humidity
Mounting surface Wooden structures only; cannot be installed on metal surfaces

08Questions

Frequently asked about the DS-PDMCS-EG2-WB-B

Q.01

Can this contact be mounted on a metal door frame?
Hikvision specifies wooden-structure mounting only and states that this model cannot be installed on metal surfaces. Select a detector whose manufacturer explicitly supports your mounting surface.
Q.02

When should I plan to replace the battery?
The specified battery is one 3 V CR2450. Hikvision quotes up to three years of standby life; this is a standby specification, not a guaranteed three-year replacement interval.
