Hikvision 2386G2H-IU 10-Camera 8MP CCTV Kit + 16CH PoE NVR, No HDD
Email us
1 1
Hikvision

Hikvision 2386G2H-IU 10-Camera 8MP CCTV Kit + 16CH PoE NVR, No HDD

SKU: KIT-2386G2H-IU-10CAM-NVR7616M2-NOHDD
Description

10 × 2386G2H-IU 8MP AcuSense DarkFighter IR, supplied in white with 2.8 mm fixed lenses, plus one DS-7616NI-M2/16P-NOHDD 16-channel PoE recorder.

AcuSense DarkFighter IR cameras provide coordinated views across 10 positions. 2386G2H-IU: Infrared supplement, up to 30 m.

No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.

10 cameras 8MP Ultra HD IP67 Weatherproof Human/Vehicle Detection Built-in Microphone 16 x POE PORTS
$3,644.87 AUD $3,644.87 AUD $4,394.57 AUD
Sale 17.06% $749.70 AUD (17.06%)
Bulk Price$3,426.18 AUD
6% off $1,500+ · Auto at checkout

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Customize this kit Kit price$3,644.87 Bulk Price $3,426.18
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
  • 10 × Hikvision DS-2CD2386G2H-IU 8MP 4K Acusense Turret Network Camera with Mic
  • 1 × Hikvision DS-7616NI-M2/16P 16CH Ultra Series NVR No HDD (16ch)
  • No HDD included (add one below)
Add extra cameras DS-2CD2386G2H-IU
+$0.00
NVR · channels ≥ your total camera count Base: 16ch · Hikvision DS-7616NI-M2/16P 16CH Ultra Series NVR No HDD
Add Hard Drive Optional · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add cablingAdd mounts or cabling as needed
0
0
0
0
Price breakdown:
  • Hikvision 2386G2H-IU 10-Camera 8MP CCTV Kit + 16CH PoE NVR, No HDD $3,644.87
Total: $3,644.87
Bulk Price$3,426.18 6% off $1,500+ · Auto at checkout

01Overview

What the KIT-2386G2H-IU-10CAM-NVR7616M2-NOHDD is

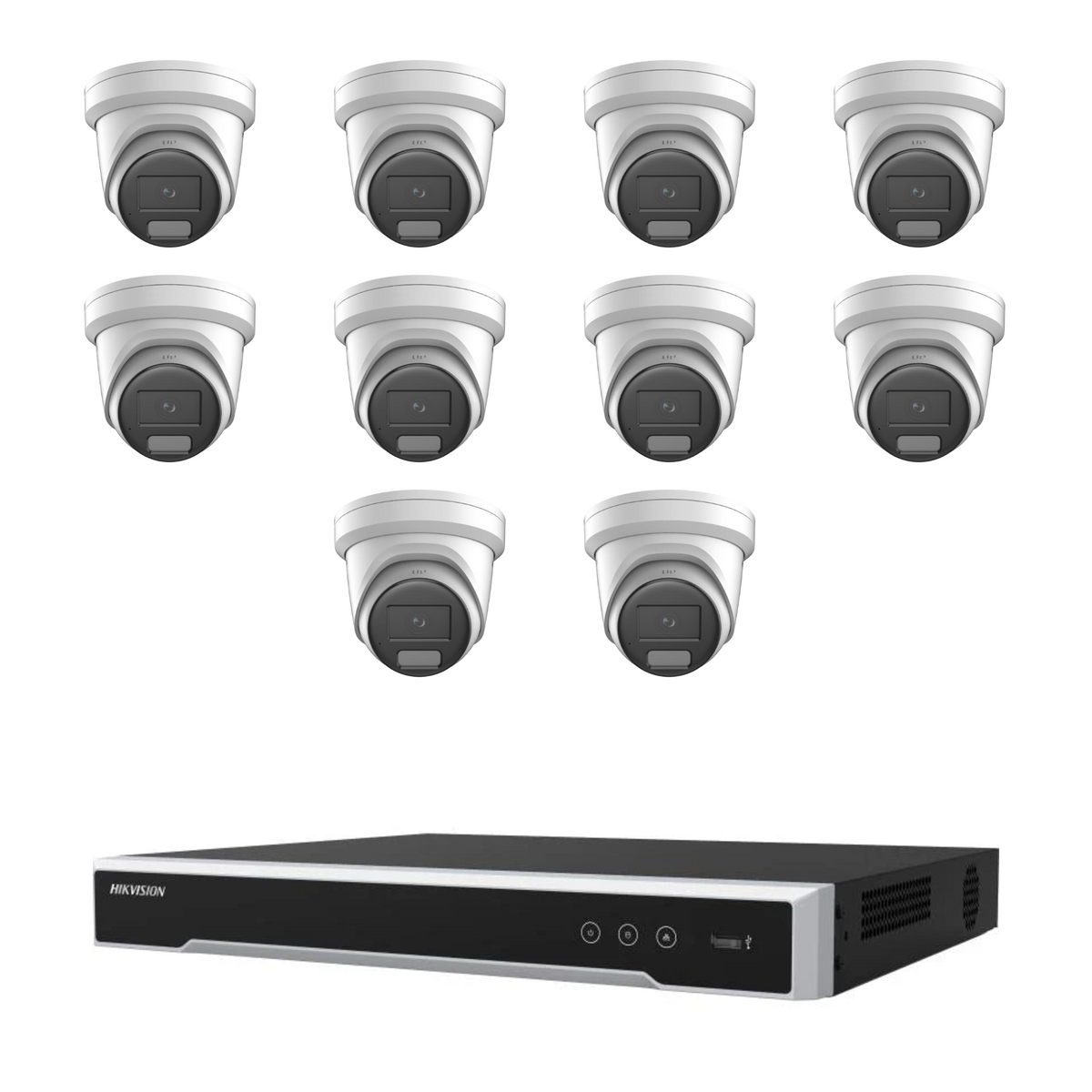

Give each access route or activity area its own camera view. This 10-camera kit combines 10 white DS-2CD2386G2H-IU 8MP turret cameras and one DS-7616NI-M2/16P-NOHDD 16-channel PoE recorder. All supplied camera lenses are 2.8 mm.

2386G2H-IU (10 included): 8MP 3840 × 2160 recording at 25 fps (50 Hz) or 24 fps (60 Hz); 2.8 mm F1.0 lens with 108.8° horizontal field of view; Up to 30 m infrared supplementation; Human/vehicle classification for supported motion and perimeter events; Built-in microphone and 120 dB WDR; IP67 metal camera housing. Infrared night images are black and white. Colour capture needs sufficient visible light in the scene. The manufacturer specifies IR supplementation for this exact IU model.

The recorder provides 16 camera inputs, 16 built-in PoE ports, HDMI and VGA outputs, and two SATA drive bays. 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.

Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 80 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 10 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.

The ten camera maxima total 80 W before cable losses against the recorder’s 200 W PoE allowance. Six recording inputs remain. Sixteen identical cameras would total 128 W before cable losses; check cable losses, stream bitrates and settings before expanding.

02Engineering

KIT-2386G2H-IU-10CAM-NVR7616M2-NOHDD specifications

- 10 × DS-2CD2386G2H-IU — 8MP AcuSense DarkFighter IR turret, white, 2.8 mm lens; Infrared supplement, up to 30 m.
- 2386G2H-IU — 3840 × 2160 at 25 fps (50 Hz) or 24 fps (60 Hz); up to 30 fps at lower resolutions in 60 Hz mode; human and vehicle; built-in microphone; IP67.
- 16CH PoE recorder — DS-7616NI-M2/16P-NOHDD, 16 integrated PoE ports, HDMI and VGA.
- 6 spare camera inputs — 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.
- Camera-set maximum PoE: 80 W, excluding cable losses.
- Storage chosen separately — 2 SATA bays; no HDD, network cables or microSD cards included.

03Full datasheet

Detailed specifications

Kit Configuration

Kit Configuration — Hikvision 2386G2H-IU 10-Camera 8MP CCTV Kit + 16CH PoE NVR, No HDD
FeatureDetail
Camera composition 10 × 2386G2H-IU 8MP AcuSense DarkFighter IR
Recorder 1 × DS-7616NI-M2/16P, No HDD
Hard drive included No
Network cabling included No
Supplied colour / lens White / 2.8 mm fixed
Unused NVR channels / PoE ports 6 / 6

04Why choose this

Built for the way you actually use the KIT-2386G2H-IU-10CAM-NVR7616M2-NOHDD

A defined camera plan

Plan 10 views around entrances, approaches and activity areas. Identify the detail required at each position before choosing mounting height and angle.

One recorder for the supplied views

Connect the 10 cameras to the recorder's built-in PoE ports. 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings.

Choose lighting deliberately

2386G2H-IU: Infrared night images are black and white. Colour capture needs sufficient visible light in the scene. The manufacturer specifies IR supplementation for this exact IU model.

Plan recording and playback

No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 10 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.

05Where it fits

Right at home in these scenarios

Entrances and points of activity

Use the 10 cameras to give each entrance, driveway or activity area a separate view. Test detail at the target distance and check the image after dark.

Shops, offices and warehouses

Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.

Outdoor approaches

The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.

06Setup

Installation & setup

  1. Included in the base configuration

    • 10 × DS-2CD2386G2H-IU, white, 2.8 mm turret camera
    • 1 × DS-7616NI-M2/16P-NOHDD 16CH PoE recorder
    • No HDD, microSD cards or network cabling. Optional mounting accessories are separate.

  2. Prepare the site and cabling

    • Allocate all 10 camera positions and label their intended views.
    • Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
    • Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.

  3. Commission and test recording

    • Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
    • Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
    • Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.

08Questions

Frequently asked about the KIT-2386G2H-IU-10CAM-NVR7616M2-NOHDD

Q.01

Does this kit include recording storage?
No. It contains ten white 2.8 mm DS-2CD2386G2H-IU cameras and one DS-7616NI-M2/16P recorder. The recorder has two SATA bays. Fit compatible surveillance disks and choose capacity for all ten streams, recording schedules and retention. Network cabling and microSD cards are separate.
Q.02

Does this IU camera use white light for colour at night?
The exact IU model specifies infrared supplementation up to 30 m. Infrared night images are black and white; colour needs sufficient visible scene lighting. Test the actual scene before finalising the camera positions.
Q.03

Can I add six more cameras?
The ten camera maxima total 80 W before cable losses against the recorder’s 200 W PoE allowance. Six recording inputs remain. Sixteen identical cameras would total 128 W before cable losses; check cable losses, stream bitrates and settings before expanding.
Q.04

Can all ten cameras record at 30 fps in 8MP?
At 3840 × 2160, these cameras support 25 fps in 50 Hz mode or 24 fps in 60 Hz mode. The 30 fps setting is available at lower resolutions in 60 Hz mode. Keep combined stream bitrates within the recorder’s 256 Mbps incoming bandwidth and configure suitable substreams for multi-camera viewing.
Q.05

Is audio included?
Each supplied IU camera has a built-in microphone. Enable the required audio recording settings and test playback during commissioning. The included camera configuration is the microphone-equipped IU version.

Buying from Smarket

Is your Hikvision, Dahua, HiLook and TP-Link VIGI stock genuine Australian stock?

Yes, 100%. Every Hikvision, Dahua, HiLook and TP-Link VIGI product we sell is a genuine Australian-market model sourced through Australian supply chains — never grey imports. That means factory-sealed units, Australian-region firmware that works with the official apps out of the box, and a full 3-year local warranty.

How long does delivery take?

Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.

How much is shipping?

Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.

What warranty do you offer?

All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.

What is your return policy?

You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.

Do you offer installation?

We can connect you with licensed installers in Sydney and Melbourne. Installation typically starts from around $200 per camera depending on cable runs and site conditions. Email sales@smarket.com.au with your address and camera count for a quote.

See all FAQs →

10Bundles

Recommended packages

01

Choose the mix and recorder capacity

This base kit contains 10 × 2386G2H-IU 8MP AcuSense DarkFighter IR and a 16-channel recorder. 6 recorder channels and physical PoE ports remain available in this base configuration. Any extra cameras must fit the supported bitrate, power budget and recording settings. Select a different camera count or mix if the site's required views differ.
