Hikvision 2367G3-SL 3-Camera 6MP CCTV Kit + 4CH PoE NVR, No HDD
SKU: KIT-2367G3-SL-3CAM-NVR7604M1-NOHDD
Description

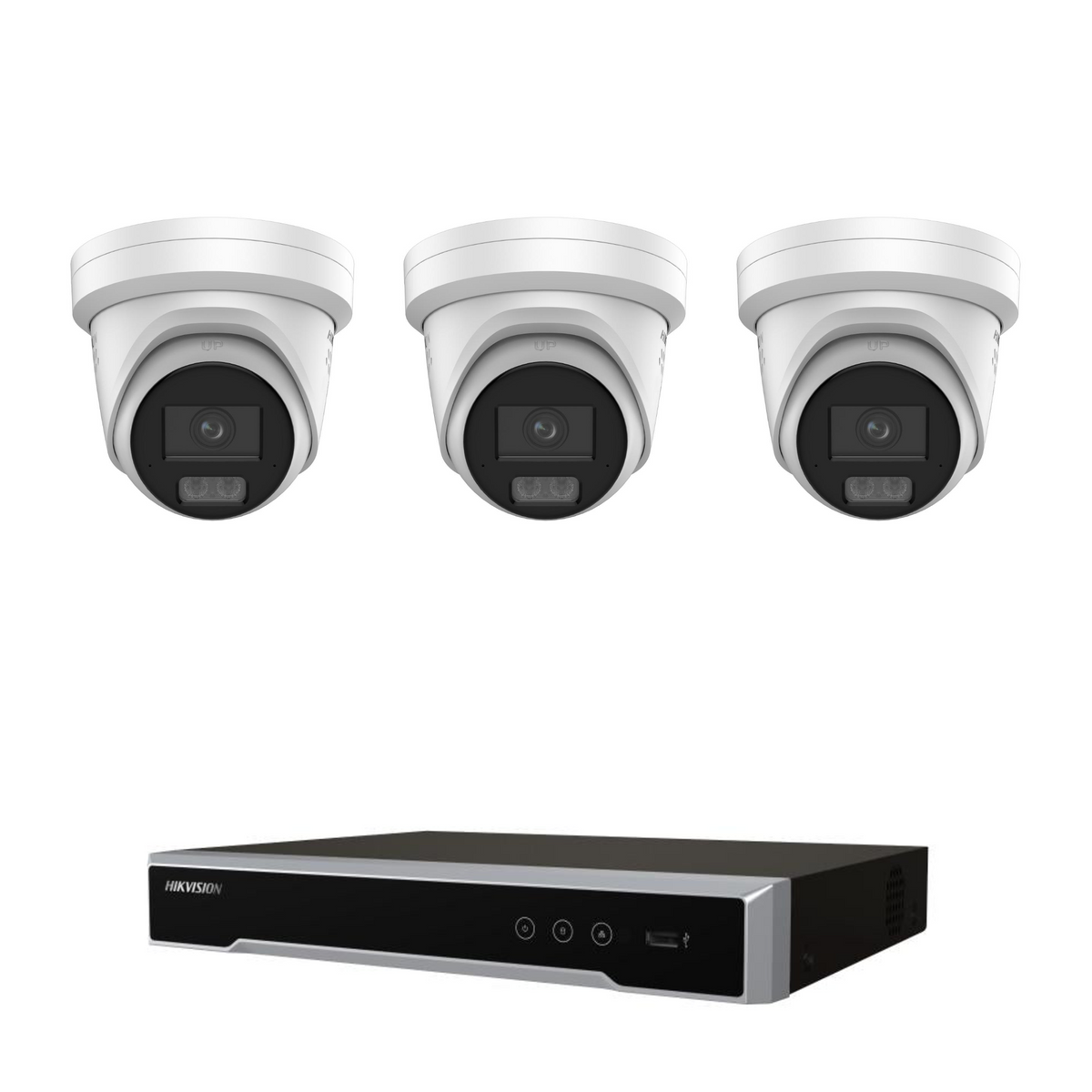

3 × 2367G3-SL 6MP ColorVu 3.0 Smart Hybrid Light, supplied in white with 2.8 mm fixed lenses, plus one DS-7604NI-M1-4P-NOHDD 4-channel PoE recorder.
ColorVu 3.0 Smart Hybrid Light cameras provide coordinated views across 3 positions. 2367G3-SL: IR and white supplemental light, up to 30 m.
No HDD included. Surveillance storage, network cabling, microSD cards and optional mounting accessories are separate.
Regular price
$1,497.44 AUD
Sale price
$1,497.44 AUD
Regular price
$2,025.00 AUD
Sale
26.05%
$527.56 AUD
(26.05%)
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Hikvision 2367G3-SL 3-Camera 6MP CCTV Kit + 4CH PoE NVR, No HDD
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
Customize this kit
—
$1,497.44
This kit includes: Cabling not included — add cables in the accessories below (one per camera).
- 3 × Hikvision DS-2CD2367G3-LIS2UY/SL 6MP ColorVu 3.0 Turret Camera, Smart Hybrid Light, Strobe & Audio Warning, Two-Way Talk
- 1 × Hikvision DS-7604NI-M1-4P 4ch PoE CCTV NVR 4K – NO HARD DRIVE (4ch)
- No HDD included (add one below)
No hard drive selected
Without a hard drive the system cannot record footage.
01Overview
What the KIT-2367G3-SL-3CAM-NVR7604M1-NOHDD is
Give each access route or activity area its own camera view. This 3-camera kit combines 3 white DS-2CD2367G3-LIS2UY/SL 6MP turret cameras and one DS-7604NI-M1-4P-NOHDD 4-channel PoE recorder. All supplied camera lenses are 2.8 mm.
2367G3-SL (3 included): 6MP 3200 × 1800 at 25/30 fps according to video standard; 2.8 mm F1.0 lens and 108.8° horizontal field of view; Smart Hybrid Light with IR and white light, up to 30 m; Human/vehicle classification for supported motion and perimeter events; HikAI-ISP, 130 dB scene-adaptive WDR, built-in dual microphones and two-way audio; White strobe warning and audible warning; IP67 and NEMA 4X housing. Choose infrared, white-light or smart hybrid lighting to suit the location. Infrared night viewing is black and white; colour needs sufficient visible light, including the white supplemental light when enabled. Verify the selected lighting and warning response at the actual installation.
The recorder provides 4 camera inputs, 4 built-in PoE ports, HDMI and VGA outputs, and one SATA drive bay. One recorder input and PoE port remain available. A fourth identical camera would increase the specified camera maximum to 68 W before cable losses, exceeding the 60 W recorder allowance. Check a compatible separate power arrangement or suitable recorder before expanding; additional power equipment is not included. Its live display decoding capacity and AI processing limits are separate from the number of cameras it can record; choose suitable substreams for a multi-camera grid.
Connect one suitable Ethernet cable from each camera to a recorder PoE port. The specified maximum camera PoE loads total 51 W before cable losses. Allow for remaining power and bandwidth when adding cameras. No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 3 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Network cabling and optional mounting accessories are separate.
The three supplied cameras have a combined specified maximum PoE demand of 51 W before cable losses, against the recorder's 60 W allowance. One input and PoE port remain, but a fourth identical 17 W camera would raise the total to 68 W before cable losses. Expansion therefore needs a verified compatible power arrangement or a suitable recorder; additional power equipment is not included.
02Engineering
KIT-2367G3-SL-3CAM-NVR7604M1-NOHDD specifications
- 3 × DS-2CD2367G3-LIS2UY/SL — 6MP ColorVu 3.0 Smart Hybrid Light turret, white, 2.8 mm lens; IR and white supplemental light, up to 30 m.
- 2367G3-SL — 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz); human and vehicle; built-in arrayed dual microphones and speaker; two-way audio; IP67.
- 4CH PoE recorder — DS-7604NI-M1-4P-NOHDD, 4 integrated PoE ports, HDMI and VGA.
- 1 spare camera inputs — One recorder input and PoE port remain available. A fourth identical camera would increase the specified camera maximum to 68 W before cable losses, exceeding the 60 W recorder allowance. Check a compatible separate power arrangement or suitable recorder before expanding; additional power equipment is not included.
- Camera-set maximum PoE: 51 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
- 2367G3-SL — 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz); human and vehicle; built-in arrayed dual microphones and speaker; two-way audio; IP67.
- 4CH PoE recorder — DS-7604NI-M1-4P-NOHDD, 4 integrated PoE ports, HDMI and VGA.
- 1 spare camera inputs — One recorder input and PoE port remain available. A fourth identical camera would increase the specified camera maximum to 68 W before cable losses, exceeding the 60 W recorder allowance. Check a compatible separate power arrangement or suitable recorder before expanding; additional power equipment is not included.
- Camera-set maximum PoE: 51 W, excluding cable losses.
- Storage chosen separately — 1 SATA bay; no HDD, network cables or microSD cards included.
03Full datasheet
Detailed specifications
Kit Configuration
| Feature | Detail |
|---|---|
| Camera composition | 3 × 2367G3-SL 6MP ColorVu 3.0 Smart Hybrid Light |
| Recorder | 1 × DS-7604NI-M1-4P-NOHDD |
| Hard drive included | No |
| Network cabling included | No |
| Supplied colour / lens | White / 2.8 mm fixed |
| Unused NVR channels / PoE ports | 1 / 1 |
2367G3-SL Camera
| Feature | Detail |
|---|---|
| Included quantity | 3 |
| Model | DS-2CD2367G3-LIS2UY/SL |
| Resolution | 6MP |
| Image sensor | 1/1.8-inch progressive scan CMOS |
| Video frame rates | 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz) |
| Supplied lens | 2.8 mm, F1.0 |
| Horizontal field of view | 108.8° |
| Illumination | IR and white supplemental light, up to 30 m |
| Smart motion detection | human and vehicle |
| Audio | Built-in arrayed dual microphones and speaker; two-way audio |
| Protection | IP67 |
| Maximum PoE per camera | 17 W |
Recorder & Installation
| Feature | Detail |
|---|---|
| Channels | 4 |
| Integrated PoE ports | 4 |
| Video outputs | HDMI; VGA |
| Drive bays | 1 SATA; drives not included |
| Camera-set maximum PoE | 51 W before cable losses |
| Installation | NVR indoors; weatherproof exposed camera connections |
| Incoming bandwidth | 40 Mbps |
| Recorder PoE budget | 60 W |
| Expansion power check | Fourth identical camera: 68 W total before cable losses; a compatible power plan is required. |
| Kit Configuration — Camera composition | 3 × 2367G3-SL 6MP ColorVu 3.0 Smart Hybrid Light |
|---|---|
| Kit Configuration — Recorder | 1 × DS-7604NI-M1-4P-NOHDD |
| Kit Configuration — Hard drive included | No |
| Kit Configuration — Network cabling included | No |
| Kit Configuration — Supplied colour / lens | White / 2.8 mm fixed |
| Kit Configuration — Unused NVR channels / PoE ports | 1 / 1 |
| 2367G3-SL Camera — Included quantity | 3 |
| 2367G3-SL Camera — Model | DS-2CD2367G3-LIS2UY/SL |
| 2367G3-SL Camera — Resolution | 6MP |
| 2367G3-SL Camera — Image sensor | 1/1.8-inch progressive scan CMOS |
| 2367G3-SL Camera — Video frame rates | 3200 × 1800 at 25 fps (50 Hz) or 30 fps (60 Hz) |
| 2367G3-SL Camera — Supplied lens | 2.8 mm, F1.0 |
| 2367G3-SL Camera — Horizontal field of view | 108.8° |
| 2367G3-SL Camera — Illumination | IR and white supplemental light, up to 30 m |
| 2367G3-SL Camera — Smart motion detection | human and vehicle |
| 2367G3-SL Camera — Audio | Built-in arrayed dual microphones and speaker; two-way audio |
| 2367G3-SL Camera — Protection | IP67 |
| 2367G3-SL Camera — Maximum PoE per camera | 17 W |
| Recorder & Installation — Channels | 4 |
| Recorder & Installation — Integrated PoE ports | 4 |
| Recorder & Installation — Video outputs | HDMI; VGA |
| Recorder & Installation — Drive bays | 1 SATA; drives not included |
| Recorder & Installation — Camera-set maximum PoE | 51 W before cable losses |
| Recorder & Installation — Installation | NVR indoors; weatherproof exposed camera connections |
| Recorder & Installation — Incoming bandwidth | 40 Mbps |
| Recorder & Installation — Recorder PoE budget | 60 W |
| Recorder & Installation — Expansion power check | Fourth identical camera: 68 W total before cable losses; a compatible power plan is required. |
04Why choose this
Built for the way you actually use the KIT-2367G3-SL-3CAM-NVR7604M1-NOHDD
One recorder for the supplied views
Connect the 3 cameras to the recorder's built-in PoE ports. One recorder input and PoE port remain available. A fourth identical camera would increase the specified camera maximum to 68 W before cable losses, exceeding the 60 W recorder allowance. Check a compatible separate power arrangement or suitable recorder before expanding; additional power equipment is not included.
Choose lighting deliberately
2367G3-SL: Choose infrared, white-light or smart hybrid lighting to suit the location. Infrared night viewing is black and white; colour needs sufficient visible light, including the white supplemental light when enabled. Verify the selected lighting and warning response at the actual installation.
Plan recording and playback
No hard drive is included. Fit compatible surveillance SATA storage before relying on NVR recording. Size it for all 3 cameras, their bitrates, recording schedules and required retention; no fixed number of recording days is promised. Set event zones and recording schedules, then play back sample recordings before relying on the installation.
05Where it fits
Right at home in these scenarios
Entrances and points of activity
Use the 3 cameras to give each entrance, driveway or activity area a separate view. Test detail at the target distance and check the image after dark.
Shops, offices and warehouses
Map the camera positions around entries, counters, loading access, stock areas or corridors. Keep views clear of shelving and ensure the lighting arrangement suits each camera.
Outdoor approaches
The camera housings are IP67-rated. Weatherproof exposed connections, avoid direct strong light in the lens and keep lenses clean. Install the NVR in a dry, ventilated indoor position.
06Setup
Installation & setup
-
01
Included in the base configuration
- 3 × DS-2CD2367G3-LIS2UY/SL, white, 2.8 mm turret camera
- 1 × DS-7604NI-M1-4P-NOHDD 4CH PoE recorder
- No HDD, microSD cards or network cabling. Optional mounting accessories are separate.
-
02
Prepare the site and cabling
- Allocate all 3 camera positions and label their intended views.
- Route one suitable Ethernet cable to a recorder PoE port for each supplied camera; label both ends.
- Use the exact camera installation guide for mounts and sealing; weatherproof exposed connectors and leave access for maintenance.
-
03
Commission and test recording
- Fit compatible surveillance SATA storage and initialise the devices with strong passwords.
- Set the correct time, recording schedule, main/substreams and event zones within recorder limits.
- Verify every daylight and night-time view, test relevant audio functions and play back sample recordings.
08Questions
Frequently asked about the KIT-2367G3-SL-3CAM-NVR7604M1-NOHDD
Q.01
What do I need before I can record?
This base kit contains three white 2.8 mm DS-2CD2367G3-LIS2UY/SL cameras and one DS-7604NI-M1/4P recorder without a hard drive. Add compatible surveillance SATA storage and Ethernet cabling. The NVR has one SATA bay; recording duration depends on configured bitrates, schedules and scene activity.
Q.02
Can I add a fourth camera?
One recorder input and PoE port remain available. A fourth identical camera would increase the specified camera maximum to 68 W before cable losses, exceeding the 60 W recorder allowance. Check a compatible separate power arrangement or suitable recorder before expanding; additional power equipment is not included.
Q.03
Does ColorVu guarantee colour recording in complete darkness?
Colour images require visible light. Smart Hybrid Light provides infrared, white-light and smart modes; infrared night viewing is black and white. Enable appropriate white supplemental lighting when colour is needed and check the actual image at each position. White strobe warning and audible warning are event-response functions.
Q.04
What should I check when commissioning the three cameras?
The camera maxima total 51 W before cable losses against the recorder's 60 W PoE allowance. Verify cable and power margins, and keep total configured camera stream bitrates within the NVR's 40 Mbps incoming limit. Each camera supports 6MP at 25 fps under 50 Hz or 30 fps under 60 Hz; select recording and display streams deliberately.
Q.05
Which warning and audio version is in this kit?
This kit specifies the white /SL version with a white flashing warning, audible warning, arrayed dual microphones and a speaker for two-way audio. Configure the warning response and human/vehicle event zones for each location. Check the complete suffix when comparing other 2367G3 packages.
