Hikvision 6MP 8CH AcuSense CCTV Kit:6x EXIR Bullet Cameras + 8CH PoE NVR/4TB

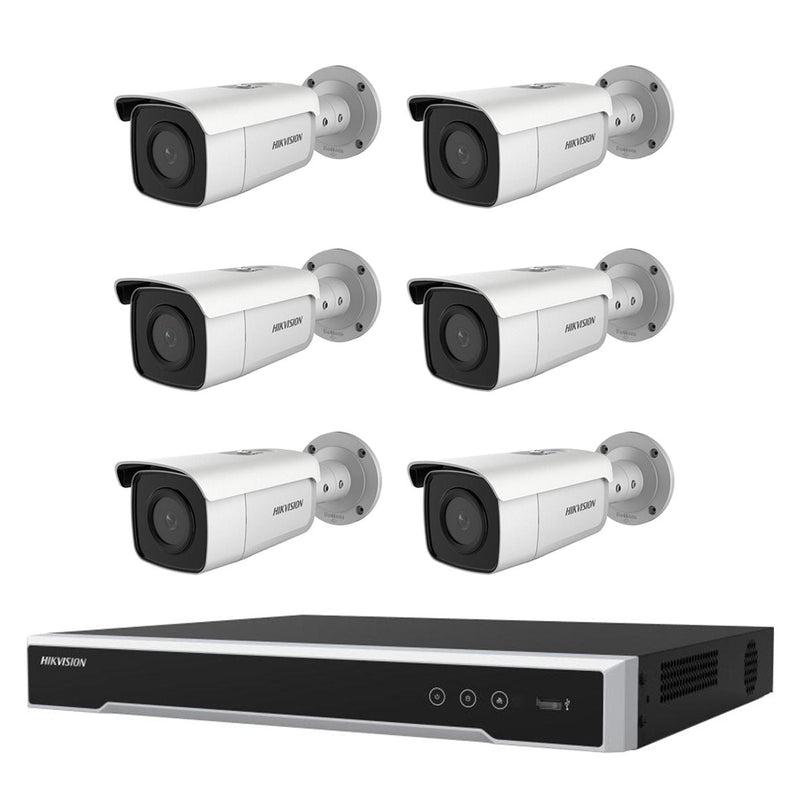

This Hikvision 6 MP kit pairs six DS-2CD2T66G2-2I AcuSense EXIR bullet cameras with an 8-channel PoE NVR and a 4 TB surveillance hard drive, supplied ready to record with two spare channels for later.
What's in the kit
- 6 x DS-2CD2T66G2-2I 6 MP (3200 x 1800) AcuSense bullet cameras
- Human and vehicle classification to cut false alarms
- 60 metre EXIR infrared; 120 dB true WDR; IP67
- 1 x 8-channel Hikvision PoE NVR (built-in PoE ports)
- 4 TB surveillance hard drive fitted and ready
- H.265+ compression; single-cable PoE per camera
- Two spare channels to expand the system
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Customize this kit Kit price $2,471.55
- 6 × Hikvision DS-2CD2T66G2-2I Acusense 6MP EXIR Outdoor Bullet CCTV Camera Up to 60m IR
- 1 × Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB (8ch)
- 1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DS-2CD2T66G2-2I is
This Hikvision 6 MP kit is a complete six-camera system for a home or small business, supplied ready to record.
It brings together six DS-2CD2T66G2-2I AcuSense EXIR bullet cameras, an eight-channel Hikvision PoE NVR and a 4 TB surveillance hard drive already fitted, so each camera connects on a single network cable and the recorder is set up to capture every channel from the start.
Because the recorder has eight channels and the kit uses six, there are two spare channels for adding cameras later.
The cameras are the strength of this kit.
Each is a 6 MP bullet recording 3200 x 1800, with AcuSense deep learning that classifies human and vehicle targets, so alerts and searches focus on people and vehicles rather than rain, shadows or animals.
A 120 dB true wide dynamic range holds detail against bright backlight, and a long 60 metre EXIR infrared range reaches well down driveways, fences and yards at night, which is what makes the bullet shape a good fit for longer outdoor runs.
These are -2I model cameras with no built-in microphone, so the kit records high-quality video without audio.
A couple of honest notes so the system is set up well.
The cameras use Powered-by-DarkFighter low-light imaging for clean detail in the dark, but the night image is infrared black and white, not full colour, so this is not a ColorVu kit.
The IP67 metal bodies suit outdoor walls and poles in Australian conditions.
The 4 TB drive is included as standard for generous everyday retention, and H.265+ compression keeps the storage and bandwidth in check; you can fit a larger drive for longer retention.
See it in action
What the DS-2CD2T66G2-2I features actually look like
Representative illustrations of how each key feature performs in a real scene.
6MP Ultra HD
60m IR Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Illustrative — simulated for demonstration
§ 02Engineering
DS-2CD2T66G2-2I specifications
- AcuSense human and vehicle classification to reduce false alarms
- 60 m EXIR infrared at night (infrared black-and-white image)
- 120 dB true WDR and 3D noise reduction for clear detail in hard light
- IP67 weatherproof metal bullet cameras for outdoor runs
- 8-channel Hikvision PoE NVR with built-in PoE ports
- 4 TB surveillance hard drive fitted and ready to record
- H.265+ compression; two spare channels for expansion
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.4" Progressive Scan CMOS |
| Min. Illumination | Color: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Wide Dynamic Range | 120 dB |
| Day & Night | IR cut filter |
| Day/Night Switch | Day, Night, Auto, Schedule |
| Image Parameters Switch | Yes |
| SNR | ≥ 52 dB |
| Target Cropping | Yes |
| Image Enhancement | BLC, HLC, 3D DNR |
| Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Fixed focal lens, 2.8, 4, and 6 mm optional |
| Focal Length & FOV | 2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6° | 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8° | 6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5° |
| Iris Type | Fixed |
| Aperture | F1.6 |
| Lens Mount | M12 |
| Pan Range | 0° to 360° |
| Tilt Range | 0° to 90° |
| Rotation Range | 0° to 360° |
| DORI | 2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m | 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m | 6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m |
Night Vision
| Feature | Detail |
|---|---|
| Supplement Light Type | IR |
| Smart Supplement Light | Yes |
| IR Range | -2I: up to 60 m | -4I: up to 80 m |
| IR Wavelength | 850 nm |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 3200 × 1800 |
| Main Stream | 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) | 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-Stream | 50 Hz: 25 fps (640 × 480, 640 × 360) | 60 Hz: 30 fps (640 × 480, 640 × 360) |
| Third Stream | 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) | 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings. |
| Video Compression | Main stream: H.265/H.264/H.264+/H.265+ | Sub-stream: H.265/H.264/MJPEG | Third stream: H.265/H.264 *Third stream is supported under certain settings. |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.265 Type | Main Profile |
| H.264+ | Main stream supports |
| H.265+ | Main stream supports |
| Bit Rate Control | CBR/VBR |
| Scalable Video Coding (SVC) | H.264 and H.265 encoding |
| Region of Interest (ROI) | 1 fixed region for main stream and sub-stream |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Face Capture | Yes |
| Perimeter Protection | Line crossing detection, intrusion detection, region entrance detection, region exiting detection. Supports human and vehicle targets classification |
Network & Storage
| Feature | Detail |
|---|---|
| Simultaneous Live View | Up to 6 channels |
| API | Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP |
| User/Host | Up to 32 users. 3 user levels: administrator, operator and user |
| Security | Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface |
| Network Storage | NAS (NFS, SMB/CIFS), auto network replenishment (ANR). Together with high-end Hikvision memory card, memory card encryption and health detection are supported. |
| Client | iVMS-4200, Hik-Connect, Hik-Central |
| Web Browser | Plug-in required live view: IE 10+ | Plug-in free live view: Chrome 57.0+, Firefox 52.0+ | Local service: Chrome 57.0+, Firefox 52.0+ |
Event & Alarm
| Feature | Detail |
|---|---|
| Basic Event | Motion detection (human and vehicle targets classification), video tampering alarm, exception |
| Smart Event | Scene change detection |
| Linkage Method | Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture |
Interface
| Feature | Detail |
|---|---|
| On-Board Storage | Built-in memory card slot, support microSD card, up to 256 GB |
| Reset Key | Yes |
| Ethernet Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet port |
General & Environment
| Feature | Detail |
|---|---|
| Firmware Version | V5.5.113 |
| Software Reset | Yes |
| Power Interface | Ø5.5 mm coaxial power plug |
| Language | 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| General Function | Anti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, reverse polarity protection | PoE: 802.3af, Class 3 |
| Power Consumption and Current | -2I: 12 VDC, 0.63 A, max. 7.5 W; PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W | -4I: 12 VDC, 0.88 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W |
| Material | Metal |
| Dimension | Ø105 mm × 290 mm (Ø4.1" × 11.4") |
| Package Dimension | 386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1") |
| Weight | Approx. 1085g (2.4 lb.) |
| With Package Weight | Approx. 1604 g (3.5 lb.) |
| EMC | FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); KC (KN 32: 2015, KN 35: 2015) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013) |
| Environment | CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006) |
| Protection | IP67 (IEC 60529-2013) |
§ 04Why choose this
Built for the way you actually use the DS-2CD2T66G2-2I
Long-range night coverage
60 metre EXIR infrared on bullet cameras reaches down driveways, fences and yards further than most turret kits.
Fewer false alarms
AcuSense human and vehicle classification keeps alerts and searches focused on people and vehicles, not weather or animals.
Room to grow
Two spare channels on the eight-channel recorder let you add cameras later without replacing the system.
§ 05Where it fits
Right at home in these scenarios
Family homes
Cover the front, back and sides of a house with six 6 MP cameras and people and vehicle alerts.
Driveways and yards
Long infrared reach suits approaches, gates and fence lines set back from the house.
Small businesses
Watch a shopfront, car park and entry with a tidy six-camera system and easy event search.
Rural and acreage
Bullet cameras down long boundaries and sheds, with two spare channels to extend coverage.
§ 06Setup
Installation & setup
In the box
Six DS-2CD2T66G2-2I bullet cameras, the eight-channel PoE NVR with a 4 TB drive fitted, power supply and mounting accessories. Connect a monitor for local viewing.
Cabling
Run one network cable from each camera to a PoE port on the NVR. Standard Ethernet runs apply, and a PoE switch can extend reach for a distant camera.
Mounting
Fix each bullet high on a wall or pole aimed along the run you want covered, within the 60 metre infrared range, using the sun shield against glare and rain.
Setup
Connect the NVR to a screen and the network, add the cameras on the plug-and-play PoE ports, set the AcuSense human and vehicle rules and recording schedule, and set up remote viewing in the Hik-Connect app.
§ 07Questions
Frequently asked about the DS-2CD2T66G2-2I
Q.01
Is the kit ready to record out of the box?
Q.02
What does AcuSense do for me?
Q.03
Do the cameras record sound?
Q.04
Do the cameras show colour at night?
Q.05
Why bullet cameras with 60 metre infrared?
Q.06
Can I add more cameras later?
Q.07
How much will the 4 TB drive store?
Q.08
Will the cameras work with an older Hikvision NVR?
§ 09Bundles
Recommended packages
Use the two spare channels
Add up to two more DS-2CD2T66G2-2I 6MP AcuSense bullet cameras to fill the eight-channel recorder.
Add storage headroom
The kit includes a 4 TB drive; for longer retention fit a 6TB surveillance hard drive or an 8TB surveillance hard drive rated for continuous recording.
Grow beyond eight cameras
Step up to a DS-7616NI-M2/16P 16-channel PoE NVR and add an NS-0109P-60 8-port PoE switch to place cameras further from the recorder.
