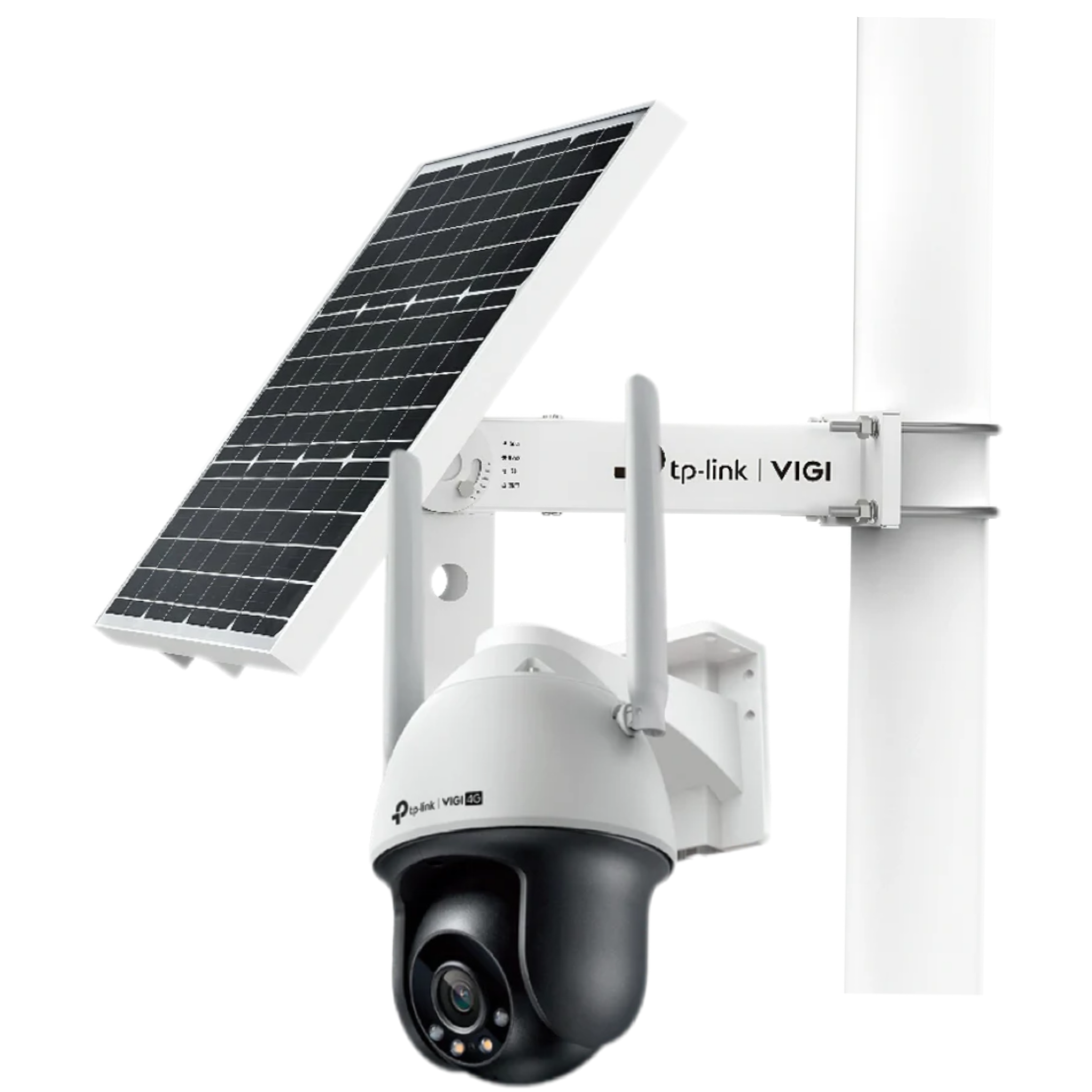

tp-link VIGI Solar Kit SP6020 60W 20Ah 4MP Outdoor Full-Colour 4G PT Network Camera
SKU: VIGI SP6020-4GC_4MP_PT_camera_C540-4G
Description
This TP-Link VIGI solar kit is a fully off-grid 4G surveillance solution: the VIGI C540-4G 4MP full-colour pan-tilt camera paired with the VIGI SP6020 intelligent solar power system (a 60 W solar panel and a 20.8 Ah lithium battery). It needs no mains power and no fixed internet — the camera runs on solar and connects over the 4G mobile network using your own SIM, so it suits farms, building sites, remote gates and any spot beyond reach of power and Wi-Fi. The camera pans and tilts for 360° coverage with auto-tracking, records in full colour, and has two-way audio with active deterrence.
Kit includes
- 1 × VIGI C540-4G 4MP full-colour 4G pan-tilt network camera, IP66
- 1 × VIGI SP6020 solar power system: 60 W panel + 20.8 Ah / 10.8 V lithium battery
- MPPT charge controller, intelligent auxiliary heating, 3 × DC output ports
- 4G needs a Nano SIM (not included); microSD up to 256 GB (not included)
- 3-year warranty and local support
Regular price
$750.50 AUD
Sale price
$750.50 AUD
Regular price
$838.00 AUD
Sale
10.44%
$87.50 AUD
(10.44%)
Member
Sign in to save $15.01 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
In stock
No reviews
tp-link VIGI Solar Kit SP6020 60W 20Ah 4MP Outdoor Full-Colour 4G PT Network Camera
1
/
of
1
Build your setup Build a complete CCTV system
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the VIGI SP6020-4GC_4MP_PT_camera_C540-4G is
This TP-Link VIGI solar kit is built for places where you cannot run power or a network cable — a farm gate, a paddock, a construction site, a remote shed or a rural driveway.
It combines the VIGI C540-4G 4MP full-colour 4G pan-tilt camera with the VIGI SP6020 intelligent solar power system, so the whole site runs off sunlight and connects over the 4G mobile network using your own SIM card.
There is no NVR and no mains power required.
The SP6020 supplies a 60 W photovoltaic panel and a 20.8 Ah / 10.8 V lithium battery with a built-in MPPT charge controller that lifts charging efficiency by around 20%.
On a sunny day it reaches a full on-load charge in about 1.8 days, and once charged it can keep the camera running for up to about 4.3 days of consecutive overcast weather — actual figures vary with season, location, panel angle and how busy the camera is.
Intelligent auxiliary heating keeps the battery charging and discharging reliably from about -30°C to 60°C, the panel angle adjusts across six positions, and the system carries an IP66 rating for outdoor exposure.
The C540-4G itself is a 4MP full-colour camera that pans and tilts for full 360° coverage and can automatically track a person or vehicle of interest.
It records in full colour with a built-in spotlight, classifies people and vehicles for accurate alerts, and has two-way audio plus active defence with a siren and strobe to warn intruders off.
Footage is kept on a microSD card (up to 256 GB, not included) and viewed remotely through the VIGI app.
Note that 4G connectivity needs a Nano SIM with a data plan, which is not included.
The kit is genuine stock with a local 3-year warranty and support.
See it in action
What the VIGI SP6020-4GC_4MP_PT_camera_C540-4G features actually look like
Representative illustrations of how each key feature performs in a real scene.
4MP Ultra HD
4MP captures roughly twice the detail of standard 1080p.
Illustrative — simulated for demonstration
§ 02Engineering
VIGI SP6020-4GC_4MP_PT_camera_C540-4G specifications
- VIGI C540-4G 4MP full-colour 4G pan-tilt camera with 360-degree coverage and auto-tracking
- VIGI SP6020 solar power system: 60 W photovoltaic panel + 20.8 Ah / 10.8 V lithium battery
- Off-grid operation: up to about 4.3 days runtime on consecutive overcast days; about 1.8 days to full charge
- MPPT charge controller (about 20% more efficient); intelligent auxiliary heating for -30 to 60 C
- 4G mobile connectivity over your own Nano SIM (not included) - no fixed internet needed
- Full-colour imaging with built-in spotlight; human and vehicle classification
- Two-way audio and active defence: siren and strobe to deter intruders; H.265+ compression
- IP66 weatherproof; microSD up to 256 GB (not included); 3-year warranty and local support
- VIGI SP6020 solar power system: 60 W photovoltaic panel + 20.8 Ah / 10.8 V lithium battery
- Off-grid operation: up to about 4.3 days runtime on consecutive overcast days; about 1.8 days to full charge
- MPPT charge controller (about 20% more efficient); intelligent auxiliary heating for -30 to 60 C
- 4G mobile connectivity over your own Nano SIM (not included) - no fixed internet needed
- Full-colour imaging with built-in spotlight; human and vehicle classification
- Two-way audio and active defence: siren and strobe to deter intruders; H.265+ compression
- IP66 weatherproof; microSD up to 256 GB (not included); 3-year warranty and local support
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Product Model | VIGI C540 |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | 1/3 to 1/10000 s |
| Slow Shutter | Yes |
| Min. Illumination | 0.005 Lux; 0 Lux with IR/White Light |
| Day/Night Mechanism | IR Cut Filter |
| Day/Night Switch | Unified/Scheduled/Auto |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°) |
| Image Enhancement | BLC/3D DNR/HLC/SmartIR |
| Wide Dynamic Range | DWDR |
| SNR | ≥ 52 dB |
| Image Parameters Switch | Yes |
| ROI | 1 Region |
| Privacy Mask | Up to 4 Masks |
| OSD Setting | Yes |
Lens & Distance
| Feature | Detail |
|---|---|
| Focal Length | 4 mm |
| Aperture | F1.6 |
| Focus | Fixed |
| FOV | Horizontal FOV: 79°, Vertical FOV: 43°, Diagonal FOV: 93° |
| Lens Mount | M12 |
| DORI Distance | Detect: 80 m (262 ft); Observe: 33 m (109 ft); Recognize: 16 m (52 ft); Identify: 8 m (26 ft) |
| Pan Range | 0° to 350° |
| Tilt Range | 0° to 120° |
| Pan Speed | Configurable from 8° to 44°/s; Preset Speed: 44°/s |
| Tilt Speed | Configurable from 8° to 44°/s, Preset Speed 44°/s |
| Manual Control Speed | Configurable from 8° to 35°/s |
| Presets | 300 |
| Patrol Scan | 8 patrols, up to 8 presets for each patrol |
| Power-off Memory | Yes; Auto restore to previous PT and lens status after power failure |
| Park Action | Yes; Preset; Patrol Scan |
| 3D Positioning | Yes |
Night Vision
| Feature | Detail |
|---|---|
| IR LED | Quantity: 2; Range: 30m; Wavelength: 850nm |
| White LED | Quantity: 2; Range: 30m |
| Illuminator On/Off Control | Auto/Scheduled/Always on/Always off |
Video
| Feature | Detail |
|---|---|
| Max. Resolution | 2560 X 1440 |
| Main Stream | Frame Rate — 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Sub-Stream | Frame Rate — 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps; 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps | Resolution: 640x480, 352x288, 320x240 | Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps. |
| Bit Rate Control | CBR, VBR |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 | Sub-Stream: H.265/H.264 |
| H.264 Type | High Profile |
| H.264+ | Main Stream Supported |
| H.265 Type | Main Profile |
| H.265+ | Main Stream Supported |
| Video Bit Rate | Main Stream: 256 Kbps to 4 Mbps | Sub-Stream: 64 Kbps to 512 Kbps |
Audio
| Feature | Detail |
|---|---|
| Audio Communication | Two-Way Audio |
| Audio Input | Yes |
| Audio Output | Yes |
| Audio Compression | Yes |
| Audio Sampling Rate | 8KHz |
| Environment Noise Filtering | Yes |
| Audio Bit Rate | 64 Kbps(G.711 alaw) |
AI & Deep Learning
| Feature | Detail |
|---|
Network & Storage
| Feature | Detail |
|---|---|
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP |
| API | Open Network Video Interface (Profile S) |
| Web Browser | Google Chrome® 57 and above; Firefox® 52 and above; Safari® 11 and above; Microsoft® Edge 91 and above |
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Simultaneous Live View | 3 Main Streams & 3 Sub-Streams |
| Client | VIGI App, VIGI Security Manager, Web UI |
| Cloud | Yes |
| ONVIF | Yes |
| On-board Storage | Built-In Memory Card Slot, Support MicroSD Card, Up to 512 GB |
Event & Alarm
| Feature | Detail |
|---|---|
| Smart Event | Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Abnormal Sound Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception (Illegal Login) |
| Alarm Linkage | Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing |
| Output Notification | Message Push |
Interface
| Feature | Detail |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE |
| Power | DC Power Port |
| Built-in Speaker | Yes |
| Built-in Microphone | Yes; Records Anything Going on within a 15-ft Radius of the Camera |
| Reset Button | Yes |
General & Environment
| Feature | Detail |
|---|---|
| Operating Temperature | -30–60 °C |
| Storage Temperature | -40–60 °C |
| Operating Humidity | 95% or Less (Non-Condensing) |
| Storage Humidity | 95% or Less (Non-Condensing) |
| Power Supply | 12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug | PoE: 802.3at, class 4, Max. 16 W |
| Package Contents | VIGI Network Camera; Quick Start Guide; Waterproof Cable Attachments; Mounting Accessories |
| Material | Plastic |
| Protection | IP66 |
| Product Dimensions | 120 × 172 × 198 mm |
| Certifications | CE, RCM, BSMI, VCCI, RoHS, NTRA, KC |
§ 04Why choose this
Built for the way you actually use the VIGI SP6020-4GC_4MP_PT_camera_C540-4G
One camera, full coverage
Pan-tilt with 360-degree movement and auto-tracking lets a single camera watch a wide area without blind spots.
Runs through bad weather
A 60 W panel, 20.8 Ah battery and MPPT controller give up to about 4.3 days of runtime on overcast days.
Deter, not just record
Full-colour imaging, a siren and strobe, and two-way audio let you warn intruders off live from your phone.
§ 05Where it fits
Right at home in these scenarios
Farms and rural property
Watch gates, sheds, water points and laneways where there is no power or network.
Construction and remote sites
Cover plant, materials and access points on a site before services are connected.
Driveways and entrances off-grid
Monitor a long rural driveway or boundary gate that mains cabling cannot reach.
Temporary deployments
A self-contained solar and 4G kit suits events, works zones and short-term monitoring.
§ 06Setup
Installation & setup
What's in the box
One VIGI C540-4G 4G pan-tilt camera, one VIGI SP6020 solar power system (60 W panel and 20.8 Ah lithium battery) with mounting hardware, and guides. A Nano SIM and a microSD card are supplied separately.
Installation requirements
Mount the solar panel facing the sun at one of its adjustable angles, fit the camera within reach of the battery's DC output, insert your Nano SIM and a microSD card, then add the camera in the VIGI app and wait for the LED to show it is online. Test pan-tilt, tracking and the night view before leaving the site.
§ 07Questions
Frequently asked about the VIGI SP6020-4GC_4MP_PT_camera_C540-4G
Q.01
Does this kit need mains power or an internet connection?
No to both. The VIGI SP6020 solar power system runs the camera from a 60 W panel and a 20.8 Ah battery, and the C540-4G connects over the 4G mobile network, so the kit works completely off-grid where there is no power or Wi-Fi.
Q.02
Do I need a SIM card, and is one included?
You need a Nano SIM with a mobile data plan for the 4G connection, and it is not included. Insert your own SIM into the camera before setup. Onboard recording uses a microSD card of up to 256 GB, also supplied separately.
Q.03
How long does the battery last without sun?
The SP6020 can keep the camera running for up to about 4.3 days of consecutive overcast weather, and reaches a full on-load charge in about 1.8 days of sun. Real-world figures vary with the season, your location, the panel angle and how active the camera is.
Q.04
Does the camera pan and tilt, and can it track movement?
Yes. The C540-4G is a pan-tilt camera that covers a full 360 degrees and can automatically track a person or vehicle of interest across the scene, so a single camera can watch a wide area without fixed blind spots.
Q.05
Does it record in colour at night and have a siren?
Yes. It records in full colour using a built-in spotlight, and its active-defence feature can trigger a siren and strobe light to warn an intruder off. Two-way audio also lets you speak through the camera from the VIGI app.
Q.06
Is it suitable for harsh outdoor conditions?
Yes. The camera and solar system carry an IP66 weatherproof rating, and intelligent auxiliary heating keeps the battery working from about -30 to 60 degrees Celsius, so the kit suits exposed rural and remote sites in Australian conditions.
Q.07
Can I make the battery last longer or add a bigger panel?
Yes. TP-Link offers larger VIGI solar power systems if you need more runtime or have a higher-draw setup. The SP9030 is a higher-capacity option you can step up to for longer autonomy in low-sun locations.
§ 08In motion
How to setup VIGI C540-4G Outdoor CCTV Camera with 4G SIM Card Mobile Internet
§ 09Bundles
Recommended packages
Need more runtime?
For longer autonomy in low-sun spots, step up to the higher-capacity VIGI SP9030 solar power system.
Buy the parts separately
This kit bundles the camera and panel; the VIGI C540-4G camera and the VIGI SP6020 solar system are also sold on their own.
Other solar options
Compare the VIGI SP6030 and the larger VIGI SP18090 if your power needs differ.
Add onboard storage
Footage is kept on a microSD card (up to 256 GB) - fit one before deploying to a remote site.
