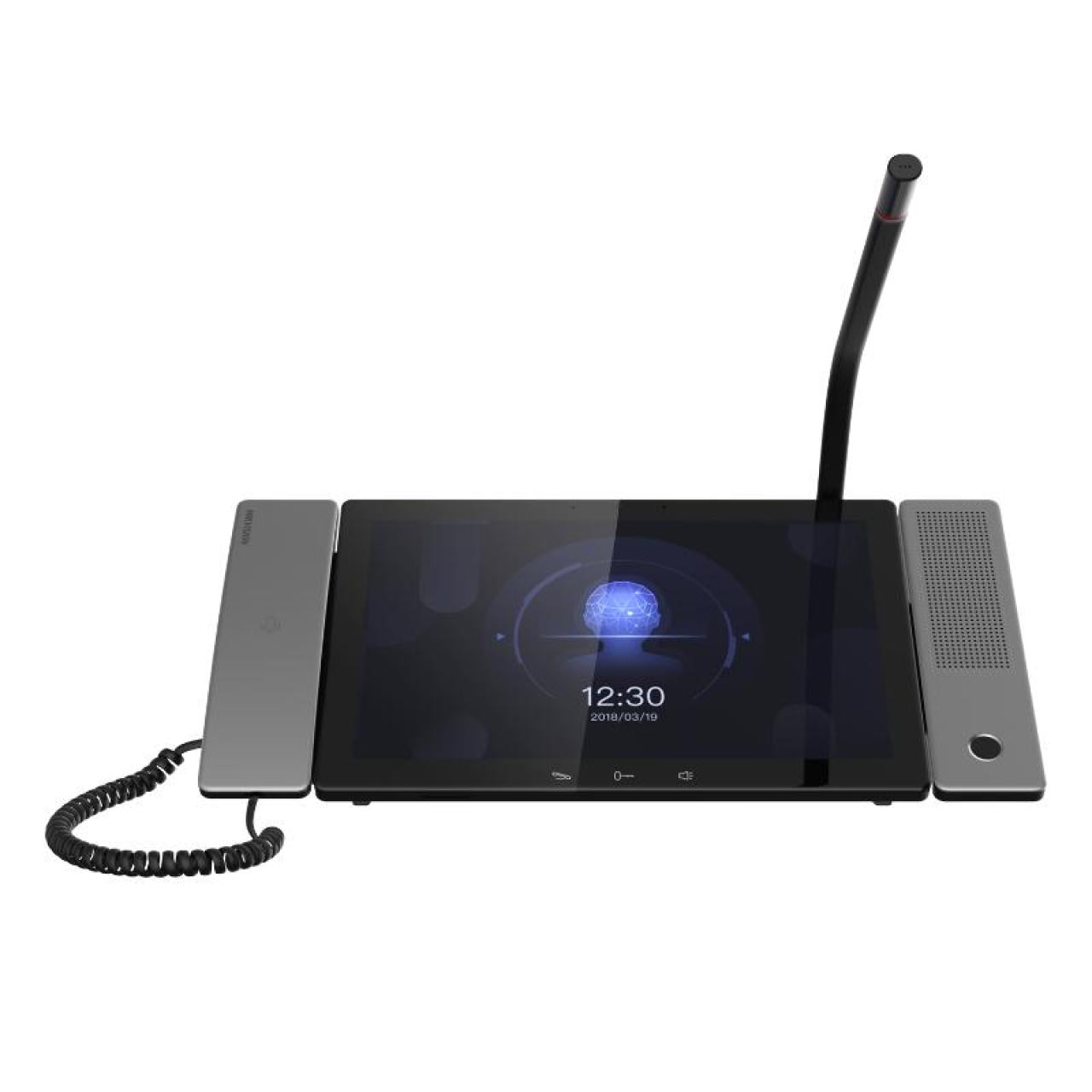

Hikvision DS-KM9503 10.1-Inch Intercom Main Station
The Hikvision DS-KM9503 is an Android intercom main station for a concierge, property office or security desk. It has a 10.1-inch IPS touchscreen with 1280 × 800 resolution and a 2 MP camera. Its private SIP server supports up to 10000 linked intercom devices, with up to 128 network cameras. It provides two network interfaces and HDMI display output. Power uses standard PoE through LAN1 or 12 VDC. Select the compatible system and mounting arrangement for the site. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KM9503 is
The Hikvision DS-KM9503 provides a staffed answering point for a configured building intercom. Its interface supports handling visitor calls and communication with residents.
Size the installation around the supported device connections and network design. Published connection limits describe capacity; they do not replace a project compatibility check.
Use the correct network port for PoE power. Alarm inputs, RS-485 and lock relays are reserved, so they should not be treated as active control connections.
§ 02Engineering
DS-KM9503 specifications
Camera — 2 MP — support video intercom.
Intercom capacity — up to 10000 linked devices — plan the configured building system.
Network cameras — up to 128 — plan the linked video sources.
Display connection — HDMI output — show operation pages externally.
Power — PoE on LAN1 or 12 VDC — select a suitable supply.
§ 03Full datasheet
Detailed specifications
Display
| Feature | Detail |
|---|---|
| Screen | 10.1-inch IPS; 1280 × 800 |
| Camera | 2 MP |
System
| Feature | Detail |
|---|---|
| OS | Android 7.1 |
| Network | 2 network interfaces |
| Intercom capacity | Up to 10000 devices |
| Camera capacity | Up to 128 network cameras |
| Display | HDMI output |
| Storage | TF card up to 128 GB |
| Reserved interfaces | 2 alarm inputs; RS-485; 2 lock relays |
General
| Feature | Detail |
|---|---|
| Power | 12 VDC or standard PoE on LAN1 |
| Consumption | Up to 12 W |
| Dimensions | 292 mm × 166 mm × 31 mm |
| Weight | 1.285 kg |
| Mounting | Table or wall |
| Optional | DS-KABM9503-O table bracket |
Features
| Feature | Detail |
|---|---|
| Item1 | Screen: 10.1-inch IPS, 1280 × 800 |
| Item2 | Camera: 2 MP |
| Item3 | Intercom capacity: up to 10000 linked devices |
| Item4 | Network cameras: up to 128 |
| Item5 | Display connection: HDMI output |
| Item6 | Power: PoE on LAN1 or 12 VDC |
| Display — Screen | 10.1-inch IPS; 1280 × 800 |
|---|---|
| Display — Camera | 2 MP |
| System — OS | Android 7.1 |
| System — Network | 2 network interfaces |
| System — Intercom capacity | Up to 10000 devices |
| System — Camera capacity | Up to 128 network cameras |
| System — Display | HDMI output |
| System — Storage | TF card up to 128 GB |
| System — Reserved interfaces | 2 alarm inputs; RS-485; 2 lock relays |
| General — Power | 12 VDC or standard PoE on LAN1 |
| General — Consumption | Up to 12 W |
| General — Dimensions | 292 mm × 166 mm × 31 mm |
| General — Weight | 1.285 kg |
| General — Mounting | Table or wall |
| General — Optional | DS-KABM9503-O table bracket |
| Features — Item1 | Screen: 10.1-inch IPS, 1280 × 800 |
| Features — Item2 | Camera: 2 MP |
| Features — Item3 | Intercom capacity: up to 10000 linked devices |
| Features — Item4 | Network cameras: up to 128 |
| Features — Item5 | Display connection: HDMI output |
| Features — Item6 | Power: PoE on LAN1 or 12 VDC |
§ 08Questions
Frequently asked about the DS-KM9503
Q.01
What is the DS-KM9503 used for?
Q.02
Does it include a camera?
Q.03
What screen is fitted?
Q.04
Which port accepts PoE power?
Q.05
Can it display the interface on another screen?
Q.06
Are the alarm inputs and lock relays available for use?
Q.07
Is the table bracket included?
