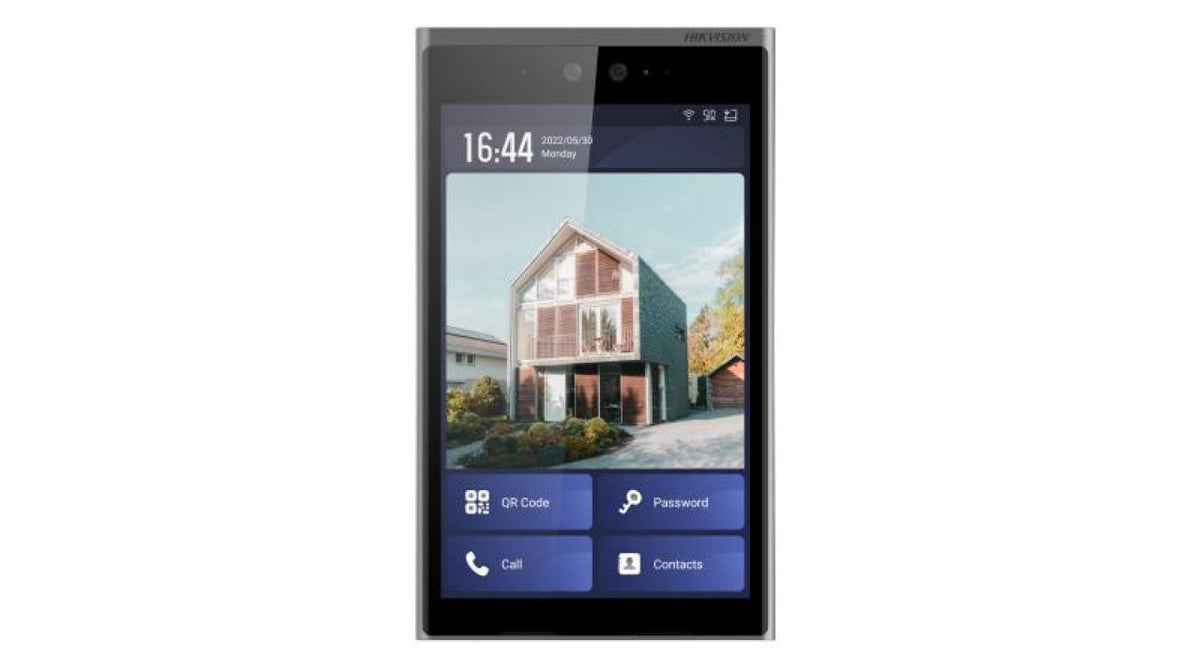

Hikvision DS-KD9633-WBE6 10.1-inch Face Door Station
The Hikvision DS-KD9633-WBE6 is an Android-based apartment door station with a 10.1-inch IPS touchscreen and two 2 MP cameras. It combines visitor conversation with face, card, PIN and QR-code access for a configured entrance system. The display has 1280 × 800 resolution, and infrared supplementary lighting reaches up to 3 m. Power is supplied at 12 VDC, 2 A. The station supports surface or flush mounting with IP65 and IK07 protection. Select the power source, mounting arrangement and lock-control components separately. A second lock requires a secure module; reserved wireless and TF-card interfaces should not be treated as available everyday features. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KD9633-WBE6 is
The Hikvision DS-KD9633-WBE6 offers a large touch interface for a shared entrance. It gives visitors a visible calling point while allowing resident access to be managed within the configured system.
Plan the door hardware alongside the panel. The second lock-control path requires a secure module, so the relay count alone does not describe everything needed for a two-lock installation.
Use the available wired connection and specified DC power arrangement. Wi-Fi, Bluetooth and the TF-card interface are reserved in this model's specification; do not design the installation around those interfaces as active features.
§ 02Engineering
DS-KD9633-WBE6 specifications
Cameras — two 2 MP cameras — support visitor viewing.
Resident access — face, card, PIN and QR code — configure entry methods.
IR supplement — up to 3 m — assist nearby night viewing.
Audio — two microphones and one loudspeaker — support entrance conversation.
Lock control — two relays; second lock needs secure module — plan the control hardware.
Power and protection — 12 VDC, 2 A; IP65 and IK07 — select a suitable outdoor installation.
§ 03Full datasheet
Detailed specifications
Display
| Feature | Detail |
|---|---|
| Screen | 10.1-inch IPS capacitive touchscreen |
| Resolution | 1280 × 800 |
Video
| Feature | Detail |
|---|---|
| Cameras | 2 × 2 MP |
| IR supplement | Up to 3 m |
| Compression | H.264 |
Access
| Feature | Detail |
|---|---|
| Methods | Face; card; PIN; QR code |
| Users | 20000 |
| Faces | 10000 |
| Cards | 100000 |
System
| Feature | Detail |
|---|---|
| Operating system | Android 7.1 |
| Audio | 2 built-in microphones; 1 loudspeaker |
| Audio processing | Noise suppression; echo cancellation |
| Ethernet | 2 RJ45 10/100/1000 Mbps; 1 reserved |
| Wi-Fi | Reserved |
| Bluetooth | Reserved |
| TF card | Reserved |
| Lock control | 2 relays, maximum 30 VDC, 2 A; second lock requires secure module |
General
| Feature | Detail |
|---|---|
| Power input | 12 VDC, 2 A |
| Power consumption | Up to 18 W |
| Protection | IP65; IK07 |
| Mounting | Surface or flush |
| Environment | Outdoor |
| Net weight | 1.225 kg |
| Display — Screen | 10.1-inch IPS capacitive touchscreen |
|---|---|
| Display — Resolution | 1280 × 800 |
| Video — Cameras | 2 × 2 MP |
| Video — IR supplement | Up to 3 m |
| Video — Compression | H.264 |
| Access — Methods | Face; card; PIN; QR code |
| Access — Users | 20000 |
| Access — Faces | 10000 |
| Access — Cards | 100000 |
| System — Operating system | Android 7.1 |
| System — Audio | 2 built-in microphones; 1 loudspeaker |
| System — Audio processing | Noise suppression; echo cancellation |
| System — Ethernet | 2 RJ45 10/100/1000 Mbps; 1 reserved |
| System — Wi-Fi | Reserved |
| System — Bluetooth | Reserved |
| System — TF card | Reserved |
| System — Lock control | 2 relays, maximum 30 VDC, 2 A; second lock requires secure module |
| General — Power input | 12 VDC, 2 A |
| General — Power consumption | Up to 18 W |
| General — Protection | IP65; IK07 |
| General — Mounting | Surface or flush |
| General — Environment | Outdoor |
| General — Net weight | 1.225 kg |
§ 08Questions
Frequently asked about the DS-KD9633-WBE6
Q.01
What is the DS-KD9633-WBE6 designed for?
Q.02
How large is its touchscreen?
Q.03
Which access methods are described here?
Q.04
Can the station control a second lock directly?
Q.05
Can I rely on Wi-Fi or Bluetooth for the installation?
Q.06
How is it powered?
Q.07
Does the TF interface provide usable card storage?
