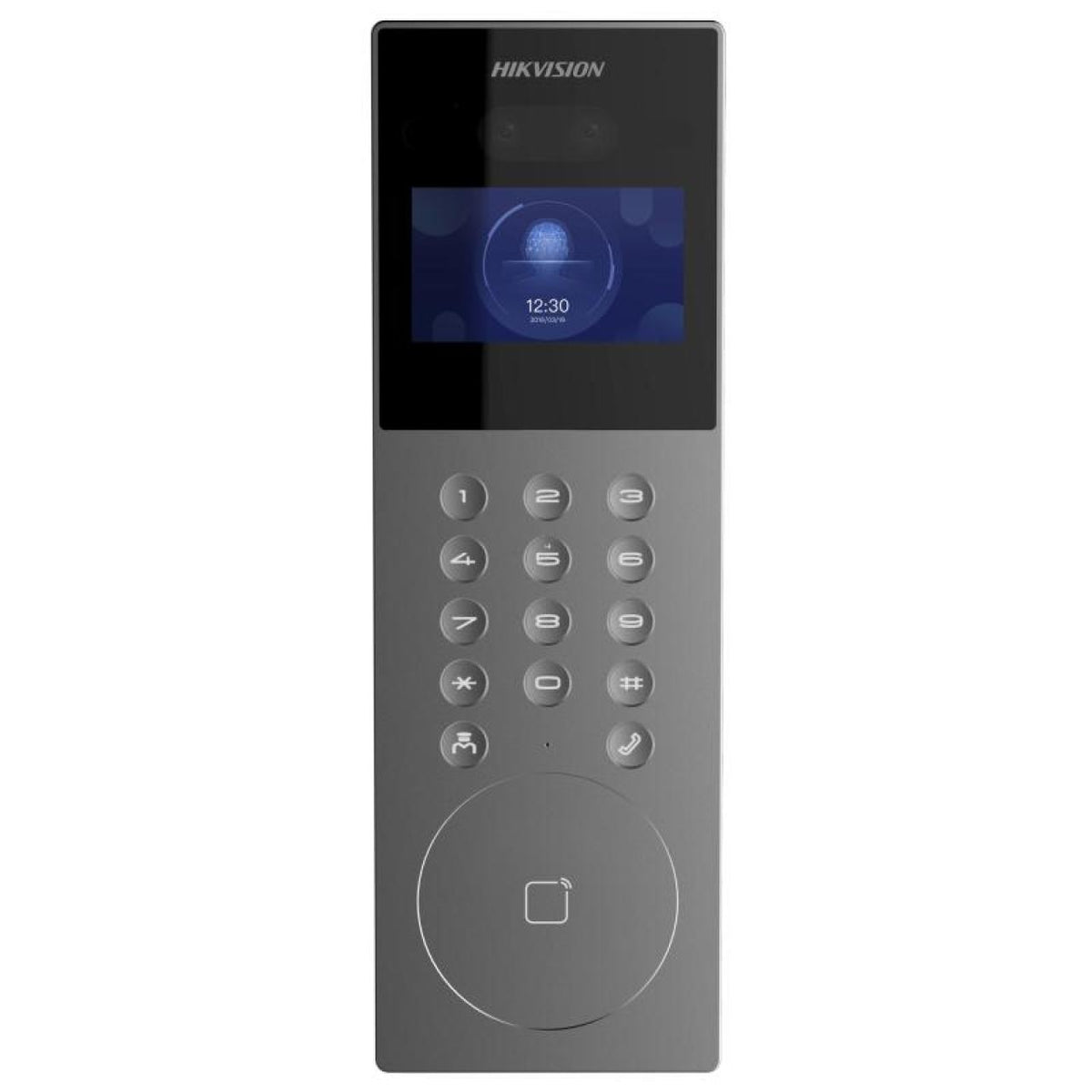

Hikvision DS-KD9203-E6 4.3-inch Face Door Station
1 1
Hikvision

Hikvision DS-KD9203-E6 4.3-inch Face Door Station

SKU: DS-KD9203-E6
Description

The Hikvision DS-KD9203-E6 is an IP apartment door station combining a 4.3-inch colour display with camera-based visitor communication and access control. Residents can use face recognition, M1 cards or PIN codes within the configured system. Two 2 MP cameras and infrared lighting support the entrance view, while a microphone and loudspeaker support conversation. The station provides two lock-control relays and uses a 12 VDC supply. Plan the flush mounting, suitable power source, lock circuits and indoor answering arrangement for the site. This listing is the door station, not a complete apartment intercom installation. Download the official Hikvision datasheet (PDF).
$598.00 AUD $598.00 AUD $627.90 AUD
Sale 4.76% $29.90 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-KD9203-E6 is

The Hikvision DS-KD9203-E6 brings resident access and visitor calling into one entrance panel. Its display and physical keypad provide a shared interaction point for an apartment or office entrance.

Choose the access methods around how residents will use the building. Face, card and PIN options can serve different users, while visitor conversation remains part of the configured intercom system.

This model uses wired networking and a separate DC power arrangement; it does not have Wi-Fi. Check the flush-mount opening and selected lock hardware before completing the entrance design.

§ 02Engineering

DS-KD9203-E6 specifications

Hikvision DS-KD9203-E6 display — 4.3-inch, 800 × 480 — provide a visible entrance interface.
Camera arrangement — two 2 MP cameras — support visitor viewing.
Access methods — face, M1 card and PIN — offer configured resident entry options.
IR supplement — up to 3 m — assist nearby viewing in low light.
Lock control — two relays, maximum 30 VDC, 2 A — match the selected lock circuits.
Power — 12 VDC, 1.5 A — plan the DC supply.
Outdoor protection — IP65 — use an appropriate flush-mount installation.

§ 03Full datasheet

Detailed specifications

Display

Display — Hikvision DS-KD9203-E6 4.3-inch Face Door Station
FeatureDetail
Screen 4.3-inch colour LCD
Resolution 800 × 480

§ 08Questions

Frequently asked about the DS-KD9203-E6

Q.01

What does the DS-KD9203-E6 provide at an entrance?
It combines a display, cameras, visitor audio and resident access methods in an IP door station. It is intended to work within a configured intercom and lock system.
Q.02

How large is the display?
The colour LCD measures 4.3 inches and has an 800 × 480 resolution.
Q.03

Which access methods are supported?
Face recognition, M1 cards and PIN codes are supported. Configure user access for the building's requirements.
Q.04

Does this model use PoE or Wi-Fi?
The station specifies 12 VDC, 1.5 A power and wired Ethernet. It does not have Wi-Fi.
Q.05

Can it control two locks?
It provides two lock-control relays rated up to 30 VDC, 2 A. Check the power and wiring requirements of the connected locks.
Q.06

How is the station mounted?
It is a flush-mounted outdoor station with IP65 protection. Check the opening and mounting arrangement for the installation.
Q.07

Is this a complete intercom kit?
No. Select the power supply, indoor answering arrangement and lock components required for the complete system.
