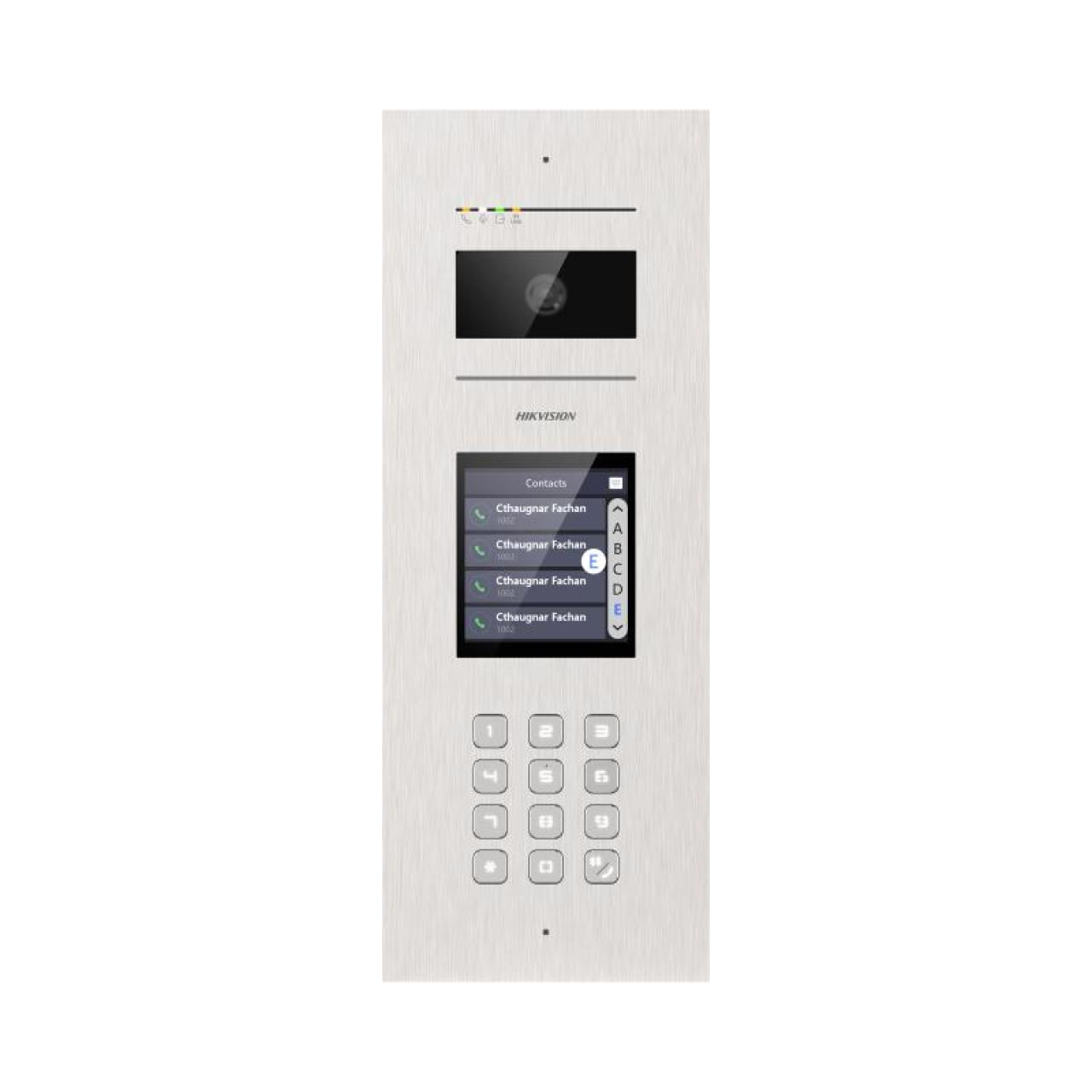

Hikvision DS-KD7003EY-S2 Steel Two-Wire Door Station
The Hikvision DS-KD7003EY-S2 is a two-wire HD door station with a 316L stainless steel panel, 4-inch IPS touchscreen and mechanical keypad. Its 2 MP camera provides a 133° horizontal field of view with WDR and infrared supplementary lighting. A microphone and loudspeaker support visitor conversation, while the keypad supports calling and PIN-code entry. Power comes through a compatible DS-KAD7060EY distribution unit or a 12 VDC input. The two lock-control paths comprise one relay and one DC-pulse output, not two identical relays. Plan the flush mounting and select the compatible indoor station, power arrangement and lock hardware for the complete entrance system. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KD7003EY-S2 is
The Hikvision DS-KD7003EY-S2 combines a camera, touch display and physical keypad in one stainless steel entrance panel. It provides a different interaction format from a main module that requires separate display and keypad extensions.
The mixed lock outputs are an important part of the system selection. Match each lock to the appropriate relay or DC-pulse path instead of assuming both outputs are electrically equivalent.
This station uses a compatible two-wire HD system. Its wireless AP mode is for configuration only, and the panel does not provide everyday Wi-Fi networking or a TF-card storage interface.
§ 02Engineering
DS-KD7003EY-S2 specifications
Touch display — 4-inch IPS, 480 × 480 — support visitor interaction.
Camera — 2 MP, 133° horizontal view — plan the entrance view.
Keypad — 12 physical buttons — support calling and PIN entry.
Audio — microphone and loudspeaker — provide visitor conversation.
Lock control — one relay and one DC-pulse output — match the selected lock hardware.
Mounting and protection — flush mount, IP65 and IK08 — plan the panel installation.
§ 03Full datasheet
Detailed specifications
Display
| Feature | Detail |
|---|---|
| Screen | 4-inch IPS capacitive touchscreen |
| Resolution | 480 × 480 |
Video
| Feature | Detail |
|---|---|
| Camera | 2 MP |
| Field of view | 133° horizontal; 82° vertical |
| Lighting | WDR; IR supplement |
| Compression | H.264 |
System
| Feature | Detail |
|---|---|
| Keypad | 12 physical buttons; calling and PIN entry |
| Audio | Built-in microphone and loudspeaker |
| Audio processing | Noise suppression; echo cancellation |
| Two-wire IP interfaces | 1 |
| Wi-Fi | AP mode for configuration only |
| TF card | No |
| Lock outputs | 1 relay, maximum 30 VDC, 2 A; 1 DC-pulse output |
| DC-pulse output | 20 V, 4 A pulse; 300 mA holding current; 30 ohm maximum |
General
| Feature | Detail |
|---|---|
| Material | 316L stainless steel |
| Power input | 48 V via DS-KAD7060EY distribution unit; or 12 VDC |
| Power consumption | Up to 6 W |
| Protection | IP65; IK08 |
| Mounting | Flush |
| Environment | Outdoor |
| Net weight | 2582 g |
| Display — Screen | 4-inch IPS capacitive touchscreen |
|---|---|
| Display — Resolution | 480 × 480 |
| Video — Camera | 2 MP |
| Video — Field of view | 133° horizontal; 82° vertical |
| Video — Lighting | WDR; IR supplement |
| Video — Compression | H.264 |
| System — Keypad | 12 physical buttons; calling and PIN entry |
| System — Audio | Built-in microphone and loudspeaker |
| System — Audio processing | Noise suppression; echo cancellation |
| System — Two-wire IP interfaces | 1 |
| System — Wi-Fi | AP mode for configuration only |
| System — TF card | No |
| System — Lock outputs | 1 relay, maximum 30 VDC, 2 A; 1 DC-pulse output |
| System — DC-pulse output | 20 V, 4 A pulse; 300 mA holding current; 30 ohm maximum |
| General — Material | 316L stainless steel |
| General — Power input | 48 V via DS-KAD7060EY distribution unit; or 12 VDC |
| General — Power consumption | Up to 6 W |
| General — Protection | IP65; IK08 |
| General — Mounting | Flush |
| General — Environment | Outdoor |
| General — Net weight | 2582 g |
§ 08Questions
Frequently asked about the DS-KD7003EY-S2
Q.01
What does the DS-KD7003EY-S2 combine?
Q.02
How is the touchscreen specified?
Q.03
Can the physical keypad be used for PIN entry?
Q.04
Are both lock outputs relays?
Q.05
What power arrangement does it need?
Q.06
Does it support everyday Wi-Fi networking?
Q.07
How is the panel installed?
