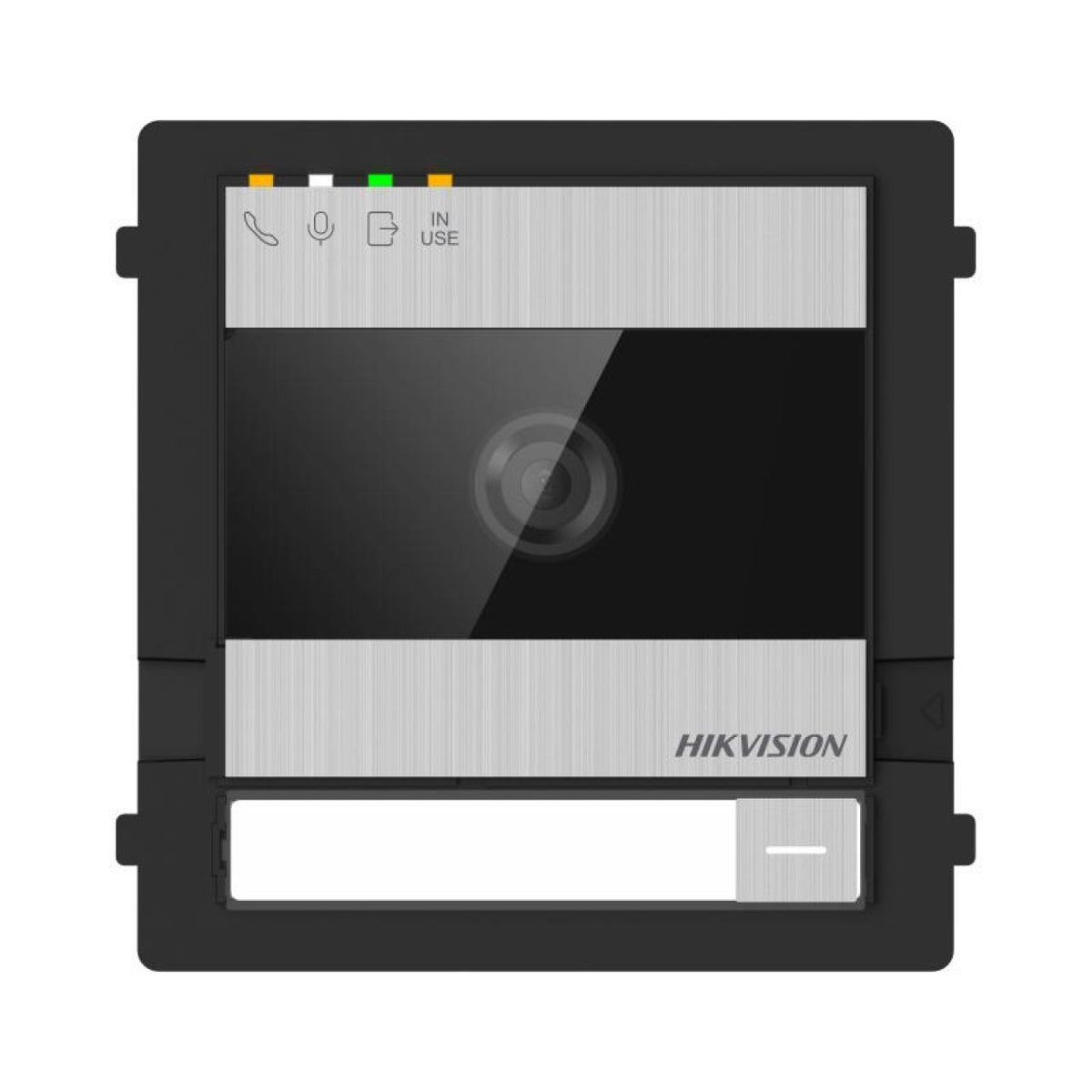

Hikvision DS-KD7003EY-IME2 2MP Two-Wire Door Station
The Hikvision DS-KD7003EY-IME2 is a 2 MP main door-station module for a compatible two-wire HD intercom system. Its camera has a 133° horizontal field of view, with WDR and infrared supplementary lighting for entrance viewing. The microphone and loudspeaker support conversation, and the call-button arrangement can be adjusted for the installation. Power comes through a compatible DS-KAD7060EY distribution unit or a 12 VDC input. Its two lock-control paths are different: one relay and one DC-pulse output. Select the mounting assembly, indoor station and lock hardware for the complete system. The DS-KD-DIS display module is not supported by this model. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KD7003EY-IME2 is
The Hikvision DS-KD7003EY-IME2 provides a modular entrance point for an EY-series two-wire HD system. Its configurable calling arrangement lets the installer plan the visitor interaction around the entrance.
Do not treat its two lock-control paths as two interchangeable relays. The relay and DC-pulse outputs have different electrical characteristics, so the selected lock hardware must suit the intended output.
The wireless AP function is for configuration only, not everyday Wi-Fi networking. This model also excludes the DS-KD-DIS module, so confirm each planned extension before completing the panel.
§ 02Engineering
DS-KD7003EY-IME2 specifications
View — 133° horizontal and 82° vertical — plan the camera position.
Lighting — WDR and IR supplement — handle changing entrance light.
Visitor communication — microphone and loudspeaker — support intercom conversation.
Calling — adjustable zero-to-two button arrangement — configure the entrance layout.
Lock control — one relay and one DC-pulse output — match the selected locks.
Protection — IP65 and IK08 — choose an appropriate outdoor mounting assembly.
§ 03Full datasheet
Detailed specifications
Video
| Feature | Detail |
|---|---|
| Camera | 2 MP |
| Field of view | 133° horizontal; 82° vertical |
| Lighting | WDR; IR supplement |
| Compression | H.264 |
System
| Feature | Detail |
|---|---|
| Audio | Built-in microphone and loudspeaker |
| Audio processing | Noise suppression; echo cancellation |
| Call buttons | 0 to 2; adjustable |
| Two-wire IP interfaces | 1 |
| Wi-Fi | AP mode for configuration only |
| Lock outputs | 1 relay, maximum 30 VDC, 2 A; 1 DC-pulse output |
| DC-pulse output | 20 V, 4 A pulse; 300 mA holding current; 30 ohm maximum |
| Excluded module | DS-KD-DIS |
General
| Feature | Detail |
|---|---|
| Power input | 48 V via DS-KAD7060EY distribution unit; or 12 VDC |
| Power consumption | Up to 6 W |
| Protection | IP65; IK08 |
| Mounting | Surface or flush assembly |
| Environment | Outdoor |
| Net weight | 290 g |
| Video — Camera | 2 MP |
|---|---|
| Video — Field of view | 133° horizontal; 82° vertical |
| Video — Lighting | WDR; IR supplement |
| Video — Compression | H.264 |
| System — Audio | Built-in microphone and loudspeaker |
| System — Audio processing | Noise suppression; echo cancellation |
| System — Call buttons | 0 to 2; adjustable |
| System — Two-wire IP interfaces | 1 |
| System — Wi-Fi | AP mode for configuration only |
| System — Lock outputs | 1 relay, maximum 30 VDC, 2 A; 1 DC-pulse output |
| System — DC-pulse output | 20 V, 4 A pulse; 300 mA holding current; 30 ohm maximum |
| System — Excluded module | DS-KD-DIS |
| General — Power input | 48 V via DS-KAD7060EY distribution unit; or 12 VDC |
| General — Power consumption | Up to 6 W |
| General — Protection | IP65; IK08 |
| General — Mounting | Surface or flush assembly |
| General — Environment | Outdoor |
| General — Net weight | 290 g |
§ 08Questions
Frequently asked about the DS-KD7003EY-IME2
Q.01
What system uses the DS-KD7003EY-IME2?
Q.02
What camera view does it provide?
Q.03
Does two-lock control mean two relay outputs?
Q.04
How is the module powered?
Q.05
Can it connect through normal Wi-Fi?
Q.06
Can I add the DS-KD-DIS display module?
Q.07
Is this a complete entrance kit?
