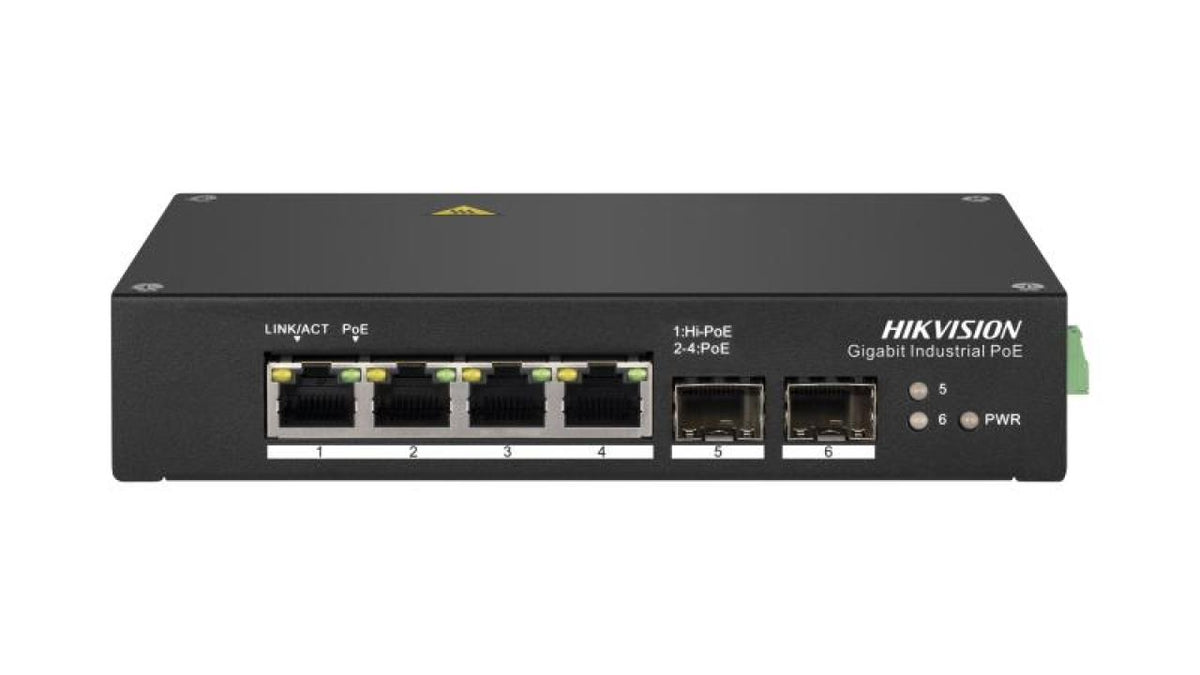

Hikvision DS-3T0506HP 4-Port Industrial Gigabit PoE Switch
Email us
1 1
Hikvision

Hikvision DS-3T0506HP 4-Port Industrial Gigabit PoE Switch

SKU: DS-3T0506HP
Description

The Hikvision DS-3T0506HP is an industrial switch with 4 Gigabit PoE ports and two Gigabit SFP uplinks. It offers a 110 W shared PoE budget with designated high-power ports supporting IEEE 802.3bt. The remaining powered ports support up to 30 W each with IEEE 802.3af/at.

$111.00 AUD $111.00 AUD $116.55 AUD
Sale 4.76% $5.55 AUD (4.76%)

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the DS-3T0506HP is

The Hikvision DS-3T0506HP is an industrial switch with 4 Gigabit PoE ports and two Gigabit SFP uplinks.

Use the designated high-power ports for compatible devices and calculate the total demand before choosing the supply. Multiple port maxima cannot be added beyond the 110 W shared budget.

Provide a suitable external DC power supply, compatible SFP modules and an installation enclosure appropriate to the site. Check the input range and total PoE load before commissioning.

02Engineering

DS-3T0506HP specifications

Hikvision DS-3T0506HP PoE connections — 4 Gigabit PoE ports
Fibre uplinks — 2 Gigabit SFP ports
Shared PoE budget — 110 W across all powered ports
High-power ports — Port 1 supports up to 90 W each within the shared budget
Power input — 48 to 57 VDC, 2.5 A; external power supply required
Installation — DIN rail or desktop
Operating temperature — -40 to 75 C

03Full datasheet

Detailed specifications

Specification

Specification — Hikvision DS-3T0506HP 4-Port Industrial Gigabit PoE Switch
FeatureDetail
PoE connections 4 Gigabit PoE ports
Fibre uplinks 2 Gigabit SFP ports
Shared PoE budget 110 W across all powered ports
High-power ports Port 1 supports up to 90 W each within the shared budget
Power input 48 to 57 VDC, 2.5 A; external power supply required
Installation DIN rail or desktop
Operating temperature -40 to 75 C
Other powered ports Up to 30 W per port, IEEE 802.3af/at

08Questions

Frequently asked about the DS-3T0506HP

Q.01

What is the DS-3T0506HP?
The Hikvision DS-3T0506HP is an industrial switch with 4 Gigabit PoE ports and two Gigabit SFP uplinks.
Q.02

How many powered ports are available?
4 Gigabit PoE ports.
Q.03

What uplinks are provided?
2 Gigabit SFP ports.
Q.04

What is the total power budget?
110 W across all powered ports.
Q.05

Which ports support high-power PoE?
Port 1 supports up to 90 W each within the shared budget.
Q.06

What power supply is required?
48 to 57 VDC, 2.5 A; external power supply required.
Q.07

What should I check before ordering?
Provide a suitable external DC power supply, compatible SFP modules and an installation enclosure appropriate to the site. Check the input range and total PoE load before commissioning.
