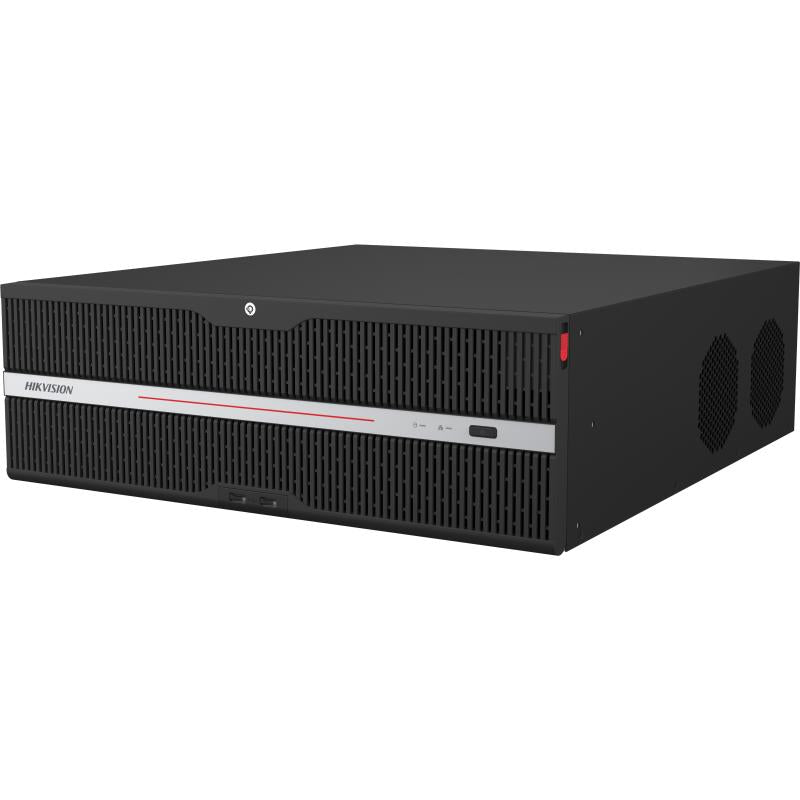

Hikvision iDS-9632NXI-P16 32-Channel AcuSeek NVR, 16 SATA, No HDD
Build a 32-camera IP recording system around the Hikvision iDS-9632NXI-P16 DeepinMind Pro NVR. Its 16 SATA bays accept 3.5-inch hard drives, while RAID options and AcuSeek/AcuSearch functions let you plan storage and investigation tools for your camera mix. This recorder is supplied without hard drives and provides two Gigabit LAN ports; cameras need an external network and power arrangement.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the IDS-9632NXI-P16 is
Size the system around the 320 Mbps incoming bandwidth and your chosen AI mode.
The recorder accepts up to eight 32MP or 24MP inputs within its 32-channel total.
AcuSeek can cover all channels with compatible Hikvision AcuSense cameras that have AcuSearch enabled; conventional cameras use the recorder's processing resources and have lower resolution-dependent channel limits.
HDMI 1 reaches 8K at 30 Hz, but HDMI 2 is limited to 1080p while HDMI 1 runs at 8K.
Select drives separately and check the original dimension drawing for installation clearance, including projecting parts.
02Engineering
IDS-9632NXI-P16 specifications
Storage: 16 SATA bays; no HDD included
Search: AcuSeek and AcuSearch with camera-dependent limits
Local display: HDMI 1 up to 8K at 30 Hz
RAID options: RAID 0, 1, 5, 6 and 10
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Manufacturer model | iDS-9632NXI-P16, DeepinMind Pro NVR |
| Supply basis | One recorder; hard drives not included |
| IP video inputs | 32 channels; up to eight 32MP or 24MP inputs |
| Bandwidth | 320 Mbps incoming / 400 Mbps outgoing |
| Video compression | H.265+, H.265, H.264+, H.264 |
| Decoding examples | 2 channels at 32MP or 8 channels at 8MP, at 30 fps |
| Synchronous playback | 16 channels |
| HDMI 1 | Up to 7680 × 4320 at 30 Hz; 3840 × 2160 at 60 Hz |
| HDMI 2 | Up to 3840 × 2160 at 60 Hz; maximum 1080p when HDMI 1 is at 8K |
| VGA outputs | Two outputs, each up to 1920 × 1080 at 60 Hz |
| HDD bays | 16 SATA interfaces for 3.5-inch HDDs; up to 20 TB per drive |
| eSATA | One eSATA interface |
| RAID modes | RAID 0, 1, 5, 6, 10 |
| Network connections | Two RJ45 10/100/1000 Mbps Ethernet ports; no built-in PoE camera ports |
| Integration | ONVIF profiles S/G, SDK and ISAPI |
| NVR AI search | AcuSeek / AcuSearch with conventional cameras: up to 16 channels at 2MP, 8 at 4MP or 4 at 8MP using NVR processing |
| Camera-assisted AI | AcuSeek with compatible AcuSense cameras: all channels with camera AcuSearch enabled; up to 600,000 targets per day |
| AI engines | Two configurable GPU engines plus one engine dedicated to AcuSeek and OVD; AcuSeek requires at least one configurable engine in AcuSearch mode |
| USB ports | Front: 2 × USB 2.0; rear: 2 × USB 3.0 |
| Alarm inputs / outputs | 16 inputs / 9 outputs |
| Serial interfaces | One RS-232 and one full-duplex RS-485 |
| Power supply | 100–240 VAC, 50–60 Hz |
| Power use (no HDD) | 50 W maximum |
| Temperature / RH | −10 to 55 °C; 10–90% humidity |
| Chassis (W × D × H) | Nominal 442 × 498 × 146 mm; allow additional clearance shown in the original drawing |
| Weight (no HDD) | 12.5 kg maximum |
| Specifications — Manufacturer model | iDS-9632NXI-P16, DeepinMind Pro NVR |
|---|---|
| Specifications — Supply basis | One recorder; hard drives not included |
| Specifications — IP video inputs | 32 channels; up to eight 32MP or 24MP inputs |
| Specifications — Bandwidth | 320 Mbps incoming / 400 Mbps outgoing |
| Specifications — Video compression | H.265+, H.265, H.264+, H.264 |
| Specifications — Decoding examples | 2 channels at 32MP or 8 channels at 8MP, at 30 fps |
| Specifications — Synchronous playback | 16 channels |
| Specifications — HDMI 1 | Up to 7680 × 4320 at 30 Hz; 3840 × 2160 at 60 Hz |
| Specifications — HDMI 2 | Up to 3840 × 2160 at 60 Hz; maximum 1080p when HDMI 1 is at 8K |
| Specifications — VGA outputs | Two outputs, each up to 1920 × 1080 at 60 Hz |
| Specifications — HDD bays | 16 SATA interfaces for 3.5-inch HDDs; up to 20 TB per drive |
| Specifications — eSATA | One eSATA interface |
| Specifications — RAID modes | RAID 0, 1, 5, 6, 10 |
| Specifications — Network connections | Two RJ45 10/100/1000 Mbps Ethernet ports; no built-in PoE camera ports |
| Specifications — Integration | ONVIF profiles S/G, SDK and ISAPI |
| Specifications — NVR AI search | AcuSeek / AcuSearch with conventional cameras: up to 16 channels at 2MP, 8 at 4MP or 4 at 8MP using NVR processing |
| Specifications — Camera-assisted AI | AcuSeek with compatible AcuSense cameras: all channels with camera AcuSearch enabled; up to 600,000 targets per day |
| Specifications — AI engines | Two configurable GPU engines plus one engine dedicated to AcuSeek and OVD; AcuSeek requires at least one configurable engine in AcuSearch mode |
| Specifications — USB ports | Front: 2 × USB 2.0; rear: 2 × USB 3.0 |
| Specifications — Alarm inputs / outputs | 16 inputs / 9 outputs |
| Specifications — Serial interfaces | One RS-232 and one full-duplex RS-485 |
| Specifications — Power supply | 100–240 VAC, 50–60 Hz |
| Specifications — Power use (no HDD) | 50 W maximum |
| Specifications — Temperature / RH | −10 to 55 °C; 10–90% humidity |
| Specifications — Chassis (W × D × H) | Nominal 442 × 498 × 146 mm; allow additional clearance shown in the original drawing |
| Specifications — Weight (no HDD) | 12.5 kg maximum |
08Questions
Frequently asked about the IDS-9632NXI-P16
Q.01
Does this NVR power cameras through PoE ports?
Q.02
Are hard drives included, and how many can I install?
Q.03
Will AcuSeek work on all 32 cameras?
Q.04
Can I run an 8K display and a 4K display together?
Q.05
Can all 32 inputs record 32MP cameras?
