Hikvision HiLook NS-0318P-130(B) 16-Port 130W PoE Switch
1 1
Hikvision

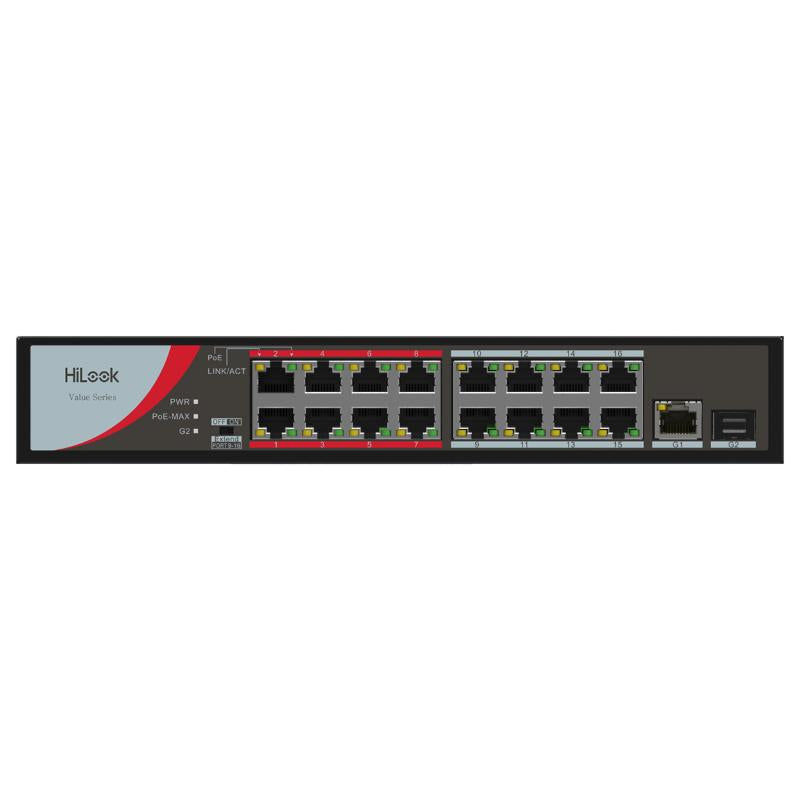

Hikvision HiLook NS-0318P-130(B) 16-Port 130W PoE Switch

SKU: NS-0318P-130(B)
Description

The Hikvision HiLook NS-0318P-130(B) is an unmanaged switch for connecting and powering compatible PoE cameras. Its 16 Fast Ethernet PoE ports share a 130 W power budget, with separate Gigabit RJ45 and SFP uplinks for the upstream network. Ports 9–16 offer an Extend mode for runs up to 250 m at a reduced 10 Mbps link speed.
$190.00 AUD $190.00 AUD $246.00 AUD
Sale 22.76% $56.00 AUD (22.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the NS-0318P-130(B) is

Choose this model when 100 Mbps camera connections suit your system and you need copper or fibre uplink options.

Check each device's IEEE 802.3af/at requirements and the combined power demand before ordering: the 30 W per-port limit remains subject to the 130 W total budget.

The hardware DIP switch selects Standard or Extend mode; allow for the lower bandwidth when planning longer camera runs.

Install the switch in a ventilated equipment room using the manufacturer's rack-installation guidance.

A fibre connection requires a suitable SFP optical module.

02Engineering

NS-0318P-130(B) specifications

Camera connections: 16 × 10/100 Mbps PoE ports
Shared PoE budget: 130 W total; up to 30 W per port
Gigabit uplinks: 1 RJ45 port and 1 SFP slot
Extend mode: Ports 9–16: up to 250 m at 10 Mbps

03Full datasheet

Detailed specifications

Specifications

Specifications — Hikvision HiLook NS-0318P-130(B) 16-Port 130W PoE Switch
FeatureDetail
Model NS-0318P-130(B)
Switch type Layer 2 unmanaged PoE switch
PoE access ports 16 × 10/100 Mbps RJ45 (ports 1–16)
Uplinks 1 × 1000 Mbps RJ45; 1 × 1000 Mbps SFP slot
PoE standards IEEE 802.3af and IEEE 802.3at
PoE power budget 130 W total; maximum 30 W per port
Operating modes Standard (default); Extend via DIP switch
Extend-mode ports and speed Ports 9–16; up to 250 m at 10 Mbps
High-priority ports Ports 1–8
Switching capacity 7.2 Gbps
Packet forwarding rate 5.356 Mpps
MAC table / packet buffer 4K entries / 2.75 Mbits
Forwarding method Store-and-forward
Network standards IEEE 802.3, IEEE 802.3u, IEEE 802.3x
PoE-port surge protection 6 kV
AC input 100–240 VAC, 50/60 Hz, maximum 2.5 A
Power consumption 150 W maximum; 20 W idle
Enclosure Metal
Dimensions (L × H × D) 266 × 44.5 × 220.8 mm
Net weight 1.8 kg
Operating environment −10 °C to 55 °C; 5–95% RH, non-condensing
Installation Equipment room; follow manufacturer rack-installation instructions
Switch quantity 1 switch

08Questions

Frequently asked about the NS-0318P-130(B)

Q.01

What changes when I enable Extend mode?
On this model, the DIP switch enables longer links on ports 9–16, up to 250 m, and reduces those ports to 10 Mbps. Standard mode is the default. Check the bandwidth required by each connected camera before selecting Extend mode.
Q.02

Can every PoE port supply 30 W at once?
No. Each port supports up to 30 W, but all 16 ports share a 130 W PoE budget. Check the combined maximum demand of your planned devices as well as each device's PoE standard and power requirement.
Q.03

Are the camera ports Gigabit, and how does the fibre uplink work?
The 16 camera-facing PoE ports are 10/100 Mbps. Gigabit connectivity is provided by a separate RJ45 port and an SFP slot. The SFP slot needs a suitable optical module and fibre connection; it is not a second copper RJ45 port.
Q.04

Can I mount the switch outdoors?
The manufacturer's guide specifies equipment-room installation with ventilation and grounding. Use its rack-installation instructions. The listed 6 kV PoE-port surge protection is not a weatherproof enclosure rating.
