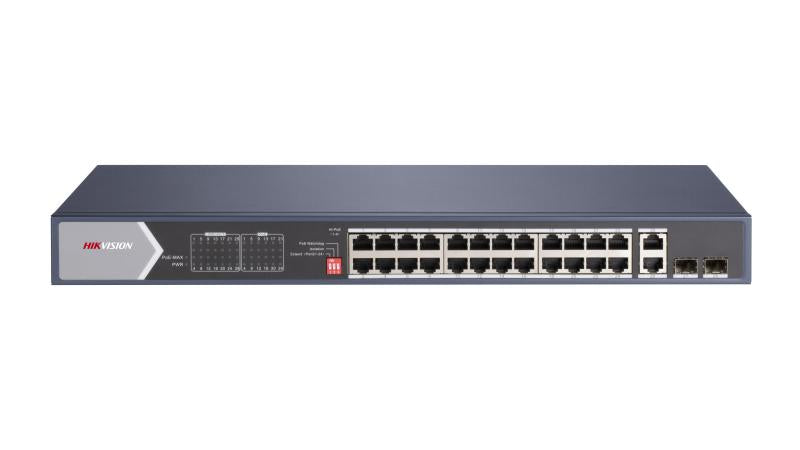

Hikvision DS-3E0528HP-E 24-Port Gigabit PoE Switch
The Hikvision DS-3E0528HP-E is an unmanaged Gigabit switch for connecting and powering compatible PoE devices. It provides 24 PoE ports, including four Hi-PoE ports rated up to 90 W each, plus two Gigabit RJ45 ports and two Gigabit fibre ports. Its 370 W PoE budget is shared across the connected devices.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-3E0528HP-E is
Use ports 1 to 4 for compatible higher-power devices and ports 5 to 24 for devices requiring up to 30 W per port.
Check both the device's PoE standard and the total power demand before choosing the switch.
Ports 21 to 24 offer long-range operation up to 300 m, subject to the camera and cable; this is not a promise of Gigabit speed at that distance.
The metal enclosure supports rack installation with mounting ears.
SFP modules are optional accessories selected for the fibre connection.
02Engineering
DS-3E0528HP-E specifications
Shared PoE budget: 370 W
Hi-PoE output: Up to 90 W per port on ports 1 to 4
Uplink connections: 2 Gigabit RJ45 ports and 2 Gigabit fibre ports
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Model | DS-3E0528HP-E |
| Switch type | Unmanaged Layer 2 Gigabit PoE switch |
| PoE access ports | 24 Gigabit ports; Hi-PoE on ports 1 to 4 |
| Additional network ports | 2 Gigabit RJ45 ports and 2 Gigabit fibre ports |
| PoE standards by port | Ports 1 to 4: IEEE 802.3af/at/bt; ports 5 to 24: IEEE 802.3af/at |
| Maximum output per port | Ports 1 to 4: 90 W; ports 5 to 24: 30 W; subject to the shared budget |
| Total PoE budget | 370 W |
| Switching capacity | 56 Gbps |
| Packet forwarding rate | 41.664 Mpps |
| MAC address table / buffer | 8 K entries / 4.1 Mbits |
| Forwarding method | Store-and-forward |
| Long-range operation | Ports 21 to 24: up to 300 m, depending on camera model and cable condition |
| Port isolation | Ports 1 to 24; isolated ports cannot communicate with each other but can communicate outside the isolation group |
| PoE watchdog | Ports 1 to 24: detects and restarts cameras that do not respond |
| PoE port surge protection | 6 kV |
| AC input | 100 to 240 V AC, 50/60 Hz; maximum 6.5 A |
| Power consumption | 30 W idle; 400 W maximum |
| Enclosure / installation | Metal; rack mounting with mounting ears |
| Dimensions (W x H x D) | 440 x 44 x 220.8 mm |
| Net weight | 2.98 kg |
| Operating temperature | 0 to 45 °C |
| Storage temperature | -40 to 85 °C |
| Operating humidity | 5% to 95%, non-condensing |
| Fibre modules | SFP modules are optional accessories |
| Specifications — Model | DS-3E0528HP-E |
|---|---|
| Specifications — Switch type | Unmanaged Layer 2 Gigabit PoE switch |
| Specifications — PoE access ports | 24 Gigabit ports; Hi-PoE on ports 1 to 4 |
| Specifications — Additional network ports | 2 Gigabit RJ45 ports and 2 Gigabit fibre ports |
| Specifications — PoE standards by port | Ports 1 to 4: IEEE 802.3af/at/bt; ports 5 to 24: IEEE 802.3af/at |
| Specifications — Maximum output per port | Ports 1 to 4: 90 W; ports 5 to 24: 30 W; subject to the shared budget |
| Specifications — Total PoE budget | 370 W |
| Specifications — Switching capacity | 56 Gbps |
| Specifications — Packet forwarding rate | 41.664 Mpps |
| Specifications — MAC address table / buffer | 8 K entries / 4.1 Mbits |
| Specifications — Forwarding method | Store-and-forward |
| Specifications — Long-range operation | Ports 21 to 24: up to 300 m, depending on camera model and cable condition |
| Specifications — Port isolation | Ports 1 to 24; isolated ports cannot communicate with each other but can communicate outside the isolation group |
| Specifications — PoE watchdog | Ports 1 to 24: detects and restarts cameras that do not respond |
| Specifications — PoE port surge protection | 6 kV |
| Specifications — AC input | 100 to 240 V AC, 50/60 Hz; maximum 6.5 A |
| Specifications — Power consumption | 30 W idle; 400 W maximum |
| Specifications — Enclosure / installation | Metal; rack mounting with mounting ears |
| Specifications — Dimensions (W x H x D) | 440 x 44 x 220.8 mm |
| Specifications — Net weight | 2.98 kg |
| Specifications — Operating temperature | 0 to 45 °C |
| Specifications — Storage temperature | -40 to 85 °C |
| Specifications — Operating humidity | 5% to 95%, non-condensing |
| Specifications — Fibre modules | SFP modules are optional accessories |
08Questions
Frequently asked about the DS-3E0528HP-E
Q.01
Does the 24-port count include the uplinks?
Q.02
Can all four Hi-PoE ports supply 90 W at once?
Q.03
Which ports can reach 300 m?
Q.04
Are fibre transceivers included?
Q.05
What does PoE watchdog do?
