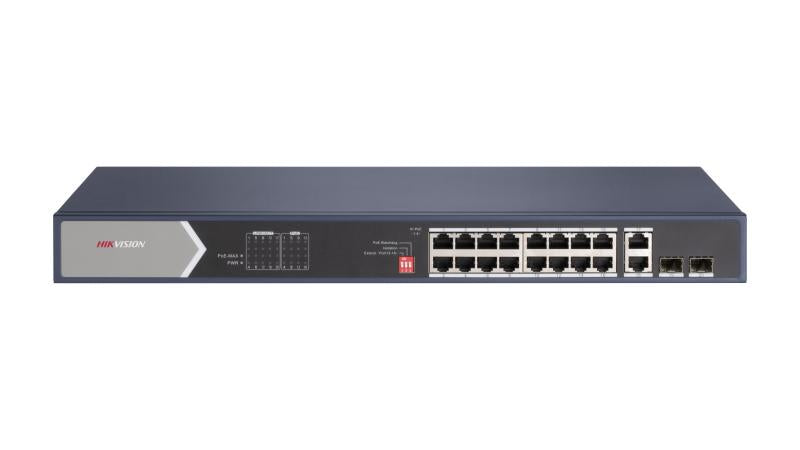

Hikvision DS-3E0520HP-E 16-Port Gigabit Unmanaged PoE Switch
The Hikvision DS-3E0520HP-E is an unmanaged Gigabit switch with 16 PoE access ports for compatible network cameras and other PoE devices. Ports 1–4 support up to 90 W each, while ports 5–16 support up to 30 W each; all powered devices share a 225 W budget. Two additional Gigabit RJ45 ports and two Gigabit fibre ports provide connections beyond the PoE access ports.
Delivery, warranty & returns · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-3E0520HP-E is
Plan the connected devices around both their individual PoE requirements and the switch's total power limit.
The DS-3E0520HP-E provides PoE watchdog and port isolation on ports 1–16, plus a long-range option on ports 13–16 for runs up to 300 m, subject to camera model and cable condition.
Its metal chassis mounts in a rack using the supplied mounting ears.
SFP modules are optional accessories; select suitable optics for the fibre connection.
02Engineering
DS-3E0520HP-E specifications
High-power ports: Ports 1–4: up to 90 W each
Shared PoE budget: 225 W
Additional connections: 2 Gigabit RJ45 + 2 Gigabit fibre ports
03Full datasheet
Detailed specifications
Specifications
| Feature | Detail |
|---|---|
| Model | DS-3E0520HP-E |
| Switch type | Unmanaged Gigabit PoE switch |
| PoE access ports | 16 Gigabit ports: 4 Hi-PoE and 12 PoE |
| Additional network ports | 2 Gigabit RJ45 ports and 2 Gigabit fibre optical ports |
| Hi-PoE ports 1–4 | IEEE 802.3af/at/bt; up to 90 W per port |
| PoE ports 5–16 | IEEE 802.3af/at; up to 30 W per port |
| Total PoE budget | 225 W shared across powered devices |
| Switching capacity | 40 Gbps |
| Packet forwarding rate | 29.76 Mpps |
| MAC address table | 8 K |
| Internal cache | 4.10 Mbits |
| Long-range function | Ports 13–16: up to 300 m; performance depends on camera model and cable condition |
| PoE watchdog | Ports 1–16: detects and restarts unresponsive cameras |
| Port isolation | Ports 1–16: isolated ports communicate with ports outside the isolation group, not with each other |
| PoE surge protection | 6 kV |
| AC input | 100–240 V AC, 50/60 Hz, maximum 4 A |
| Power consumption | 250 W maximum; 25 W idle |
| Dimensions (W × H × D) | 440.0 × 44.0 × 220.8 mm |
| Net weight | 2.79 kg |
| Construction and installation | Metal chassis; rack mounting with mounting ears supplied |
| Operating conditions | 0 °C to 45 °C; 5% to 95% humidity, non-condensing |
| Storage temperature | −40 °C to 85 °C |
| Fibre modules | Optional SFP accessories |
| Specifications — Model | DS-3E0520HP-E |
|---|---|
| Specifications — Switch type | Unmanaged Gigabit PoE switch |
| Specifications — PoE access ports | 16 Gigabit ports: 4 Hi-PoE and 12 PoE |
| Specifications — Additional network ports | 2 Gigabit RJ45 ports and 2 Gigabit fibre optical ports |
| Specifications — Hi-PoE ports 1–4 | IEEE 802.3af/at/bt; up to 90 W per port |
| Specifications — PoE ports 5–16 | IEEE 802.3af/at; up to 30 W per port |
| Specifications — Total PoE budget | 225 W shared across powered devices |
| Specifications — Switching capacity | 40 Gbps |
| Specifications — Packet forwarding rate | 29.76 Mpps |
| Specifications — MAC address table | 8 K |
| Specifications — Internal cache | 4.10 Mbits |
| Specifications — Long-range function | Ports 13–16: up to 300 m; performance depends on camera model and cable condition |
| Specifications — PoE watchdog | Ports 1–16: detects and restarts unresponsive cameras |
| Specifications — Port isolation | Ports 1–16: isolated ports communicate with ports outside the isolation group, not with each other |
| Specifications — PoE surge protection | 6 kV |
| Specifications — AC input | 100–240 V AC, 50/60 Hz, maximum 4 A |
| Specifications — Power consumption | 250 W maximum; 25 W idle |
| Specifications — Dimensions (W × H × D) | 440.0 × 44.0 × 220.8 mm |
| Specifications — Net weight | 2.79 kg |
| Specifications — Construction and installation | Metal chassis; rack mounting with mounting ears supplied |
| Specifications — Operating conditions | 0 °C to 45 °C; 5% to 95% humidity, non-condensing |
| Specifications — Storage temperature | −40 °C to 85 °C |
| Specifications — Fibre modules | Optional SFP accessories |
08Questions
Frequently asked about the DS-3E0520HP-E
Q.01
Can all four Hi-PoE ports supply 90 W at the same time?
Q.02
How many connections are available in addition to the 16 PoE ports?
Q.03
Which ports support the 300 m long-range function?
Q.04
Are SFP modules included with the switch?
