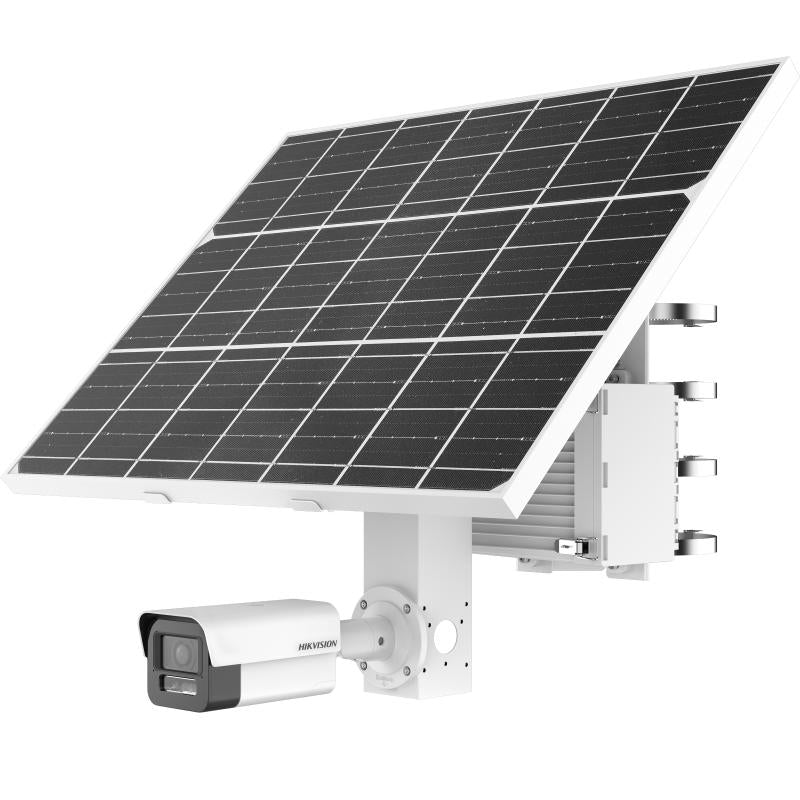

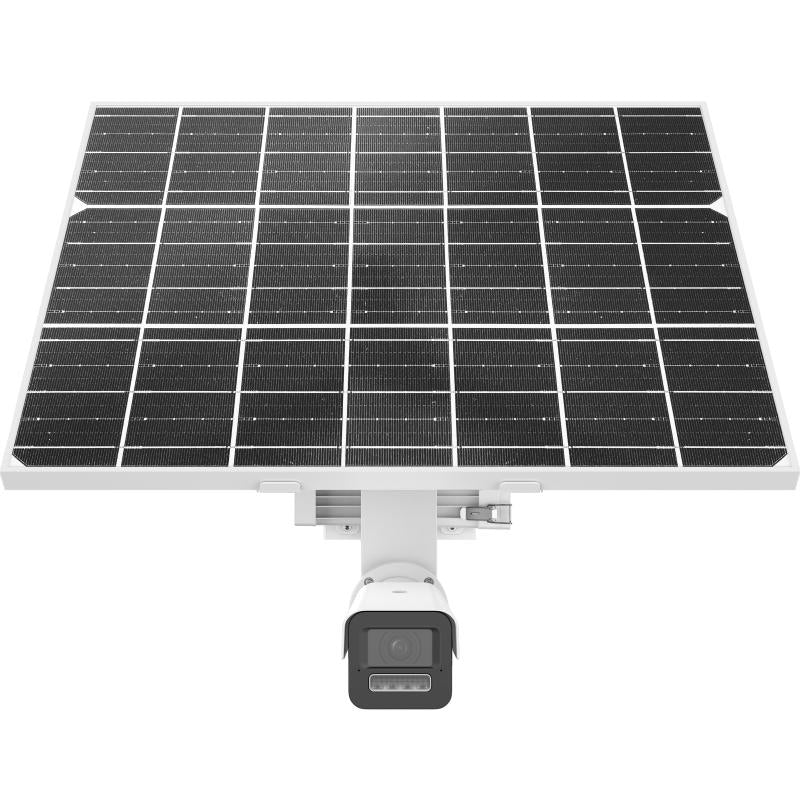

Hikvision DS-2XS6A46G1E-LIZS/C36S80 4MP Solar 4G Camera Kit, 2.8–12mm
Monitor remote gates, farms and temporary sites with the Hikvision DS-2XS6A46G1E-LIZS/C36S80 4MP solar 4G camera kit. This 2.8–12mm motorised varifocal version combines an 80W solar panel and 360Wh rechargeable battery with AcuSense human/vehicle classification, two-way audio and strobe/audio warning. Smart Hybrid Light provides infrared and white illumination up to 30m.
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
- Tracked delivery on every order. The tracking number is emailed as soon as it ships.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Metro delivery usually takes 2–4 business days after dispatch, and regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
01Overview
What the DS-2XS6A46G1E-LIZS-C36S80-12MM is
The DS-2XS6A46G1E-LIZS/C36S80 brings camera, solar generation and battery storage together for sites where laying power and network cables is impractical. Its 4G connection supports remote surveillance over a suitable mobile service, making it a practical choice for rural entrances, construction areas and temporary monitoring.
This listing is the 2.8–12mm motorised varifocal version. The lens can be adjusted from a wider view to a tighter view of a gate or approach; 12mm is the end of the zoom range. A 4MP sensor and 120dB WDR support detailed images in scenes with strong backlight.
AcuSense classifies human and vehicle targets for supported alarms. A built-in microphone and speaker enable two-way audio, while strobe and audible warnings provide an active response. Smart Hybrid Light combines infrared and white illumination with a specified range of up to 30m for this lens version.
Plan the installation around sunlight, seasonal shade and mobile coverage. A compatible Micro SIM and active mobile data service are required for cellular use. Battery endurance changes with operating mode, recording, streaming and site conditions; the manufacturer’s standby figure is not a continuous-recording promise.
See it in action
What the DS-2XS6A46G1E-LIZS-C36S80-12MM features actually look like
Representative illustrations of how each key feature performs in a real scene.
4MP Ultra HD
02Engineering
DS-2XS6A46G1E-LIZS-C36S80-12MM specifications
Motorised 2.8–12mm varifocal lens
80W solar panel and 360Wh rechargeable battery
4G cellular connection using a Micro SIM
AcuSense human and vehicle target classification
Smart Hybrid Light: infrared and white light up to 30m
Built-in two-way audio, strobe and audible warning
IP66 camera protection
03Full datasheet
Detailed specifications
Model and imaging
| Feature | Detail |
|---|---|
| Manufacturer model | DS-2XS6A46G1E-LIZS/C36S80 (2.8–12mm) |
| Resolution | 4MP, 2688 × 1520 |
| Sensor | 1/1.8-inch progressive scan CMOS |
| Wide dynamic range | 120 dB |
| Main stream at 50 Hz | Performance mode: up to 25 fps; proactive mode: up to 12.5 fps |
| Video compression | H.264 / H.265; H.264+ / H.265+ in performance mode |
Lens and illumination
| Feature | Detail |
|---|---|
| Lens | Motorised 2.8–12mm varifocal, auto iris, F1.4 |
| Horizontal field of view | 103.9° to 48.2° |
| Focus | Automatic, semi-automatic or manual |
| Supplemental light | Smart Hybrid Light, infrared and white light |
| Lighting range | Up to 30 m for this 2.8–12mm version |
Detection and communication
| Feature | Detail |
|---|---|
| Target classification | Human and vehicle |
| Perimeter events | Line crossing, intrusion, region entrance and region exit |
| Active warning | Strobe light and audible alarm |
| Audio | Built-in microphone and speaker; two-way audio |
| Mobile connectivity | 4G LTE-TDD / LTE-FDD; Micro SIM |
| LTE bands, standard model | TDD: 38/40/41; FDD: 1/3/5/7/8/20/28 |
| Ethernet | 1 × RJ45 10/100 Mbps |
| Integration | ONVIF Profiles S, G and T; ISAPI, SDK, ISUP, OTAP |
| Local storage support | microSD / microSDHC / microSDXC up to 512 GB; built-in eMMC up to 256 GB (configuration dependent) |
Solar power and environment
| Feature | Detail |
|---|---|
| Solar panel | 80 W photovoltaic panel |
| Battery | 360 Wh rechargeable lithium battery system; four 90 Wh modules |
| Battery management | Battery-level display, temperature and charge/discharge protection, low-battery sleep and remote wake-up |
| Reference battery endurance | 5 days in proactive mode or 80 days in standby, cloudy/rainy conditions at 25°C; actual runtime varies |
| Operating temperature | -25°C to 60°C |
| Battery charging temperature | -25°C to 45°C |
| Protection | Camera IP66 |
| Assembled dimensions | 662.11 × 720 × 579.76 mm (maximum assembled size) |
| Product weight | Approximately 13.045 kg |
| Model and imaging — Manufacturer model | DS-2XS6A46G1E-LIZS/C36S80 (2.8–12mm) |
|---|---|
| Model and imaging — Resolution | 4MP, 2688 × 1520 |
| Model and imaging — Sensor | 1/1.8-inch progressive scan CMOS |
| Model and imaging — Wide dynamic range | 120 dB |
| Model and imaging — Main stream at 50 Hz | Performance mode: up to 25 fps; proactive mode: up to 12.5 fps |
| Model and imaging — Video compression | H.264 / H.265; H.264+ / H.265+ in performance mode |
| Lens and illumination — Lens | Motorised 2.8–12mm varifocal, auto iris, F1.4 |
| Lens and illumination — Horizontal field of view | 103.9° to 48.2° |
| Lens and illumination — Focus | Automatic, semi-automatic or manual |
| Lens and illumination — Supplemental light | Smart Hybrid Light, infrared and white light |
| Lens and illumination — Lighting range | Up to 30 m for this 2.8–12mm version |
| Detection and communication — Target classification | Human and vehicle |
| Detection and communication — Perimeter events | Line crossing, intrusion, region entrance and region exit |
| Detection and communication — Active warning | Strobe light and audible alarm |
| Detection and communication — Audio | Built-in microphone and speaker; two-way audio |
| Detection and communication — Mobile connectivity | 4G LTE-TDD / LTE-FDD; Micro SIM |
| Detection and communication — LTE bands, standard model | TDD: 38/40/41; FDD: 1/3/5/7/8/20/28 |
| Detection and communication — Ethernet | 1 × RJ45 10/100 Mbps |
| Detection and communication — Integration | ONVIF Profiles S, G and T; ISAPI, SDK, ISUP, OTAP |
| Detection and communication — Local storage support | microSD / microSDHC / microSDXC up to 512 GB; built-in eMMC up to 256 GB (configuration dependent) |
| Solar power and environment — Solar panel | 80 W photovoltaic panel |
| Solar power and environment — Battery | 360 Wh rechargeable lithium battery system; four 90 Wh modules |
| Solar power and environment — Battery management | Battery-level display, temperature and charge/discharge protection, low-battery sleep and remote wake-up |
| Solar power and environment — Reference battery endurance | 5 days in proactive mode or 80 days in standby, cloudy/rainy conditions at 25°C; actual runtime varies |
| Solar power and environment — Operating temperature | -25°C to 60°C |
| Solar power and environment — Battery charging temperature | -25°C to 45°C |
| Solar power and environment — Protection | Camera IP66 |
| Solar power and environment — Assembled dimensions | 662.11 × 720 × 579.76 mm (maximum assembled size) |
| Solar power and environment — Product weight | Approximately 13.045 kg |
