Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB

Hikvision

Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB

Name: Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Brand: Hikvision
Price: 2715.75 AUD
Availability: InStock

SKU: DS-2CD2T86G2-2I

Description

6 x 8MP Hikvision 4K AcuSense Bullet Cameras
Model: DS-2CD2T86G2-2I
Specs: 8MP 4K Ultra HD Resolution, AcuSense Human & Vehicle Detection, Powered by DarkFighter Technology, 50m EXIR Night Vision
1 x 8CH Hikvision M-Series PoE NVR (4TB HDD)
Model: DS-7608NI-M2-8P
Specs: 8-Port Plug & Play PoE, Up to 8K Recording Support, H.265+ Video Compression, 4TB Surveillance-Grade HDD

$2,715.75 AUD ~~$3,636.00 AUD~~

Sale 25.31% $920.25 AUD (25.31%)

EOFY sale: extra 5% off orders over $800 Applied automatically in cart — ends 30 June. Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock

Customize this kit Kit price $2,715.75

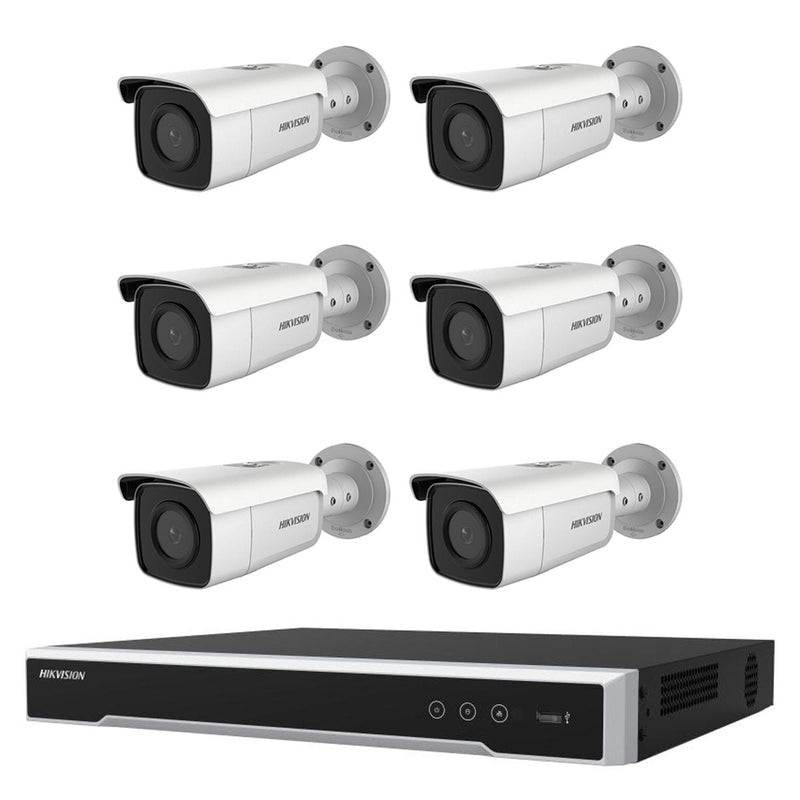

This kit includes:

6 × Hikvision DS-2CD2T86G2-2I 8MP Outdoor Bullet CCTV Camera 50M IR powered by Darkfighter & Acusense
1 × Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB (8ch)
1 × 4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs (4TB)

Add extra cameras Hikvision DS-2CD2T86G2-2I 8MP Outdoor Bullet CCTV Camera 50M IR powered by Darkfighter & Acusense · max 16

+$0.00

NVR Base: 8ch · Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR, 128Mbps, 4K, 2 Bay, 1RU, 4TB

8ch Hikvision DS-7608NI-M2/8P 8ch M-Series PoE NVR,... Base (included)

Hikvision DS-7616NI-M2/16P 16ch M-Series PoE NVR, 256Mbps, H.265, 16 PnP Ports, 2 HDD Bay, 4TB

16ch Hikvision DS-7616NI-M2/16P 16ch M-Series PoE NV... +$264.80

Hard Drive Base: 4TB · 4TB HDD – WD Purple / Seagate Surveil...

4TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

4TB 4TB HDD – WD Purple / Seagate Surveillance HDD ... Base (included)

6TB HDD – WD Purple / Seagate Surveillance HDD for DVRs & NVRs

6TB 6TB HDD – WD Purple / Seagate Surveillance HDD ... +$135.55

8TB HDD – Purple / Skyhawk Surveillance Hard Drive for DVRs & NVR

8TB 8TB HDD – Purple / Skyhawk Surveillance Hard Dr... +$275.70

10TB HDD – Purple Surveillance Hard Drive for DVRs & NVR

10TB 10TB HDD – Purple Surveillance Hard Drive for D... +$429.55

Notes for warehouse (optional)

3-Year Warranty

Warranty on all cameras

Free Shipping

On orders over $300

30-Day Returns

Easy returns for unopened items

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-2CD2T86G2-2I is

The Hikvision DS-2CD2T86G2-2I/4I 8MP 4K CCTV Kit is a professional-grade security solution designed for comprehensive outdoor surveillance for Australian homes and organisations.

This kit combines the power of a leading Brand with advanced intelligent detection to provide a reliable security Product for various environments.

§ 02Engineering

DS-2CD2T86G2-2I specifications

- 6 x 8MP Cameras: Bullet-style outdoor cameras delivering 4K resolution at 20fps, equipped with DarkFighter technology for exceptional clarity in low-light conditions.
- Deep Learning Analytics: Focuses on human and vehicle target classification to ensure accurate monitoring and significantly reduce false alarms.
- 50m Infrared Range: Provides extended night vision capabilities to capture clear imagery in total darkness up to a distance of 50 metres.
- 120 dB True WDR: Maintains balanced and clear imaging when facing strong backlighting or high-contrast lighting environments.
- H.265+ Compression: Utilises efficient encoding to optimise storage space and bandwidth usage without compromising on 8MP video quality.
- IP67 Weatherproofing: Robust water and dust-resistant design built to withstand the diverse and harsh Australian outdoor climate.
- Local Storage Support: Includes a built-in micro SD/SDHC/SDXC card slot supporting up to 256 GB for convenient edge recording.
- 8CH NVR System: Integrated 8-channel recording unit providing a centralised management hub for all six cameras with plug-and-play functionality.

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail
Image Sensor	1/2" Progressive Scan CMOS
Min. Illumination	Color: 0.014 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
Day & Night	IR Cut Filter
WDR	120 dB
Day/Night Switch	Day/Night/Auto/Schedule
Image Enhancement	BLC, HLC, 3D DNR
Image Setting	Saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser

Lens & Distance

Lens & Distance — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail
Lens Type	Fixed lens, 2.8/4/6 mm
Aperture	F1.6
FOV	2.8 mm, horizontal FOV: 110.7°, vertical FOV: 59.1°, diagonal FOV: 131° \| 4 mm, horizontal FOV: 87.1°, vertical FOV: 47.4°, diagonal FOV: 101.8° \| 6 mm, horizontal FOV: 50.8°, vertical FOV: 27.6°, diagonal FOV: 60°
Lens Mount	M16
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Night Vision

Night Vision — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail
IR Range	-2I: up to 50 m \| -4I: up to 80 m
Wavelength	850 nm

Video

Video — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail
Max. Resolution	3840 × 2160
Main Stream	50Hz: 20fps (3840 × 2160, 3072 × 1728), 25fps (2688 × 1520,1920 × 1080, 1280 × 720) \| 60Hz: 20fps (3840 × 2160, 3072 × 1728), 30fps (2688 × 1520,1920 × 1080, 1280 × 720)
Sub-Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) \| 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream	50Hz: 25fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) \| 60Hz: 30fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
Video Compression	Main stream: H.265+/H.264+/H.265/H.264 \| Sub-stream: H.265/H.264/MJPEG \| Third stream: H.265/H.264
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Video Bit Rate	32 Kbps to 16 Mbps
Scalable Video Coding (SVC)	H.264 and H.265 encoding support
Region of Interest	1 fixed region for main stream, sub-stream and third stream

Audio

Audio — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail

AI & Deep Learning

AI & Deep Learning — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail
Perimeter Protection	Line crossing detection, intrusion detection, region entrance detection, region exiting detection (Human&Vehicle classification)

Network & Storage

Network & Storage — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail
Network Storage	microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
API	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Security	Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users, 3 levels: administrator, operator and user
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE8+, Chrome 41.0-44, Firefox30.0-51, Safari8.0-11 \| Plug-in free live view: Chrome 57.0+, Firefox 52.0+

Event & Alarm

Event & Alarm — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail
Basic Event	Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error), scene change detection
Linkage Method	Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture

Interface

Interface — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board storage	Built-in micro SD/SDHC/SDXC slot, up to 256 GB

General & Environment

General & Environment — Hikvision 8MP 8CH CCTV Kit: 6 x Outdoor Bullet Cameras powered by Darkfighter & Acusense + 8CH NVR/4TB
Feature	Detail
Web Client Language	32 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Function	Anti-flicker, three streams, heartbeat, mirror, privacy masks, pixel counter
Reset	Reset via reset button on camera body, web browser and client software
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, Φ 5.5 mm coaxial power plug; reverse polarity protection; PoE (802.3af, class 3)
Power Consumption and Current	-2I: 12 VDC, 0.63 A, max. 7.5 W; PoE (802.3af, 36 V to 57 V), 0.25 A to 0.16 A, max. 9 W \| -4I: 12 VDC, 0.88 A, max. 10.5 W; PoE (802.3af, 36 V to 57 V), 0.34 A to 0.21 A, max. 12 W
Material	Metal
Dimensions	Camera: Φ 105 × 290 mm (Φ 4.1" × 11.4") \| With package: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1")
Weight	Camera: approx. 1270 g (2.8 lb.) \| With package: approx. 1510 g (3.3 lb.)
EMC	FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Chemistry	CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	Ingress protection: IP67 (IEC 60529-2013)
