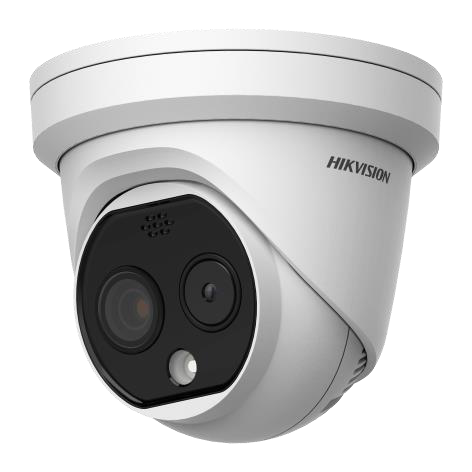

Hikvision DS-2TD1217-2/QA Thermal Bi-Spectrum Turret
1 1
Hikvision

Hikvision DS-2TD1217-2/QA Thermal Bi-Spectrum Turret

SKU: DS-2TD1217-2/QA
Description

Hikvision DS-2TD1217-2/QA combines a thermal sensor and a visible-light camera in one turret. The two views support investigating temperature changes and understanding activity around the monitored area.
$596.00 AUD $596.00 AUD
Installation in Sydney & Melbourne Through licensed local installers
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $966.00

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $596.00

01Overview

What the DS-2TD1217-2/QA is

Hikvision DS-2TD1217-2/QA combines a thermal sensor and a visible-light camera in one turret. The two views support investigating temperature changes and understanding activity around the monitored area.

The thermal channel has 160 × 120 resolution and a 1.8mm lens, alongside a 4MP optical channel. Temperature measurement covers -20°C to 150°C with specified accuracy of ±8°C; select it for site monitoring rather than medical temperature screening.

Configured events can use audible and white-light warnings. Provide 12V DC or PoE and plan storage, detection rules and the measurement environment before commissioning the camera.

02Engineering

DS-2TD1217-2/QA specifications

Hikvision DS-2TD1217-2/QA — Resolution: Optical channel: 4 MP
Thermal sensor: 160 × 120; 17 μm VOx; NETD below 40 mK
Thermal lens: 1.8 mm; 90° horizontal and 66.4° vertical view
Optical channel: 4 MP; 2688 × 1520; 2 mm lens
Optical view: 119.3° horizontal
Illumination: IR up to 15 m
Temperature measurement: -20°C to 150°C; accuracy ±8°C
Measurement rules: 21 rules: 10 points, 10 areas and one line

03Full datasheet

Detailed specifications

Specification

Specification — Hikvision DS-2TD1217-2/QA Thermal Bi-Spectrum Turret
FeatureDetail
Resolution Optical channel: 4 MP
Thermal sensor 160 × 120; 17 μm VOx; NETD below 40 mK
Thermal lens 1.8 mm; 90° horizontal and 66.4° vertical view
Optical channel 4 MP; 2688 × 1520; 2 mm lens
Optical view 119.3° horizontal
Illumination IR up to 15 m
Temperature measurement -20°C to 150°C; accuracy ±8°C
Measurement rules 21 rules: 10 points, 10 areas and one line
Event response Audible and white-light warnings
Storage microSD up to 256 GB
Power 12 VDC or IEEE 802.3af PoE; maximum 6.5 W
Protection IP67

04Why choose this

Built for the way you actually use the DS-2TD1217-2/QA

Match the view to the task

Hikvision DS-2TD1217-2/QA supports thermal and visible imaging in one unit. Use the thermal view to investigate changes that need attention.

Work with changing light

Set exposure and available illumination for the scene, then check footage under the brightest and darkest expected conditions.

Plan a complete system

Check recorder compatibility, network capacity and power before adding the camera to the installation.

05Where it fits

Right at home in these scenarios

Entrance monitoring

Hikvision DS-2TD1217-2/QA can monitor an approach to a building. Test the image at the distance where people pause or pass through.

Activity areas

Frame the relevant walkway, work area or access route. Check the smallest detail the recording needs to preserve.

Day and night recording

Review sample footage at the intended mounting height. Reflections, surrounding lighting and target movement all affect the usable image.

06Setup

Installation & setup

  1. Plan connections

    Hikvision DS-2TD1217-2/QA requires the specified power and network arrangements. Check the complete connection path before mounting.

  2. Position and secure

    Choose a fixing surface suited to the camera weight. Protect cable entries and follow the mounting and sealing instructions for the housing.

  3. Commission the recording

    Set the supported resolution and frame rate, confirm the camera view and test playback. Configure only the event and audio functions required by the site.
