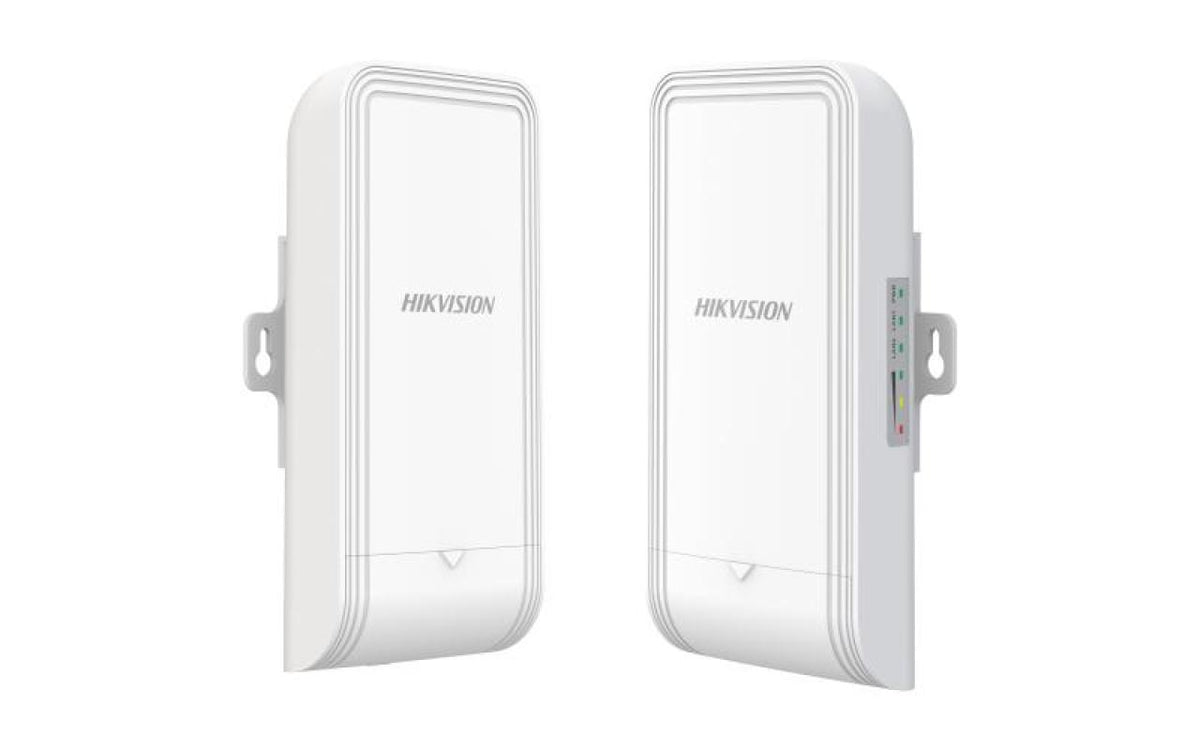

Hikvision DS-3WF02-5AC/D 5GHz Wireless Bridge Kit
Hikvision DS-3WF02-5AC/D connects two network locations over a 5GHz wireless link. The paired outdoor units provide an Ethernet connection for remote cameras or another building, with PoE supplies included for both ends.
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-3WF02-5AC/D is
Hikvision DS-3WF02-5AC/D connects two network locations over a 5GHz wireless link. The paired outdoor units provide an Ethernet connection for remote cameras or another building, with PoE supplies included for both ends.
The bridge has an IP55 housing and a directional antenna for pole installation. Signal indicators and alignment tools help with positioning; the usable data rate depends on the link conditions and distance.
The remote CPE can supply a camera through its PoE output when powered through the appropriate PoE input. Check the camera load against the output budget and choose the power arrangement before mounting the units.
§ 02Engineering
DS-3WF02-5AC/D specifications
Transmission distance: Up to 5 km
Ethernet: Two 10/100 Mbps RJ45 ports per unit
CPE camera power: 802.3af PoE output on LAN2; 10 W budget
Outdoor housing: IP55; pole mounting
Antenna: 12 dBi; 2 x 2 MIMO
Included hardware: Two bridge units, two PoE supplies, two AC cords and four binding tapes
§ 03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Wireless link | 5 GHz; IEEE 802.11a/n/ac; air-interface rate up to 867 Mbps |
| Transmission distance | Up to 5 km |
| Ethernet | Two 10/100 Mbps RJ45 ports per unit |
| CPE camera power | 802.3af PoE output on LAN2; 10 W budget |
| Outdoor housing | IP55; pole mounting |
| Antenna | 12 dBi; 2 x 2 MIMO |
| Included hardware | Two bridge units, two PoE supplies, two AC cords and four binding tapes |
| Throughput | PTP: 90 Mbps at 0.5 km and 1 km; 40 Mbps at 5 km with AC80; PTMP one-to-four: 80 Mbps at 1 km with AC80 |
| Power input | AP LAN1: 802.3af/at PoE; CPE LAN1: passive PoE; DC input: 12–24 V |
| DC restriction | PoE OUT unavailable when the device is powered through the DC port |
| Management | Web, HCP, iVMS-4200 and Hik-Partner Pro; signal, noise, topology and bridge alignment tools |
| Temperature | -30°C to 65°C |
| Specification — Wireless link | 5 GHz; IEEE 802.11a/n/ac; air-interface rate up to 867 Mbps |
|---|---|
| Specification — Transmission distance | Up to 5 km |
| Specification — Ethernet | Two 10/100 Mbps RJ45 ports per unit |
| Specification — CPE camera power | 802.3af PoE output on LAN2; 10 W budget |
| Specification — Outdoor housing | IP55; pole mounting |
| Specification — Antenna | 12 dBi; 2 x 2 MIMO |
| Specification — Included hardware | Two bridge units, two PoE supplies, two AC cords and four binding tapes |
| Specification — Throughput | PTP: 90 Mbps at 0.5 km and 1 km; 40 Mbps at 5 km with AC80; PTMP one-to-four: 80 Mbps at 1 km with AC80 |
| Specification — Power input | AP LAN1: 802.3af/at PoE; CPE LAN1: passive PoE; DC input: 12–24 V |
| Specification — DC restriction | PoE OUT unavailable when the device is powered through the DC port |
| Specification — Management | Web, HCP, iVMS-4200 and Hik-Partner Pro; signal, noise, topology and bridge alignment tools |
| Specification — Temperature | -30°C to 65°C |
§ 08Questions
Frequently asked about the DS-3WF02-5AC/D
Q.01
Does the 867Mbps rating mean I can send that much camera traffic?
Q.02
Can the remote bridge power my camera if I use its DC input?
Q.03
Are the AP and CPE power inputs interchangeable?
