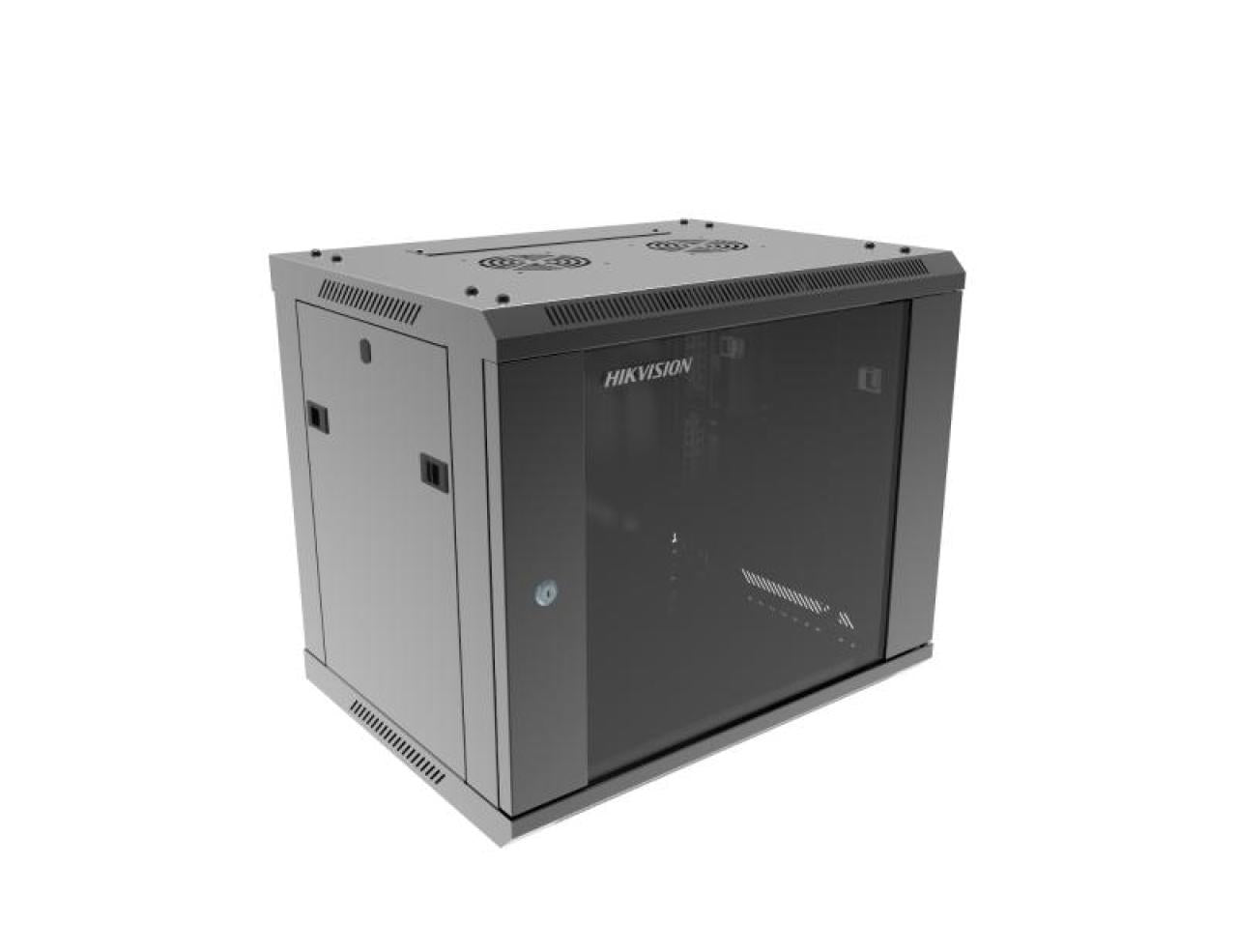

Hikvision DS-XS6409-S/B 9U Wall-Mount Cabinet
1 1
Hikvision

Hikvision DS-XS6409-S/B 9U Wall-Mount Cabinet

SKU: DS-XS6409-S/B
Description

The Hikvision DS-XS6409-S/B is a 9U wall-mounted cabinet for compatible 19-inch rack equipment. It measures 600 mm wide by 450 mm deep by 500 mm high and has a static load rating of 40 kg. Check equipment depth and the wall support for the loaded cabinet. The shelf, fan and PDU are optional components for the planned installation. View Hikvision product specifications.
$175.00 AUD $175.00 AUD $183.75 AUD
Sale 4.76% $8.75 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-XS6409-S/B is

The Hikvision DS-XS6409-S/B 9u wall-mount cabinet is intended for the specified mounting arrangement. Check equipment depth and the wall support for the loaded cabinet. The shelf, fan and PDU are optional components for the planned installation.

Select the companion equipment and fixing hardware to match this exact model. Check the available space around the assembly before installation.

§ 03Full datasheet

Detailed specifications

General

General — Hikvision DS-XS6409-S/B 9U Wall-Mount Cabinet
FeatureDetail
Installation Method Wall-mounted
Internal Space 9U
Static Load Capacity 40KG
Dimensions (W*D*H) mm 600 mm × 450 mm × 500 mm
Front and Rear Frame 1.2mm SPCC
Side Panel 1.0mm SPCC
Beam 1.2mm SPCC
Top Cover 1.0mm SPCC
Bottom panel 1.0mm SPCC
Vertical rail 1.5mm SPCC
Rear panel 1.0mm SPCC
Mounting bracket 1.2mm SPCC
Shelf Optional: DS-XSPB04-S/B
FAN Optional
PDU Optional
Rack width 19 inch
Role 9U Wall-Mount Cabinet
