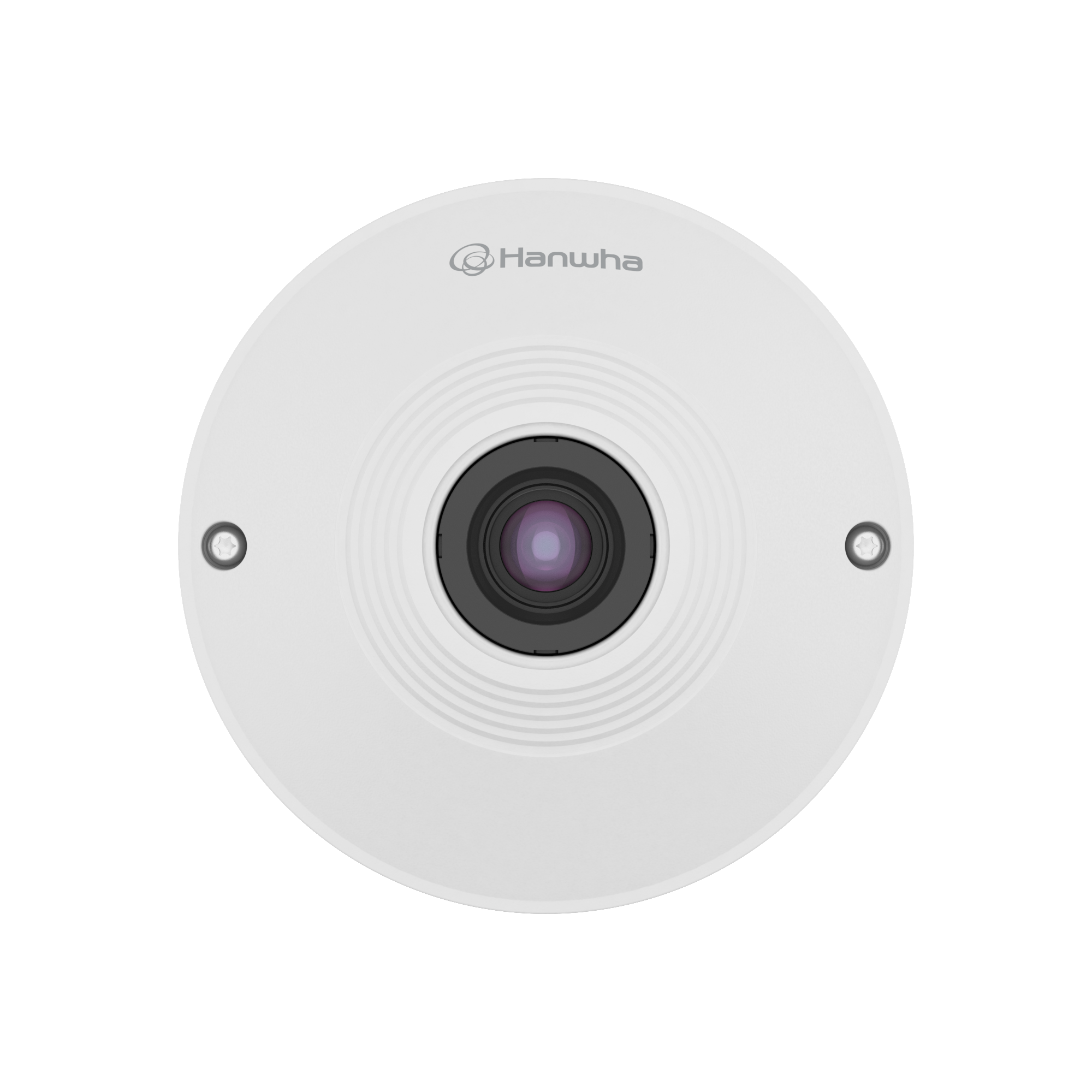

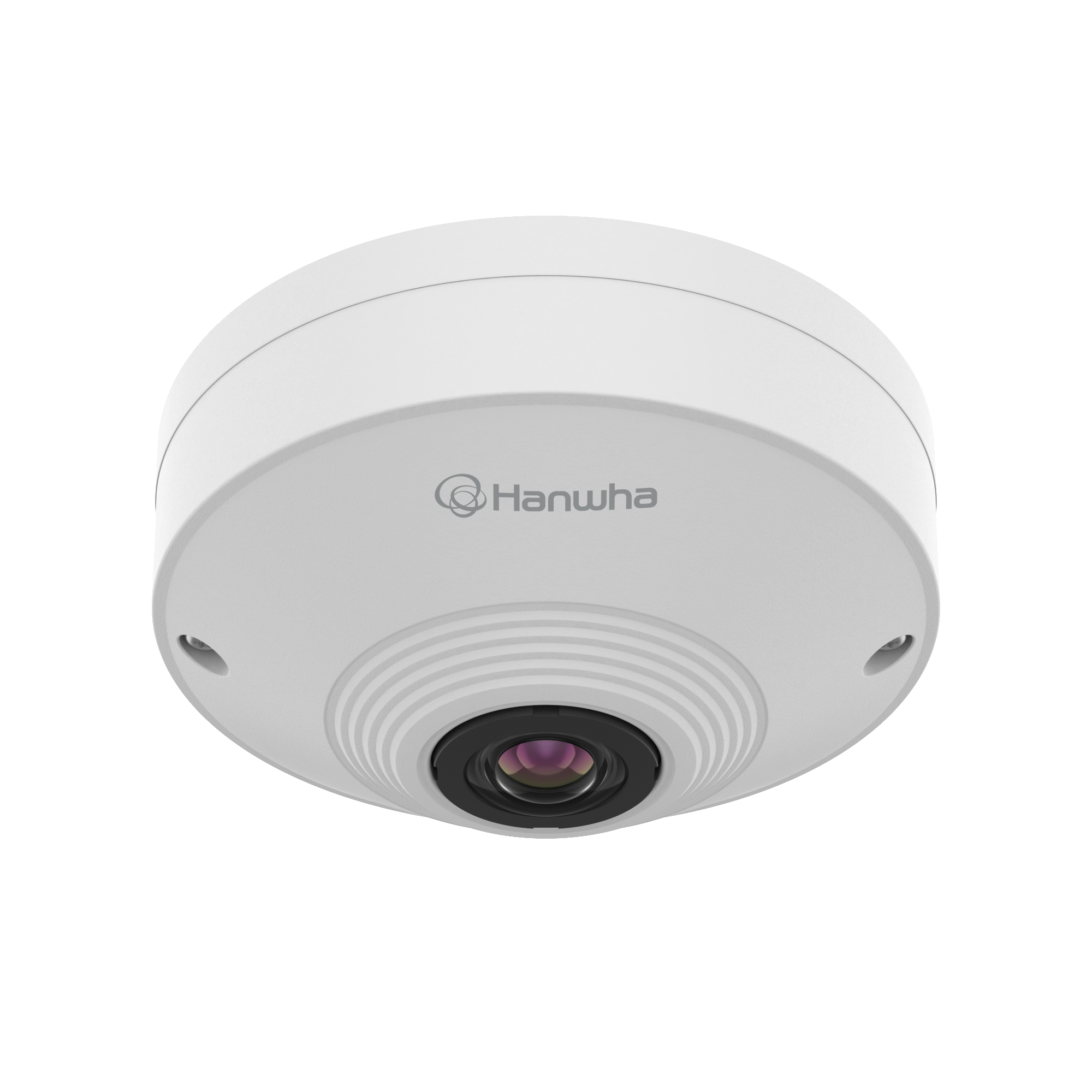

Hanwha HV-QNF-8010 6MP 360° Indoor Fisheye Camera, 187° FoV, WDR

SKU: HV-QNF-8010
Description

- One Camera, Whole-Room View: 187° horizontal + 187° vertical fisheye covers an entire retail floor, classroom or open office from a single ceiling mount — no blind spots, no multi-cam sync headaches.
- Live On-Camera Dewarping: outputs original fisheye, single panorama, double panorama or quad view in parallel, so operators see the flat perspective they need without processing load on the VMS.
- Practical Business Intelligence: heatmap and people counting run on-board over the 2048x2048 sensor, feeding footfall data straight to any ONVIF-compatible dashboard.
- Compact Ceiling Install: low-profile 320g body flush-mounts in minutes and runs off standard PoE Class 3 — one cable, no separate power drop.
$747.25 AUD $747.25 AUD
Member Sign in to save $14.95 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $1,016.70

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $747.25
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the HV-QNF-8010 is

The Hanwha HV-QNF-8010 is a 6MP indoor fisheye camera built around a 1/1.8" CMOS sensor and a 1.14mm fisheye lens, delivering 2048x2048 resolution across a full 187° horizontal and 187° vertical field of view — enough to blanket an entire room from a single ceiling mount.

On-camera dewarping outputs original fisheye, single panorama, double panorama and quad views in parallel, so the VMS side just picks the perspective it wants without doing the geometry itself.

The 120dB wide dynamic range holds detail in backlit doorways and shop-window reflections, while the on-board people counting and heatmap analytics turn every install into a footfall data source.

Indoor IP42 housing, PoE (IEEE 802.3af, Class 3) power, and a compact 320g body keep the install simple.

§ 02Engineering

HV-QNF-8010 specifications

- 6MP (2048x2048) resolution on a 1/1.8" CMOS sensor at up to 30fps in H.265/H.264
- 1.14mm fisheye lens, 187° horizontal / 187° vertical / 187° diagonal field of view
- On-camera dewarping: original fisheye + single panorama + double panorama + quad view outputs
- 120dB wide dynamic range, WiseStreamⅡ bitrate optimisation, minimum illumination 0.2 Lux (colour)
- On-board business intelligence: people counting, heatmap analysis, defocus and tampering detection
- ONVIF Profile S/G/T support, SUNAPI (HTTP API) for custom integration, Hanwha Vision Open Platform
- Micro SD/SDHC/SDXC edge recording, PoE (IEEE 802.3af, Class 3) single-cable install
- Indoor-rated IP42 housing, 320g weight, low-profile ceiling mount form factor

§ 04Why choose this

Built for the way you actually use the HV-QNF-8010

Replaces Three or Four Conventional Cameras

A single fisheye at 187° horizontal + 187° vertical covers what would otherwise take three or four fixed-lens cameras plus a mounting plan for each. Fewer cameras means fewer NVR channels, fewer VMS licences, and less cabling — the real cost saving is downstream, not on the camera itself.

Dewarping Runs On the Camera, Not the VMS

Because the panorama and quad-view streams are produced on the camera itself, the VMS server doesn't need extra CPU to unroll the fisheye — helpful when you're already running a busy multi-camera system on modest hardware.

Footfall Data Without a Separate Analytics Box

People counting and heatmap are built in, so retail sites can pull operational data straight from the camera without paying for a separate BI platform or an external counting device — one product line item, two functions.

Genuinely Compact Ceiling Fit

At 320g the housing sits close to the ceiling on residential and office finishes, avoiding the industrial-camera look that ruins a customer-facing retail interior.

§ 05Where it fits

Right at home in these scenarios

Retail Shop Floors

A single ceiling-mounted fisheye covers the whole trading floor with no blind-spot mapping exercise. Heatmap output feeds visual-merchandising decisions — which aisle attracts dwell time, which cross-display is dead space.

Classrooms and Training Rooms

187° coverage catches both the teacher end and the back rows in one camera, useful for compliance capture in vocational training centres or NDIS-funded providers where session recording is a requirement.

Open-Plan Offices

A ceiling-mounted fisheye blends into commercial ceiling tiles better than a wall-mount dome, and quad-view output gives reception, meeting-room door and cafeteria zones from one channel.

Waiting Rooms and Reception Areas

People counting runs on-camera, so front-of-house staff can see live occupancy on a wall display — practical during medical practice waiting-room limits or event-venue capacity monitoring.

Small Warehouse or Storeroom Overhead

A single overhead fisheye at 187° covers the whole footprint of a small storeroom or spare-parts room; combined with tamper detection it's a low-touch security layer over stock.

§ 06Setup

Installation & setup

01

What's in the Box

1. Hanwha HV-QNF-8010 Camera x 1 2. Mounting Template & Fixings x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE (IEEE 802.3af, Class 3) — any standard PoE switch port works, no PoE+ required. 2. Storage: micro SD/SDHC/SDXC card for edge recording, sold separately. 3. Mounting: 320g weight, low-profile ceiling mount is the intended orientation. Indoor IP42 rating covers dust and vertical drips only, not outdoor exposure. 4. Network: RJ-45 10/100BASE-T, ONVIF Profile S/G/T for third-party VMS or Wisenet WAVE / SSM for native integration.

03

App & Setup

1. Discover with Wisenet Toolbox Plus (Hanwha's browser-based device discovery tool) or Device Manager. 2. Set admin password on first login (brute-force prevention enforced), assign IP. 3. Configure dewarping mode per channel: original fisheye / single panorama / double panorama / quad view. 4. Enable required BI rules (people counting, heatmap zones) — all bundled, no additional licence.

§ 07Questions

Frequently asked about the HV-QNF-8010

Q.01

Why choose a fisheye over three or four fixed cameras?
A single fisheye at 187° horizontal + 187° vertical covers what a typical room needs, replacing three to four conventional cameras plus their cabling, mounting and NVR channels. The consolidation shows up as savings on NVR channel licences and cable runs, not the camera unit price.
Q.02

What's dewarping and does it need extra software?
Dewarping is the geometry step that turns the round fisheye image into a flat perspective. On this camera it runs in-hardware and outputs single panorama, double panorama or quad view live, so the VMS receives already-flat streams — no plugin or add-on module required.
Q.03

Is it suitable for outdoor use?
No. The indoor IP42 rating covers dust and vertical water drips only. For outdoor deployment (rain, direct sun, wind-driven debris), a camera with a higher weatherproof rating is required. Use this one strictly for indoor ceilings.
Q.04

What analytics come with it, and do I need to license anything?
Defocus detection, tampering detection, motion detection, heatmap and people counting are built into the camera and accessible via the web interface or any ONVIF-compatible VMS. No add-on licence is required to switch these on.
Q.05

Does it work with my existing NVR?
The camera ships ONVIF Profile S / G / T certified so it drops into any ONVIF-compatible VMS or NVR. Native Wisenet WAVE and SSM integration is the fullest; SUNAPI (HTTP API) is documented for custom integrations.
Q.06

How much light does it need for a colour image?
Minimum illumination for a usable colour image is 0.2 Lux at 1/30 sec, F2.2. In typical retail, office and classroom lighting that threshold is easily cleared. In much darker rooms the image quality will drop before the sensor reaches its limit.
Q.07

How do I mount it discreetly?
The camera is compact and 320g, so it sits low against a ceiling. Use the supplied template to mark screw positions, then feed the RJ-45 cable up through a ceiling void — no separate power run needed with PoE Class 3.
Q.08

What resolution does the on-camera analytics use?
People counting and heatmap analytics work over the 2048x2048 6MP sensor output, so movement and dwell zones are tracked at the same resolution as the recording — no downscaling to a lower analytics feed.
