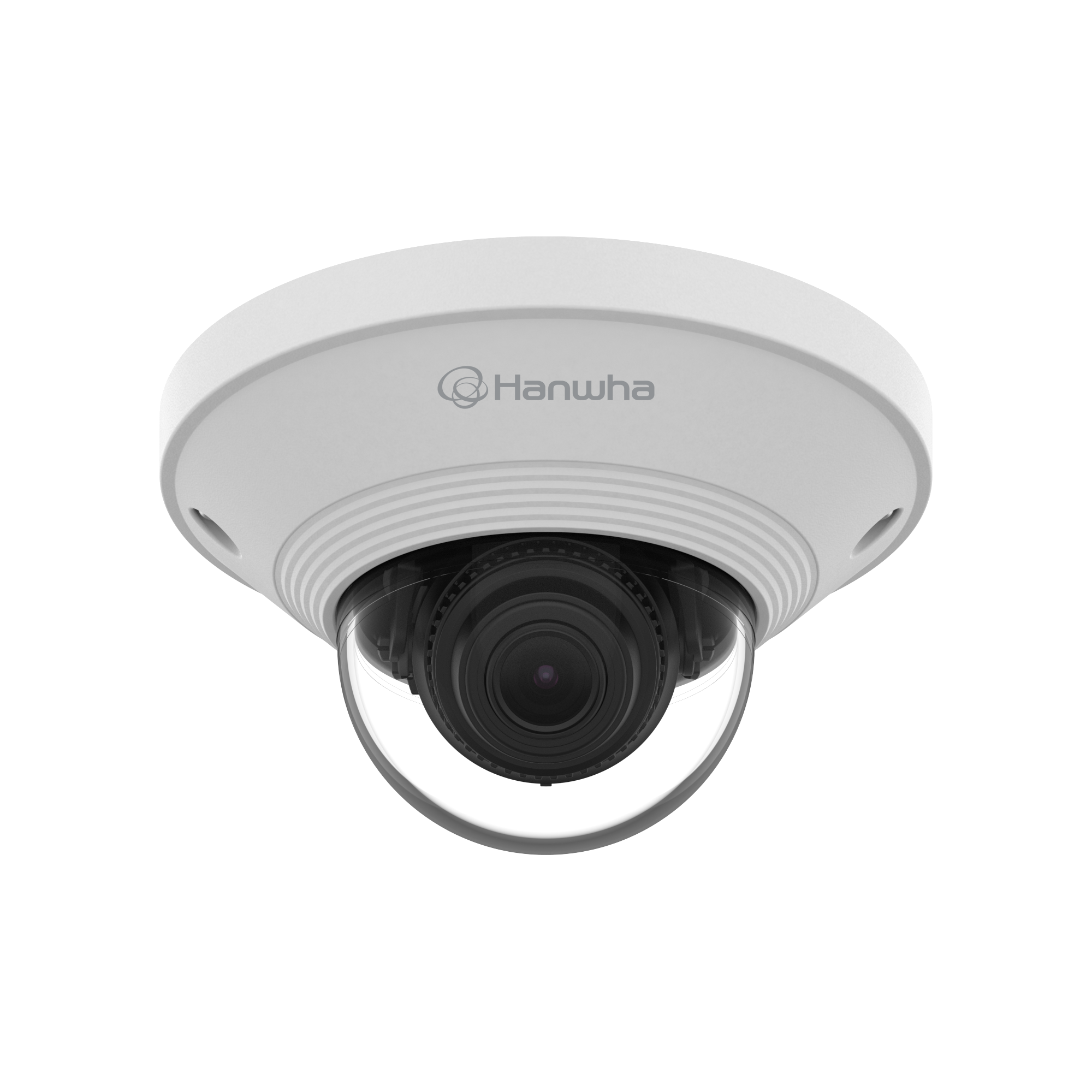

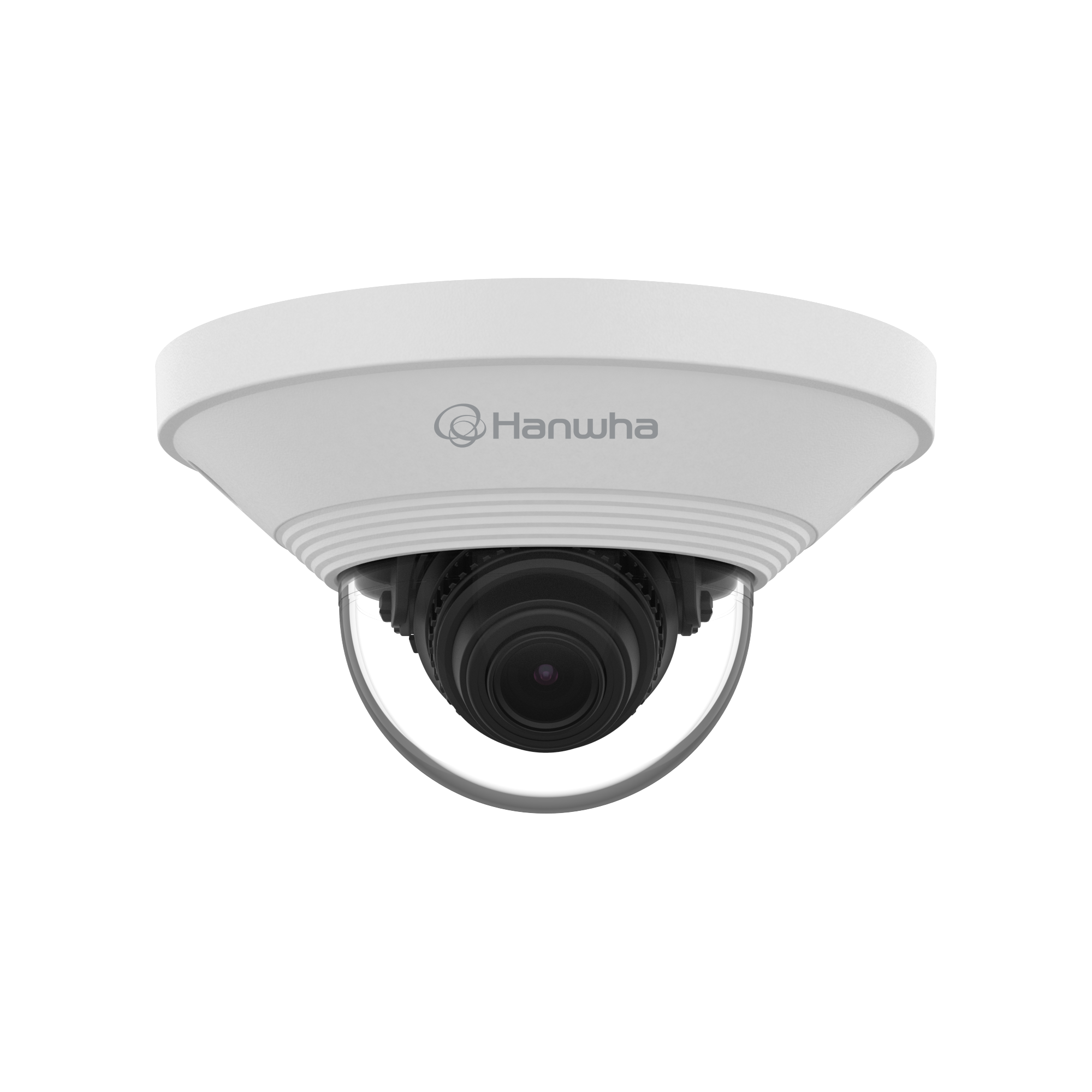

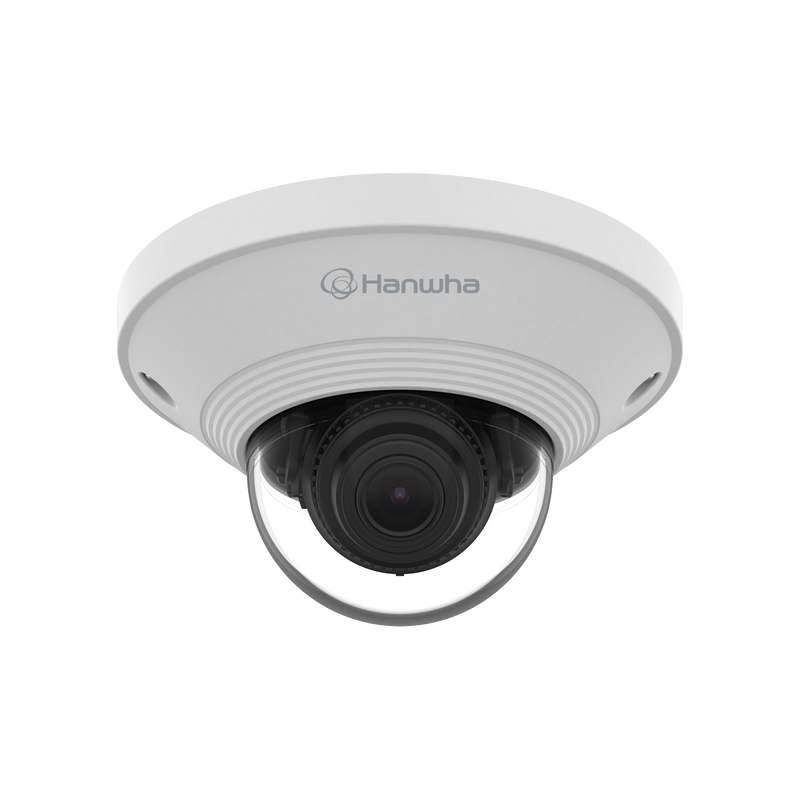

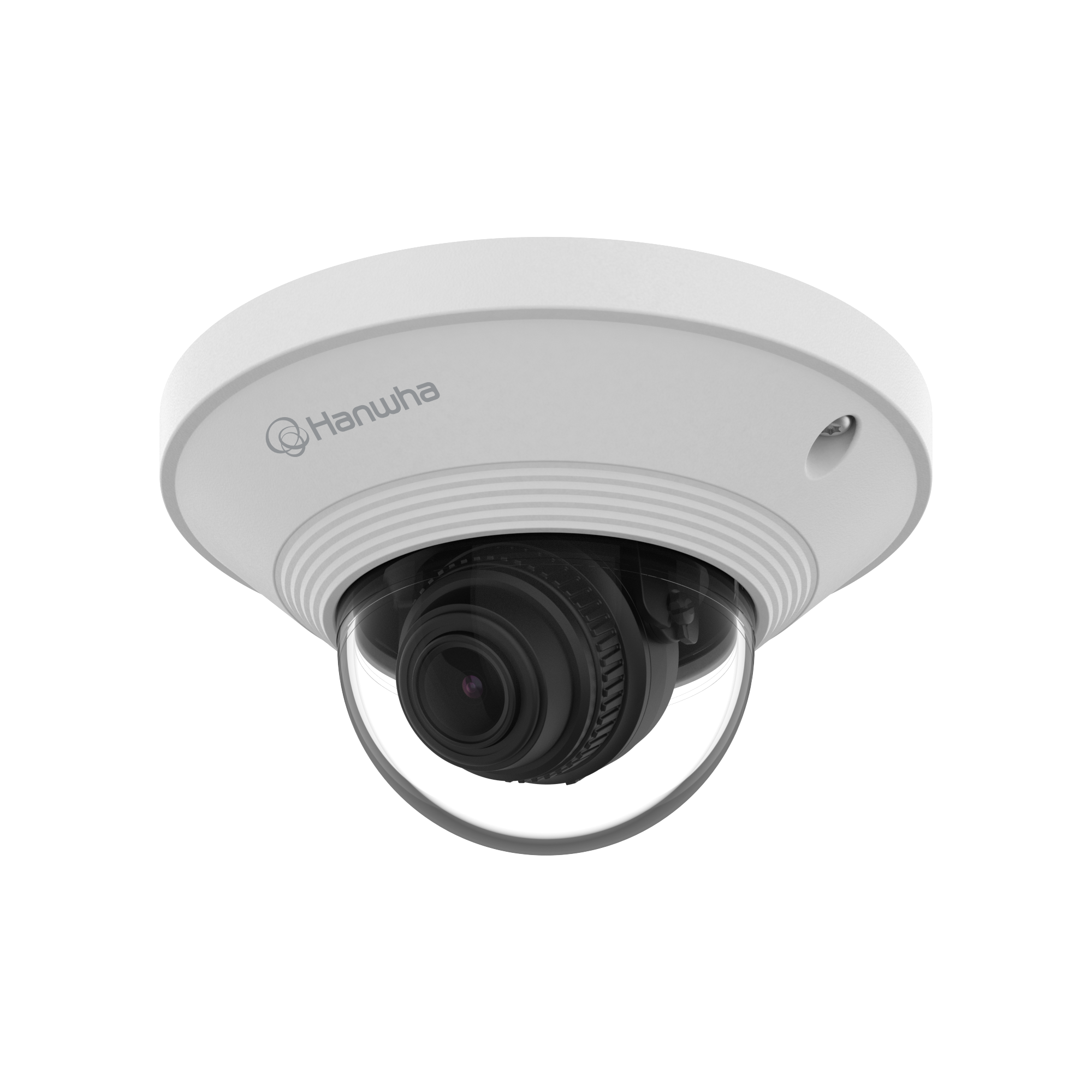

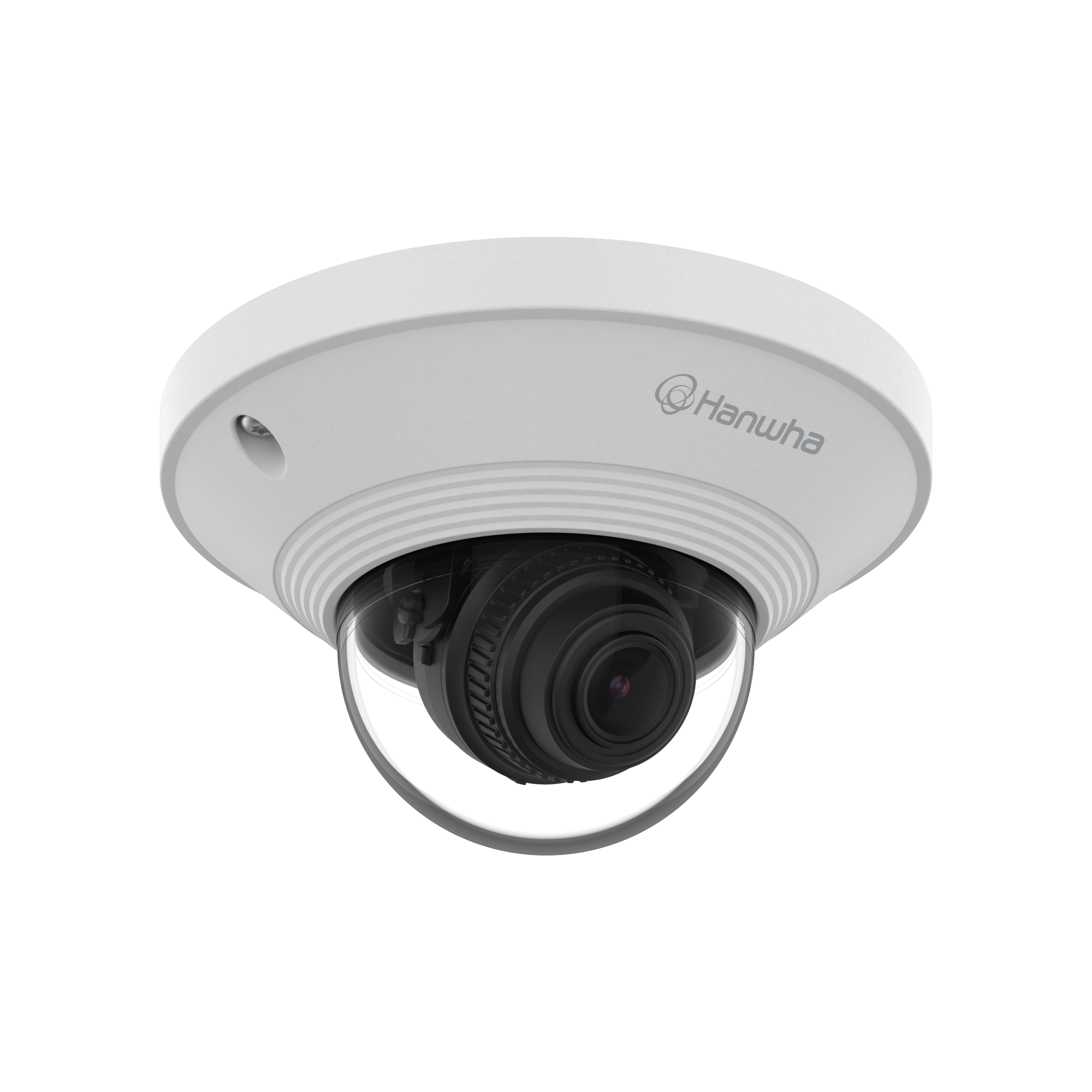

Hanwha QND-8011 5MP Super-Compact Indoor Mini Dome Camera
Email us
1 4
Hanwha

Hanwha QND-8011 5MP Super-Compact Indoor Mini Dome Camera

SKU: QND-8011
Description

- Super-Compact 5MP Mini Dome: ultra-compact housing designed to blend into hospitality, corporate reception, and residential ceilings without industrial-camera aesthetics.
- 2.8mm Fixed Wide Lens: 105° horizontal covers a typical room from a single ceiling mount; F2.0 optics deliver clean image quality across varying indoor lighting.
- Built-In People Counting: on-camera counting analytics turn every install into a footfall data source without a separate BI server.
- Standard PoE (802.3af) Class 2: even lower power draw than typical PoE cameras — one of the more efficient units for high-density deployments.

$362.75 AUD $362.75 AUD

Log in to save 3%

Trade pricingPrice match
Delivery, warranty & returns · 3-year warranty · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

Installation estimate

For Sydney and metro Melbourne. Buy your products now and arrange installation separately.

Count every camera you need installed, including cameras in a kit.
Build your setup Build a complete CCTV system Complete setup from $732.75

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $362.75

01Overview

What the QND-8011 is

The Hanwha QND-8011 is a super-compact 5MP indoor mini dome from Hanwha's Wisenet Q series — designed for hospitality, corporate reception, residential and boutique retail ceilings where the industrial-camera look is aesthetically inappropriate.

A 2.8mm F2.0 fixed lens covers 104.4° horizontal, sufficient for a typical room from a single ceiling mount.

H.265, H.264 and MJPEG codecs with WiseStream II bandwidth optimisation; 120dB True WDR handles backlit windows and mixed-lighting entrances.

Includes tampering detection, defocus detection, hallway view mode (90°/270° rotation), and on-camera people counting — turning every install into a footfall data source without a separate BI server.

PoE (IEEE 802.3af, Class 2) with low power draw — one of the most efficient PoE cameras in the range.

IK08 impact rating (indoor-standard) with IP42 dust and drip protection.

Compatible with ONVIF Profile G/S/T VMS platforms.

02Engineering

QND-8011 specifications

- 5MP (2592x1944) resolution at up to 30fps in H.265/H.264, MJPEG codec
- 2.8mm fixed lens (F2.0), 104.4° horizontal field of view
- 120dB True WDR (Wide Dynamic Range)
- WiseStream II bandwidth optimisation
- Tampering detection, defocus detection
- Hallway view mode (90°/270° rotation)
- On-camera people counting analytics
- Micro SD/SDHC/SDXC memory slot up to 128GB
- ONVIF Profile G/S/T, SUNAPI (HTTP API)
- Standard PoE (IEEE 802.3af, Class 2), 12VDC input
- IK08 impact rating, IP42 indoor dust/drip protection
- Super-compact mini dome housing for aesthetically sensitive installs

04Why choose this

Built for the way you actually use the QND-8011

Ultra-Compact for Aesthetic Ceilings

The super-compact design sits close to the ceiling on residential, hospitality and boutique commercial finishes — avoiding the industrial-camera look that ruins customer-facing spaces. Aesthetically appropriate where a full-size dome dominates.

On-Camera People Counting

Unlike other entry-level cameras that require a separate BI platform for counting, this mini dome runs people counting analytics on the camera itself. Footfall data streams directly to any ONVIF-compatible dashboard, no add-on server needed.

PoE Class 2 Efficient Power

At Class 2 rather than Class 3, this camera draws less power than typical 5MP domes. On a 24-port PoE switch, that means either more cameras per switch, or more headroom for higher-draw devices.

Discreet Without Sacrificing Resolution

Small form factor cameras often trade resolution for size. This unit delivers full 5MP capture in a mini dome — practical performance in a package that fits residential and hospitality ceilings.

05Where it fits

Right at home in these scenarios

Hotel Guest Room Corridors

Ultra-compact housing blends into corridor ceilings; hallway view covers narrow corridors efficiently; 5MP catches identifying detail during incident review.

Corporate Reception & Executive Foyers

Small form factor doesn't dominate the aesthetic — coverage of visitor arrivals, delivery drop-offs, and after-hours entry attempts without the industrial dome look.

Residential Common Areas

Apartment building lobbies, elevator vestibules, letterbox areas — where visual aesthetic matters and residents object to industrial-look cameras.

Boutique Retail & Hospitality

Cafe dining areas, small restaurant seating, boutique retail floors — coverage with people counting for operational analytics.

Medical & Dental Waiting Areas

Discrete monitoring of patient waiting areas with people counting for occupancy tracking during peak times.

06Setup

Installation & setup

  1. What's in the Box

    • Hanwha QND-8011 Camera x 1
    • Mounting Template & Fixings x 1 set
    • Quick Start Guide x 1

  2. Installation Requirements

    • Power: PoE (IEEE 802.3af, Class 2) - any standard PoE switch port works; alternatively 12VDC input.
    • Storage: micro SD/SDHC/SDXC card slot up to 128GB (sold separately).
    • Mounting: indoor mini dome housing, IK08 rated - ceiling only; IP42 doesn't cover outdoor exposure.
    • Network: ONVIF Profile G/S/T for third-party VMS or Wisenet WAVE / SSM native.

  3. App & Setup

    • Discover with Wisenet Toolbox Plus or Device Manager.
    • Set admin password on first login (brute-force prevention enforced), configure H.265 with WiseStream II.
    • Fixed lens - no focal alignment needed; orient mount for desired 104° coverage.
    • Enable event rules (tampering, defocus) and people counting zones.

08Questions

Frequently asked about the QND-8011

Q.01

Why is this camera smaller than a standard dome?
The QND-8011 uses a super-compact housing designed to sit closer to the ceiling and take less visible profile. The intent is to blend into residential, hospitality and boutique commercial finishes — spaces where a full-size industrial-look dome camera would be aesthetically inappropriate.
Q.02

Is IK08 enough for a public-facing install?
IK08 (5 joules) is designed for controlled indoor environments — offices, corridors, residential common areas, hospitality corridors. For higher-risk public zones (transit, schools, government front-of-house) where deliberate impact is expected, choose a higher impact-rated model.
Q.03

Does it have IR?
No. This unit doesn't have IR LED illumination. In dark conditions the camera relies on the F2.0 lens and ambient light; for full-dark identification, choose a variant with IR (e.g., the QND-8010R).
Q.04

How does the on-camera people counting work?
The people counting analytics run on the camera's own processor, detecting persons crossing a defined line or zone and generating count events. Events stream to any ONVIF-compatible VMS or third-party dashboard — no separate BI platform or per-lane software licence required.
Q.05

What's the power consumption on PoE?
PoE Class 2 — lower power draw than Class 3. Practical effect: more cameras per switch budget, and Class 2-only PoE ports (occasionally found on legacy switches) can power this camera where a Class 3 unit would need a switch upgrade.
Q.06

What VMS is compatible?
ONVIF Profile G / S / T for third-party VMS. Native Wisenet WAVE and SSM integration is fullest; SUNAPI (HTTP API) is documented for custom integrations.
Q.07

Where should this NOT be used?
Outdoor deployment — IP42 covers indoor dust and vertical drips only, not rain or wind-driven debris. High-impact public zones — IK08 is adequate for controlled indoor spaces but not for transit or vandalism-prone external areas.
