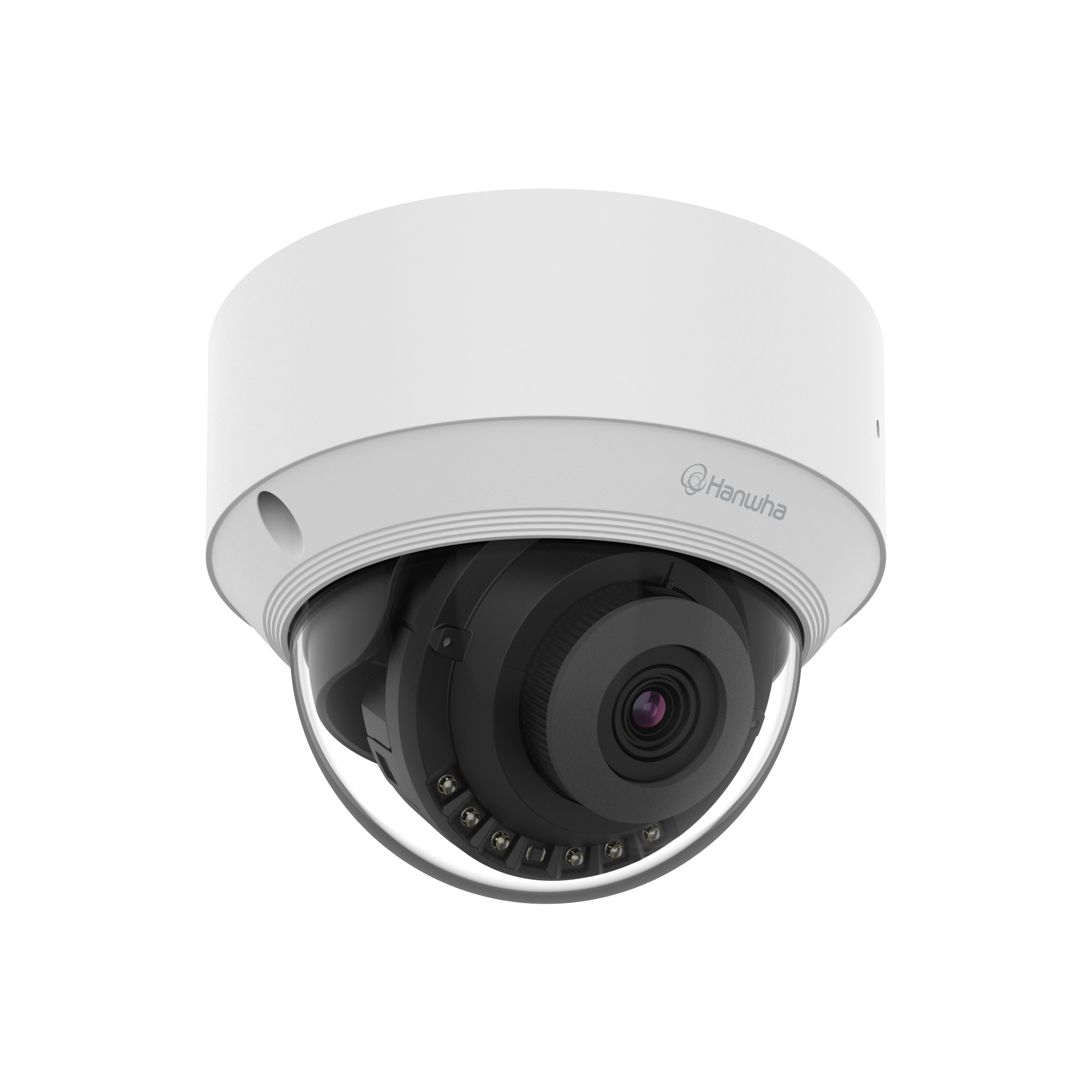

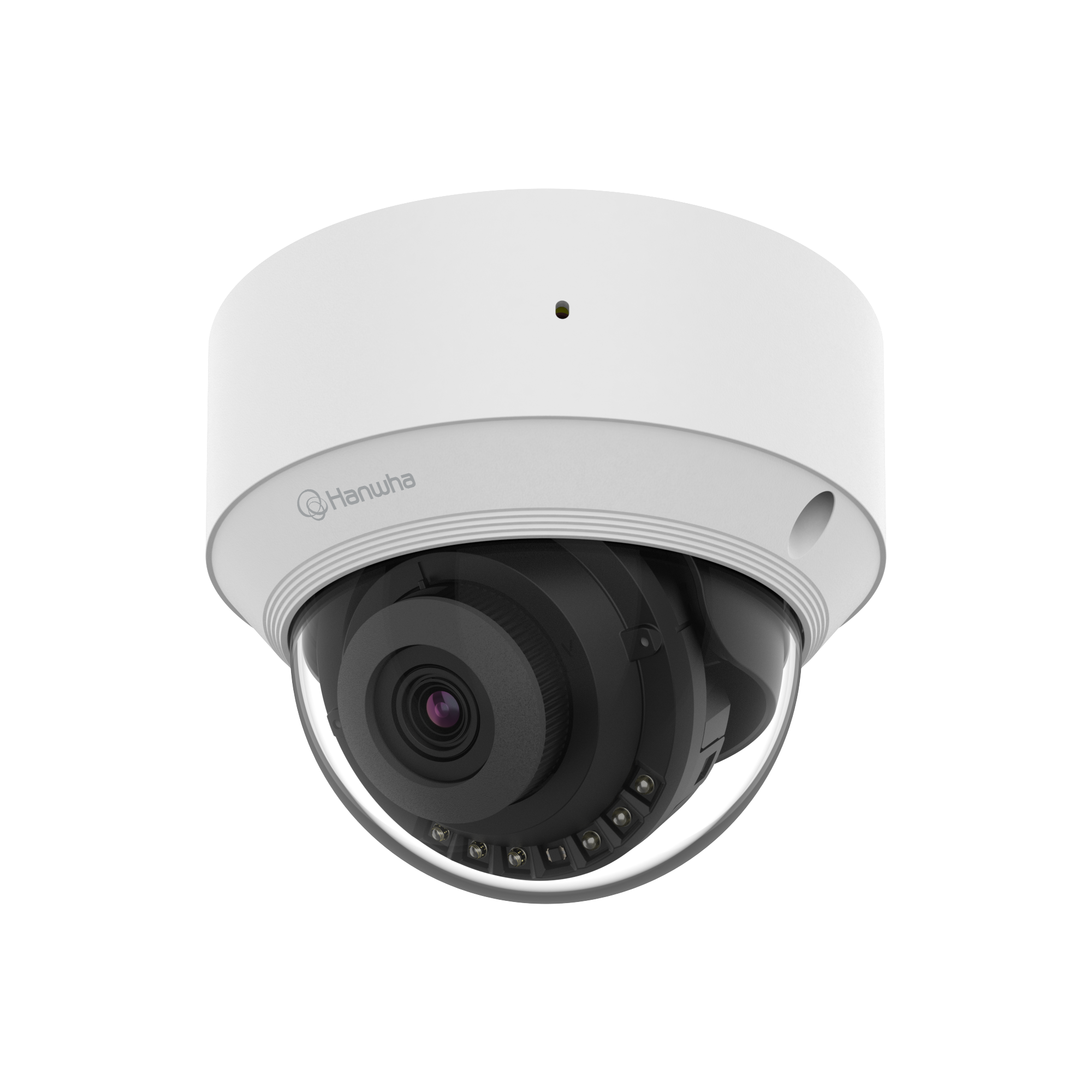

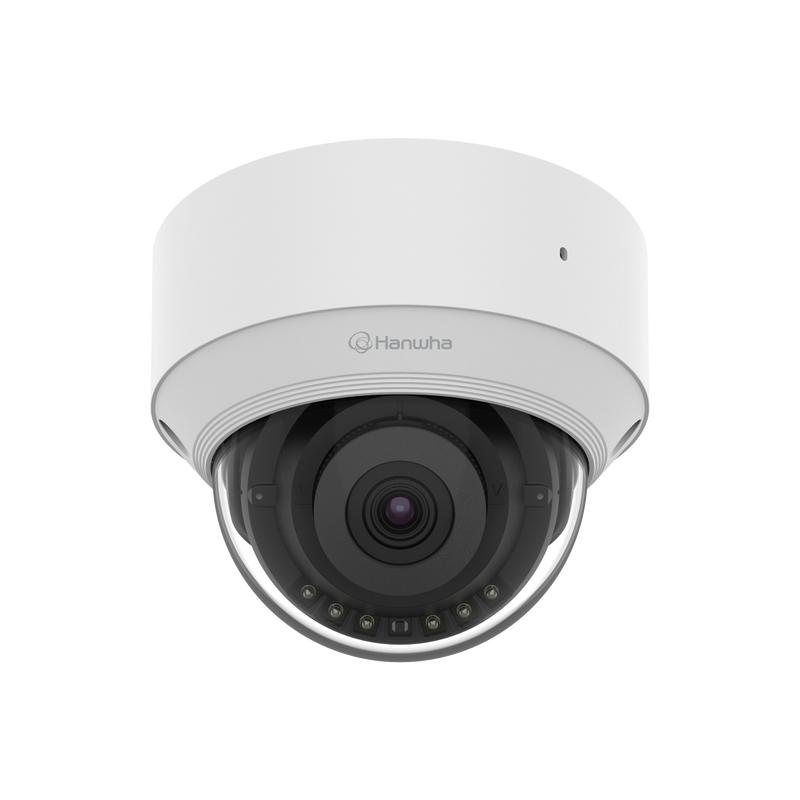

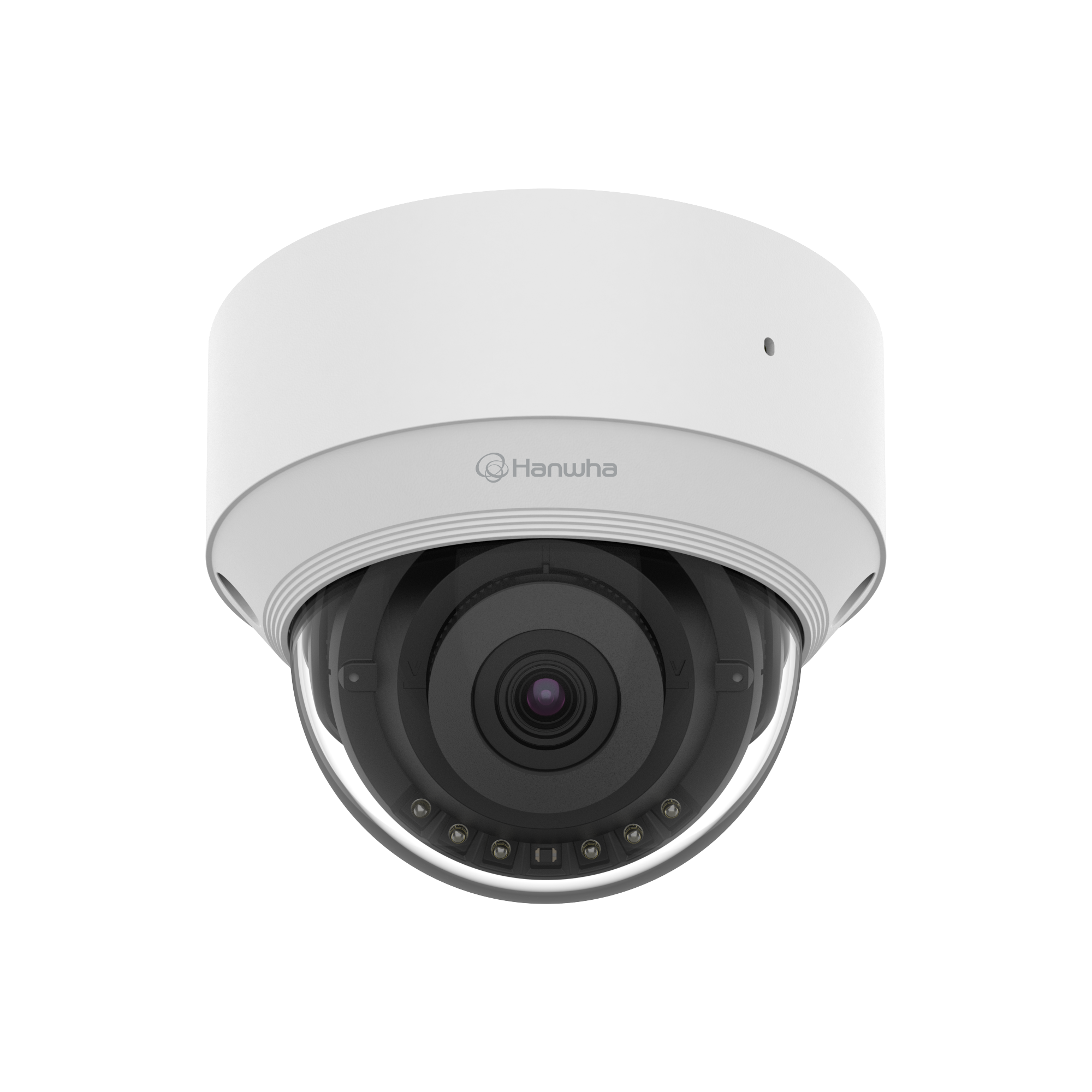

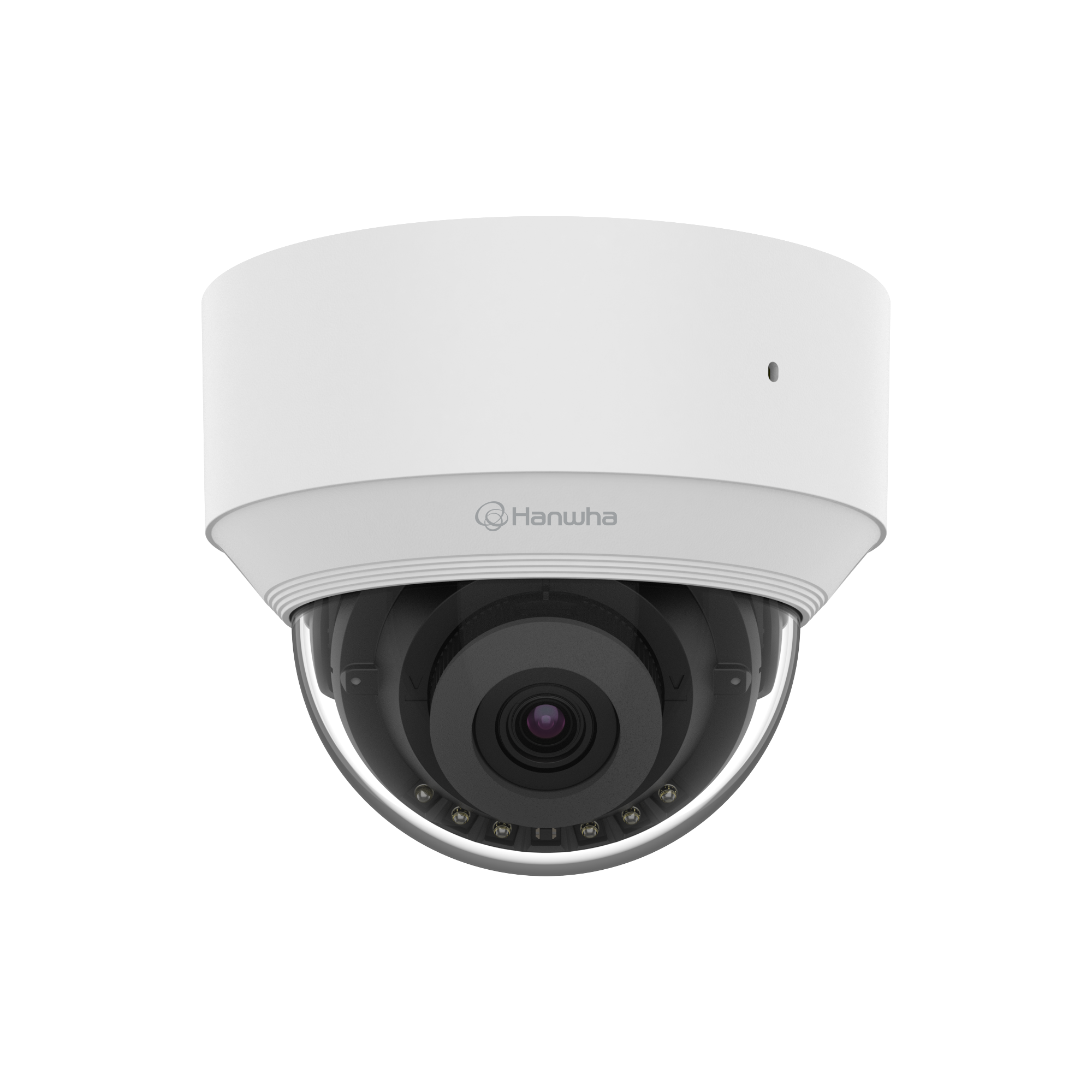

Hanwha QND-C8023R 5MP Q-Core AI Indoor Dome, 4.0mm Fixed, 30m IR
1 4
Hanwha

Hanwha QND-C8023R 5MP Q-Core AI Indoor Dome, 4.0mm Fixed, 30m IR

SKU: QND-C8023R
Description

- Q-Core AI Positioning: entry-level AI indoor dome — Person and Vehicle object classification at Q-series price without stepping up to P series.
- 4.0mm Fixed Lens: 80° horizontal covers typical office, retail till or corridor from a single ceiling mount — no varifocal alignment needed.
- Extended 30m IR Range: substantially further than the standard Q-series indoor dome IR reach; identification range covers larger indoor spaces after hours.
- WiseStream III + Wisenet C: newer-generation smart codec (vs WiseStream II) — bandwidth adaptive to scene complexity, meaningful for 5MP continuous recording.
$457.40 AUD $457.40 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock
Build your setup Build a complete CCTV system Complete setup from $827.40

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
0
0
0
0
Bundle total: $457.40

§ 01Overview

What the QND-C8023R is

The Hanwha QND-C8023R is a 5MP indoor AI dome in Hanwha's Q-Core range — the entry-level AI camera line that adds Person and Vehicle object classification to the standard Q-series feature set, without stepping up to the more expensive P series.

A 4.0mm fixed lens covers 80° horizontal — narrower than the wide-angle variants but suited to office reception, retail till, corridor, and mid-range indoor coverage.

IR LEDs reach 30m — substantially further than the standard Q-series indoor domes.

The Wisenet C SoC runs WiseStream III bandwidth optimisation (newer than the Q-series WiseStream II) — adaptive bitrate keeps 5MP continuous recording storage costs manageable.

extremeWDR (120dB) plus WiseNR II AI-driven noise reduction handle mixed indoor lighting.

AI-driven motion, people, region and object detection — the camera distinguishes persons from vehicles for rule-scoped alerting.

PoE (IEEE 802.3af, Class 3) power, microSD edge storage, ONVIF Profile S/G/T/M for third-party VMS integration.

§ 02Engineering

QND-C8023R specifications

- 5MP (2592x1944) resolution at up to 30fps in H.265/H.264, MJPEG codec
- 4.0mm fixed lens, 80° horizontal field of view
- extremeWDR (120dB), WiseNR II AI-driven noise reduction
- IR LEDs providing 30m of night vision coverage
- H.265, H.264, MJPEG codec with WiseStream III (AI-engine smart codec)
- AI Object Classification: Person, Vehicle with intelligent motion detection
- People, region and object detection with alarm event generation
- Micro SD/SDHC/SDXC memory slot for edge recording
- ONVIF Profile S/G/T/M, SUNAPI (HTTP API)
- Standard PoE (IEEE 802.3af, Class 3), 12VDC input
- Indoor dome housing

§ 04Why choose this

Built for the way you actually use the QND-C8023R

AI Classification at Q-Series Price

Q-Core is Hanwha's entry-level AI range — Person and Vehicle object classification at a price roughly between Q and P series. For sites that need AI-scoped rule alerting but don't need the full P-series feature stack, this bridges the gap.

30m IR Beats Standard Q Series

Standard Q-series indoor domes typically ship with a shorter IR range — enough for typical rooms. The 30m range on this camera covers larger indoor spaces (warehouse interior, hospital public zones, larger corridors) where earlier Q-series left dark gaps.

WiseStream III Newer Codec

Q-Core uses WiseStream III (versus Q-series WiseStream II) — the AI-driven codec adapts bitrate to scene complexity. On 5MP continuous recording that reduces NVR storage cost measurably.

Standard PoE Runs the Camera

Despite the AI processing and 30m IR draw, this camera runs on standard 802.3af PoE Class 3 — no PoE+ upgrade needed. Existing PoE switch infrastructure works.

§ 05Where it fits

Right at home in these scenarios

Office Corridors & Reception

4mm fixed lens at 80° covers a reception counter or corridor entry cleanly; AI Person classification triggers rule alerts on visitors while filtering out non-human motion.

Retail Store Aisle Overheads

Ceiling-mounted 5MP dome with Person + Vehicle classification supports loss-prevention workflows and vehicle-related events (delivery bay adjacency).

Warehouse Interior

30m IR range covers longer warehouse interior aisles that standard Q-series domes leave dark; AI classification filters forklift movement from person events.

Bank Branches & Financial Front Offices

AI-driven person detection supports evidence-grade recording of teller-counter transactions and lobby activity; Q-Core price fits multi-branch deployments.

Hospital Corridors & Aged Care

Extended 30m IR covers hallway ends that shorter-range Q-series domes couldn't; person classification filters wandering resident events from operational movement.

§ 06Setup

Installation & setup

01

What's in the Box

1. Hanwha QND-C8023R Camera x 1 2. Mounting Template & Fixings x 1 set 3. Quick Start Guide x 1

02

Installation Requirements

1. Power: PoE (IEEE 802.3af, Class 3) - any standard PoE switch port works; alternatively 12VDC input. 2. Storage: micro SD/SDHC/SDXC card slot (sold separately). 3. Mounting: indoor dome housing - ceiling or wall. 4. Network: ONVIF Profile S/G/T/M for third-party VMS or Wisenet WAVE / SSM native.

03

App & Setup

1. Discover with Wisenet Toolbox Plus or Device Manager. 2. Set admin password on first login (brute-force prevention enforced), configure H.265 with WiseStream III. 3. Fixed 4.0mm lens - orient the mount for desired 80° coverage. 4. Enable AI object classification (Person / Vehicle) and configure rule alerts per class.

§ 08Questions

Frequently asked about the QND-C8023R

Q.01

What does 'Q-Core' mean vs standard Q series?
Q-Core is Hanwha's entry-level AI camera range — it takes the standard Q series feature set (H.265, WDR, IR, edge storage) and adds AI object classification (Person, Vehicle). Positioning: cheaper than P series, more capable than base Q series. For sites that need AI-scoped rule alerts but not the full P-series analytics stack, Q-Core fits.
Q.02

What AI features are included?
Person and Vehicle object classification — the camera distinguishes people from vehicles at the sensor level. AI-driven motion, people, region and object detection generate rule events scoped to object class, reducing false alerts from environmental motion.
Q.03

How does the 30m IR compare to standard Q-series units?
Standard Q-series indoor domes typically ship with a shorter IR range. This unit's 30m range substantially extends the reach, covering larger indoor spaces (long warehouse interior aisles, hospital corridors, big-box retail interiors) where shorter-range units leave dark gaps at the far end.
Q.04

Does it work with third-party VMS?
Yes. ONVIF Profile S / G / T / M so it drops into any ONVIF-compatible VMS. Native Wisenet WAVE and SSM integration is fullest; SUNAPI (HTTP API) supports custom code.
Q.05

What's WiseStream III versus II?
WiseStream III is Hanwha's newer AI-engine smart codec that dynamically adjusts bitrate based on scene content — more efficient than WiseStream II across most scene types. On 5MP continuous recording that translates to measurably lower NVR storage cost.
Q.06

Do I need PoE+ for the AI features?
No. Standard PoE (IEEE 802.3af, Class 3) is sufficient — the AI processing and 30m IR are within the standard PoE power budget. No PoE+ switch upgrade required.
Q.07

How is this different from a P-series indoor dome?
P series adds a broader AI stack (Face + License plate classification, BestShot event capture, business intelligence like heatmap and people counting, and premium build quality). Q-Core focuses on the essential AI feature (Person + Vehicle) at a lower price point.
