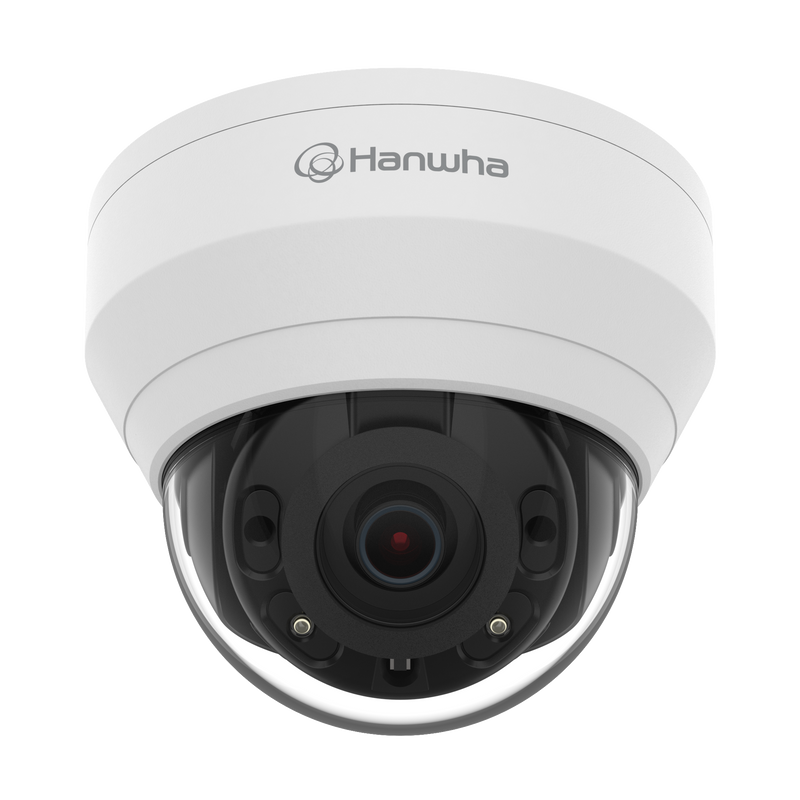

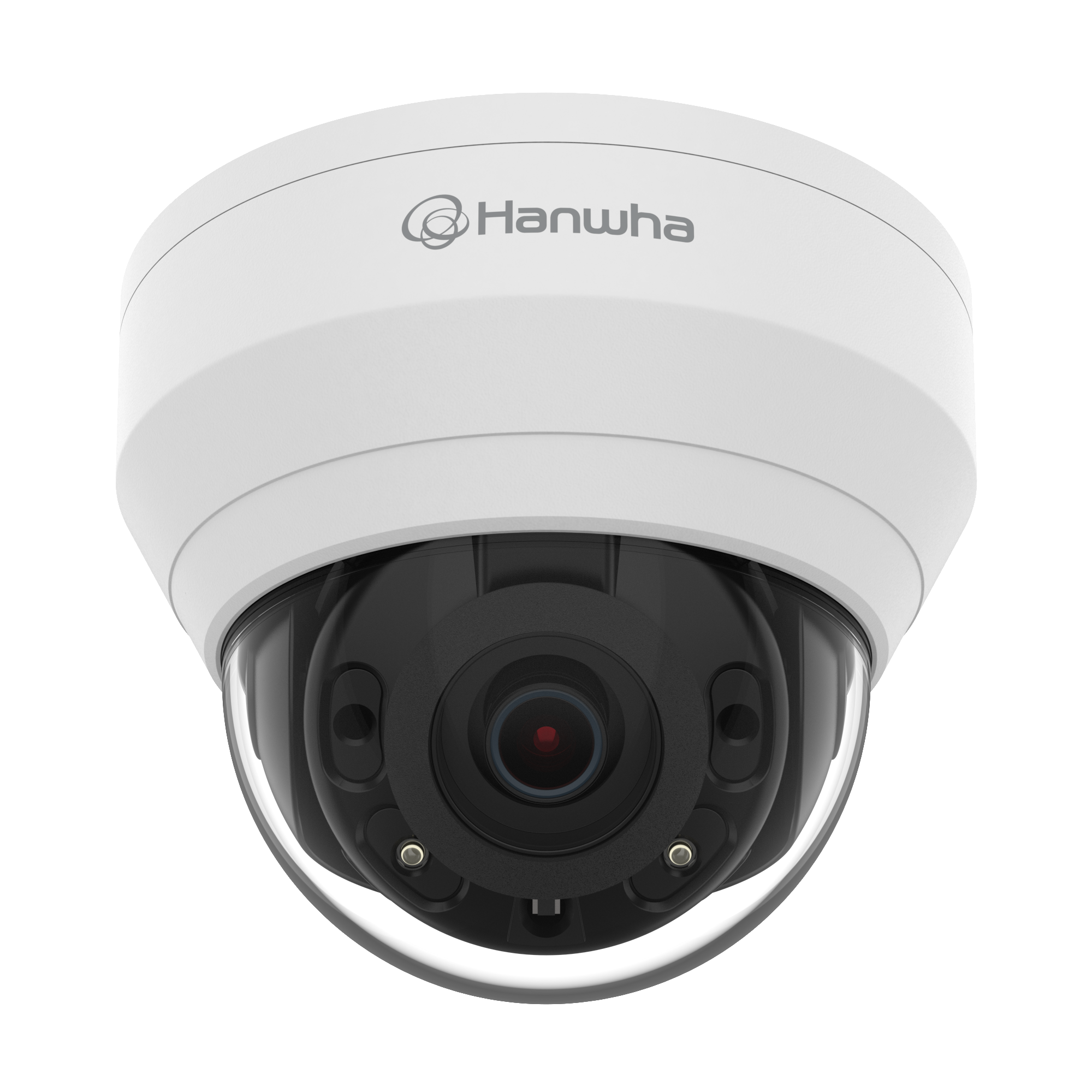

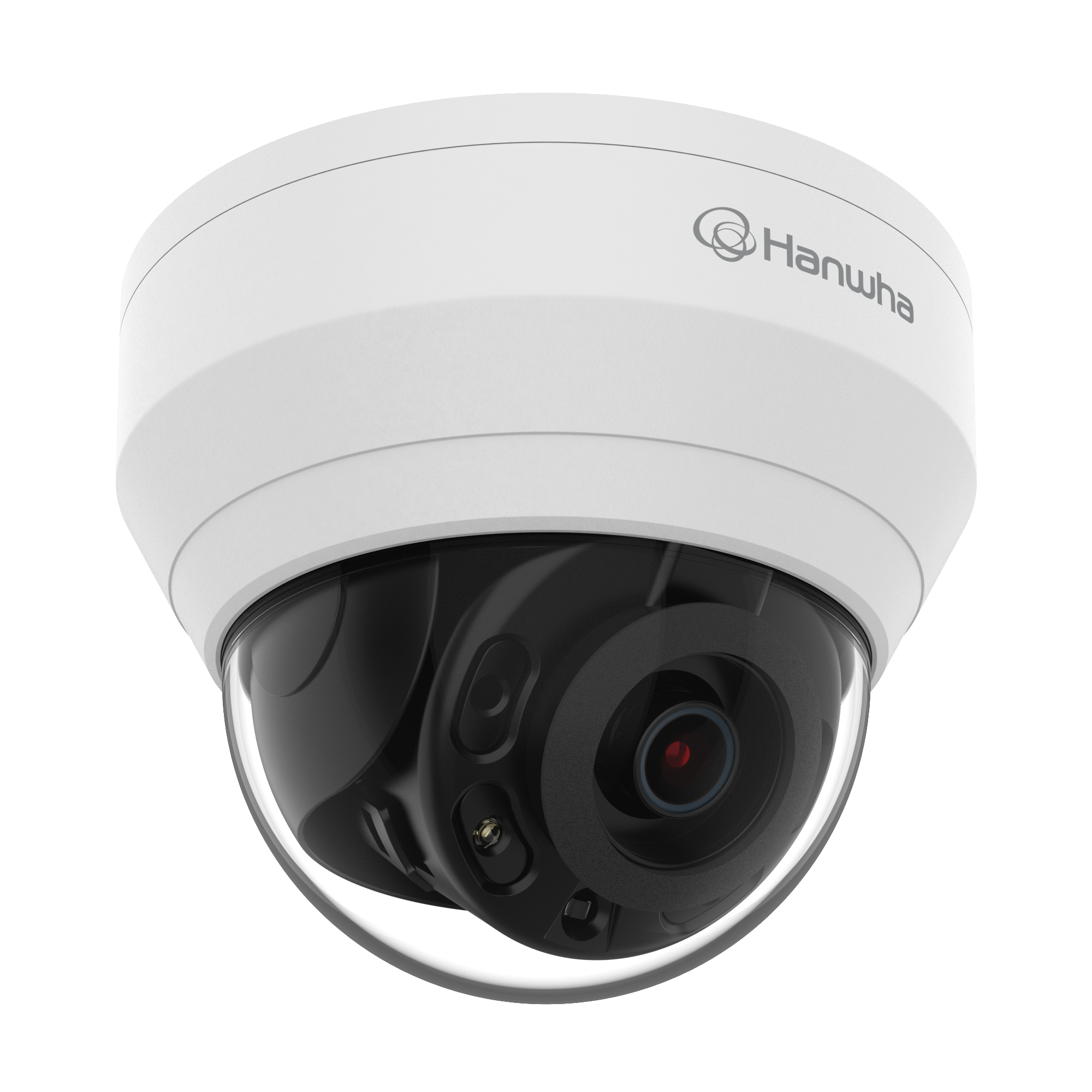

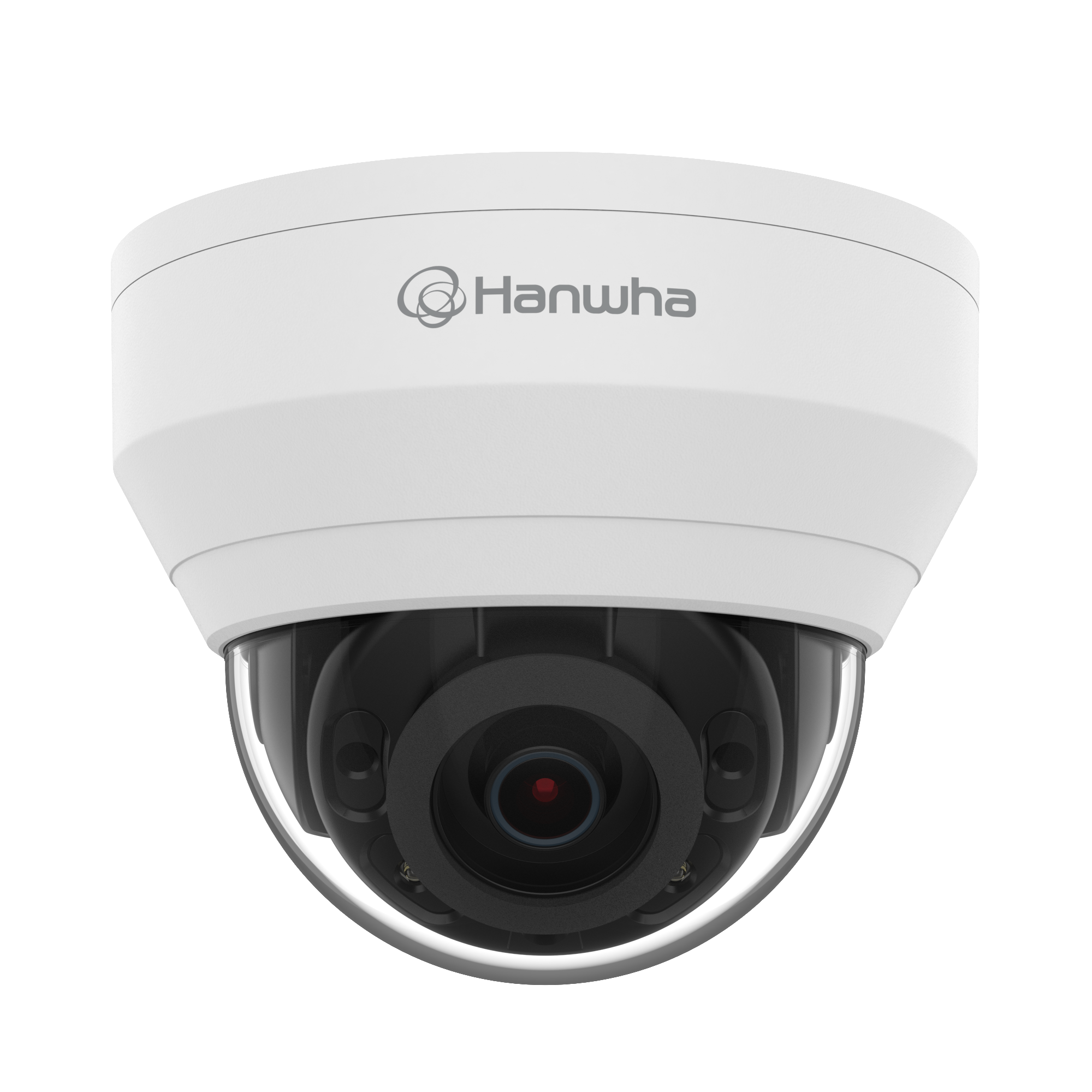

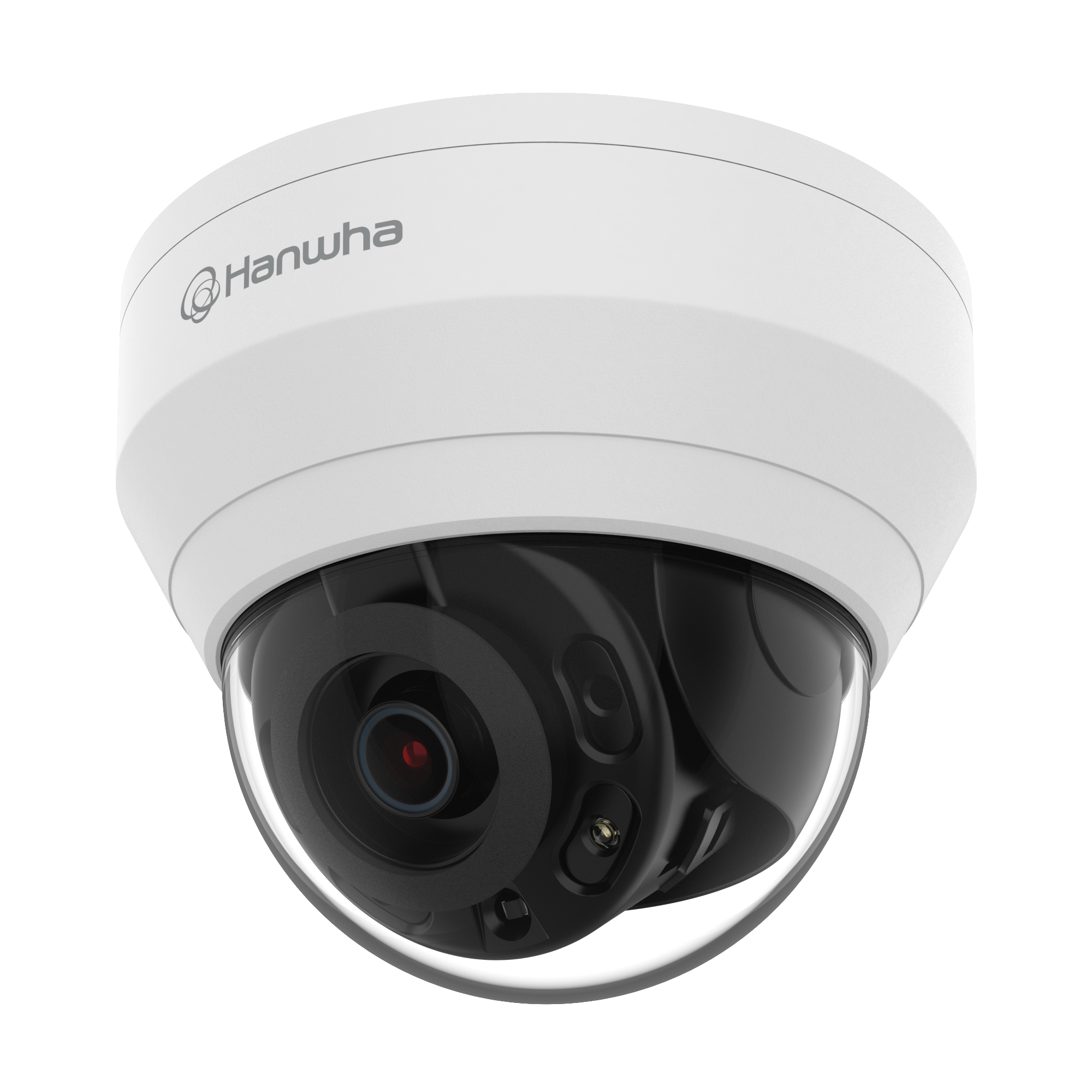

Hanwha HAN-QND-8020R 5MP Indoor Dome Camera + WiseStream II, 4.0mm Lens

SKU: HAN-QND-8020R
Description

- 5MP resolution: high-detail imaging up to 2592x1944 at 30fps.
- 120dB WDR: handles bright sunlight and dark shadows simultaneously.
- WiseStream II compression: paired with H.265 to significantly reduce bandwidth usage.
- Hallway view: rotates the image 90°/270° for narrow corridors and aisles.
$430.60 AUD $430.60 AUD $443.90 AUD
Sale 3.0% $13.30 AUD (3.0%)
Member Sign in to save $8.61 on this item — free to join.
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $700.05

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
Bundle total: $430.60
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the HAN-QND-8020R is

The Hanwha HAN-QND-8020R is a versatile 5MP indoor dome camera designed for high-resolution surveillance in commercial and retail environments across Australia.

It features a 4.0mm fixed lens that captures a broad 80° horizontal field of view, making it ideal for monitoring open spaces, lobbies, and corridors.

Equipped with 120dB Wide Dynamic Range (WDR), this camera excels in areas with complex lighting, such as storefronts with bright natural light and darker interiors.

The integration of WiseStream II technology with H.265 compression significantly optimises bandwidth and storage efficiency.

Additionally, the camera includes built-in IR LEDs providing up to 20m (65.62ft) of night vision in complete darkness, alongside intelligent analytics like defocus detection and virtual area monitoring to proactively manage security events.

§ 02Engineering

HAN-QND-8020R specifications

- 5 Megapixel (2592x1944) resolution for crisp, detailed imaging
- 4.0mm fixed lens providing an 80° horizontal angular field of view
- 120dB Wide Dynamic Range (WDR) to balance high-contrast lighting
- WiseStream II smart codec with H.265/H.264 support for bandwidth efficiency
- 20m (65.62ft) viewable IR length for clear monitoring in zero-light conditions
- Hallway view mode (90°/270° rotation) tailored for narrow corridors
- Built-in analytics including defocus detection, tampering, and virtual line crossing
- Micro SD/SDHC/SDXC memory slot supporting up to 128GB of edge storage
- PoE (IEEE802.3af, Class3) power support for simplified installation

§ 04Why choose this

Built for the way you actually use the HAN-QND-8020R

High-Definition 5MP Clarity

Delivering up to 2592x1944 resolution at 30fps, this camera captures fine details across retail floors and reception areas, ensuring critical events are recorded clearly.

Advanced 120dB WDR

The 120dB Wide Dynamic Range ensures balanced exposures in environments with stark lighting contrasts. It prevents subjects from becoming dark silhouettes when standing in front of brightly lit windows or glass doors.

Bandwidth-Saving WiseStream II

Hanwha's proprietary WiseStream II dynamically adjusts encoding based on motion in the scene. When combined with H.265 compression, it drastically reduces network bandwidth and NVR storage requirements.

Tailored Corridor Coverage

Hallway view mode allows the video to be vertically rotated (90°/270°), changing the aspect ratio to focus down narrow aisles or passages, eliminating wasted horizontal space recording blank walls.

§ 05Where it fits

Right at home in these scenarios

Retail Shop Floors

The 4.0mm fixed lens and 5MP resolution offer broad, highly detailed coverage of sales floors. The 120dB WDR ensures clear visibility even near large, sunlit display windows where contrast is harsh.

Bank & Office Lobbies

A discreet indoor dome profile fits seamlessly into professional environments. Analytics like tampering and virtual line crossing provide automated alerts for restricted zones behind teller counters or reception desks.

Narrow Hallways & Storage Aisles

Using the hallway view feature, the camera optimises its field of view for long, narrow spaces, making it perfect for office corridors or warehouse shelving aisles where traditional widescreen formats are inefficient.

§ 06Setup

Installation & setup

01

What's in the Box

1. Hanwha HAN-QND-8020R Camera 2. Quick Start Guide 3. Installation hardware

02

Installation Requirements

1. Power: PoE (IEEE802.3af, Class3), max 6.80W consumption. 2. Environment: Indoor use only; operating temperature between -10°C~+55°C. 3. Network: RJ-45 (10/100BASE-T) connection. 4. Edge Storage: Micro SD/SDHC/SDXC slot (Max. 128GB).

03

Setup Notes

1. System Access: Uses IP-based access control and IEEE 802.1X authentication. 2. Viewing Disturbance: Applying any configuration changes to the camera or network will force a temporary disconnection of the active viewer.

§ 07Questions

Frequently asked about the HAN-QND-8020R

Q.01

How well does this camera perform in low light?
The QND-8020R uses a 1/2.8" CMOS sensor that provides a minimum colour illumination of 0.15 Lux. In extremely dark environments, it relies on its built-in IR LEDs to provide clear black-and-white night vision up to 20m (65.62ft).
Q.02

Will this camera handle glare from a glass entrance door?
Yes, the camera features 120dB Wide Dynamic Range (WDR). This technology balances the exposure, preventing subjects from appearing completely dark against a bright background, making it ideal for indoor areas facing sunlit windows.
Q.03

Does changing the settings interrupt the live feed?
Yes. As noted in the manufacturer's operational guidelines, applying any changes to the camera or network configurations will cause connected viewers to temporarily disconnect while the new settings are applied.
Q.04

Can this camera be installed outdoors?
No, the QND-8020R is an indoor dome camera designed for operating environments between -10°C and +55°C. It lacks the IP and IK ratings required for exposed or vandal-prone outdoor installations.
Q.05

Is there a known issue with accessing the camera via Chrome?
Early firmware versions experienced an HTTPS behavioural error in Chrome version 80. Ensuring your camera's firmware is updated to version 1.41.01 or newer resolves this compatibility issue and maintains a secure connection.
Q.06

What is the benefit of the hallway view mode?
Hallway view rotates the video output to a 90° or 270° orientation. This is extremely beneficial for monitoring long, narrow corridors or retail aisles, as it captures the length of the passage rather than wasting resolution on adjacent walls.
Q.07

Can the camera record directly without an NVR?
Yes, it features a Micro SD/SDHC/SDXC memory slot that supports cards up to 128GB. You can configure it to record locally triggered by events like motion detection, tampering, or defocus detection.
