Dahua DHI-ASR2100H Outdoor IC Card Reader
1 1
Dahua

Dahua DHI-ASR2100H Outdoor IC Card Reader

SKU: DHI-ASR2100H
Description

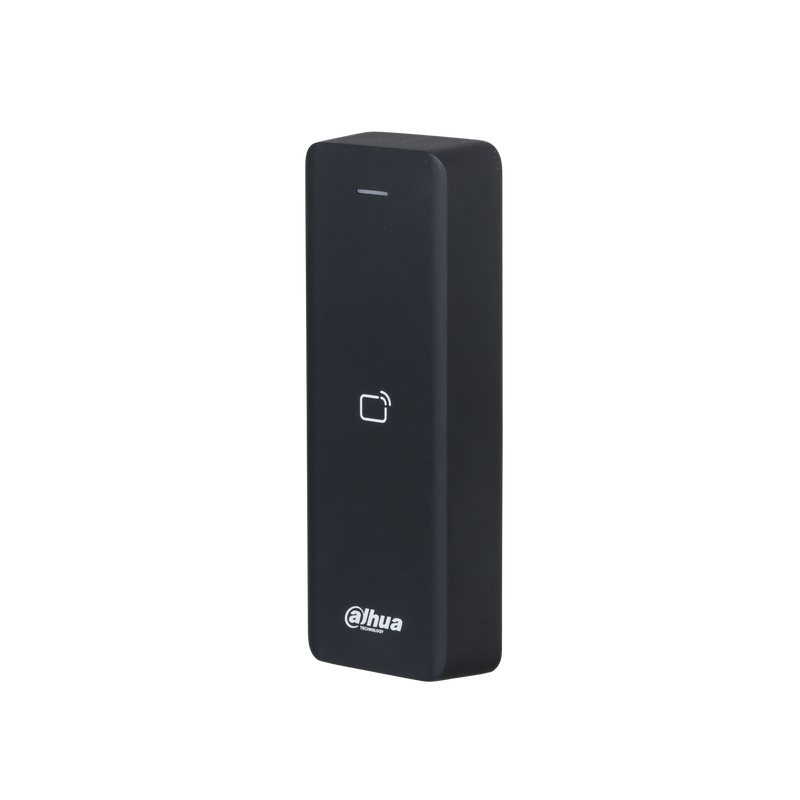

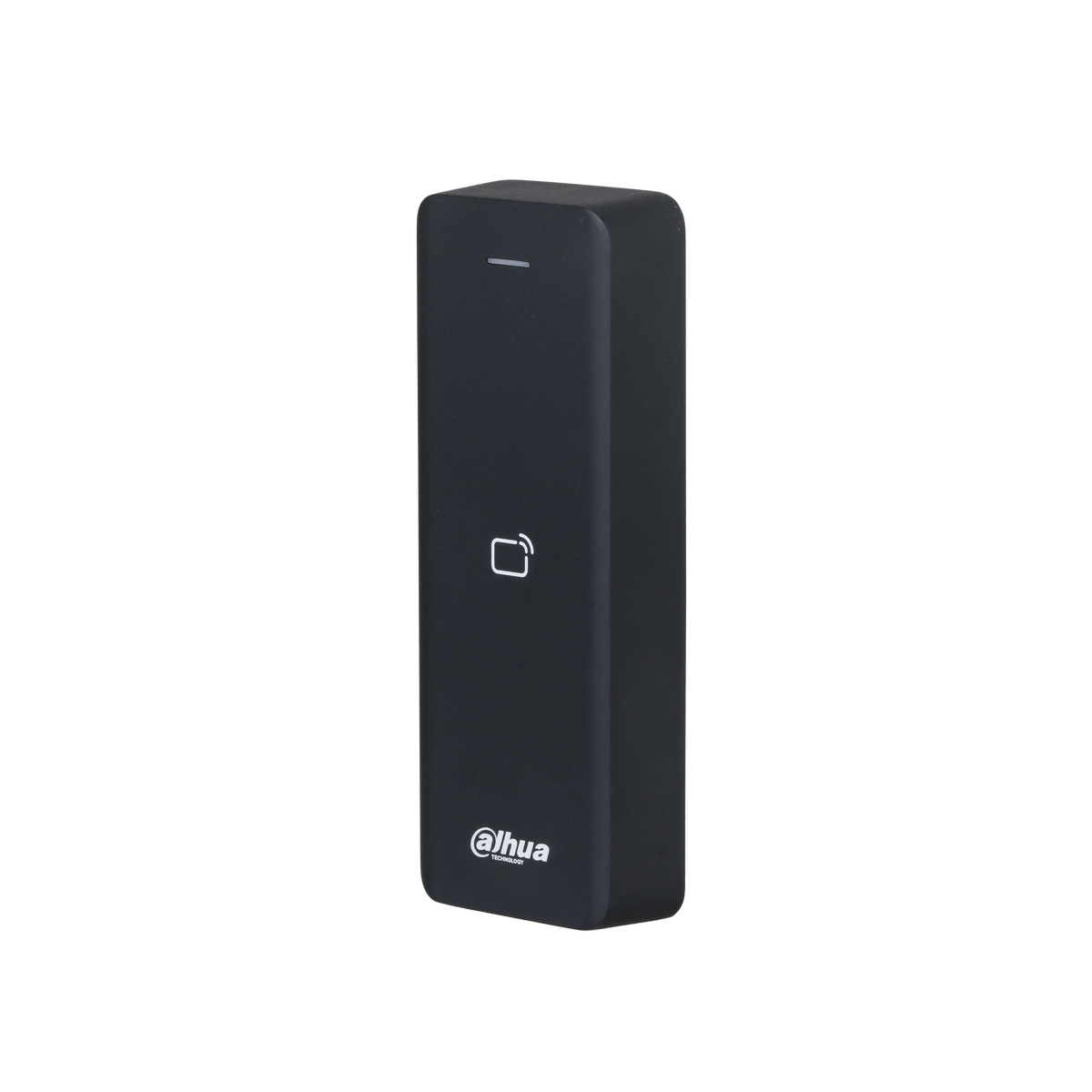

Dahua DHI-ASR2100H is a slim IC-card reader for a compatible access-control system. Audible and visual prompts indicate operation, and the housing supports outdoor mounting with an IP66 rating.
$54.00 AUD $54.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · shipped from Australian stock
  • Tracked delivery on every order. The tracking number is emailed as soon as it ships.
  • Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

01Overview

What the DHI-ASR2100H is

Dahua DHI-ASR2100H is a slim IC-card reader for a compatible access-control system. Audible and visual prompts indicate operation, and the housing supports outdoor mounting with an IP66 rating.

The reader communicates through RS-485 or Wiegand and supports OSDP. Its specified card-reading distance is up to 8cm; position it where users can present their credentials comfortably.

Provide a suitable 12V supply and match the reader interface to the controller. Wiegand 34 is documented, while Wiegand 26 is a customised option rather than a default configuration.

02Engineering

DHI-ASR2100H specifications

Dahua DHI-ASR2100H — Credential: IC card
Interfaces: RS-485 and Wiegand output
Protocol: OSDP; Wiegand 34, with Wiegand 26 customisable
Reading distance: 0–8 cm
Power: 12 VDC, 0.5 A
Protection: IP66; tamper alarm
Operating temperature: -30°C to 70°C
Dimensions: 127 × 46 × 20 mm

03Full datasheet

Detailed specifications

Specification

Specification — Dahua DHI-ASR2100H Outdoor IC Card Reader
FeatureDetail
Credential IC card
Interfaces RS-485 and Wiegand output
Protocol OSDP; Wiegand 34, with Wiegand 26 customisable
Reading distance 0–8 cm
Power 12 VDC, 0.5 A
Protection IP66; tamper alarm
Operating temperature -30°C to 70°C
Dimensions 127 × 46 × 20 mm
