Dahua KTP02-S2 IP Video Intercom Kit
SKU: KTP02-S2
Description

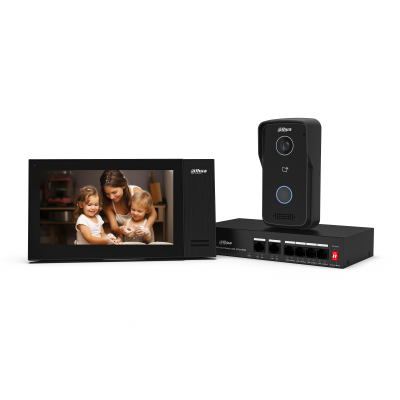

Dahua KTP02-S2 combines an IP door station, a 7-inch indoor monitor and a PoE switch for villa entry. Visitors can call the indoor screen, while card and app access provide additional ways to release the door.
Regular price
$320.00 AUD
Sale price
$320.00 AUD
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- Metro delivery: 2–4 business days. Regional areas may take longer. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
In stock
No reviews
Dahua KTP02-S2 IP Video Intercom Kit
1
/
of
1
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Metro delivery usually takes 2–4 business days. Regional areas may take longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the KTP02-S2 is
Dahua KTP02-S2 combines an IP door station, a 7-inch indoor monitor and a PoE switch for villa entry. Visitors can call the indoor screen, while card and app access provide additional ways to release the door.
The supplied monitor is the DHI-VTH2421FB-P and includes embedded storage. The door station provides infrared illumination and two-way audio, with card support for regular users.
The PoE switch provides the network and power connection points for a planned installation. Outdoor sealing remains part of the door-station installation: its IP65 rating requires the silicone sealing described in the quick-start guide.
§ 02Engineering
KTP02-S2 specifications
Dahua KTP02-S2 — Kit components: DHI-VTO2111D-P-S3 door station, DHI-VTH2421FB-P monitor and DH-PFS3006-4ET-36 PoE switch
Indoor display: 7-inch capacitive touchscreen; 1024 x 600
Entry methods: IC card, indoor monitor and app unlocking
Station power: Both stations: standard PoE or 12 VDC, 1 A
PoE switch: Four 10/100 Mbps PoE ports; two 10/100 Mbps uplinks
Door protection: IP65 with silicone sealant as required by the quick-start guide; IK04
Indoor storage: Embedded 8 GB card
Indoor display: 7-inch capacitive touchscreen; 1024 x 600
Entry methods: IC card, indoor monitor and app unlocking
Station power: Both stations: standard PoE or 12 VDC, 1 A
PoE switch: Four 10/100 Mbps PoE ports; two 10/100 Mbps uplinks
Door protection: IP65 with silicone sealant as required by the quick-start guide; IK04
Indoor storage: Embedded 8 GB card
§ 03Full datasheet
Detailed specifications
Specification
| Feature | Detail |
|---|---|
| Kit components | DHI-VTO2111D-P-S3 door station, DHI-VTH2421FB-P monitor and DH-PFS3006-4ET-36 PoE switch |
| Indoor display | 7-inch capacitive touchscreen; 1024 x 600 |
| Entry methods | IC card, indoor monitor and app unlocking |
| Station power | Both stations: standard PoE or 12 VDC, 1 A |
| PoE switch | Four 10/100 Mbps PoE ports; two 10/100 Mbps uplinks |
| Door protection | IP65 with silicone sealant as required by the quick-start guide; IK04 |
| Indoor storage | Embedded 8 GB card |
| Door video | 2MP CMOS; H.264/H.265; automatic IR illumination |
| Card capacity | 10000 cards |
| Video messages | Door-station leave-video function requires an SD card in the VTH indoor monitor |
| Audio | Two-way audio; echo suppression and digital noise reduction |
| Door output | One 12 V, 200 mA power output; one lock-control port, normally closed by default |
| Mounting | Surface mounting for both stations |
| Specification — Kit components | DHI-VTO2111D-P-S3 door station, DHI-VTH2421FB-P monitor and DH-PFS3006-4ET-36 PoE switch |
|---|---|
| Specification — Indoor display | 7-inch capacitive touchscreen; 1024 x 600 |
| Specification — Entry methods | IC card, indoor monitor and app unlocking |
| Specification — Station power | Both stations: standard PoE or 12 VDC, 1 A |
| Specification — PoE switch | Four 10/100 Mbps PoE ports; two 10/100 Mbps uplinks |
| Specification — Door protection | IP65 with silicone sealant as required by the quick-start guide; IK04 |
| Specification — Indoor storage | Embedded 8 GB card |
| Specification — Door video | 2MP CMOS; H.264/H.265; automatic IR illumination |
| Specification — Card capacity | 10000 cards |
| Specification — Video messages | Door-station leave-video function requires an SD card in the VTH indoor monitor |
| Specification — Audio | Two-way audio; echo suppression and digital noise reduction |
| Specification — Door output | One 12 V, 200 mA power output; one lock-control port, normally closed by default |
| Specification — Mounting | Surface mounting for both stations |
§ 04Why choose this
Built for the way you actually use the KTP02-S2
Access choices
Card, indoor-screen and app unlocking support regular users and visitor entry.
Included monitor storage
The indoor monitor includes an embedded 8GB card for the supported storage functions.
§ 05Where it fits
Right at home in these scenarios
Villa entry
Dahua KTP02-S2 provides visitor video and two-way conversation at a single-button entrance.
Card-based access
The door station supports IC card unlocking for enrolled users.
Indoor and mobile access
The indoor monitor provides the local interface, with app unlocking as another access method.
§ 06Setup
Installation & setup
Network layout
Dahua KTP02-S2 includes a switch with separate PoE and uplink ports. Plan the two station links and network uplink together.
Outdoor sealing
Apply the silicone sealing required in the quick-start guide to achieve the door station IP65 protection.
Door hardware
Match the chosen strike and control circuit to the door-station connections; the powered output is rated at 12V, 200mA.
§ 08Questions
Frequently asked about the KTP02-S2
Q.01
Which indoor monitor comes with KTP02-S2, and does it have storage?
This kit pairs the DHI-VTO2111D-P-S3 door station with a DHI-VTH2421FB-P indoor monitor, which has an embedded 8GB card. For the door-station video-message function, storage is required in the VTH indoor unit.
Q.02
Do I need to buy a PoE switch for the two intercom stations?
The kit includes a DH-PFS3006-4ET-36 switch with four PoE ports and two uplink ports, all rated at 10/100Mbps. Both intercom stations support standard PoE; plan the network uplink and building cabling for the installation.
Q.03
Can the door station be mounted outdoors without sealing the cable entries?
The door station IP65 protection is conditional on silicone sealant being applied as directed in the quick-start guide. Include that sealing work in the surface-mount installation.
