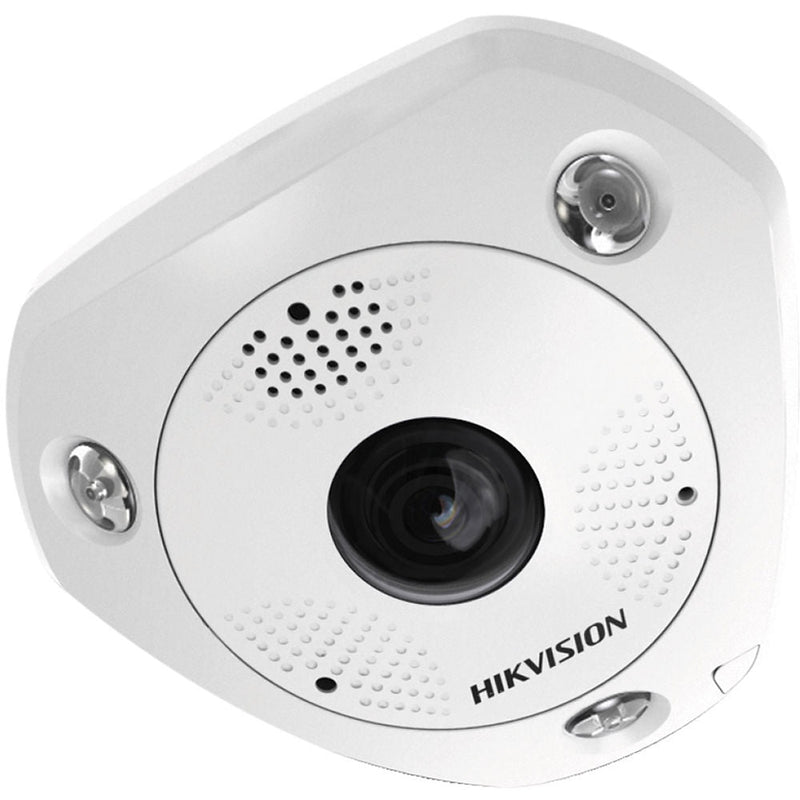

Hikvision DS-2CD63C5G0-IS 12 MP DeepinView Immervision Lens Fisheye Network Camera
Hikvision DS-2CD63C5G0-IS 12MP DeepinView Immervision Lens Fisheye Camera
1 1
Hikvision

Hikvision DS-2CD63C5G0-IS 12 MP DeepinView Immervision Lens Fisheye Network Camera

SKU: DS-2CD63C5GO-IS
Description

The Hikvision DS-2CD63C5G0-IS is a 12 MP DeepinView fisheye camera with an Immervision panoramic lens that covers a full 360 degrees from a single ceiling mount. It combines ultra-high 4000 x 3000 resolution, deep-learning people-counting heatmaps and built-in two-way audio, which suits retail floors, lobbies and other wide open spaces.

Key points
- 12 MP (4000 x 3000) on a 1/1.7" sensor
- Immervision fisheye lens: 360-degree, 180° x 180° coverage
- 18 dewarping and display modes (panorama, multi-PTZ and more)
- Deep-learning heatmap and people counting
- Built-in two-way audio (two microphones and a speaker)
- Infrared night vision to 15 metres; gigabit network
- microSD to 256 GB, NAS and ANR; alarm I/O
12MP Ultra HD IP67 Weatherproof Two-Way Audio
$1,233.20 AUD $1,233.20 AUD $1,550.40 AUD
Sale 20.46% $317.20 AUD (20.46%)
Member Sign in to save $24.66 on this item — free to join.
Buying for business? Apply for trade pricing →
Building a kit or need installation? Email sales@smarket.com.au for a quote.

inc GST + 3 Year Warranty & Support
Free shipping over AUD300

In stock
Build your setup Build a complete CCTV system Complete setup from $2,176.80

A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.

Select NVR (recorder) · channels ≥ your camera count
Select hard drive · 4TB ≈ 2-3 weeks for 4 cameras recording 24/7
Add accessories Optional. Junction box → hides & weatherproofs cable joins (best for outdoors). Brackets → only if mounting on a corner or under eaves. Cable → one per camera; skip if you already have your own.
1
1
1
1
1
1
1
1
1
Bundle total: $1,233.20
3-Year Warranty

3-Year Warranty

Warranty on all cameras

Free Shipping

Free Shipping

On orders over $300

30-Day Returns

30-Day Returns

Easy returns for unopened items

Fast Delivery

Fast Delivery

5-10 Day Delivery Australia-wide

§ 01Overview

What the DS-2CD63C5GO-IS is

The Hikvision DS-2CD63C5G0-IS is a 12 MP DeepinView fisheye camera built to watch a whole room or open area from one central ceiling mount.

Its Immervision panoramic lens delivers a full 360-degree field of view, 180 degrees in each direction, and the 1/1.7" sensor records at 4000 x 3000, so even after the image is dewarped into flat views there is enough resolution to keep detail.

Eighteen display modes, including panorama, multiple virtual PTZ views, hemisphere and cylinder, let an operator pull several normal-looking views from the single fisheye stream.

It is as much a business-intelligence camera as a security one.

Deep-learning analytics count people and present an intuitive heatmap of how a space is used, which is valuable for retail, transport hubs and public buildings, and it also supports behaviour rules such as line crossing, intrusion and object removal.

Built-in two-way audio, with two microphones and a speaker, lets an operator listen to and speak into the area, while infrared LEDs give night vision to 15 metres for low-light and zero-light coverage of the room below.

It is built for permanent, high-value installs.

A gigabit network port carries the large 12 MP stream, and storage options include a micro SD card up to 256 GB, NAS recording and Automatic Network Replenishment to fill gaps after a dropout.

There is an alarm input and output for integration, and the metal body includes a heater.

Mount it centrally on a ceiling for the classic overhead panorama, and pair it with a high-bandwidth NVR that can handle a 12 MP stream.

See it in action

What the DS-2CD63C5GO-IS features actually look like

Representative illustrations of how each key feature performs in a real scene.

IP67 Weatherproof — Sealed against dust and water to IP67, built to keep working through rain, storms and h...

IP67 Weatherproof

Sealed against dust and water to IP67, built to keep working through rain, storms and harsh sun — suitable for fully outdoor mounting.
Two-Way Audio — Talk and listen in real time through the app — tell a courier where to leave a parcel, or s...

Two-Way Audio

Talk and listen in real time through the app — tell a courier where to leave a parcel, or speak to someone at the gate, whether you're home or away.

Illustrative — simulated for demonstration

§ 02Engineering

DS-2CD63C5GO-IS specifications

- 12 MP (4000 x 3000) on a 1/1.7" progressive-scan CMOS sensor
- Immervision fisheye lens with a full 360-degree (180 x 180) view
- 18 display modes: panorama, multi-PTZ, hemisphere, cylinder and more
- Deep-learning heatmap and people counting for space analytics
- Built-in two-way audio: two microphones and a speaker
- Behaviour analysis: line crossing, intrusion and object removal
- Infrared night vision to 15 m; gigabit network port
- microSD to 256 GB, NAS and ANR recording; alarm input and output

§ 03Full datasheet

Detailed specifications

Camera & Image

Camera & Image — Hikvision DS-2CD63C5G0-IS 12 MP DeepinView Immervision Lens Fisheye Network Camera
FeatureDetail
Image Sensor 1/1.7" Progressive Scan CMOS
Max. Resolution 4000 × 3000
Min. Illumination Color: 0.05 Lux @ (F2.2, AGC ON); B/W: 0.01 Lux @ (F2.2, AGC ON), 0 Lux with IR
Shutter Speed 1 s to 1/100,000 s
Day & Night IR cut filter
Wide Dynamic Range (WDR) Digital WDR
Image Enhancement BLC, HLC, defog, 3D DNR

§ 04Why choose this

Built for the way you actually use the DS-2CD63C5GO-IS

One camera, no blind spots

An Immervision 360-degree fisheye covers an entire room from one ceiling mount, replacing several fixed cameras.

Detail that survives dewarping

12 MP at 4000 x 3000 keeps panorama and virtual-PTZ views sharp, so you do not lose detail when you flatten the fisheye image.

Security and business insight

Deep-learning people counting and heatmaps reveal how a space is used, alongside line-crossing and intrusion alarms.

Talk, listen and see at night

Built-in two-way audio and 15 metre infrared make it a complete overhead camera for lobbies, shops and open floors.

§ 05Where it fits

Right at home in these scenarios

Retail floors

Watch a whole shop from one ceiling mount and use heatmaps and people counting to understand customer flow.

Lobbies and reception areas

A single overhead camera covers the entire space with two-way audio for staff to speak to visitors.

Transport hubs and public buildings

Panoramic coverage of concourses and halls with people-counting analytics for crowd management.

Open-plan offices and warehouses

One fisheye covers a large floor area, with virtual-PTZ views to focus on any zone.

§ 06Setup

Installation & setup

01

In the box

Fisheye camera, ceiling mounting base and the printed guide. A pendant, wall or junction-box mount is selected to suit the position and bought separately if needed.

02

Power and cabling

Run a single gigabit network cable for PoE. Use a gigabit-capable switch or NVR port so the large 12 MP stream is not bottlenecked.

03

Mounting

Fit it centrally on the ceiling of the area you want to cover for the full overhead panorama, keeping it clear of beams and light fittings that would block the view.

04

Setup

Choose the display modes you need (panorama, virtual PTZ and so on), set the heatmap, people-counting and behaviour rules, and configure the two-way audio in the recorder or client.

§ 07Questions

Frequently asked about the DS-2CD63C5GO-IS

Q.01

What area does one fisheye camera cover?
Its Immervision lens gives a full 360-degree overhead view, 180 degrees in each direction, so a single camera mounted centrally on a ceiling can watch an entire room or open area with no blind spot around the mount.
Q.02

Does the high resolution survive dewarping?
Yes, that is the point of 12 MP here. The 4000 x 3000 image gives enough detail that when you dewarp the fisheye into flat panorama or virtual-PTZ views, each view still holds usable detail rather than looking soft.
Q.03

Can it talk and listen?
Yes. It has built-in two-way audio with two microphones and a speaker, so an operator can listen to the area and speak back through the camera, on top of an optional line-in and line-out connection on the -S version.
Q.04

What are the heatmap and people counting for?
Deep-learning analytics count people moving through the scene and build a heatmap of where they spend time. That helps retailers and venue managers understand customer flow and busy zones, alongside the camera's security role.
Q.05

How far does it see in the dark?
Built-in infrared reaches up to 15 metres, which suits the room or area directly below a ceiling-mounted fisheye. The infrared image is black and white in darkness, as is normal for an IR camera.
Q.06

What recorder and storage does it need?
It streams a large 12 MP image over a gigabit network port, so pair it with a high-bandwidth Hikvision NVR. It also takes a micro SD card up to 256 GB and supports NAS recording and ANR to fill gaps after a network dropout.
Q.07

Where is it best mounted?
It is designed for central ceiling mounting, which gives the classic overhead 360-degree panorama of the space below. Wall and table display modes are also available for other positions.

§ 09Bundles

Recommended packages

03

Add a PoE switch if needed

Power it and other cameras from a NS-0109P-60 8-port PoE switch where you do not have spare PoE ports on the recorder.
