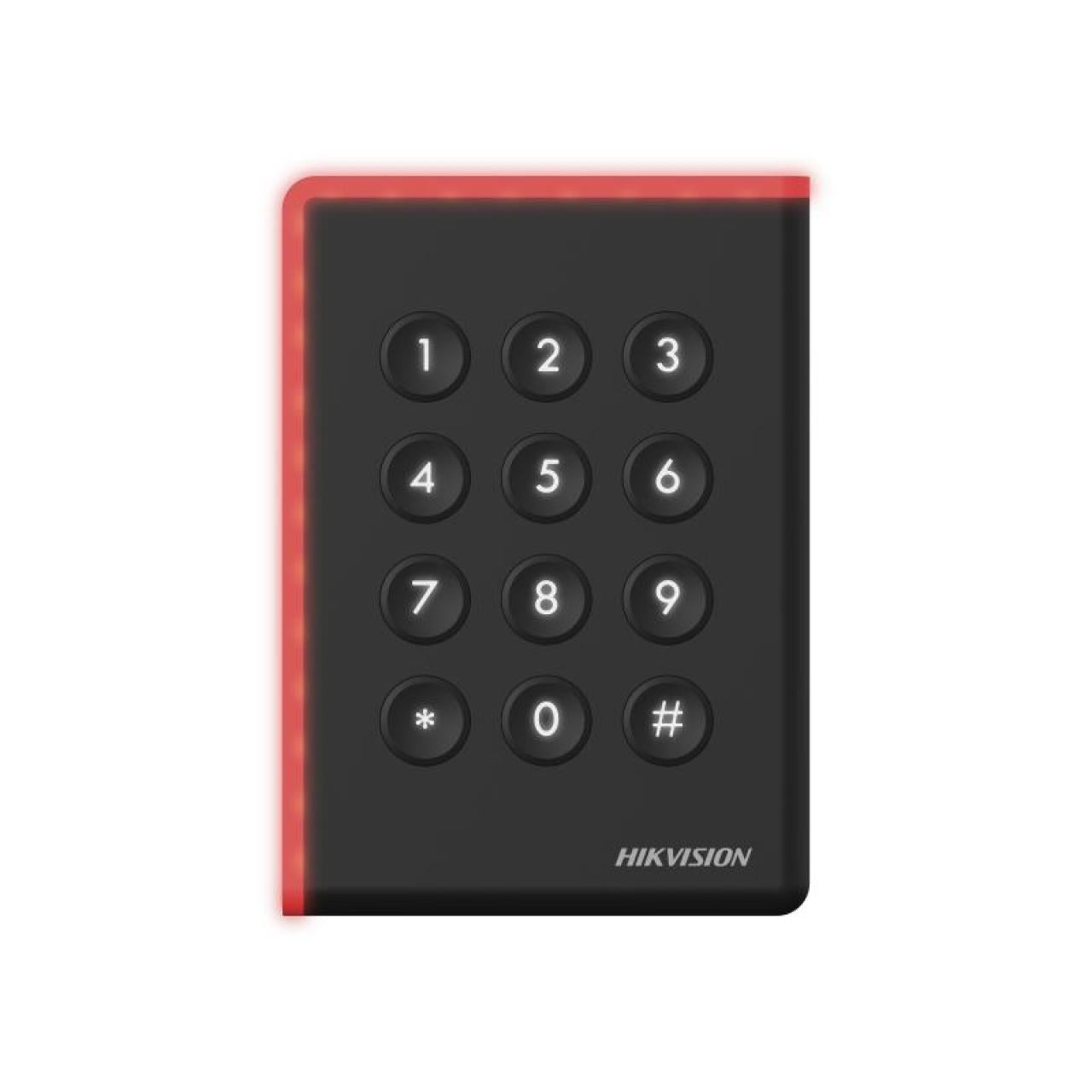

Hikvision DS-K1108AMK M1 Card Reader with Keypad
1 1
Hikvision

Hikvision DS-K1108AMK M1 Card Reader with Keypad

SKU: DS-K1108AMK
Description

The Hikvision DS-K1108AMK combines M1 card reading with a keypad for compatible access control systems. Its interfaces support connection to a matching controller, with a built-in buzzer and tamper detection for local status feedback. Download the official Hikvision datasheet (PDF).
$85.00 AUD $85.00 AUD $89.25 AUD
Sale 4.76% $4.25 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-K1108AMK is

The Hikvision DS-K1108AMK combines M1 card reading with a keypad for compatible access control systems.

Choose this keypad version for a system using compatible 13.56 MHz M1 credentials. Confirm the controller protocol and supported authentication configuration.

Provide a suitable 12 VDC supply and compatible controller. Cards, controller and door locking hardware are separate equipment. DESFire support for other family variants is not specified for this model.

§ 02Engineering

DS-K1108AMK specifications

Hikvision DS-K1108AMK Model — DS-K1108AMK
Card technology — M1 cards at 13.56 MHz
Keypad — Integrated keypad
Interfaces — RS-485, Wiegand W26/W34 and OSDP
Power — 12 VDC, maximum 2 W
Protection — IP65
Dimensions — 123 x 88 x 21 mm

§ 03Full datasheet

Detailed specifications

Specification

Specification — Hikvision DS-K1108AMK M1 Card Reader with Keypad
FeatureDetail
Model DS-K1108AMK
Card technology M1 cards at 13.56 MHz
Keypad Integrated keypad
Interfaces RS-485, Wiegand W26/W34 and OSDP
Power 12 VDC, maximum 2 W
Protection IP65
Dimensions 123 x 88 x 21 mm
Net weight 0.14 kg

§ 08Questions

Frequently asked about the DS-K1108AMK

Q.01

What is the DS-K1108AMK?
The Hikvision DS-K1108AMK combines M1 card reading with a keypad for compatible access control systems.
Q.02

What is specified for model?
DS-K1108AMK.
Q.03

What is specified for card technology?
M1 cards at 13.56 MHz.
Q.04

What is specified for keypad?
Integrated keypad.
Q.05

What is specified for interfaces?
RS-485, Wiegand W26/W34 and OSDP.
Q.06

What is specified for power?
12 VDC, maximum 2 W.
Q.07

What should I check before ordering?
Provide a suitable 12 VDC supply and compatible controller. Cards, controller and door locking hardware are separate equipment. DESFire support for other family variants is not specified for this model.
