Hikvision DS-K1104MK Metal M1 Card Reader with Keypad
1 1
Hikvision

Hikvision DS-K1104MK Metal M1 Card Reader with Keypad

SKU: DS-K1104MK
Description

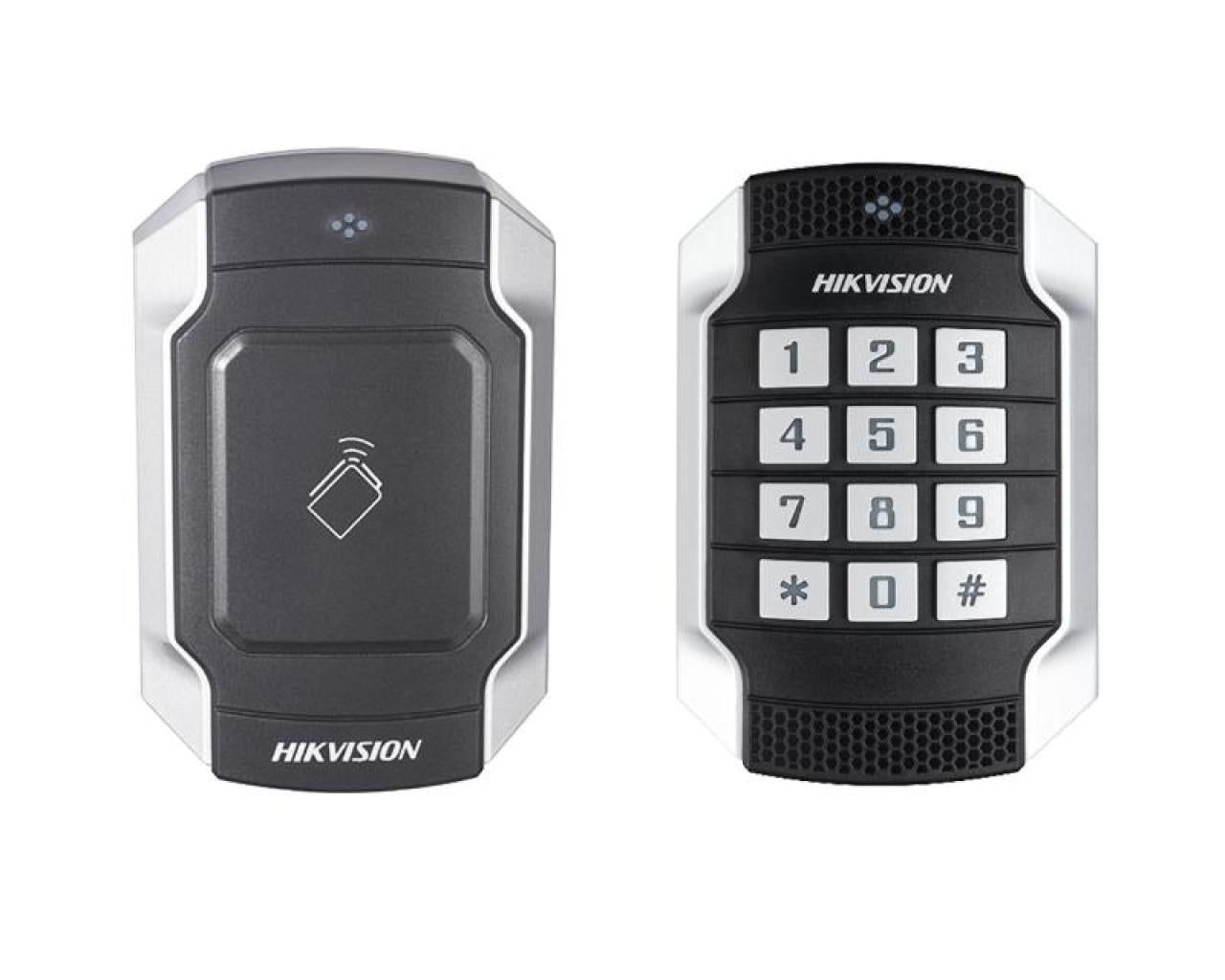

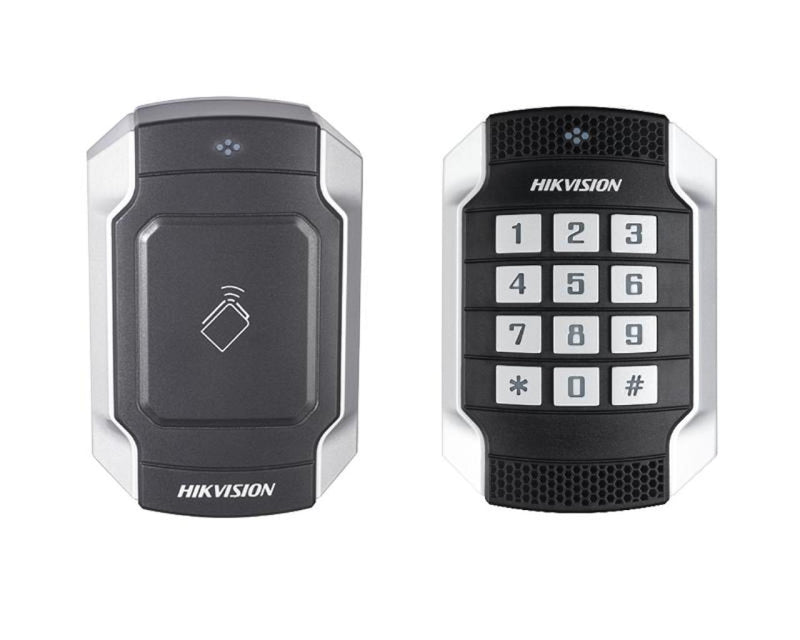

The Hikvision DS-K1104MK is a metal-housed M1 card reader for compatible access control systems. It includes a 12-key keypad. The manufacturer image shows both variants; this listing is for one DS-K1104MK, shown on the right. Download the official Hikvision datasheet (PDF).
$145.00 AUD $145.00 AUD $152.25 AUD
Sale 4.76% $7.25 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-K1104MK is

The Hikvision DS-K1104MK is a metal-housed M1 card reader for compatible access control systems.

Confirm the controller interface, supported credentials and mounting dimensions. The IK10 rating describes impact resistance.

Provide a suitable 12 VDC supply and compatible controller. This listing is for one reader; cards, controller and door locking hardware are separate equipment.

§ 02Engineering

DS-K1104MK specifications

Hikvision DS-K1104MK Model — DS-K1104MK
Card technology — M1 cards at 13.56 MHz
Keypad — 12 keys: 0 to 9, star and hash
Interfaces — RS-485 and Wiegand
Power — 12 VDC, supply rating up to 500 mA; consumption up to 2 W
Housing — PC and zinc alloy
Impact protection — IK10

§ 03Full datasheet

Detailed specifications

Specification

Specification — Hikvision DS-K1104MK Metal M1 Card Reader with Keypad
FeatureDetail
Model DS-K1104MK
Card technology M1 cards at 13.56 MHz
Keypad 12 keys: 0 to 9, star and hash
Interfaces RS-485 and Wiegand
Power 12 VDC, supply rating up to 500 mA; consumption up to 2 W
Housing PC and zinc alloy
Impact protection IK10
Dimensions 118 x 76 x 23 mm

§ 08Questions

Frequently asked about the DS-K1104MK

Q.01

What is the DS-K1104MK?
The Hikvision DS-K1104MK is a metal-housed M1 card reader for compatible access control systems.
Q.02

What is specified for model?
DS-K1104MK.
Q.03

What is specified for card technology?
M1 cards at 13.56 MHz.
Q.04

What is specified for keypad?
12 keys: 0 to 9, star and hash.
Q.05

What is specified for interfaces?
RS-485 and Wiegand.
Q.06

What is specified for power?
12 VDC, supply rating up to 500 mA; consumption up to 2 W.
Q.07

What should I check before ordering?
Provide a suitable 12 VDC supply and compatible controller. This listing is for one reader; cards, controller and door locking hardware are separate equipment.
