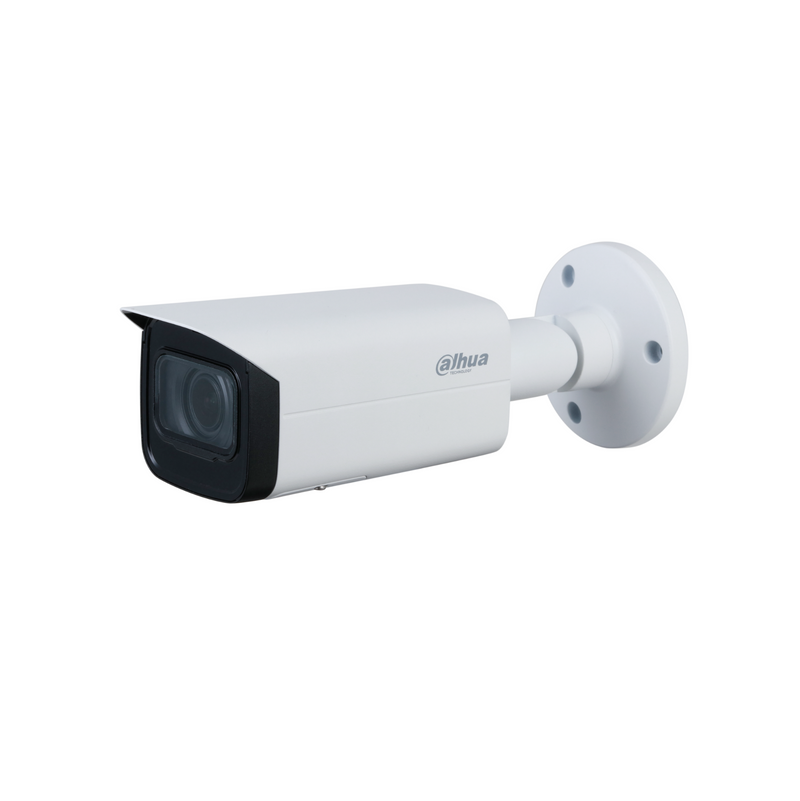

Dahua DH-IPC-HFW3541TP-ZAS-27135 5MP Lite AI Motorised Starlight Bullet, Perimeter, SMD, SD Card, WDR, IR60m,IP67, POE
5MP AI-powered bullet camera engineered to deliver high-resolution video and intelligent person and vehicle detection for reliable perimeter security in Australian residential and commercial settings.
inc GST + 3 Year Warranty & Support
Free shipping over AUD300
Build your setup Build a complete CCTV system Complete setup from $950.00
A camera needs an NVR, a hard drive, and cabling to work. Add everything below, or pick a ready-made kit.
3-Year Warranty
Warranty on all cameras
Free Shipping
On orders over $300
30-Day Returns
Easy returns for unopened items
Fast Delivery
5-10 Day Delivery Australia-wide
§ 01Overview
What the DH-IPC-HFW3541TP-ZAS-27135 is
The Dahua DH-IPC-HFW3541TP-ZAS-27135 Bullet Camera is a versatile security solution featuring advanced Starlight technology for superior low-light performance.
It integrates deep learning algorithms into its core Features to reduce false alarms by focusing specifically on human and vehicle movement, making it an ideal Model for 24/7 outdoor surveillance.
See it in action
What the DH-IPC-HFW3541TP-ZAS-27135 features actually look like
Representative illustrations of how each key feature performs in a real scene.
60m IR Night Vision
False Alarm Reduction
Human/Vehicle Detection
IP67 Weatherproof
Illustrative — simulated for demonstration
§ 02Engineering
DH-IPC-HFW3541TP-ZAS-27135 specifications
- Intelligent Motion Detection: Advanced AI algorithms distinguish between humans and vehicles, significantly reducing false triggers from animals or moving foliage.
- Starlight Technology: Enhanced optical hardware allows the camera to maintain full-colour images in extremely low-light conditions before switching to infrared.
- Motorized Vari-focal Lens: A 2.7 mm - 13.5 mm adjustable lens provides the flexibility to zoom in on specific entry points or maintain a wide-angle view of the property.
- Perimeter Protection: Supports intelligent tripwire and intrusion functions, allowing for automated alerts when a person or vehicle crosses a defined boundary.
- Weatherproof Durability: Built with a rugged IP67-rated housing, the camera is designed to withstand harsh Australian weather, including heavy rain and dust.
§ 03Full datasheet
Detailed specifications
Camera & Image
| Feature | Detail |
|---|---|
| Image Sensor | 1/2.7"5Megapixel progressive CMOS |
| Max. Resolution | 2592 (H) ×1944 (V) |
| ROM | 128 MB |
| RAM | 512 MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s |
| Min. Illumination | 0.005 Lux@F1.5 (Color, 30IRE); 0.0005 Lux@F1.5 (B/W, 30IRE); 0 Lux (Illuminator on) |
| S/N Ratio | > 56 dB |
| Day/Night | Auto(ICR)/Color/B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | 120 dB |
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest(RoI) | Yes (4 areas) |
| Scene Self-adaptation (SSA) | Yes |
| Image Rotation | 0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.) |
| Mirror | Yes |
| Privacy Masking | 4 areas |
Lens & Distance
| Feature | Detail |
|---|---|
| Lens Type | Motorized vari-focal |
| Mount Type | φ14 |
| Focal Length | 2.7 mm–13.5 mm |
| Max. Aperture | F1.5 |
| Field of View | Horizontal: 99°–26° | Vertical: 72° –20° | Diagonal: 133° –33° |
| Iris Type | Fixed |
| Close Focus Distance | 0.8 m (2.6 ft) |
| DORI Distance | W: Detect 64.0 m (210.0ft); Observe 25.6 m (84.0 ft); Recognize 12.8 m (42.0 ft); Identify 6.4 m (21.0 ft) | T: Detect 222.0 m (728.3 ft); Observe 88.8m (291.3 ft); Recognize 44.4 m (145.7 ft); Identify 22.2 m (72.8 ft) |
| Pan Range | 0°–360° |
| Tilt Range | 0°–90° |
| Rotation Range | 0°–360° |
Night Vision
| Feature | Detail |
|---|---|
| Illumination Distance | 60 m (197 ft) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 4 (IR LED) |
| Smart Illumination | Yes |
Video
| Feature | Detail |
|---|---|
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG(only supported by sub stream) |
| Smart Codec | Smart H.265+/ Smart H.264+ |
| Video Frame Rate | Main stream (2592 × 1944@1–20 fps) (2688 × 1520@1–25/30 fps) | sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps) | third stream(1280 × 720@1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 3 Kbps–8192 Kbps; H.265: 3 Kbps–8192 Kbps |
Audio
| Feature | Detail |
|---|---|
| Audio Compression | G.711a; G.711Mu; G726 |
AI & Deep Learning
| Feature | Detail |
|---|---|
| Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) |
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos |
Network & Storage
| Feature | Detail |
|---|---|
| SDK and API | Yes |
| Protocol | IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Interoperability | ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;Genetec |
| User/Host | 20 (Total bandwidth: 64 M) |
| Storage | FTP; SFTP; Micro SD Card (support max. 256 G); NAS |
| Browser | IE: IE8, IE9, IE11 | Chrome | Firefox |
| Management Software | Smart PSS, DSS, DMSS |
| Mobile Phone | IOS; Android |
Event & Alarm
| Feature | Detail |
|---|---|
| Alarm Event | No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; input abnormal; intensity change; tripwire; intrusion; SMD |
Interface
| Feature | Detail |
|---|---|
| Network | RJ-45 (10/100 Base-T) |
| Audio Input | 1-channel (RCA port) |
| Audio Output | 1-channel (RCA port) |
| Alarm Input | 1 channel in: 5mA 3V–5V DC |
| Alarm Output | 1 channel out: 300mA 12V DC |
General & Environment
| Feature | Detail |
|---|---|
| Power Supply | 12V DC/PoE (802.3af) |
| Power Consumption | < 9.8W |
| Operating Conditions | -30°C to +60°C (-22°F to +140°F)/less than 95% |
| Storage Conditions | -40°C to +60°C (-40°F to +140°F) |
| Protection Grade | IP67 |
| Casing | Metal |
| Dimensions | 244.1 mm × 79.0 mm × 75.9 mm (9.6" × 3.1" × 3.0")(L × W × H) |
| Net Weight | 820 g (1.8lb) |
| Gross Weight | 1090 g (2.4lb) |
| Certifications | CE-LVD: EN62368-1 | CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | FCC: 47 CFR FCC Part 15, Subpart B | UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 |
