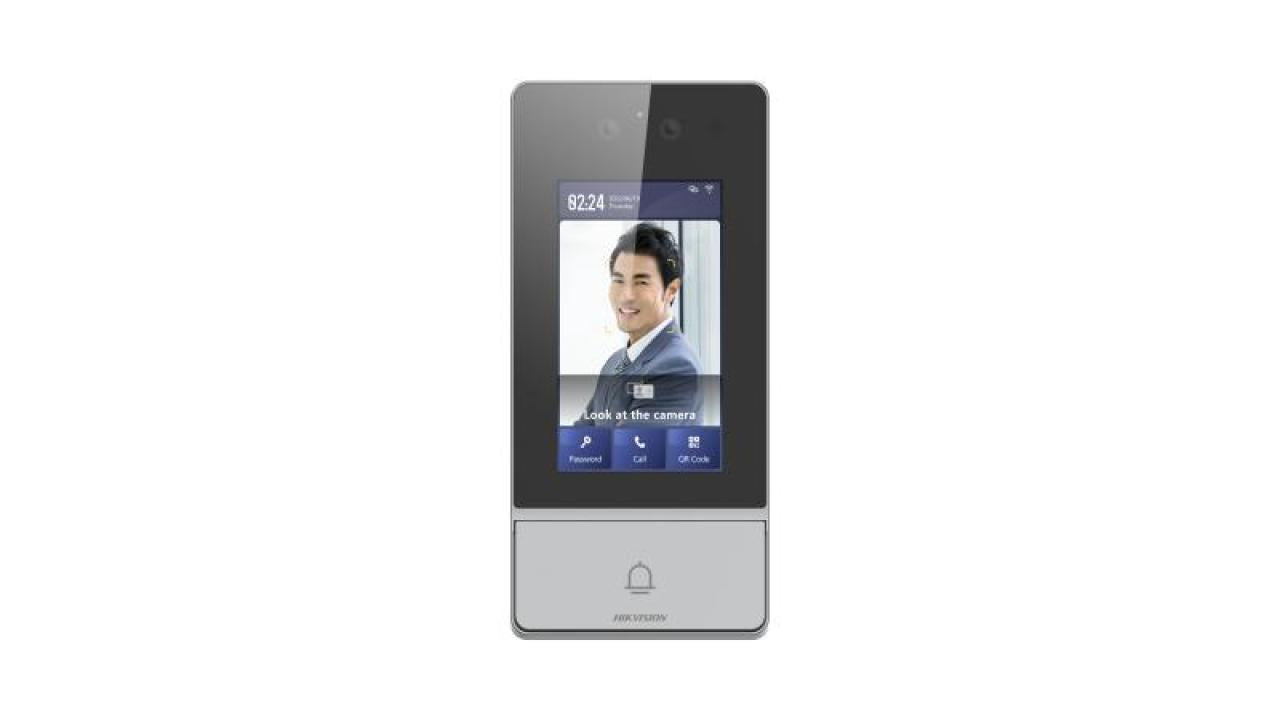

Hikvision DS-KV9503-WBE1 4.3-inch Face Door Station
The Hikvision DS-KV9503-WBE1 is a facial-recognition IP villa door station with a 4.3-inch IPS touchscreen and two 2 MP cameras. It supports face, PIN, card and QR-code access, alongside a physical call button and visitor audio. Standard PoE or 12 VDC can supply power, and the station supports wired networking and Wi-Fi. Direct calls to Hik-Connect can be configured without an indoor station. IP65 and IK08 protection suit an appropriately installed outdoor entrance. Select the power arrangement, lock hardware and any required control modules for the complete system; the reserved TF interface is not a usable recording-card feature. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KV9503-WBE1 is
The Hikvision DS-KV9503-WBE1 brings touch interaction and several resident access methods to a villa, office or apartment entrance. Its camera and audio functions support visitor communication alongside access control.
An indoor monitor is not essential for every calling layout: the station supports direct Hik-Connect calls when the network and account are configured appropriately. Choose the answering arrangement before completing the installation.
Wi-Fi does not remove the power requirement. Plan PoE or DC power and confirm the lock-control arrangement; do not treat the reserved TF-card interface as an available local recording feature.
§ 02Engineering
DS-KV9503-WBE1 specifications
Cameras — two 2 MP cameras — support visitor viewing.
Access methods — face, PIN, card and QR code — configure resident entry options.
Calling — direct Hik-Connect calls — allow a configured layout without an indoor station.
Network — Ethernet and Wi-Fi — choose the data connection.
Power — IEEE 802.3af PoE or 12 VDC — retain a suitable power supply.
Protection — IP65 and IK08 — suit an appropriately installed outdoor entrance.
§ 03Full datasheet
Detailed specifications
Display
| Feature | Detail |
|---|---|
| Screen | 4.3-inch IPS capacitive touchscreen |
| Resolution | 800 × 480 |
Video
| Feature | Detail |
|---|---|
| Cameras | 2 × 2 MP |
| Horizontal field of view | 88° |
| Vertical field of view | 44° |
| WDR | 120 dB |
| IR supplement | Up to 3 m |
Access
| Feature | Detail |
|---|---|
| Methods | Face; PIN; card; QR code |
| Card frequency | 13.56 MHz |
| Users | 20000 |
| Faces | 10000 |
| Cards | 100000 |
Network and audio
| Feature | Detail |
|---|---|
| Network | RJ45 10/100 Mbps; IEEE 802.11b/g/n Wi-Fi |
| Mobile calling | Direct Hik-Connect calling without an indoor station |
| Audio | Built-in microphone and loudspeaker |
| Audio processing | Noise suppression; echo cancellation |
| Physical call buttons | 1 |
| TF card | Reserved |
General
| Feature | Detail |
|---|---|
| Power input | 12 VDC, 1.5 A; IEEE 802.3af PoE |
| Power consumption | Up to 6 W |
| Protection | IP65; IK08 |
| Mounting | Surface |
| Environment | Outdoor |
| Net weight | 0.405 kg |
| Display — Screen | 4.3-inch IPS capacitive touchscreen |
|---|---|
| Display — Resolution | 800 × 480 |
| Video — Cameras | 2 × 2 MP |
| Video — Horizontal field of view | 88° |
| Video — Vertical field of view | 44° |
| Video — WDR | 120 dB |
| Video — IR supplement | Up to 3 m |
| Access — Methods | Face; PIN; card; QR code |
| Access — Card frequency | 13.56 MHz |
| Access — Users | 20000 |
| Access — Faces | 10000 |
| Access — Cards | 100000 |
| Network and audio — Network | RJ45 10/100 Mbps; IEEE 802.11b/g/n Wi-Fi |
| Network and audio — Mobile calling | Direct Hik-Connect calling without an indoor station |
| Network and audio — Audio | Built-in microphone and loudspeaker |
| Network and audio — Audio processing | Noise suppression; echo cancellation |
| Network and audio — Physical call buttons | 1 |
| Network and audio — TF card | Reserved |
| General — Power input | 12 VDC, 1.5 A; IEEE 802.3af PoE |
| General — Power consumption | Up to 6 W |
| General — Protection | IP65; IK08 |
| General — Mounting | Surface |
| General — Environment | Outdoor |
| General — Net weight | 0.405 kg |
§ 08Questions
Frequently asked about the DS-KV9503-WBE1
Q.01
What does the DS-KV9503-WBE1 combine in one station?
Q.02
Which access methods are available?
Q.03
Can it call a phone without an indoor monitor?
Q.04
Does Wi-Fi mean it is battery powered?
Q.05
What size is the touchscreen?
Q.06
Can I use a TF card for local recording?
Q.07
What should I check before ordering?
