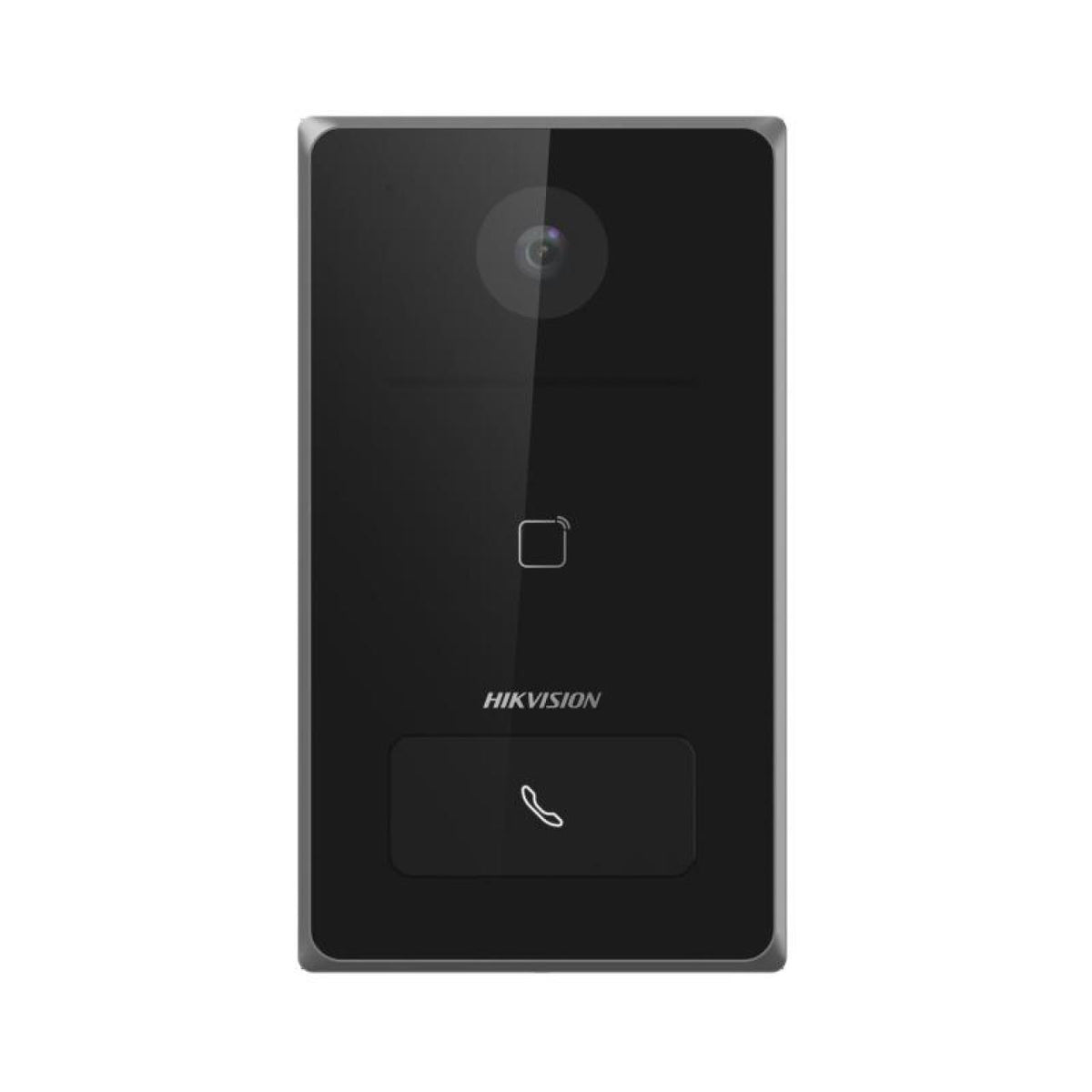

Hikvision DS-KV6133-WME1-SURFACE 2MP Door Station
The Hikvision DS-KV6133-WME1-SURFACE is the surface-mounted villa door station identified by the manufacturer as DS-KV6133-WME1/Surface. It combines a 2 MP camera, built-in card reader, physical call button and visitor audio in an aluminium-alloy casing. Wired Ethernet and 2.4 GHz Wi-Fi provide network options, while standard PoE or 12 VDC supplies power. Direct Hik-Connect calling can be configured without an indoor station. The surface gang box DS-KABV6133-G/Surface is included; select the lock hardware, power arrangement and any optional rain shield separately. This is the surface version, not the flush-mounted model or a complete lock installation. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KV6133-WME1-SURFACE is
The Hikvision DS-KV6133-WME1-SURFACE provides a compact calling and card-access point for a villa or small entrance. Its supplied surface gang box distinguishes the mounting arrangement from the flush version.
Choose the answering method around the installation. Direct Hik-Connect calling can be configured without an indoor monitor, while the camera and audio provide the entrance communication functions.
Wi-Fi still needs a power source. The station has one lock-control relay, and its reserved TF-card interface should not be treated as an available recording-card feature.
§ 02Engineering
DS-KV6133-WME1-SURFACE specifications
View — 129° horizontal and 75° vertical — plan the mounting position.
IR supplement — up to 2.5 m — assist nearby night viewing.
Access and calling — card reader and one call button — provide the entrance interaction.
Mobile calling — direct Hik-Connect calls — allow a configured layout without an indoor monitor.
Power — IEEE 802.3af PoE or 12 VDC — choose the supply arrangement.
Mounting — included surface gang box — install the correct surface version.
§ 03Full datasheet
Detailed specifications
Video
| Feature | Detail |
|---|---|
| Camera | 2 MP |
| Field of view | 129° horizontal; 75° vertical |
| IR supplement | Up to 2.5 m |
| WDR | 120 dB |
| Compression | H.264 |
System
| Feature | Detail |
|---|---|
| Access and calling | Built-in card reader; 1 physical call button |
| Audio | Built-in microphone and loudspeaker |
| Audio processing | Noise suppression; echo cancellation |
| Network | RJ45 10/100 Mbps; 2.4 GHz IEEE 802.11b/g/n Wi-Fi |
| Mobile calling | Direct Hik-Connect calls without an indoor station |
| Lock control | 1 relay; maximum 30 VDC, 2 A |
| TF card | Reserved |
General
| Feature | Detail |
|---|---|
| Material | Aluminium alloy |
| Power input | 12 VDC, 1.5 A; IEEE 802.3af PoE |
| Power consumption | Less than 10 W |
| Protection | IP65 |
| Mounting | Surface |
| Included mounting item | DS-KABV6133-G/Surface gang box |
| Environment | Outdoor |
| Net weight | 0.190 kg |
| Video — Camera | 2 MP |
|---|---|
| Video — Field of view | 129° horizontal; 75° vertical |
| Video — IR supplement | Up to 2.5 m |
| Video — WDR | 120 dB |
| Video — Compression | H.264 |
| System — Access and calling | Built-in card reader; 1 physical call button |
| System — Audio | Built-in microphone and loudspeaker |
| System — Audio processing | Noise suppression; echo cancellation |
| System — Network | RJ45 10/100 Mbps; 2.4 GHz IEEE 802.11b/g/n Wi-Fi |
| System — Mobile calling | Direct Hik-Connect calls without an indoor station |
| System — Lock control | 1 relay; maximum 30 VDC, 2 A |
| System — TF card | Reserved |
| General — Material | Aluminium alloy |
| General — Power input | 12 VDC, 1.5 A; IEEE 802.3af PoE |
| General — Power consumption | Less than 10 W |
| General — Protection | IP65 |
| General — Mounting | Surface |
| General — Included mounting item | DS-KABV6133-G/Surface gang box |
| General — Environment | Outdoor |
| General — Net weight | 0.190 kg |
§ 08Questions
Frequently asked about the DS-KV6133-WME1-SURFACE
Q.01
Which version is the DS-KV6133-WME1-SURFACE?
Q.02
What camera view does it provide?
Q.03
Can it call Hik-Connect without an indoor monitor?
Q.04
Does Wi-Fi remove the need for power?
Q.05
How many lock relays does it have?
Q.06
Which mounting item is included?
Q.07
Can it record to the TF-card interface?
