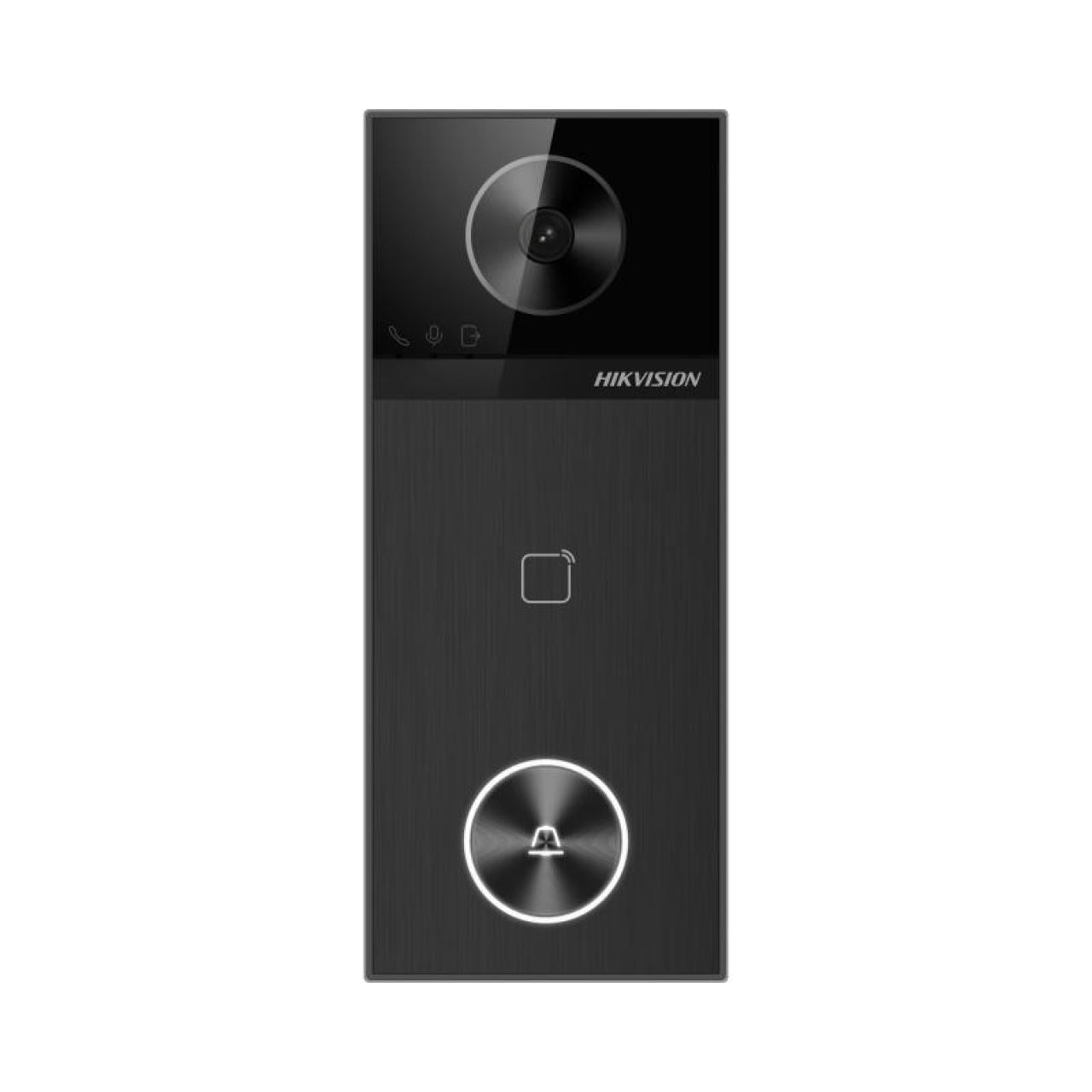

Hikvision DS-KV6114-WBE1 4MP Door Station
1 1
Hikvision

Hikvision DS-KV6114-WBE1 4MP Door Station

SKU: DS-KV6114-WBE1
Description

The Hikvision DS-KV6114-WBE1 is a 4 MP villa door station with a 150° horizontal view, visitor audio and two lock-control relays. Entry can be configured through M1 card, Bluetooth, Hik-Connect or indoor station. It supports Ethernet, 2.4 GHz Wi-Fi 6 and local TF-card storage up to 128 GB. Power requires IEEE 802.3at PoE or 12 VDC, 1.2 A. Select suitable lock hardware, power and surface mounting components for the entrance. Download the official Hikvision datasheet (PDF).
$268.00 AUD $268.00 AUD $412.00 AUD
Sale 34.95% $144.00 AUD (34.95%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-KV6114-WBE1 is

The Hikvision DS-KV6114-WBE1 combines visitor calling and access control at the entrance. Its card-reading area and call button provide the local interaction points.

Plan the camera position around the required approach view. The infrared light supports nearby night viewing, while the network provides the configured remote connection.

Check lock wiring and power limits separately. The two control relays have a different rating from the station power output, and Wi-Fi still requires an electrical supply.

§ 02Engineering

DS-KV6114-WBE1 specifications

Hikvision DS-KV6114-WBE1 camera — 4 MP — view visitors at the entrance.
Field of view — 150° horizontal and 75° vertical — plan the approach coverage.
Infrared — up to 3 m — support nearby night viewing.
Entry — M1 card, Bluetooth, Hik-Connect or indoor station — configure authorised access.
Lock control — 2 relays, maximum 30 VDC, 2 A — plan compatible lock circuits.
Power — IEEE 802.3at PoE or 12 VDC — supply the entrance station.

§ 03Full datasheet

Detailed specifications

Video

Video — Hikvision DS-KV6114-WBE1 4MP Door Station
FeatureDetail
Resolution 4 MP; 2688 × 1520
Field of view 150° horizontal; 75° vertical
IR range Up to 3 m
WDR 120 dB

§ 08Questions

Frequently asked about the DS-KV6114-WBE1

Q.01

What does the DS-KV6114-WBE1 provide?
It combines a 4 MP entrance camera, visitor audio and two lock-control relays.
Q.02

Does this model support PIN entry?
PIN entry is not specified for this model. Use its supported card, Bluetooth, Hik-Connect or indoor-station access methods.
Q.03

Which power source is needed?
Use IEEE 802.3at PoE or a 12 VDC, 1.2 A supply.
Q.04

Does Wi-Fi remove the power cable?
No. Wi-Fi carries network data, while the station still requires power.
Q.05

What is the camera viewing angle?
The camera has a 150° horizontal and 75° vertical view, with infrared light up to 3 m.
Q.06

How do the relay and power-output ratings differ?
The two relays are rated up to 30 VDC, 2 A. The separate power output is limited to 12 VDC, 1 A.
Q.07

Can a memory card be used?
It supports a TF card up to 128 GB. Select suitable storage and compatible entrance hardware for the installation.
