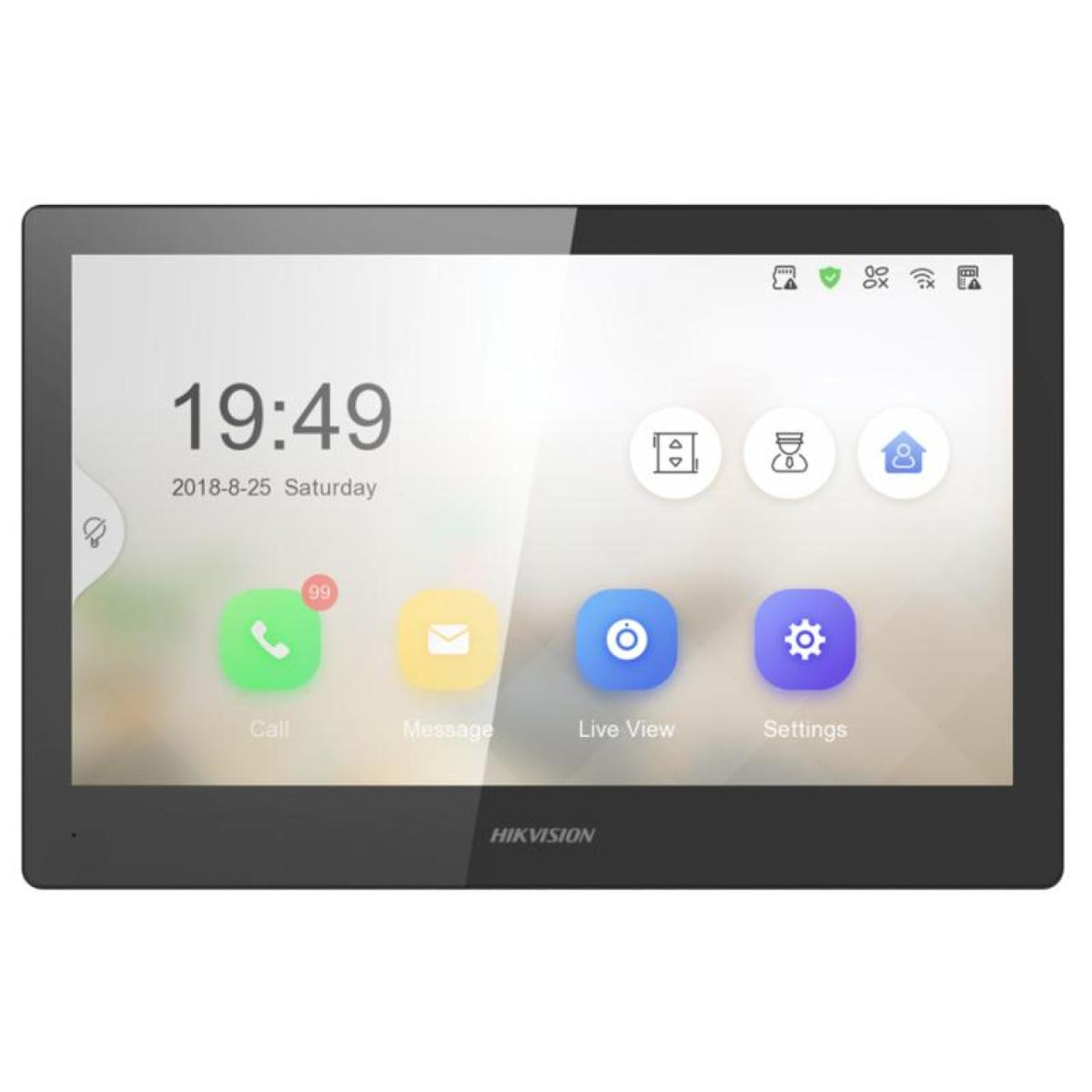

Hikvision DS-KH8520-WTE1 10.1-Inch Indoor Station
1 1
Hikvision

Hikvision DS-KH8520-WTE1 10.1-Inch Indoor Station

SKU: DS-KH8520-WTE1
Description

The Hikvision DS-KH8520-WTE1 is a black indoor video intercom station with a 10.1-inch TFT capacitive touchscreen and 1024 × 600 resolution. A built-in microphone and loudspeaker support visitor conversation, while Hik-Connect supports configured remote calls, live view and door release. Wired Ethernet and Wi-Fi provide networking options. It uses IEEE 802.3af PoE or 12 VDC power. Select a compatible entrance station, network and mounting arrangement for the complete installation. Download the official Hikvision datasheet (PDF).
$394.00 AUD $394.00 AUD $413.70 AUD
Sale 4.76% $19.70 AUD (4.76%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-KH8520-WTE1 is

The Hikvision DS-KH8520-WTE1 provides a larger indoor screen for answering visitor calls. It combines the intercom controls and viewing interface at a dedicated position inside the building.

Plan the network connection and supply around the intended wall location. Wi-Fi carries data but does not remove the need for power.

This is the black indoor unit. It has no built-in camera lens and should be selected as part of a compatible door-station system.

§ 02Engineering

DS-KH8520-WTE1 specifications

Hikvision DS-KH8520-WTE1 Display — 10.1-inch TFT, 1024 × 600 — view the intercom interface.
Audio — microphone and speaker — communicate with visitors.
Network — Ethernet and Wi-Fi — select the data connection.
Power — IEEE 802.3af PoE or 12 VDC — provide installation power.
Storage — TF card up to 128 GB — select suitable local storage.
Mobile access — Hik-Connect — use configured remote functions.

§ 03Full datasheet

Detailed specifications

Display

Display — Hikvision DS-KH8520-WTE1 10.1-Inch Indoor Station
FeatureDetail
Screen 10.1-inch TFT; 1024 × 600

§ 08Questions

Frequently asked about the DS-KH8520-WTE1

Q.01

Which DS-KH8520-WTE1 version is offered?
This is the black indoor station shown in the product image.
Q.02

What size is the screen?
It has a 10.1-inch TFT capacitive touchscreen with 1024 × 600 resolution.
Q.03

Does it support PoE?
Yes. IEEE 802.3af PoE and 12 VDC are the supported power options.
Q.04

Does Wi-Fi replace the power connection?
No. Wireless networking still requires the station to receive power.
Q.05

Does it have a camera?
The indoor station has no camera lens. It displays feeds from compatible linked equipment.
Q.06

What memory card can be used?
It supports a TF card up to 128 GB, using SD 2.0 or lower.
Q.07

What else is required?
Select the compatible door station, network, power equipment and suitable mounting arrangement.
