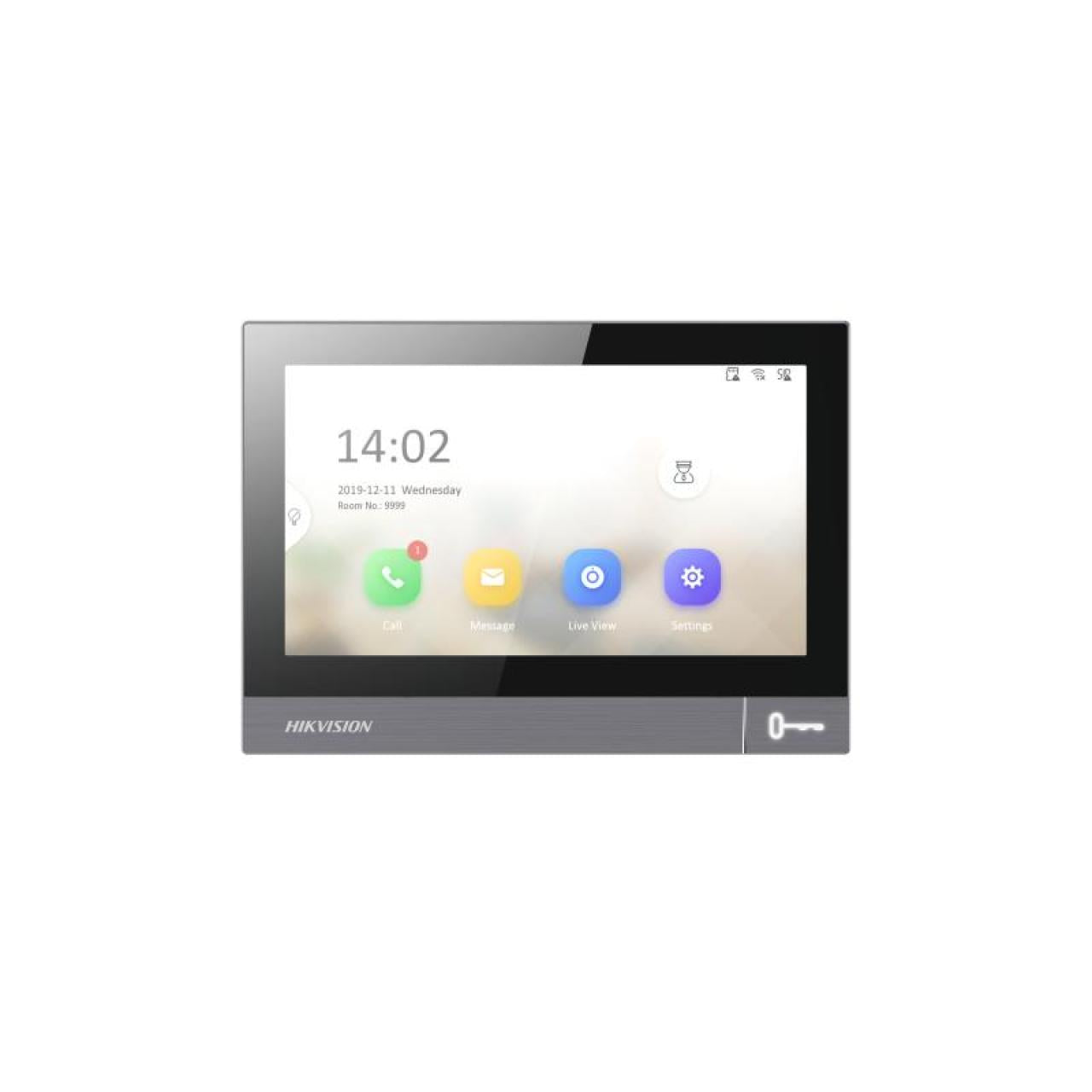

Hikvision DS-KH8381-WTE1/Flush 7-Inch Indoor Station
The Hikvision DS-KH8381-WTE1/Flush is an indoor intercom station with a 7-inch IPS capacitive touchscreen and 1024 × 600 resolution. It supports visitor audio, Wi-Fi, wired Ethernet and configured Hik-Connect functions. Power uses IEEE 802.3at PoE or 12 VDC, 1.5 A. Four relays are rated up to 30 VDC, 1 A, with a separate power output up to 12 VDC, 0.5 A. The DS-KABH8380-G mounting accessory is included. Select compatible entrance and lock equipment for the installation. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KH8381-WTE1/Flush is
The Hikvision DS-KH8381-WTE1/Flush provides an indoor answering point with a metal housing and physical door-opening button. This listing follows the Flush version of the station.
Choose the mounting arrangement to suit the wall. Surface, flush and table installation are supported with the appropriate hardware; the optional table bracket is selected separately.
Keep the relay ratings separate from the power output limit when planning lock connections. The station is part of a complete intercom design, so check the connected devices and supply.
§ 02Engineering
DS-KH8381-WTE1/Flush specifications
Network — Ethernet and Wi-Fi — plan the connection.
Power — IEEE 802.3at PoE or 12 VDC — select a suitable supply.
Lock control — 4 relays, maximum 30 VDC, 1 A — connect compatible control circuits.
Power output — maximum 12 VDC, 0.5 A — check the connected device load.
Storage — TF card up to 128 GB — select suitable local storage.
§ 03Full datasheet
Detailed specifications
Display
| Feature | Detail |
|---|---|
| Screen | 7-inch IPS; 1024 × 600 |
System
| Feature | Detail |
|---|---|
| Network | RJ45 10/100 Mbps; IEEE 802.11b/g/n Wi-Fi |
| Mobile | Hik-Connect |
| Audio | Microphone and speaker |
| Storage | TF card up to 128 GB |
| Lock relays | 4; maximum 30 VDC, 1 A |
| Power output | Maximum 12 VDC, 0.5 A |
General
| Feature | Detail |
|---|---|
| Power | IEEE 802.3at PoE or 12 VDC, 1.5 A |
| Consumption | Up to 12 W |
| Dimensions | 180.4 mm × 128.4 mm × 21.8 mm |
| Weight | 412.2 g |
| Material | Aluminium alloy |
| Mounting | Surface; flush; table |
| Included | DS-KABH8380-G |
| Optional | DS-KABH8380-T |
Features
| Feature | Detail |
|---|---|
| Item1 | Screen: 7-inch IPS, 1024 × 600 |
| Item2 | Network: Ethernet and Wi-Fi |
| Item3 | Power: IEEE 802.3at PoE or 12 VDC |
| Item4 | Lock control: 4 relays, maximum 30 VDC, 1 A |
| Item5 | Power output: maximum 12 VDC, 0.5 A |
| Item6 | Storage: TF card up to 128 GB |
| Display — Screen | 7-inch IPS; 1024 × 600 |
|---|---|
| System — Network | RJ45 10/100 Mbps; IEEE 802.11b/g/n Wi-Fi |
| System — Mobile | Hik-Connect |
| System — Audio | Microphone and speaker |
| System — Storage | TF card up to 128 GB |
| System — Lock relays | 4; maximum 30 VDC, 1 A |
| System — Power output | Maximum 12 VDC, 0.5 A |
| General — Power | IEEE 802.3at PoE or 12 VDC, 1.5 A |
| General — Consumption | Up to 12 W |
| General — Dimensions | 180.4 mm × 128.4 mm × 21.8 mm |
| General — Weight | 412.2 g |
| General — Material | Aluminium alloy |
| General — Mounting | Surface; flush; table |
| General — Included | DS-KABH8380-G |
| General — Optional | DS-KABH8380-T |
| Features — Item1 | Screen: 7-inch IPS, 1024 × 600 |
| Features — Item2 | Network: Ethernet and Wi-Fi |
| Features — Item3 | Power: IEEE 802.3at PoE or 12 VDC |
| Features — Item4 | Lock control: 4 relays, maximum 30 VDC, 1 A |
| Features — Item5 | Power output: maximum 12 VDC, 0.5 A |
| Features — Item6 | Storage: TF card up to 128 GB |
§ 08Questions
Frequently asked about the DS-KH8381-WTE1/Flush
Q.01
Which version is DS-KH8381-WTE1/Flush?
Q.02
Which power source is needed?
Q.03
Does it support Wi-Fi?
Q.04
How many lock-control relays are provided?
Q.05
What is the separate power output limit?
Q.06
Which mounting accessory is included?
Q.07
What else is required?
