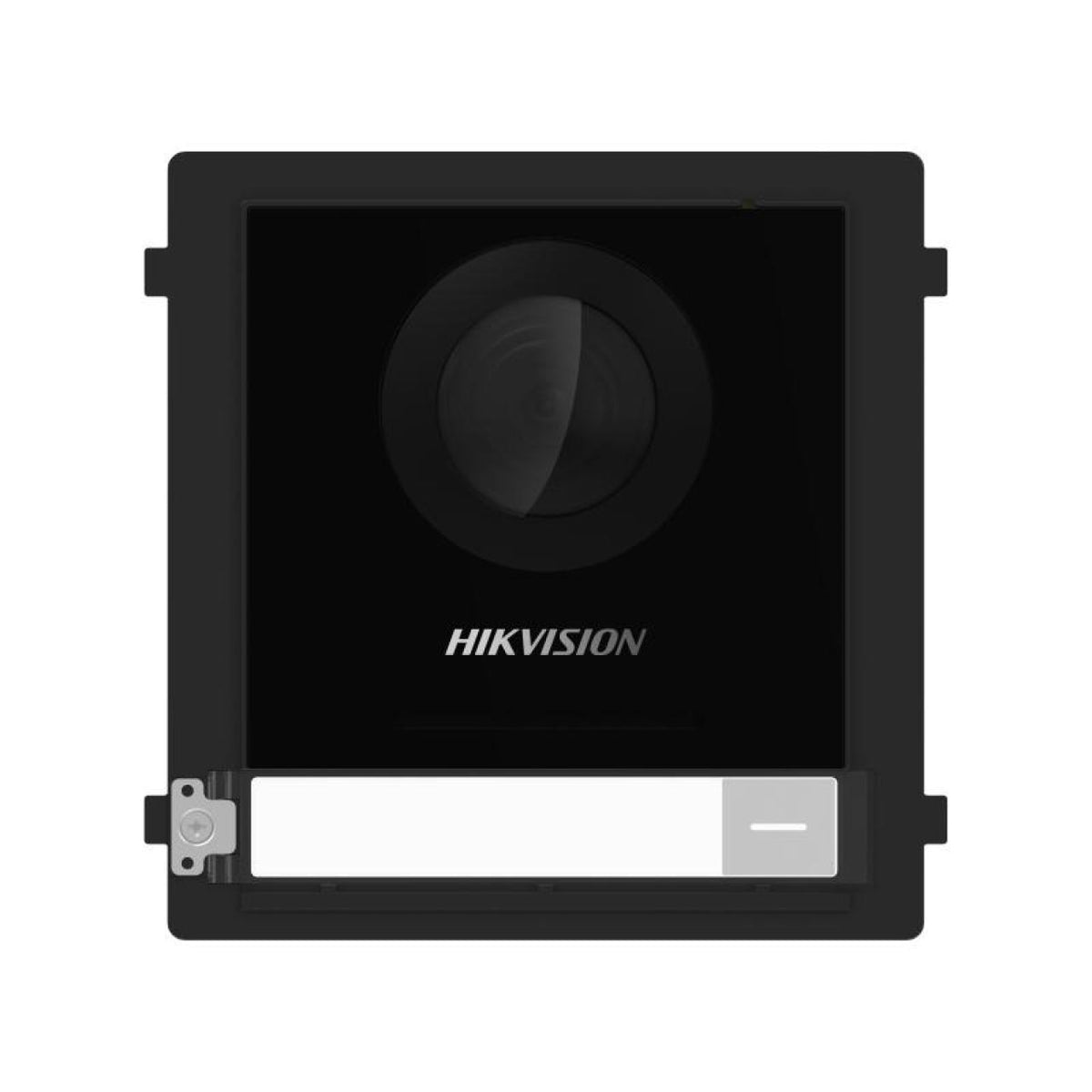

Hikvision DS-KD8003Y-IME2 2MP Two-Wire Door Station
The Hikvision DS-KD8003Y-IME2 is a two-wire main unit for a compatible modular video door station. Its 2 MP fisheye camera and infrared lighting support visitor viewing, while the microphone, speaker and physical call button provide the entrance intercom functions. The unit has two lock-control relays and is powered through a compatible KAD704Y or KAD706Y-series distribution unit. Choose the mounting housing, indoor station and required extension modules around the complete two-wire system. This is the Y-series main module, not a standard PoE Ethernet door station or a complete intercom kit. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KD8003Y-IME2 is
The Hikvision DS-KD8003Y-IME2 forms the camera and calling point in a compatible two-wire entrance system. Its modular arrangement lets the installer select the additional entrance functions and mounting format needed at the site.
The two-wire connection is central to the system design. This model has a two-wire IP interface and no standard Ethernet network interface, so an ordinary PoE switch is not a substitute for the specified distribution arrangement.
Consider the entrance view and lock circuits together when planning the installation. The main module provides visitor communication, while housing selection, compatible indoor devices and correct lock wiring complete the system.
§ 02Engineering
DS-KD8003Y-IME2 specifications
Viewing angle — 146° horizontal and 82° vertical — check the entrance coverage.
Night viewing — IR supplement up to 3 m — support nearby visitor viewing in low light.
Calling and audio — one call button, microphone and loudspeaker — provide visitor conversation.
System connection — two-wire IP interface — use a compatible KAD704Y or KAD706Y-series distribution unit.
Lock control — two relays, maximum 30 VDC, 2 A — check the connected lock circuits.
Outdoor use — IP65 — select the appropriate surface or flush assembly.
§ 03Full datasheet
Detailed specifications
Video and audio
| Feature | Detail |
|---|---|
| Camera | 2 MP fisheye |
| Horizontal field of view | 146° |
| Vertical field of view | 82° |
| IR supplement range | Up to 3 m |
| Video compression | H.264; H.265; MJPEG |
| Microphone | Built-in omnidirectional microphone |
| Speaker | Built-in loudspeaker |
| Audio processing | Noise suppression; echo cancellation |
System
| Feature | Detail |
|---|---|
| Call buttons | 1 |
| Two-wire IP interface | 1 |
| Standard Ethernet interface | No |
| RS-485 | 1; sub-module communication |
| Lock relays | 2; maximum 30 VDC, 2 A |
| Power supply | Compatible KAD704Y or KAD706Y-series distribution unit |
| Power consumption | Up to 4 W |
General
| Feature | Detail |
|---|---|
| Protection | IP65 |
| Environment | Outdoor |
| Mounting | Surface or flush assembly |
| Width | 100 mm |
| Height | 98 mm |
| Depth | 42 mm |
| Net weight | 0.380 kg |
| Video and audio — Camera | 2 MP fisheye |
|---|---|
| Video and audio — Horizontal field of view | 146° |
| Video and audio — Vertical field of view | 82° |
| Video and audio — IR supplement range | Up to 3 m |
| Video and audio — Video compression | H.264; H.265; MJPEG |
| Video and audio — Microphone | Built-in omnidirectional microphone |
| Video and audio — Speaker | Built-in loudspeaker |
| Video and audio — Audio processing | Noise suppression; echo cancellation |
| System — Call buttons | 1 |
| System — Two-wire IP interface | 1 |
| System — Standard Ethernet interface | No |
| System — RS-485 | 1; sub-module communication |
| System — Lock relays | 2; maximum 30 VDC, 2 A |
| System — Power supply | Compatible KAD704Y or KAD706Y-series distribution unit |
| System — Power consumption | Up to 4 W |
| General — Protection | IP65 |
| General — Environment | Outdoor |
| General — Mounting | Surface or flush assembly |
| General — Width | 100 mm |
| General — Height | 98 mm |
| General — Depth | 42 mm |
| General — Net weight | 0.380 kg |
§ 08Questions
Frequently asked about the DS-KD8003Y-IME2
Q.01
What type of system uses the DS-KD8003Y-IME2?
Q.02
Which unit supplies its power?
Q.03
What camera does it use?
Q.04
Does it support visitor conversation?
Q.05
How far does the infrared supplement reach?
Q.06
Can it control two locks?
Q.07
Does this include the housing and indoor station?
