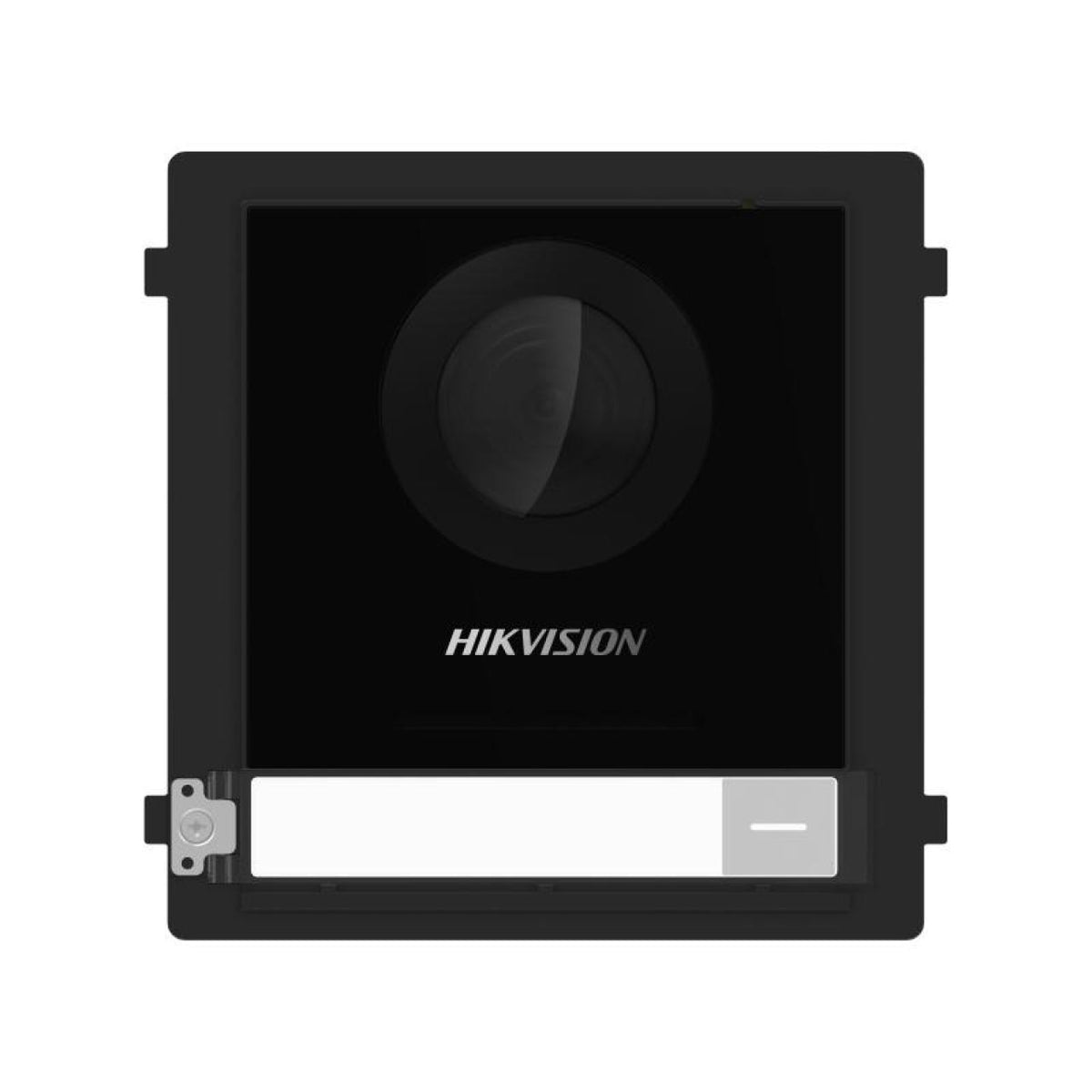

Hikvision DS-KD8003-IME1(B) 2MP PoE Door Station
The Hikvision DS-KD8003-IME1(B) is the main camera module for a compatible KD8 modular video door station. Its 2 MP fisheye camera, infrared supplementary lighting, microphone and speaker support visitor viewing and conversation at the entrance. A physical call button provides a simple calling point, while two relays support lock control. Power comes from standard IEEE 802.3af PoE or 12 VDC. Select the mounting housing, any additional function modules and the rest of the intercom system separately. This listing is the B-revision main module, not a complete intercom kit or the older unqualified IME1 hardware. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KD8003-IME1(B) is
The Hikvision DS-KD8003-IME1(B) provides the camera and calling core of a modular entrance station. Start with this main unit, then choose the mounting arrangement and supported function modules around the people who will use the entrance.
A wired network connection keeps the station connected to the configured intercom system. Standard PoE offers a power option through the network cable; Wi-Fi is not provided on this model.
Plan lock control separately from the camera view. The relay switching limits and any direct lock-power output are different specifications, so compatibility must be checked for the selected lock rather than inferred from the number of relays.
§ 02Engineering
DS-KD8003-IME1(B) specifications
Viewing angle — 146° horizontal and 82° vertical — check the view around the entrance.
Calling — one physical call button — provide a direct visitor calling point.
Audio — built-in microphone and loudspeaker — support intercom conversation with noise suppression and echo cancellation.
Power — IEEE 802.3af PoE or 12 VDC — select the appropriate wired power arrangement.
Lock control — two relays rated up to 30 VDC, 2 A — check each lock circuit before connection.
Protection — IP65 — suit an appropriately installed outdoor door station.
§ 03Full datasheet
Detailed specifications
Video
| Feature | Detail |
|---|---|
| Camera | 2 MP fisheye |
| Horizontal field of view | 146° |
| Vertical field of view | 82° |
| WDR | Supported |
| Supplement light | IR |
| Video compression | H.264; H.265; MJPEG |
Audio and interfaces
| Feature | Detail |
|---|---|
| Microphone | Built-in omnidirectional microphone |
| Speaker | Built-in loudspeaker |
| Audio processing | Noise suppression; echo cancellation |
| Call buttons | 1 |
| Ethernet | 1 RJ45; 10/100 Mbps |
| Wi-Fi | No |
| RS-485 | 1; sub-module communication |
| Lock relays | 2; maximum 30 VDC, 2 A |
Power and general
| Feature | Detail |
|---|---|
| Power input | 12 VDC, 500 mA; IEEE 802.3af PoE |
| Power consumption | Up to 5 W |
| Protection | IP65 |
| Environment | Outdoor |
| Mounting | Surface or flush assembly |
| Net weight | 380 g |
| Video — Camera | 2 MP fisheye |
|---|---|
| Video — Horizontal field of view | 146° |
| Video — Vertical field of view | 82° |
| Video — WDR | Supported |
| Video — Supplement light | IR |
| Video — Video compression | H.264; H.265; MJPEG |
| Audio and interfaces — Microphone | Built-in omnidirectional microphone |
| Audio and interfaces — Speaker | Built-in loudspeaker |
| Audio and interfaces — Audio processing | Noise suppression; echo cancellation |
| Audio and interfaces — Call buttons | 1 |
| Audio and interfaces — Ethernet | 1 RJ45; 10/100 Mbps |
| Audio and interfaces — Wi-Fi | No |
| Audio and interfaces — RS-485 | 1; sub-module communication |
| Audio and interfaces — Lock relays | 2; maximum 30 VDC, 2 A |
| Power and general — Power input | 12 VDC, 500 mA; IEEE 802.3af PoE |
| Power and general — Power consumption | Up to 5 W |
| Power and general — Protection | IP65 |
| Power and general — Environment | Outdoor |
| Power and general — Mounting | Surface or flush assembly |
| Power and general — Net weight | 380 g |
§ 08Questions
Frequently asked about the DS-KD8003-IME1(B)
Q.01
What does the DS-KD8003-IME1(B) main module provide?
Q.02
Can it be powered by PoE?
Q.03
Does the station have Wi-Fi?
Q.04
Can it control two locks?
Q.05
What is the camera viewing angle?
Q.06
Is it intended for outdoor use?
Q.07
Is this a complete intercom kit?
