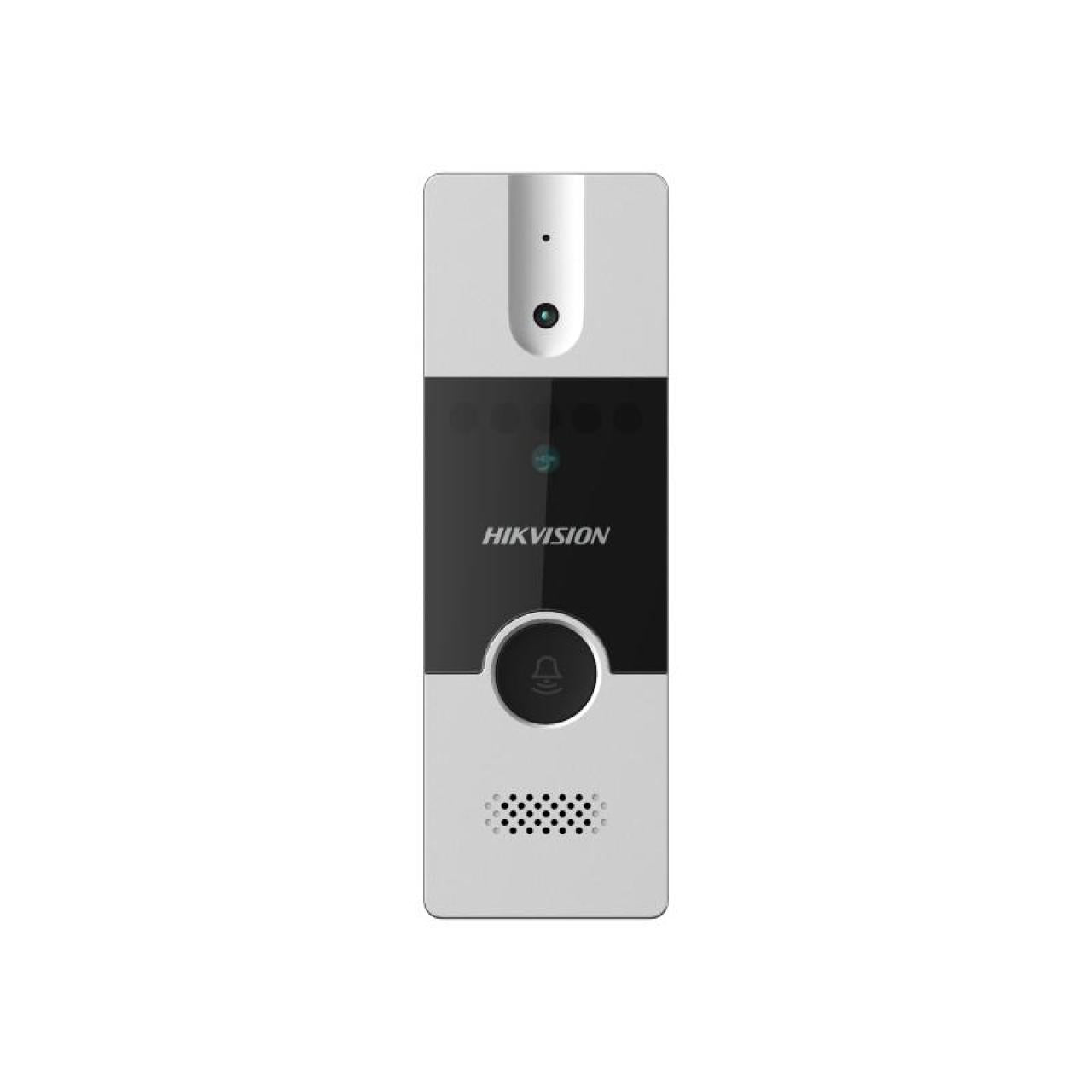

Hikvision DS-KB2411T-IM Four-Wire Analog Door Station
The Hikvision DS-KB2411T-IM is a four-wire analogue door station for visitor calling and door access in a compatible intercom installation. It combines a 2 MP camera, self-adaptive infrared illumination up to 3 m, a built-in microphone and a loudspeaker. A single call button starts the visitor conversation, while one relay supports lock control up to 30 V, 1 A. The camera resolution is 1920 × 1080 and the transmitted stream is 960 × 576. Power is specified as 12 VDC, 1 A, with consumption up to 5 W. Select compatible indoor equipment, wiring, power and lock hardware for the complete system. Download the official Hikvision datasheet (PDF).
Delivery, warranty & returns · ships same day before 2pm
- Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
- 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
- 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
- 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
- Genuine Australian stock. Never grey imports. Prices include GST.
All cameras, NVRs and DVRs come with a 3-year back-to-base manufacturer warranty covering defects in materials and workmanship, in addition to your rights under Australian Consumer Law. Hard drives and accessories are covered as set out in our Warranty Policy.
Standard shipping is free on all orders over $300 AUD, Australia-wide. Orders under $300 ship at a flat rate of $25, calculated at checkout. Tracking is included on every order.
You have 30 days from the day you receive your order to request a change-of-mind return. Items must be unopened, factory-sealed and in resalable condition. A 15% restocking fee applies and return postage is at your cost. Faulty or incorrectly supplied items are different: we cover the return shipping and refund or replace at no charge. Read the full Return & Refund Policy.
Order before 2pm (Sydney time) on a business day and in-stock items are dispatched the same day. Most orders arrive within 1–4 business days Australia-wide; remote and regional areas can take a little longer. You'll receive a tracking number by email as soon as your order leaves the warehouse.
§ 01Overview
What the DS-KB2411T-IM is
The Hikvision DS-KB2411T-IM provides an entrance calling point for a compatible four-wire analogue intercom. Its single-button layout gives visitors a direct way to start a conversation with the indoor station.
Check the indoor equipment and wiring before selecting this door station. The system supports two door stations simultaneously when configured with compatible equipment.
Plan the camera position around its 66.2° horizontal view and IR range of up to 3 m. Select the lock circuit to stay within the relay rating. The product is a door station; choose the remaining system components for the installation.
§ 02Engineering
DS-KB2411T-IM specifications
Infrared — self-adaptive IR illumination up to 3 m — support viewing near the entrance.
Calling — one-touch call button — start a visitor conversation.
Audio — built-in microphone and loudspeaker — talk through the entrance station.
Lock control — 1 relay, maximum 30 V, 1 A — match the connected lock circuit.
System — four-wire analogue intercom — select compatible indoor equipment.
§ 03Full datasheet
Detailed specifications
Video
| Feature | Detail |
|---|---|
| Camera | 2 MP; 1920 × 1080 |
| Stream resolution | 960 × 576 |
| Field of view | Horizontal 66.2°; vertical 37.2° |
| IR illumination | Self-adaptive; up to 3 m |
Audio
| Feature | Detail |
|---|---|
| Input | 1 built-in omnidirectional microphone |
| Output | 1 built-in loudspeaker |
System
| Feature | Detail |
|---|---|
| Connection | Four-wire analogue intercom |
| Calling | One-touch call button |
| Door-station capacity | Two simultaneously in a compatible intercom system |
| Lock control | 1 relay; maximum 30 V, 1 A |
General
| Feature | Detail |
|---|---|
| Power | 12 VDC, 1 A |
| Consumption | Up to 5 W |
| Material | Aluminium alloy |
| Dimensions | 135.14 mm × 49.6 mm × 41.93 mm |
| Operating temperature | -10°C to +55°C |
| Operating humidity | 10% to 90%; non-condensing |
Features
| Feature | Detail |
|---|---|
| Item1 | Video: 2 MP camera; 960 × 576 stream |
| Item2 | Infrared: self-adaptive IR illumination up to 3 m |
| Item3 | Calling: one-touch call button |
| Item4 | Audio: built-in microphone and loudspeaker |
| Item5 | Lock control: 1 relay, maximum 30 V, 1 A |
| Item6 | System: four-wire analogue intercom |
| Video — Camera | 2 MP; 1920 × 1080 |
|---|---|
| Video — Stream resolution | 960 × 576 |
| Video — Field of view | Horizontal 66.2°; vertical 37.2° |
| Video — IR illumination | Self-adaptive; up to 3 m |
| Audio — Input | 1 built-in omnidirectional microphone |
| Audio — Output | 1 built-in loudspeaker |
| System — Connection | Four-wire analogue intercom |
| System — Calling | One-touch call button |
| System — Door-station capacity | Two simultaneously in a compatible intercom system |
| System — Lock control | 1 relay; maximum 30 V, 1 A |
| General — Power | 12 VDC, 1 A |
| General — Consumption | Up to 5 W |
| General — Material | Aluminium alloy |
| General — Dimensions | 135.14 mm × 49.6 mm × 41.93 mm |
| General — Operating temperature | -10°C to +55°C |
| General — Operating humidity | 10% to 90%; non-condensing |
| Features — Item1 | Video: 2 MP camera; 960 × 576 stream |
| Features — Item2 | Infrared: self-adaptive IR illumination up to 3 m |
| Features — Item3 | Calling: one-touch call button |
| Features — Item4 | Audio: built-in microphone and loudspeaker |
| Features — Item5 | Lock control: 1 relay, maximum 30 V, 1 A |
| Features — Item6 | System: four-wire analogue intercom |
§ 08Questions
Frequently asked about the DS-KB2411T-IM
Q.01
What system does the DS-KB2411T-IM use?
Q.02
What is the video resolution?
Q.03
Does it have infrared illumination?
Q.04
How does a visitor make a call?
Q.05
Can it control a door lock?
Q.06
What are the power requirements?
Q.07
Is this a complete intercom kit?
