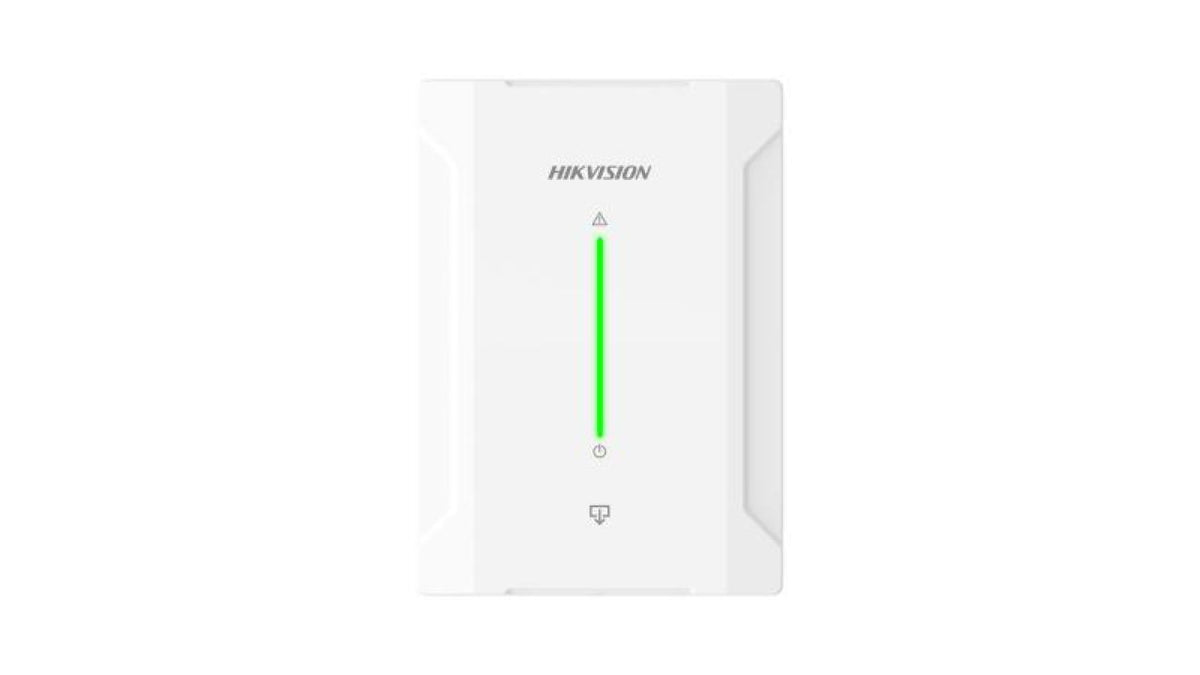

Hikvision DS-PM1-O4L-H 4-Way Relay Expander
1 1
Hikvision

Hikvision DS-PM1-O4L-H 4-Way Relay Expander

SKU: DS-PM1-O4L-H
Description

The Hikvision DS-PM1-O4L-H is a wired four-way relay expander for an AX Hybrid Pro alarm system. Speed-X connections link it to the control panel and support expansion. Each relay can switch a compatible 6 to 30 V circuit at up to 5 A; the separate auxiliary output has a 500 mA maximum. Download the official Hikvision datasheet (PDF).
$91.11 AUD $91.11 AUD $95.67 AUD
Sale 4.77% $4.56 AUD (4.77%)
Business or bulk buyer? Apply for trade pricing →
Found a lower price? We’ll match it →
Delivery, warranty & returns · ships same day before 2pm
  • Same-day dispatch on in-stock orders placed before 2pm, Sydney time.
  • 1–4 business days Australia-wide. Free standard shipping over $300, flat $25 under.
  • 3-year warranty on cameras and recorders, back-to-base, plus your Australian Consumer Law rights.
  • 30-day returns on unopened items. Faulty on arrival? We cover return shipping.
  • Genuine Australian stock. Never grey imports. Prices include GST.
  • American Express
  • Apple Pay
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa

See all FAQs →

In stock

§ 01Overview

What the DS-PM1-O4L-H is

The Hikvision DS-PM1-O4L-H is a wired four-way relay expander for an AX Hybrid Pro alarm system.

Use it to control compatible low-voltage circuits through the alarm system. Distinguish switched relay load ratings from the power required by the expander itself.

Check control-panel compatibility, relay load voltage and current, and Speed-X wiring. Calculate the separate module supply and auxiliary output loads before connection.

§ 02Engineering

DS-PM1-O4L-H specifications

Hikvision DS-PM1-O4L-H Relays — 4 on-board relays for 6 to 30 V circuits, up to 5 A each
System — AX Hybrid Pro through Speed-X
Bus — One Speed-X uplink and one downlink
Module supply — 11 to 24 VDC
Auxiliary output — 9 to 12 VDC, maximum 500 mA
Tamper protection — Front and rear
Dimensions — 110 x 155 x 32.5 mm

§ 03Full datasheet

Detailed specifications

Specification

Specification — Hikvision DS-PM1-O4L-H 4-Way Relay Expander
FeatureDetail
Relays 4 on-board relays for 6 to 30 V circuits, up to 5 A each
System AX Hybrid Pro through Speed-X
Bus One Speed-X uplink and one downlink
Module supply 11 to 24 VDC
Auxiliary output 9 to 12 VDC, maximum 500 mA
Tamper protection Front and rear
Dimensions 110 x 155 x 32.5 mm

§ 08Questions

Frequently asked about the DS-PM1-O4L-H

Q.01

What is the DS-PM1-O4L-H?
The Hikvision DS-PM1-O4L-H is a wired four-way relay expander for an AX Hybrid Pro alarm system.
Q.02

What circuits can the relays switch?
4 on-board relays for 6 to 30 V circuits, up to 5 A each.
Q.03

Which alarm system does it connect to?
AX Hybrid Pro through Speed-X.
Q.04

Can additional expanders be cascaded?
One Speed-X uplink and one downlink.
Q.05

What supply does the module require?
11 to 24 VDC.
Q.06

What auxiliary output is provided?
9 to 12 VDC, maximum 500 mA.
Q.07

What should I check before ordering?
Check control-panel compatibility, relay load voltage and current, and Speed-X wiring. Calculate the separate module supply and auxiliary output loads before connection.
